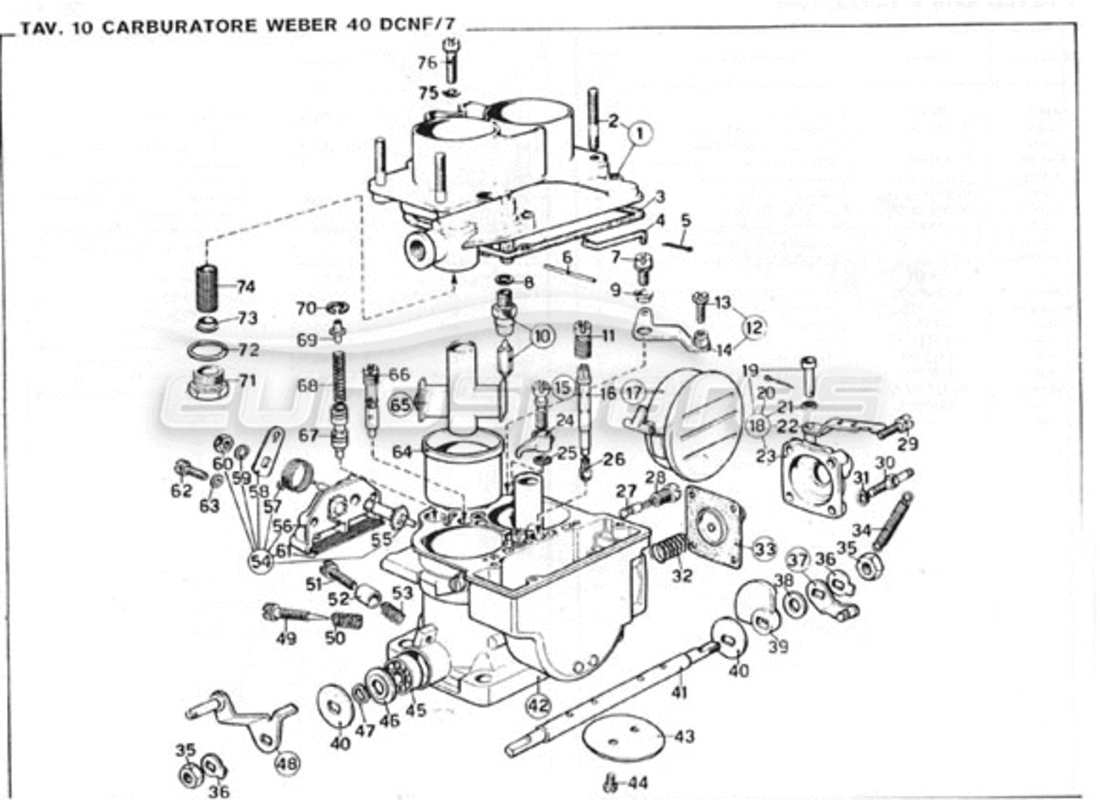

Ferrari 246 GT Series 1 Weber Carburettor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                          #
                                                                                                                                                          Part number
                                                                                                                                                          Description
                                                                                                                                                          Price
                                                                                                                                                          # 001
                                                                                                                                                          MPN: 9918767
                                                                                                                                                          COVER
                                                                                                                                                          # 002
                                                                                                                                                          MPN: 9909525
                                                                                                                                                          SCREW
                                                                                                                                                          # 005
                                                                                                                                                          MPN: 9914495
                                                                                                                                                          SPLIT PIN
                                                                                                                                                          # 007
                                                                                                                                                          MPN: 9908650
                                                                                                                                                          SCREW
                                                                                                                                                          # 008
                                                                                                                                                          MPN: 9906837
                                                                                                                                                          SEALING RING
                                                                                                                                                          # 009
                                                                                                                                                          MPN: 9916275
                                                                                                                                                          BUSH
                                                                                                                                                          # 010
                                                                                                                                                          MPN: 9917872
                                                                                                                                                          NEEDLE VALVE
                                                                                                                                                          # 011
                                                                                                                                                          MPN: 9918749
                                                                                                                                                          JET
                                                                                                                                                          # 012
                                                                                                                                                          -
                                                                                                                                                          CARB LEVER AND SCREW
                                                                                                                                                          # 013
                                                                                                                                                          MPN: 9914500
                                                                                                                                                          SCREW
                                                                                                                                                          # 014
                                                                                                                                                          MPN: 9918750
                                                                                                                                                          LEVER
                                                                                                                                                          # 015
                                                                                                                                                          MPN: 9916276
                                                                                                                                                          VALVE
                                                                                                                                                          # 017
                                                                                                                                                          MPN: 9918752
                                                                                                                                                          FLOAT
                                                                                                                                                          # 018
                                                                                                                                                          MPN: 9916302
                                                                                                                                                          COVER
                                                                                                                                                          # 019
                                                                                                                                                          -
                                                                                                                                                          PIVOT
                                                                                                                                                          # 020
                                                                                                                                                          MPN: 9914495
                                                                                                                                                          SPLIT PIN
                                                                                                                                                          # 021
                                                                                                                                                          MPN: 9916334
                                                                                                                                                          WASHER
                                                                                                                                                          # 022
                                                                                                                                                          MPN: 9916335
                                                                                                                                                          LEVER
                                                                                                                                                          # 023
                                                                                                                                                          MPN: 9916336
                                                                                                                                                          COVER
                                                                                                                                                          # 024
                                                                                                                                                          MPN: 9916287
                                                                                                                                                          JET
                                                                                                                                                          # 025
                                                                                                                                                          MPN: 9904983
                                                                                                                                                          SEALING RING
                                                                                                                                                          # 026
                                                                                                                                                          MPN: 9918753
                                                                                                                                                          JET
                                                                                                                                                          # 027
                                                                                                                                                          MPN: 9918754
                                                                                                                                                          JET
                                                                                                                                                          # 028
                                                                                                                                                          MPN: 9907257
                                                                                                                                                          SCREW
                                                                                                                                                          # 029
                                                                                                                                                          MPN: 9909139
                                                                                                                                                          SCREW
                                                                                                                                                          # 030
                                                                                                                                                          MPN: 9916337
                                                                                                                                                          STUD
                                                                                                                                                          # 031
                                                                                                                                                          MPN: 9907260
                                                                                                                                                          WASHER
                                                                                                                                                          # 032
                                                                                                                                                          MPN: 9914510
                                                                                                                                                          SPRING
                                                                                                                                                          # 034
                                                                                                                                                          MPN: 9916338
                                                                                                                                                          SPRING
                                                                                                                                                          # 035
                                                                                                                                                          MPN: 9905045
                                                                                                                                                          NUT
                                                                                                                                                          # 036
                                                                                                                                                          MPN: 9911674
                                                                                                                                                          WASHER
                                                                                                                                                          # 037
                                                                                                                                                          MPN: 9916339
                                                                                                                                                          LEVER
                                                                                                                                                          # 039
                                                                                                                                                          MPN: 9916341
                                                                                                                                                          CAM PUMP CONTROL
                                                                                                                                                          # 040
                                                                                                                                                          MPN: 9916342
                                                                                                                                                          WASHER
                                                                                                                                                          # 041
                                                                                                                                                          MPN: 9918755
                                                                                                                                                          SHAFT
                                                                                                                                                          # 042
                                                                                                                                                          -
                                                                                                                                                          CARBURETTOR BODY
                                                                                                                                                          # 044
                                                                                                                                                          MPN: 9917876
                                                                                                                                                          SCREW
                                                                                                                                                          # 046
                                                                                                                                                          MPN: 9916346
                                                                                                                                                          WASHER
                                                                                                                                                          # 047
                                                                                                                                                          MPN: 9916347
                                                                                                                                                          WASHER
                                                                                                                                                          # 048
                                                                                                                                                          MPN: 9918756
                                                                                                                                                          LEVER
                                                                                                                                                          # 049
                                                                                                                                                          MPN: 9918757
                                                                                                                                                          SCREW
                                                                                                                                                          # 050
                                                                                                                                                          MPN: 9904577
                                                                                                                                                          SPRING
                                                                                                                                                          # 051
                                                                                                                                                          MPN: 9904616
                                                                                                                                                          SCREW
                                                                                                                                                          # 052
                                                                                                                                                          MPN: 9916352
                                                                                                                                                          BUSH
                                                                                                                                                          # 053
                                                                                                                                                          MPN: 9904577
                                                                                                                                                          SPRING
                                                                                                                                                          # 054
                                                                                                                                                          -
                                                                                                                                                          LEVER ASSY
                                                                                                                                                          # 055
                                                                                                                                                          MPN: 9911693
                                                                                                                                                          SHAFT
                                                                                                                                                          # 056
                                                                                                                                                          MPN: 9918758
                                                                                                                                                          COVER
                                                                                                                                                          # 058
                                                                                                                                                          MPN: 9917859
                                                                                                                                                          LEVER
                                                                                                                                                          # 059
                                                                                                                                                          MPN: 991865
                                                                                                                                                          WASHER
                                                                                                                                                          # 060
                                                                                                                                                          MPN: 9904660
                                                                                                                                                          NUT
                                                                                                                                                          # 061
                                                                                                                                                          MPN: 9911692
                                                                                                                                                          FILTER ELEMENT
                                                                                                                                                          # 062
                                                                                                                                                          MPN: 9909139
                                                                                                                                                          SCREW
                                                                                                                                                          # 063
                                                                                                                                                          MPN: 9904923
                                                                                                                                                          WASHER
                                                                                                                                                          # 064
                                                                                                                                                          MPN: 9916353
                                                                                                                                                          DIFFUSER
                                                                                                                                                          # 065
                                                                                                                                                          MPN: 9916354
                                                                                                                                                          NOZZLE
                                                                                                                                                          # 066
                                                                                                                                                          MPN: 9918760
                                                                                                                                                          JET
                                                                                                                                                          # 068
                                                                                                                                                          MPN: 9918762
                                                                                                                                                          SPRING
                                                                                                                                                          # 069
                                                                                                                                                          MPN: 9918763
                                                                                                                                                          BUSH
                                                                                                                                                          # 070
                                                                                                                                                          MPN: 9918764
                                                                                                                                                          RING
                                                                                                                                                          # 072
                                                                                                                                                          MPN: 9907814
                                                                                                                                                          SEALING RING
                                                                                                                                                          # 074
                                                                                                                                                          MPN: 9917873
                                                                                                                                                          FILTER
                                                                                                                                                          # 075
                                                                                                                                                          MPN: 9904941
                                                                                                                                                          WASHER
                                                                                                                                                          # 076
                                                                                                                                                          MPN: 9904687
                                                                                                                                                          SCREW
