023 - Gearbox Outer Controls

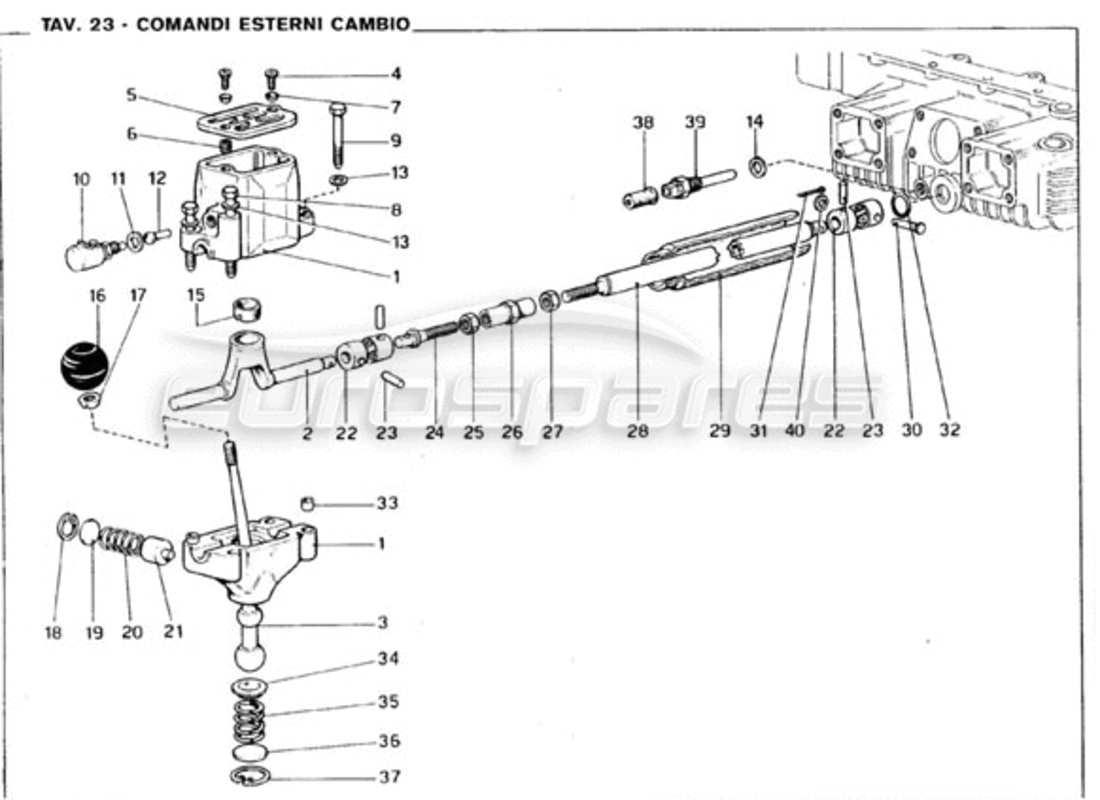

Ferrari 246 GT Series 1 Gearbox Outer Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 524142
GEARBOX CASE
from £3,144.75
from £3,144.75
# 001
MPN: 524143
LEAVER
# 002
MPN: 524144
PIN
Supersession
Supersession
# 003
MPN: 523150
LEAVER
Supersession
Supersession
# 004
MPN: 5x0,8x12 - UNI 274
SCREW
5x0,8x12 - UNI 274
# 005
MPN: 522499
GEAR LEVER GATE
# 006
MPN: 5 X 0,8 x 7,5
BUSHING
5 X 0,8 x 7,5
# 007
MPN: RDS 5
WASHER
# 008

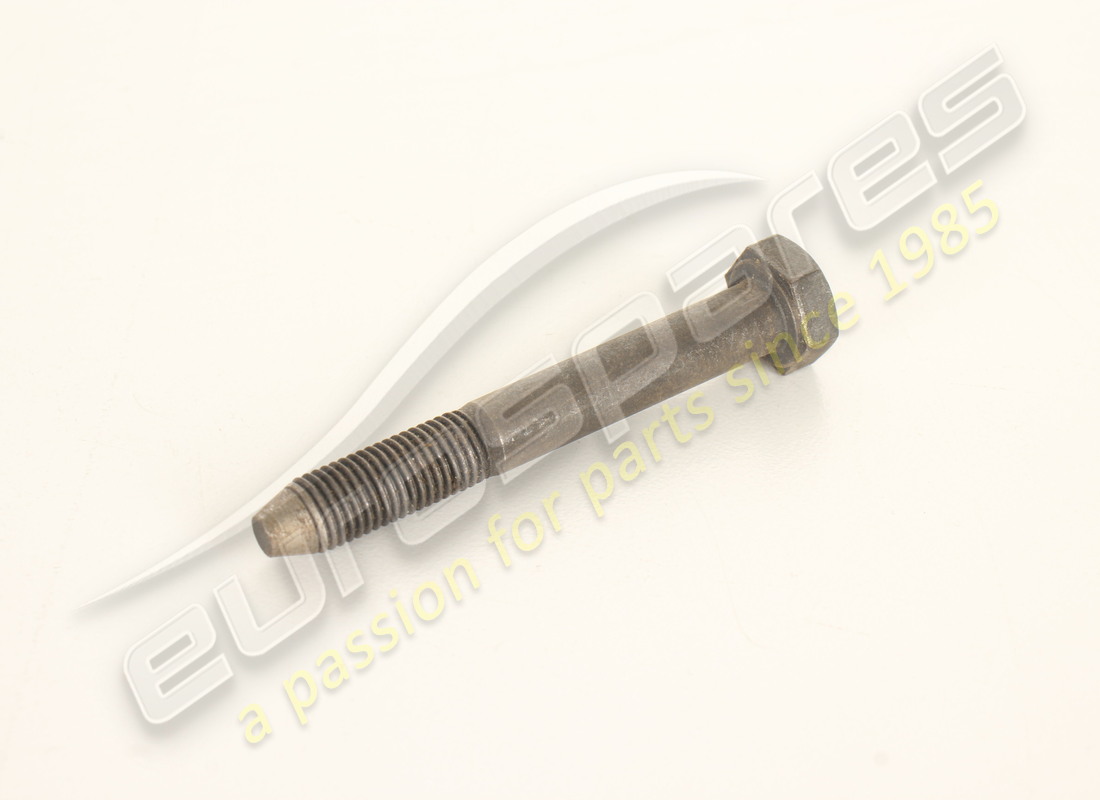

MPN: 95430
BOLT
from £2.99
from £2.99
# 009
MPN: 95060
BOLT
from £0.99
from £0.99
# 010
MPN: 522749
SWITCH
# 011
MPN: RC 10
WASHER
# 012
MPN: 522497
PIN FOR SWITCH
Supersession
Supersession
# 013
MPN: 5R2
WASHER
# 014
MPN: 94877
GASKET
Supersession
Supersession
# 015
MPN: 522509
BUSH
# 016
MPN: 523148
Gear Lever Knob
Supersession
Supersession
# 017
MPN: 523214
RETAINING NUT
Supersession
Supersession
# 018
MPN: AA 23 i
SEEGER RING
# 019
MPN: 522515
CORE PLUG
Supersession
Supersession
# 020
MPN: 522483
SPRING
Supersession
Supersession
# 021
MPN: 522514
LEVER RETURN PIN
Supersession
Supersession
# 022
MPN: 520187
GEAR LINKAGE UNIVERSAL JOINT
Supersession
Supersession
# 023
MPN: N 5x26
PLUG
# 024
MPN: 523075
GEAR LINKAGE
# 025
MPN: 523971
NUT
# 026
MPN: 521362
ADJUSTER
Supersession
Supersession
# 027
MPN: 12x1,25 - UNI 5589
RIGHT NUT
12x1,25 - UNI 5589
# 028
MPN: 523890
TUBE
from £84.97
from £84.97
# 029
MPN: 522722
SELECTOR SHAFT DUST COVER
from £68.77
from £68.77
# 030
MPN: 523712
PIN
Supersession
Supersession
# 031
MPN: C1
SPLIT PIN
Supersession
Supersession
# 032
MPN: 3081
SEALING RING
# 033
MPN: 100041
CENTERING DOWEL
from £3.82
from £3.82
# 034
MPN: 522517
PLATE
Supersession
Supersession
# 035
MPN: 522482
SPRING
Supersession
Supersession
# 036
MPN: 522516
PLATE
Supersession
Supersession
# 037
MPN: AA 32 i
SEEGER RING
# 038
MPN: 4160940
CONNECTOR RUBBER BOOT
# 039
MPN: 4159681
OIL TEMPERATURE THERMISTOR
Supersession
Supersession
# 040
MPN: 8R 5
WASHER
Supersession
Supersession
