010 - Fuel Tank With Accessories and Electric Pump

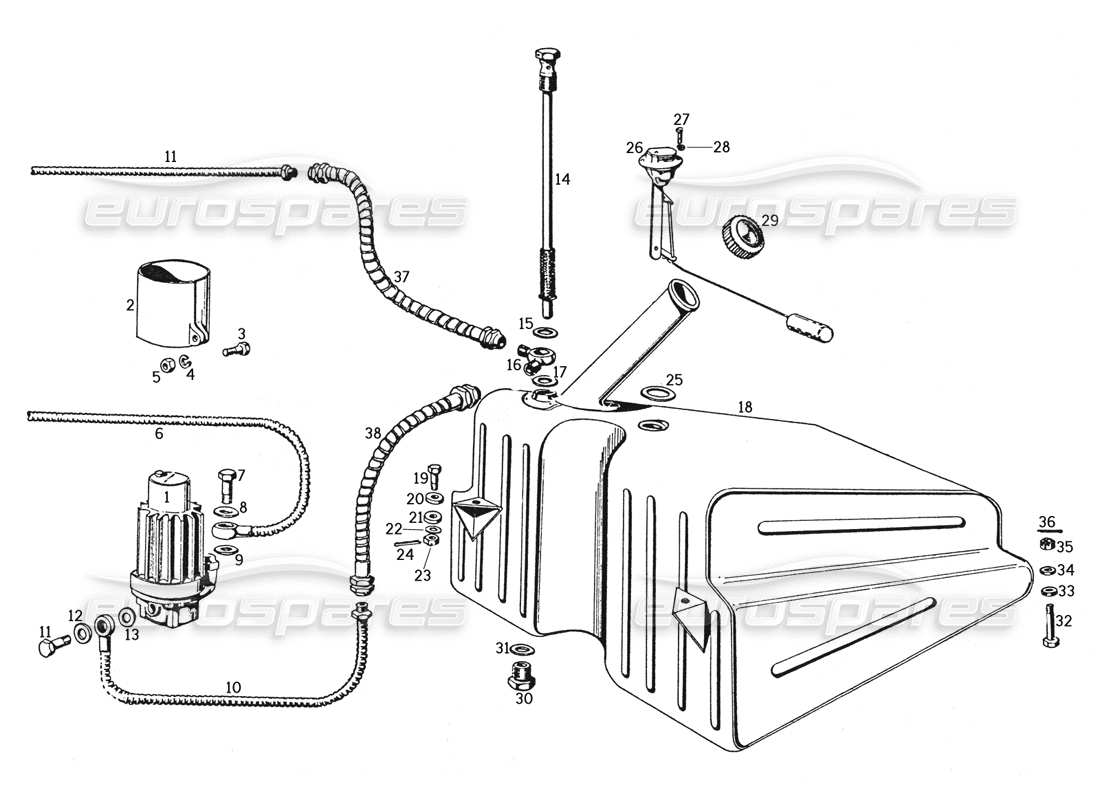

Ferrari 250 GTE (1957) Fuel Tank With Accessories and Electric Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 34263
ELECTRIC FUEL PUMP
(Autoflux)
from £2,580.00
from £2,580.00
# 002
MPN: 34279
INVOLUCRE DI PROTEZIONE
# 003
MPN: 92305
BOLT
# 004
MPN: 92353
WASHER
from £0.47
from £0.47
# 005
MPN: 92249
NUT
# 006
MPN: 92952
TUBAZIONE DELLA PORRPA AI CARBURATORI
# 007
MPN: 93915
UNION
from £65.50
from £65.50
# 008
MPN: 93913
GASKET
# 009
MPN: 93914
GASKET
from £0.47
from £0.47
This part replaces part number 95910602
# 010
MPN: 92952
TUBAZIONE DELLA PORRPA AI CARBURATORI
# 010
MPN: 94160
TUBAZIONE DELLA PORRPA AI CARBURATORI
# 011
MPN: 92683
PIPE FROM THE TANK TO THE PUMPS
# 011
MPN: 92952
PIPE FROM THE TANK TO THE PUMPS
# 012
MPN: 93913
GASKET
# 013
MPN: 820046
SERBATOIO CARBURANTE
# 013
MPN: 93914
GASKET
from £0.47
from £0.47
This part replaces part number 95910602
# 014
MPN: 820051
POWER FILTER
# 015
MPN: 10263160
GASKET
from £0.53
from £0.53
This part replaces part number 92930
# 016
MPN: 820056
UNION
# 017
MPN: 10263160
GASKET
from £0.53
from £0.53
This part replaces part number 92930
# 019
MPN: 94135
BOLT
# 020
MPN: 82120
SUPPORT PADS
# 021
MPN: 82120
SUPPORT PADS
# 022
MPN: 82130
WASHER
# 023
MPN: 92638
NUT
from £2.99
from £2.99
# 024
MPN: 92373
SPLIT PIN
# 025
MPN: 101462
GASKET
from £13.47
from £13.47
This part replaces part number 820925 - and 1 more. Click to view details
# 026
MPN: MC3701/100
FUEL TANK LEVEL SENDER (UNIVERSAL)
from £83.95
from £83.95
This part replaces part number 108644 which we have in stock - and 1 more. Click to view details
# 027
MPN: 93460
SCREW
# 028
MPN: 93119
WASHER
# 029
MPN: 83923
FUEL CAP
# 030
MPN: 820054
TAPPO SCARICO CARBURAN'E
# 031
MPN: 92714
GUJRNIZIONE
from £0.48
from £0.48
# 032
MPN: 94133
BOLT
# 033
MPN: 82120
SUPPORT BUFFER
# 034
MPN: 82120
SUPPORT BUFFER
# 035
MPN: 92638
NUT
from £2.99
from £2.99
# 036
MPN: 92373
SPLIT PIN
# 037
MPN: 82172
FUEL HOSE
# 038
MPN: 82172
FUEL HOSE
# 039
MPN: 93915
BOCCHETRONE
from £65.50
from £65.50
