014 - Transmission Casing and Clutch

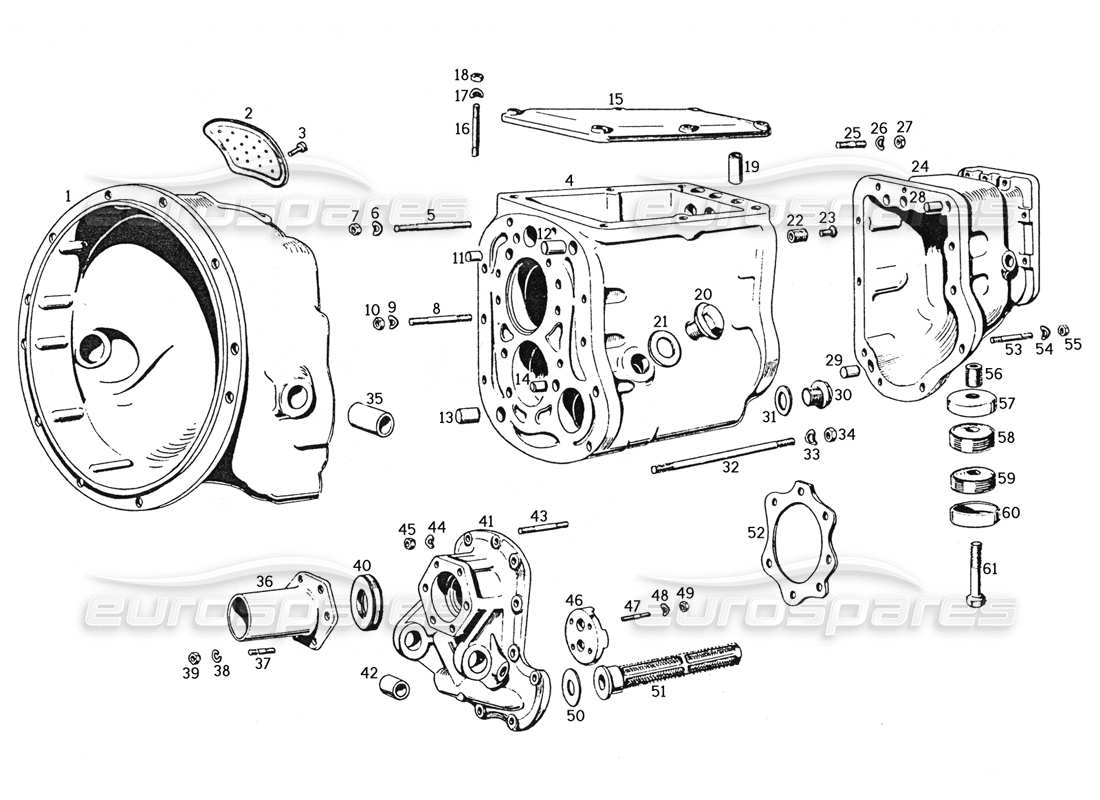

Ferrari 250 GTE (1957) Transmission Casing and Clutch Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 50384
CLUTCH BOX
# 002
MPN: 50489
SHELTER ON THE BOX
from £3.32
from £3.32
# 003
MPN: 92719
SCREW
# 004
MPN: 53045
SCATOLA CAMBIO
# 005
MPN: 93344
THREADED STUD
# 006
MPN: 92412
NUT
from £1.56
from £1.56
# 007
MPN: 93830
WASHER
from £1.52
from £1.52
# 008
MPN: 93241
THREADED STUD
# 009
MPN: 93830
WASHER
from £1.52
from £1.52
# 010
MPN: 92412
NUT
from £1.56
from £1.56
# 011
MPN: 93341
DOWEL
# 012
MPN: 93343
DOWEL
# 013
MPN: 93343
DOWEL
# 014
MPN: 93341
DOWEL
# 015
MPN: 53046
COVER
# 016
MPN: 92282
THREADED STUD
# 017
MPN: 93831
WASHER
# 018
MPN: 92393
NUT
# 019
MPN: 100749
BUSH
from £52.78
from £52.78
# 020
MPN: 53115
PLUG
# 021
MPN: 53116
GASKET
# 022
MPN: 93184
CENTERING DOWEL
# 023
MPN: 93834
SCREW
# 024
MPN: 53041
COVER
# 025
MPN: 93044
SHORT THREADED STUD
# 026
MPN: 93830
WASHER
from £1.52
from £1.52
# 027
MPN: 92412
NUT
from £1.56
from £1.56
# 028
MPN: 93342
DOWEL
# 029
MPN: 93342
DOWEL
# 030
MPN: 93106
PLUG
from £40.43
from £40.43
# 031
MPN: 93332
GASKET
from £0.59
from £0.59
# 032
MPN: 93283
PRIGIONIREO LUNGO
# 033
MPN: 93830
RONDEMA
from £1.52
from £1.52
# 034
MPN: 92412
NUT
from £1.56
from £1.56
# 035
MPN: 53015
BRONZINA
from £72.74
from £72.74
# 036
MPN: 53142
FLANGIA CON MANICOTTO
from £7.38
from £7.38
# 037
MPN: 92180
THREADED STUD
# 038
MPN: 92353
WASHER
from £0.47
from £0.47
# 039
MPN: 92393
NUT
# 040
MPN: 92986
SEALING RING
# 041
MPN: 53044
Corpo pompa olio
# 042
MPN: 50026
BRONZINA
from £82.70
from £82.70
# 043
MPN: 92642
THREADED STUD
# 044
MPN: 93831
WASHER
# 045
MPN: 93249
NUT
# 046
MPN: 52937
COVER
# 047
MPN: 92513
THREADED STUD
# 048
MPN: 93832
WASHER
# 049
MPN: 92514
NUT
# 050
MPN: 52943
GASKET
from £1.04
from £1.04
# 051
MPN: 53151
FILTRO OLIO
from £8.24
from £8.24
# 052
MPN: 53093
FLANGIA
from £29.98
from £29.98
# 053
MPN: 93241
STUD
# 054
MPN: 93830
WASHER
from £1.52
from £1.52
# 055
MPN: 92412
NUT
from £1.56
from £1.56
# 056
MPN: 93333
CENTERING DOWEL
# 057
MPN: 53136
SCODELLINO
Supersession
Supersession
# 058
MPN: 53135
TAMPONE
from £32.67
from £32.67
# 059
MPN: 53135
TAMPONE
from £32.67
from £32.67
# 060
MPN: 53136
SCODELLINO
Supersession
Supersession
# 061
MPN: 94255
BOLT
