006.2 - Door (continued)

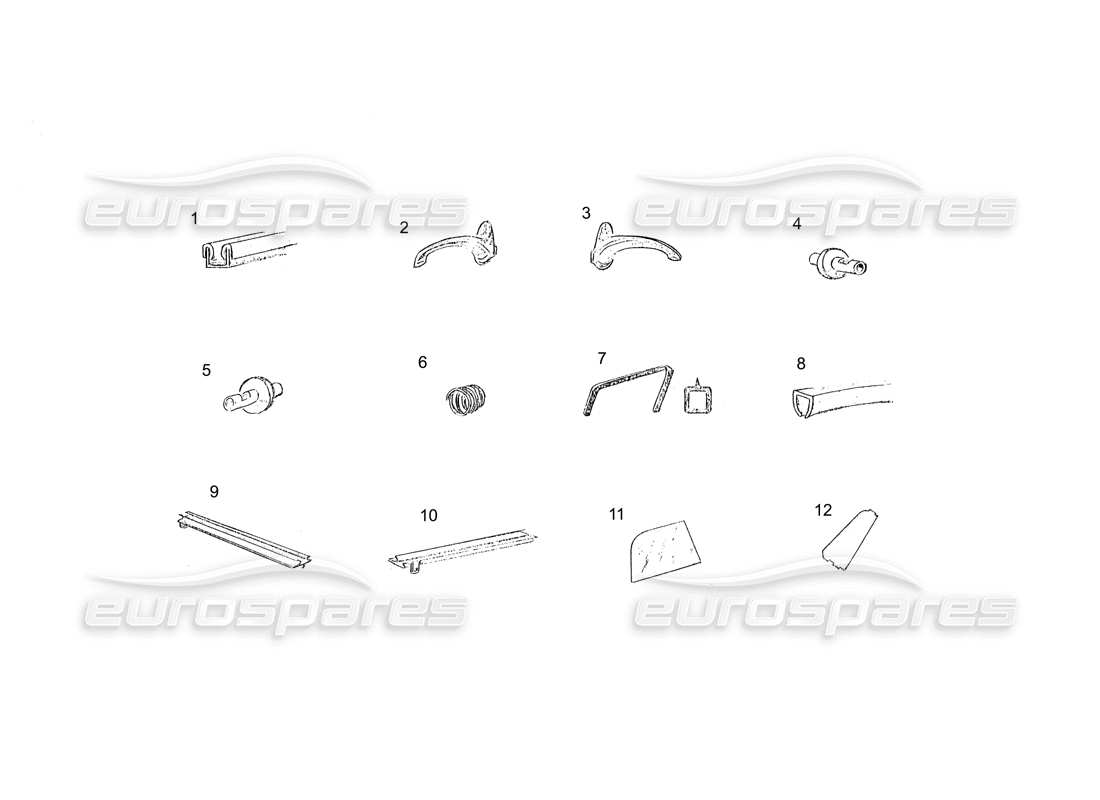

Ferrari 250 GT (Coachwork) Door (continued) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 239-30-354-00
CANALINO VELLUTATO PER MONTANTE TELARINO PORTA
# 002
MPN: 239-30-362-00
MANIGLIETTA CROMATA D. CHIUSARA VOLETTO - DIS 70796
Complete with pressure screw
# 003
MPN: 239-30-363-00
MANIGLIETTA CROMATA S. CHIUSARA VOLETTO - DIS 70796
Complete with pressure screw
# 004
MPN: 239-30-364-00
SOPPORTO D. CROMATO PER MANIGLIETTA - DIS 68732
# 005
MPN: 239-30-365-00
SOPPORTO S. CROMATO PER MANIGLIETTA - DIS 68732
# 006
MPN: 239-30-366-00
SPRING
# 007
MPN: 239-30-372-00
GOMMA CONTORNO TELARINO VOLETTO - DIS. 70424
# 008
MPN: 239-30-374-00
GOMMA BATTUTA CRISTALLO VOLETTO SU PIANTONE - DIS. 70425
# 009
MPN: 239-30-476-00
GUIDA POSTER. CRISTALLO D. - DIS. 71292
# 010
MPN: 239-30-477-00
GUIDA POSTER. CRISTALLO S. - DIS. 71293
# 011
MPN: 239-30-510-00
DESCENDING GLASS FOR DOORS
from £78.75
from £78.75
# 012
MPN: 239-30-528-00
CRISTALLO VOLETTO
