ferrari 275 (pininfarina coachwork) gruppo capote parts diagram

013 - GRUPPO CAPOTE

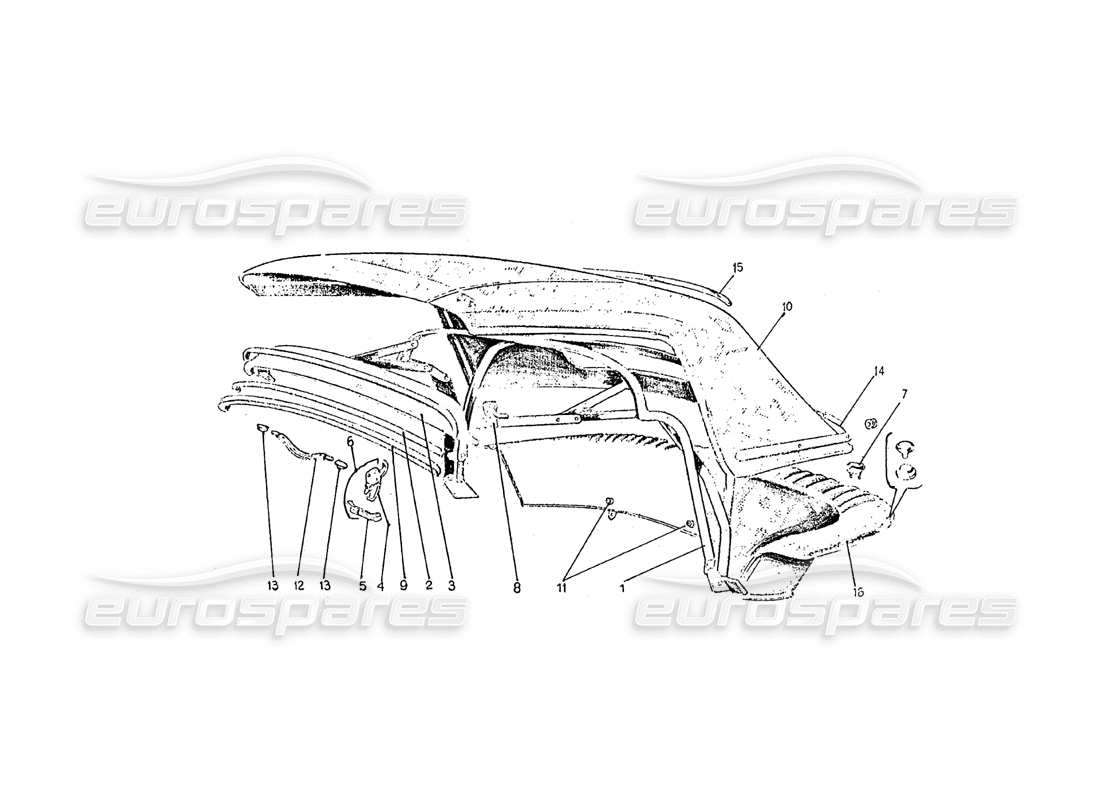

Ferrari 275 (Pininfarina Coachwork) Gruppo Capote Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 243-60-010-02
                        OSSA,TURA CAPOTE - COMPLESMTO -
                        # 002
                        MPN: 134-28-198-00
                        GOMMA PER PARTO ESTERNA TRAVERSA ANT.CAPOTE (LUNGHEZZA MM. 1320)
                        FVN.200
                        from £78.15
                        from £78.15
                        # 003
                        MPN: 243-60-280-06
                        TRAVERSA ANT.CAPOTE CPL.
                        # 004
                        MPN: 400-60-362-02
                        GANCIO OHIUS.SU TRAVORSA CAPOTE CPL.
                        from £1,061.40
                        from £1,061.40
                        # 005
                        MPN: 400-60-394-02
                        GANCIO CHIUS.D. SU TRAV.PARABREZ.
                        FVN.200
                        # 005
                        MPN: 400-60-395-02
                        GANCIO CHIUS.S. SU TRAV.PARABREZ.
                        FVN.200
                        # 006
                        MPN: 400-60-360-02
                        GANSAO D. CHIUS.LAT.CAPOTE CPL.
                        # 006
                        MPN: 400-60-361-02
                        GANSAO S. CHIUS.LAT.CAPOTE CPL.
                        # 007
                        MPN: 243-60-420-02
                        HOOK R. FOR FIXING THE CAPOTO BAG
                        # 007
                        MPN: 243-60-421-02
                        L. HOOK FOR FIXING THE CAPOTO BAG
                        # 008
                        MPN: 800-60-500-01
                        DISPCSITIVO D. CHIUS.BATT.VOLET.PORTA
                        # 008
                        MPN: 800-60-501-01
                        DISPCSITIVO S. CHIUS.BATT.VOLET.PORTA
                        # 009
                        MPN: 400-60-302-00
                        GONNA APPOGIO TRAVOREA ANT.CAPOTE SU PARABR. (LUNGHESZA TNN. 1320)
                        from £115.81
                        from £115.81
                        # 010
                        MPN: 243-60-480-10
                        RIVOSTIR:ENTO.TELA CAPOTO
                        FVN.200
                        # 011
                        MPN: 243-60-620-02
                        BOTTONO SPECIALE FISSAG.SACCA CAPOTO TESTA E RONDOLLA
                        # 011
                        MPN: 243-60-622-02
                        BOTTONO SPECIALE FISS.SACCA CAPOTO - CHIODO -
                        from £295.00
                        from £295.00
                        # 012
                        MPN: 243-64-782-00
                        IMPUGNATURA P.MANIGLIA APPIGLIO CHIUS.CAPOTE
                        from £65.10
                        from £65.10
                        # 013
                        MPN: 241-64-786-02
                        HANDLE SUPPORT
                        from £9.57
                        from £9.57
                        # 014
                        MPN: 243-60-780-08
                        MOLURA POST.CINTURA CAPOTE
                        FVN.200
                        from £714.00
                        from £714.00
                        # 015
                        MPN: 243-60-790-02
                        MOLURA SU ARCHOTTO POST.OAPOTE CPL.
                        # 016
                        MPN: 243-60-950-00
                        SAOOA, CAPOTE CPL.
                        FVN.200
