ferrari 275 (pininfarina coachwork) windscreen wiper assembly parts diagram

024 - Windscreen wiper assembly

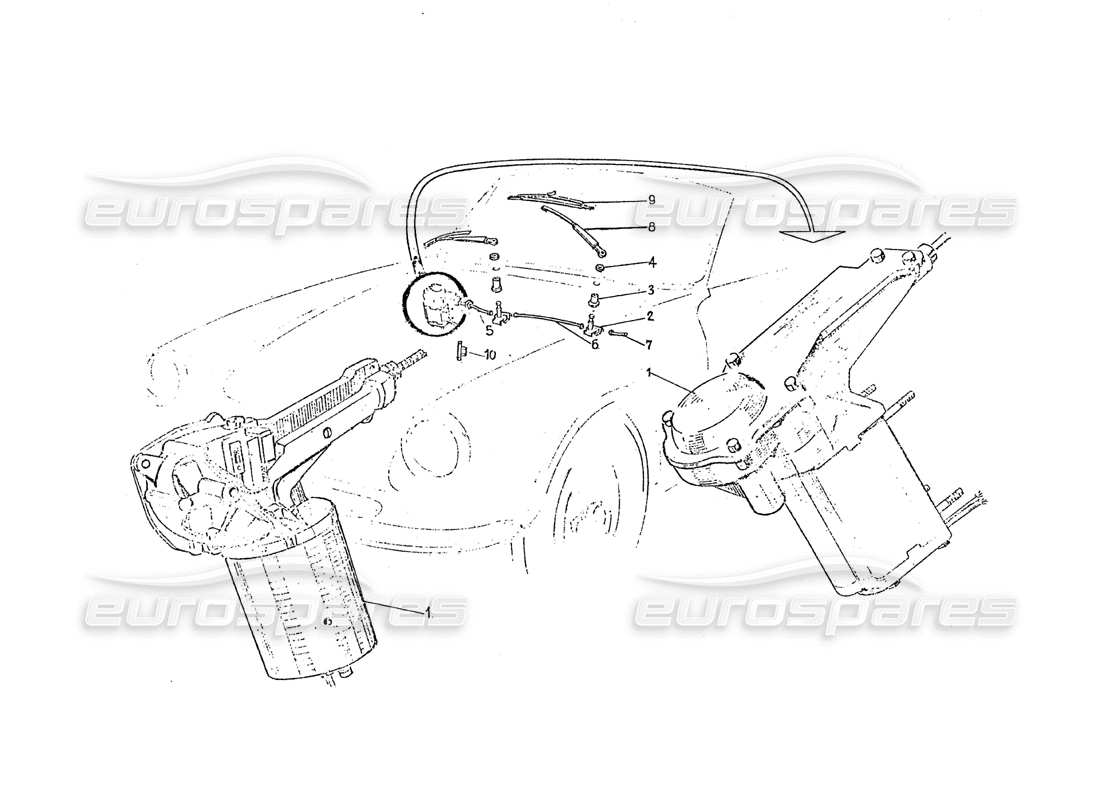

Ferrari 275 (Pininfarina Coachwork) Gruppo Tergicristalli Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 243-84-010-00
          WINDSHIELD WIPER MOTOR CPL. FOR GS
          FVN. 300
          WIPER MOTOR UNIT COMPLETE LHD Genuine Ferrari Part - New (to order)
          # 001
          MPN: 243-84-010-10
          WINDSHIELD WIPER MOTOR CPL. FOR GS
          DVN. 301
          WIPER MOTOR UNIT COMPLETE LHD Genuine Ferrari Part - New (to order)
          # 001
          MPN: 243-84-012-00
          MOTORINO TERGICRISTALLO CON TRASM.
          FVN. 300
          wiper motor Genuine Ferrari Part - New (to order)
          # 001
          MPN: 243-84-012-10
          WINDSHIELD WIPER MOTOR WITH TRANSMISSION
          DVN. 301
          from £435.67
          from £435.67
          wiper motor Genuine Ferrari Part - New (to order)
          # 001
          MPN: 247-84-010-00
          OPL WIPER MOTOR. FOR CDs
          FVN. 300
          WIPER MOTOR UNIT COMPLETE RHD Genuine Ferrari Part - New (to order)
          # 001
          MPN: 247-84-010-10
          EPL WIPER MOTOR. FOR GD
          DVN. 301
          WIPER MOTOR UNIT COMPLETE RHD Genuine Ferrari Part - New (to order)
          # 002
          MPN: 241-84-070-00
          WINDSHIELD WIPER MOTOR PORN.
          TURRET Genuine Ferrari Part - New (to order)
          # 003
          MPN: 239-84-110-00
          BOCCOLA DI TONIZTA DIST.PERNO TERGICRIST.
          from £50.95
          from £50.95
          WIPER BLADE BUSH Genuine Ferrari Part - New (to order)
          # 004
          MPN: 242-84-112-08
          SCODELLINO PER PORNO TERGIORISTAL.
          from £36.23
          from £36.23
          CUP FOR WIPER PIVOT Genuine Ferrari Part - New (to order)
          # 005
          MPN: 243-84-170-01
          TUBO INIZIALE PROT. TRASM.
          FVN. 300
          TUBE Genuine Ferrari Part - New (to order)
          # 005
          MPN: 243-84-170-11
          TUBO INIZIALE PROTEZ.TRASM.
          DVN. 301
          TUBE Genuine Ferrari Part - New (to order)
          # 006
          MPN: 243-84-180-01
          TUBA CONTR.PER PROTEZ.TRASM.
          FVN. 45
          BOWDEN TUBE BETWEEN WIPER ARMS Genuine Ferrari Part - New (to order)
          # 006
          MPN: 243-84-180-11
          TUBO CENTRALS PROTEZ.TRASM.
          DVN. 46
          TUBE Genuine Ferrari Part - New (to order)
          # 007
          MPN: 241-84-190-01
          TUBO CORTO PROTEZIONE TRASMIS.
          SHORT TUBE Genuine Ferrari Part - New (to order)
          # 008
          MPN: 242-84-250-02
          BRACCIO PER TERGICRISTALLO DA 12 PALLICI
          FVN. 200
          from £60.86
          from £60.86
          WIPER ARM Genuine Ferrari Part - New (to order)
          # 008
          MPN: 243-84-250-02
          WINDSHIELD WIPER ARM
          DVN. 201 - FVN. 300
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 008
          MPN: 243-84-250-12
          WINDSCREEN WIPER ARM GS
          DVN. 301
          WIPER ARM LHD Genuine Ferrari Part - New (to order)
          # 008
          MPN: 247-84-250-12
          WINDSCREEN WIPER ARM GD
          DVN. 301
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 009
          MPN: 241-34-280-0

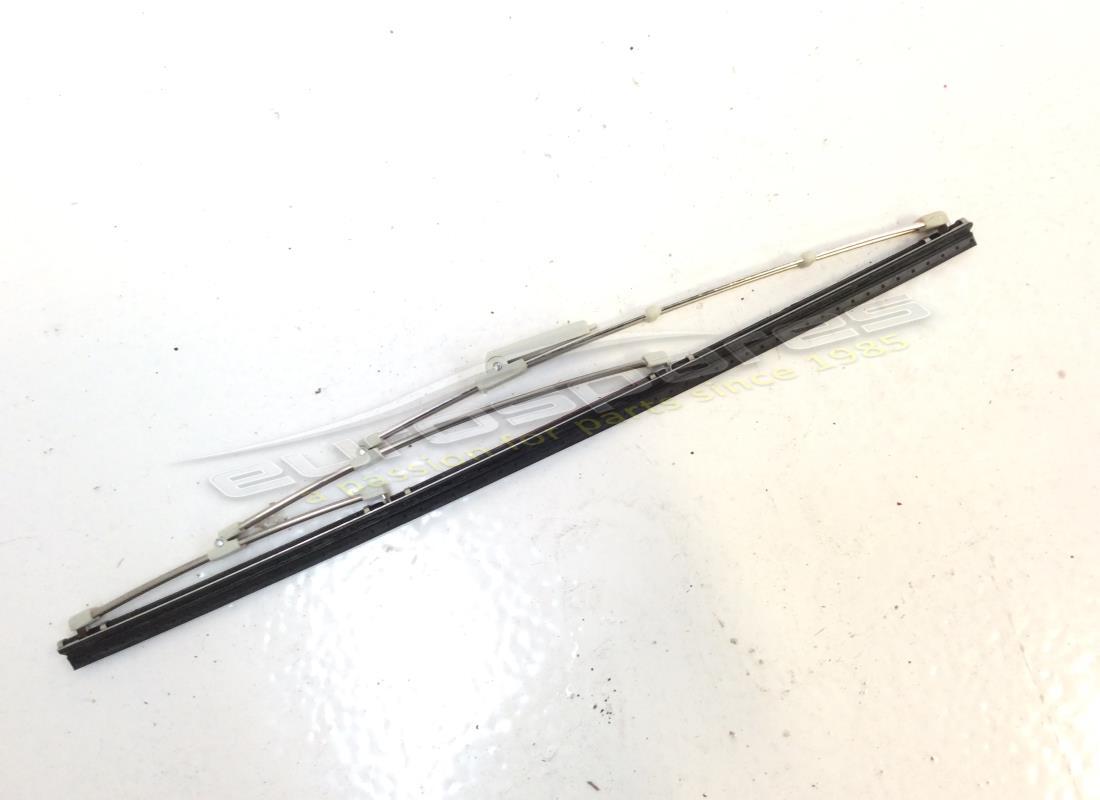

          14'' Wiper Blade
          FVN. 200
          from £99.75
          from £99.75
          14'' Wiper Blade Genuine Ferrari Part - New (to order)
          14'' Wiper Blade Genuine Ferrari Part - New (other) In stock
          14” wiper blade
          # 009
          MPN: 243-84-280-02
          WIPER BLADES
          DVN. 201 - FVN. 300
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 009
          MPN: 243-84-280-12
          WIPER BLADE
          DVN. 301
          Supersession
          Supersession
          Genuine Ferrari Part (no longer available to order)
          # 010
          MPN: 242-84-528-06
          BRACKET / SUPPORT
          DVN. 201
          WIPER LINKAGE BRACKET Genuine Ferrari Part - New (to order)
