010 - Exhaust Pipes Assembly

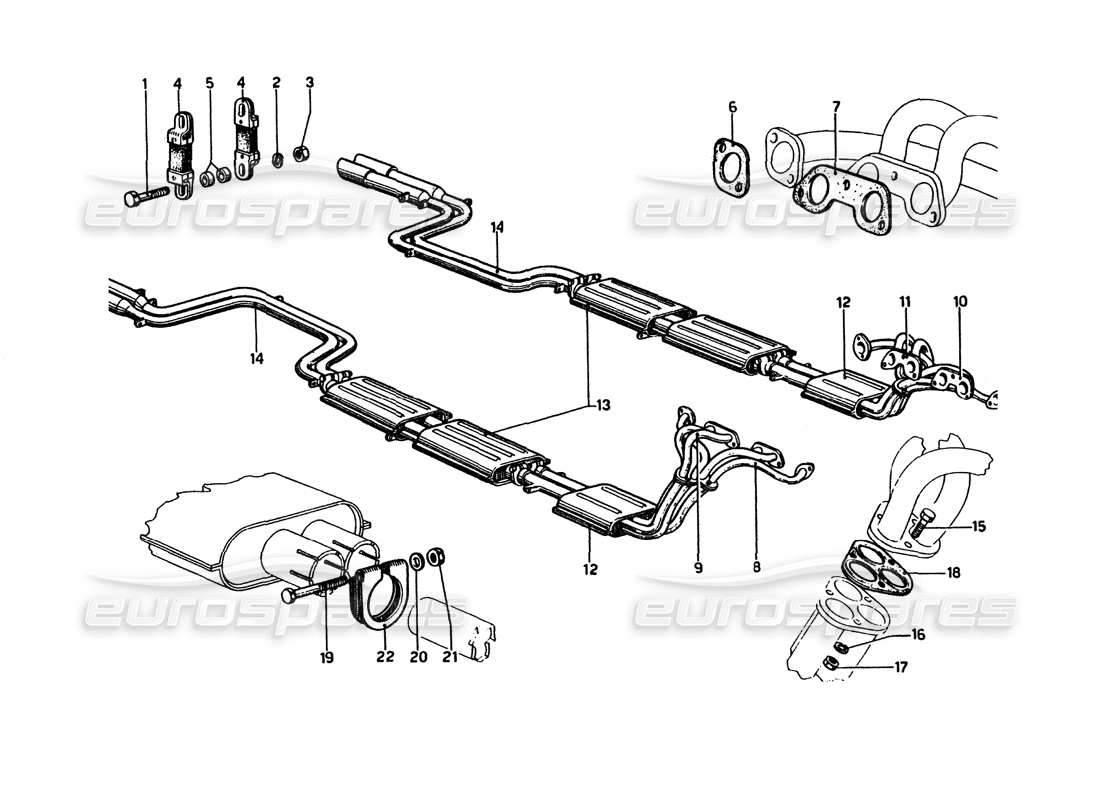

Ferrari 275 GTB4 Exhaust Pipes Assembly Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 20349
OVERALL EXHAUST SYSTEM
# 001
MPN: 6 x 28 UNI 183
BOLT
# 002
MPN: 6 R 4
WASHER
Supersession
Supersession
# 003
MPN: 1 D 6 UNI 207
NUT
# 004
MPN: 101497
EXHAUST STRAP
not as spare part - use part number: 101497
from £6.61
from £6.61
This part replaces part number 20180 - and 1 more. Click to view details
# 005
MPN: 104339
DISTANZIALE (MM. 4)
from £3.06
from £3.06
# 006

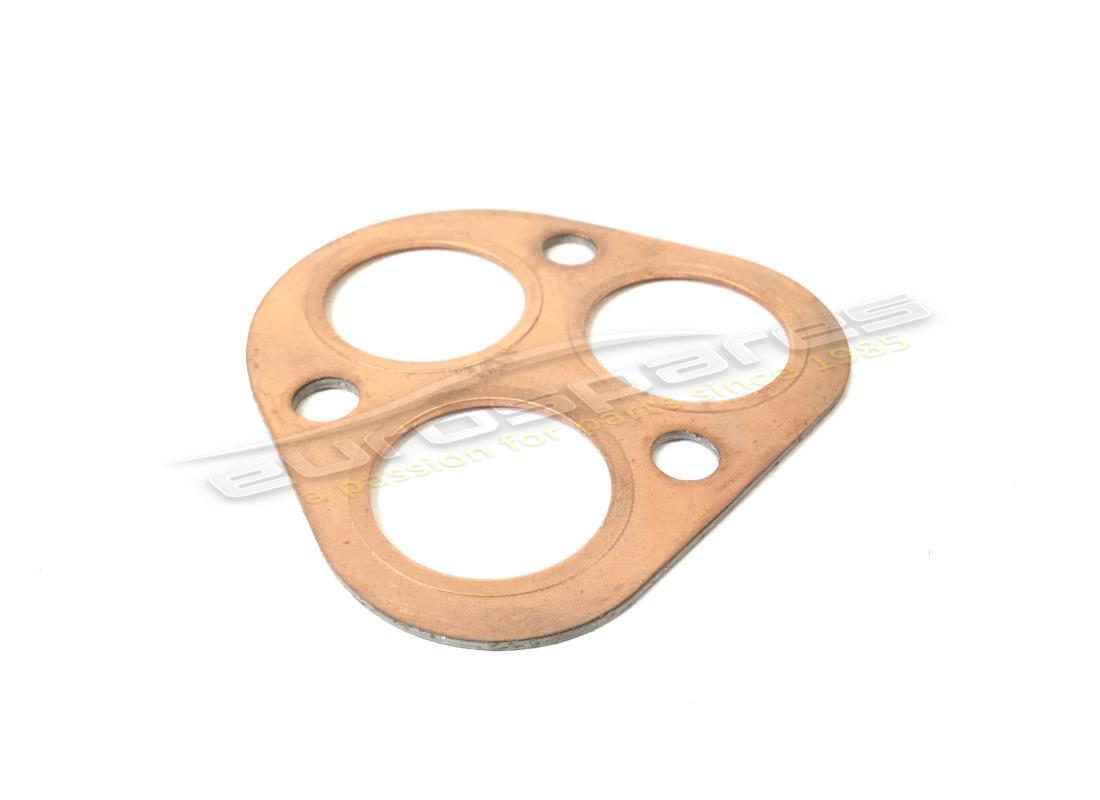

MPN: 17454
GASKET OR SEAL
from £10.86
from £10.86
This part replaces part number 16432
# 007
MPN: 116
Split exhaust manifold assembly
# 007
MPN: 17742
GASKET OR SEAL
from £13.77
from £13.77
# 008
MPN: 20357
COLLETTORE ANTERIORE DESTRO
from £1,082.88
from £1,082.88
# 009
MPN: 20358
COLLETTORE POSTERIORE DESTRO
from £1,082.88
from £1,082.88
# 010
MPN: 20359
COLLETTORE ANTERIORE SINISTRO
from £475.76
from £475.76
# 011
MPN: 20360
REAR MANIFOLD LEFT
from £475.76
from £475.76
# 012
MPN: 20343
FRONT EXHAUST PART
from £998.32
from £998.32
# 013
MPN: 20350
ELEMENTO INTERMEDIO
from £1,074.35
from £1,074.35
# 014
MPN: 20354
REAR EXHAUST PART
# 015
MPN: B2
BOLT
Supersession
Supersession
# 016
MPN: 8R4
WASHER
Supersession
Supersession
# 017
MPN: 94803
NUT
from £8.34
from £8.34
# 018

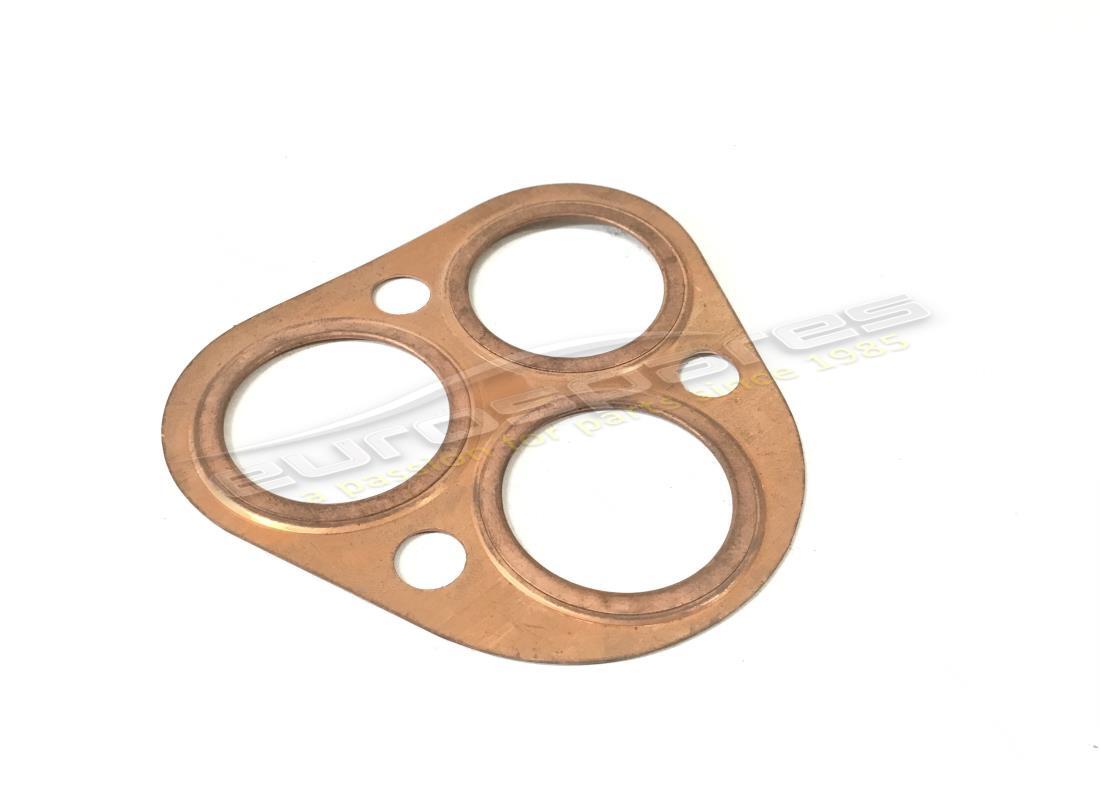

MPN: 20341
GASKET OR SEAL
from £16.62
from £16.62
# 019
-
BOLT
# 020
MPN: 8R4
WASHER
Supersession
Supersession
# 021
MPN: 5/16
NUT
# 022
MPN: 20353
CLAMP FOR Tubi EXHAUST
