Ferrari 275 GTB/GTS 2 cam Water Radiator & Water Pump Parts Diagram

030 - Water Radiator & Water Pump

Ferrari 275 GTB/GTS 2 cam Water Radiator & Water Pump Parts Diagram

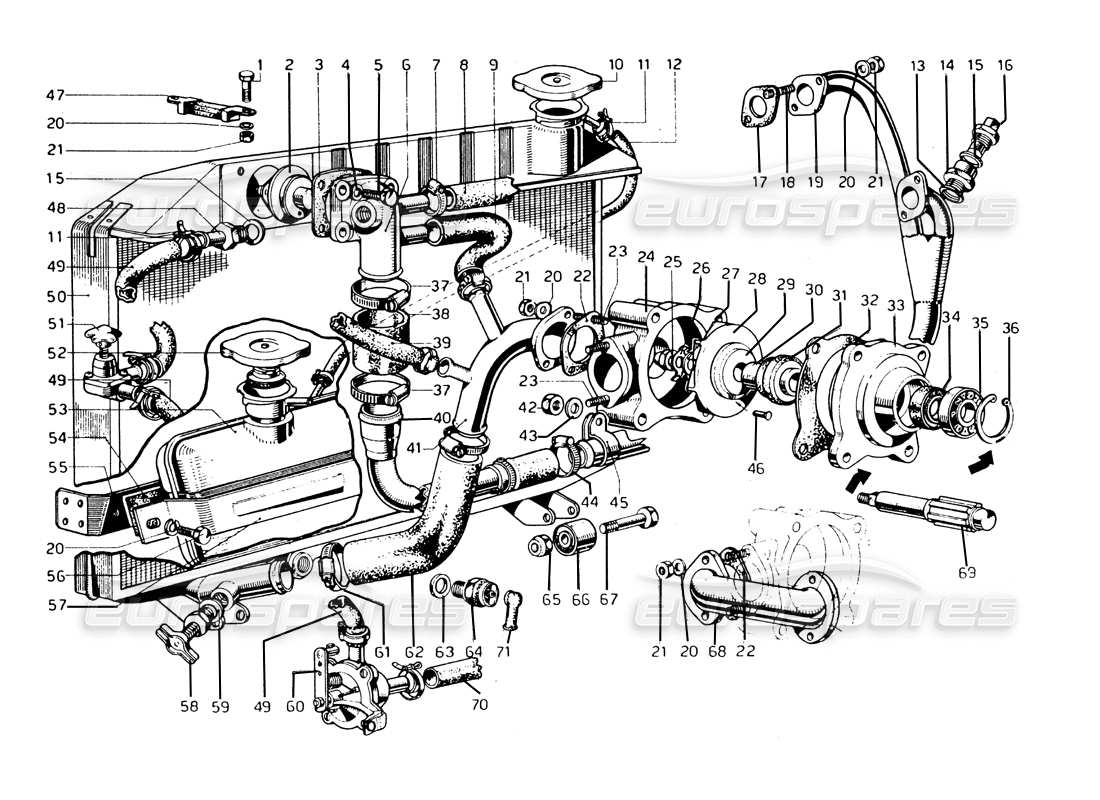

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 6 x 14-UNI 187
                          BOLT
                          LOBO 80
                          # 002
                          MPN: 95400600
                          TERMOSTATO (APERTURA A 79°C)
                          Supersession
                          Supersession
                          This part replaces part number 4138769 - and 1 more. Click to view details
                          # 003
                          MPN: 800082
                          GASKET
                          563
                          from £9.02
                          from £9.02
                          # 004
                          MPN: 12601279
                          WASHER
                          from £0.47
                          from £0.47
                          This part replaces part number 12601271 - and 2 more. Click to view details
                          # 005
                          MPN: 6x18 UM 187
                          BOLT
                          LOBO 80
                          # 006
                          MPN: 800110
                          SLEEVE
                          563
                          from £817.53
                          from £817.53
                          # 007
                          MPN: 94101
                          JUBILEE CLIP
                          CHENEY
                          Supersession
                          Supersession
                          # 008
                          MPN: mt. 0,370
                          TUBO GOMMA
                          26x17
                          # 009
                          MPN: mt. 0,290
                          TUBO GOMMA
                          20x12
                          # 010
                          MPN: 101484
                          TAPPO RADIOTORE
                          original FIM
                          from £21.94
                          from £21.94
                          # 011
                          MPN: 13000190
                          FASCETTA PUPIN
                          166
                          from £0.54
                          from £0.54
                          This part replaces part number 12178990 - and 1 more. Click to view details
                          # 012
                          MPN: mt. 0,900
                          TUBO GOMMA
                          7x16
                          # 013
                          MPN: 10263160
                          GASKET
                          from £0.47
                          from £0.47
                          This part replaces part number 92930
                          # 014
                          MPN: 81004
                          UNION
                          625
                          from £127.15
                          from £127.15
                          # 015
                          MPN: 10257060
                          GASKET
                          from £0.47
                          from £0.47
                          This part replaces part number 10253060 - and 2 more. Click to view details
                          # 016
                          MPN: 65.9028990.0
                          TERMISTORE
                          BORLETTI
                          # 017
                          MPN: 16395
                          GASKET
                          166
                          from £3.51
                          from £3.51
                          # 018
                          MPN: 104185
                          THREADED STUD
                          7 x 14
                          from £18.79
                          from £18.79
                          This part replaces part number P1
                          # 019
                          MPN: 800054
                          HEAD WATER OUTLET PIPE
                          563
                          from £904.00
                          from £904.00
                          # 020
                          MPN: 6 R 4
                          WASHER
                          Supersession
                          Supersession
                          # 021
                          MPN: 1 D 6 UNI 207
                          NUT
                          LOBO 80
                          # 022
                          MPN: 26498
                          GASKET
                          128 F
                          from £2.74
                          from £2.74
                          # 023
                          MPN: 104185
                          THREADED STUD
                          6 x 14
                          from £18.79
                          from £18.79
                          This part replaces part number P1
                          # 024
                          MPN: 26490
                          CORPO POMPA
                          128 F
                          from £875.00
                          from £875.00
                          # 025
                          MPN: 92896
                          CAP NUT
                          Supersession
                          Supersession
                          # 026
                          MPN: 100434
                          PLATE
                          from £7.26
                          from £7.26
                          This part replaces part number 92361 - and 1 more. Click to view details
                          # 027
                          MPN: 93798
                          WASHER
                          Supersession
                          Supersession
                          # 028
                          MPN: 26492
                          PUMP IMPELLER
                          128 F
                          from £323.60
                          from £323.60
                          # 029
                          MPN: 26644
                          SPACER
                          128 F
                          from £77.85
                          from £77.85
                          This part replaces part number 26494
                          # 030
                          MPN: 26495
                          TUBO DISTANZIALE
                          128 F
                          from £88.25
                          from £88.25
                          This part replaces part number 26683
                          # 031
                          MPN: 95850601
                          WATER PUMP SEAL
                          from £76.15
                          from £76.15
                          # 032
                          MPN: 26496
                          GASKET
                          128 F
                          from £7.72
                          from £7.72
                          # 033
                          MPN: 26491
                          SUPPORT
                          128 F
                          from £1,673.01
                          from £1,673.01
                          # 034
                          MPN: 1932/7
                          SEAL
                          MIM
                          Supersession
                          Supersession
                          # 035
                          MPN: 95890204
                          BALL BEARING ON PUMP SHAFT
                          RIV 2 AE
                          from £51.34
                          from £51.34
                          This part replaces part number 93457
                          # 036
                          MPN: J37x1,5
                          SEEGER RING
                          GANDINI
                          # 037
                          MPN: 94099
                          JUBILEE CLIP
                          CHENEY
                          # 038
                          -
                          RUBBER SLEEVE
                          # 039
                          MPN: mt. 2
                          TUBO GOMMA
                          20x12
                          # 040
                          MPN: 800086
                          WATER RETURN HOSE
                          563
                          from £594.68
                          from £594.68
                          # 041
                          MPN: 800085
                          WATER INLET HOSE
                          563
                          from £578.82
                          from £578.82
                          # 042
                          MPN: 1 D 8-UNI 208
                          NUT
                          LOBO 80
                          # 043
                          MPN: 8R 5
                          WASHER
                          Supersession
                          Supersession
                          # 044
                          MPN: 94103
                          JUBILEE CLIP
                          CHENEY
                          Supersession
                          Supersession
                          # 045
                          MPN: 81113
                          JUBILEE CLIP
                          508 C
                          from £44.01
                          from £44.01
                          # 046
                          MPN: RI 2
                          NAIL
                          2 x 8
                          # 047
                          MPN: 101497
                          EXHAUST STRAP
                          not as spare part - use part number: 101497
                          from £6.61
                          from £6.61
                          This part replaces part number 20180 - and 1 more. Click to view details
                          # 048
                          MPN: 800084
                          UNION
                          563
                          from £180.79
                          from £180.79
                          # 049
                          MPN: mt. 1.70
                          HEATING PIPE
                          20 x 12
                          # 050
                          MPN: 800057
                          RADIATORE ACQUA
                          563
                          # 051
                          MPN: 100880
                          ADDITIONAL TAP
                          IPRA
                          from £121.22
                          from £121.22
                          This part replaces part number 400112
                          # 052
                          MPN: 252.733/A
                          TANK CAP
                          FIM
                          # 053
                          MPN: 252733
                          EXPANSION TANK
                          FIM
                          from £8.02
                          from £8.02
                          # 054
                          MPN: 252.733/D
                          Rubber thickness
                          FIM
                          # 055
                          MPN: 800093
                          BRACKET / SUPPORT
                          571
                          from £11.72
                          from £11.72
                          # 056
                          MPN: 6 x 15 UNI 187
                          BOLT
                          LOBO 80
                          # 057
                          MPN: 252733/C
                          BRACKET / SUPPORT
                          FIM
                          from £52.25
                          from £52.25
                          # 058
                          MPN: 252840
                          DRAIN TAP
                          FIM
                          # 059
                          MPN: 252.840/A
                          GASKET
                          FIM
                          # 060
                          MPN: 400111
                          HEATER CONTROL VALVE
                          from £229.32
                          from £229.32
                          # 060
                          MPN: 95403103
                          HEATER DIAPHRAGHM
                          (fits 400111)
                          from £34.89
                          from £34.89
                          # 061
                          MPN: 94100
                          JUBILEE CLIP
                          CHENEY
                          # 062
                          MPN: 800138
                          TUBO GOMMA
                          from £54.65
                          from £54.65
                          # 063
                          MPN: 101508
                          GASKET
                          from £0.69
                          from £0.69
                          This part replaces part number 94706
                          # 064
                          MPN: 168008
                          TERMOCONTATTO (84°÷75°)
                          BORLETTI
                          from £28.44
                          from £28.44
                          This part replaces part number 101507 - and 1 more. Click to view details
                          # 065
                          MPN: 95900611
                          NUT
                          URAMA B/70
                          Supersession
                          Supersession
                          # 066
                          MPN: 88.110.441 / 94678
                          SILENTBLOC PER RADIATORE
                          RIV
                          # 067
                          MPN: B2
                          BOLT
                          14x50
                          Supersession
                          Supersession

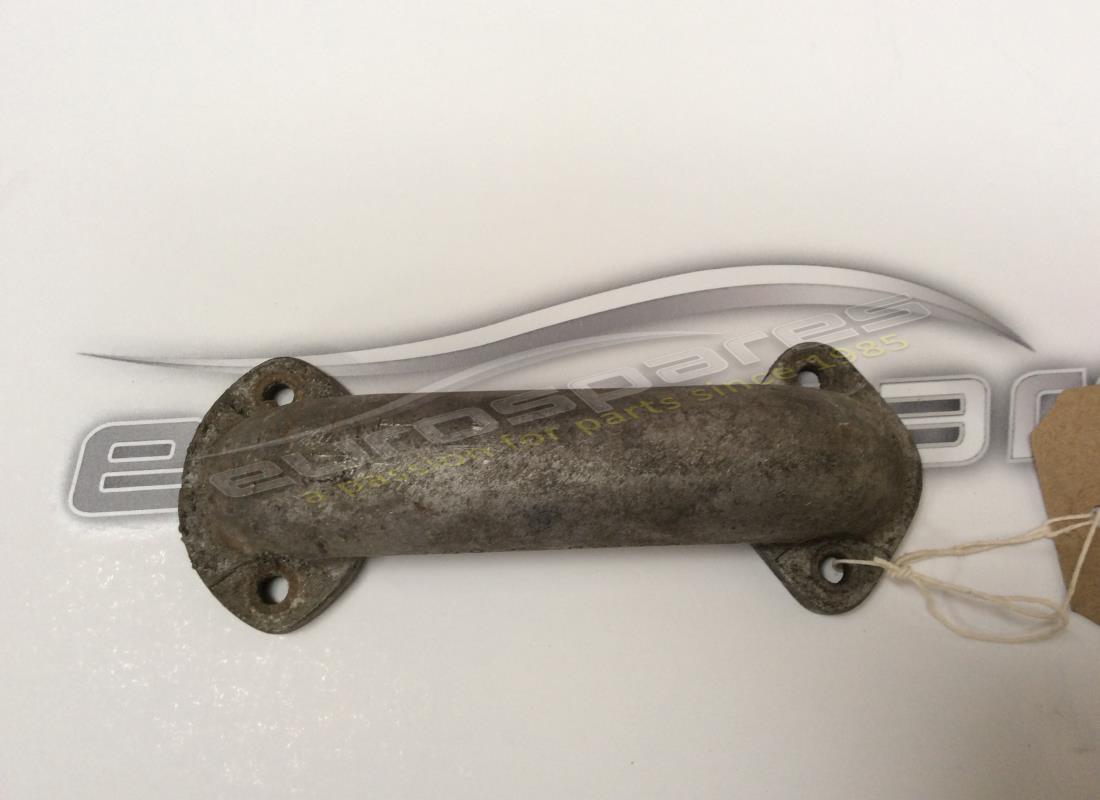

                          # 068
                          MPN: 26499
                          PIPE FROM PUMP TO BASE
                          128 F
                          from £580.58
                          from £580.58
                          # 069
                          MPN: 26493
                          PUMP SHAFT
                          128 F
                          # 070
                          -
                          TUBO GOMMA
                          # 071
                          MPN: 4760/814 28919
                          COPRIMORSETTO PER TERMOCONTATTO
                          Magic. P. 212
