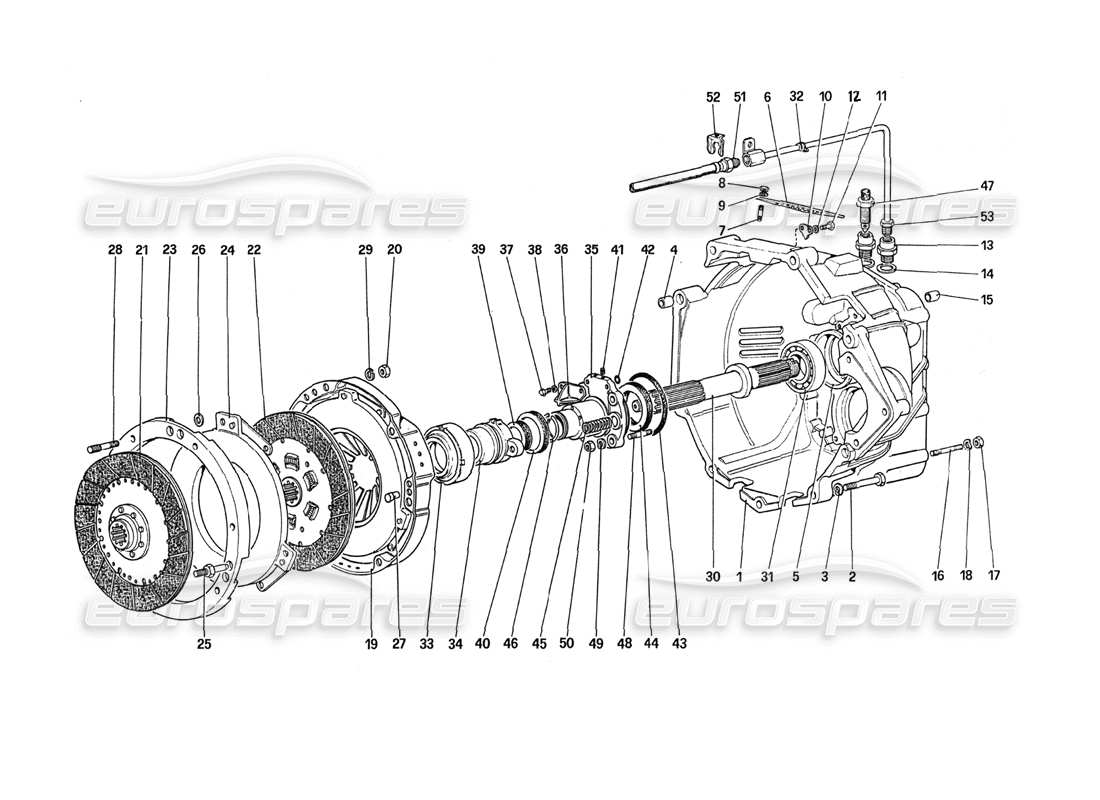

Ferrari 288 GTO Clutch and Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 123688
CLUTCH HOUSING
Supersession
Supersession
# 001
MPN: 125456
CLUTCH HOUSING, COMPLETE
from £3,033.53
from £3,033.53
This part replaces part number 123688
# 002
MPN: 16044021
SCREW
from £1.68
from £1.68
This part replaces part number 119631 which we have in stock
# 003
MPN: 12601371
WASHER
Supersession
Supersession
# 004
MPN: 125537
DOWEL
from £2.49
from £2.49
# 005
MPN: 121797
BUSH FOR BEARING
from £289.71
from £289.71
# 006
MPN: 121806
INSPECTION COVER
from £20.43
from £20.43
# 007
MPN: 11000811
STUD
Supersession
Supersession
# 008
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 009
MPN: 12601171
WASHER
from £0.47
from £0.47
# 010
MPN: 114603
PLATE
from £5.92
from £5.92
This part replaces part number 104034 - and 1 more. Click to view details
# 011
MPN: 10977821
SCREW
Supersession
Supersession
# 012
MPN: 106849
WASHER
Supersession
Supersession
This part replaces part number 11195473
# 013
MPN: 126496
FITTING
Supersession
Supersession
This part replaces part number 121700
# 014
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 015
MPN: 123885
DOWEL
from £236.83
from £236.83
# 016
MPN: 13543421
STUD
Supersession
Supersession
# 017
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 018
MPN: 120016/A
AP RACING CLUTCH KIT Ø 8''½
from £3,033.39
from £3,033.39
# 018
MPN: 12601371
WASHER
Supersession
Supersession
# 019
MPN: 109461
PRESSURE PLATE
Supersession
Supersession
# 020
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 021
MPN: 119496

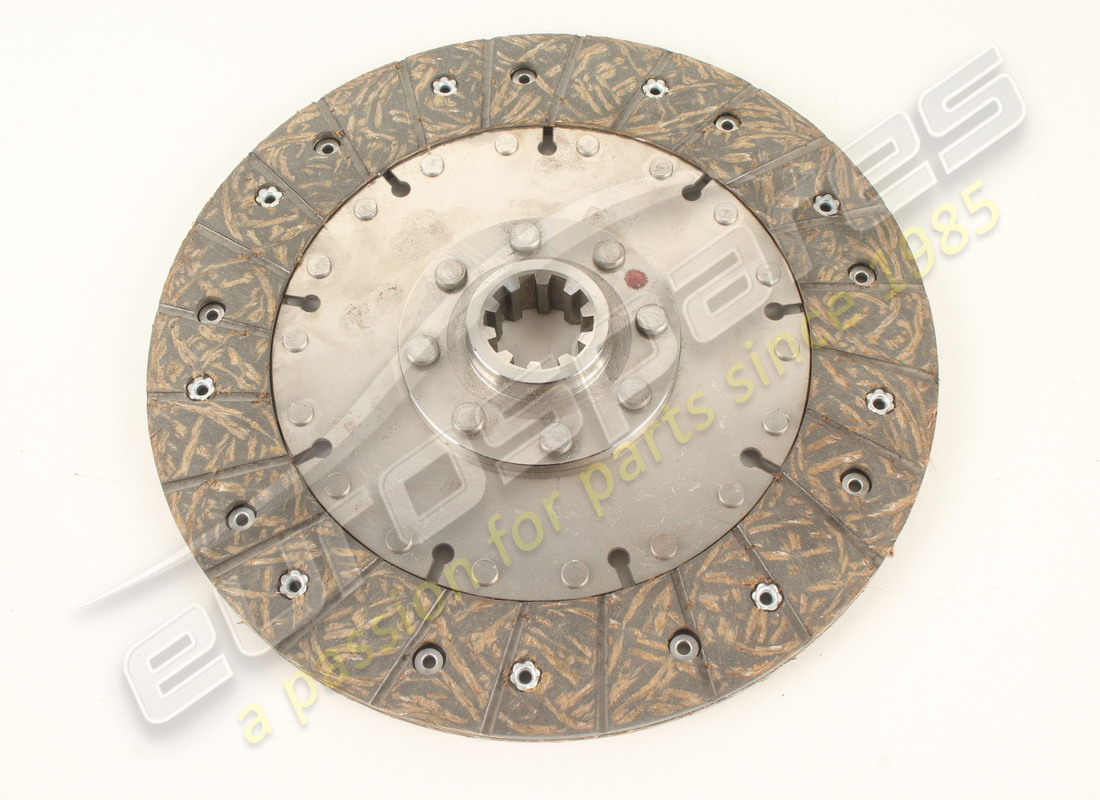

RIGID DRIVEN PLATE
from £0.47
from £0.47
# 022
MPN: 119495
SPRING HUB DRIVEN PLATE
from £0.47
from £0.47
# 023
MPN: 108515
SPACER
from £1,222.85
from £1,222.85
# 024
MPN: 109464
INTERMEDIATE PLATE
from £394.07
from £394.07
# 025
MPN: 109465
STUD
from £17.01
from £17.01
# 026
MPN: 109466
WASHER
from £6.20
from £6.20
# 027
MPN: 109880
DOWEL
from £20.67
from £20.67
# 028
MPN: 110019
STUD
from £39.45
from £39.45
# 029
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 030
MPN: 123689

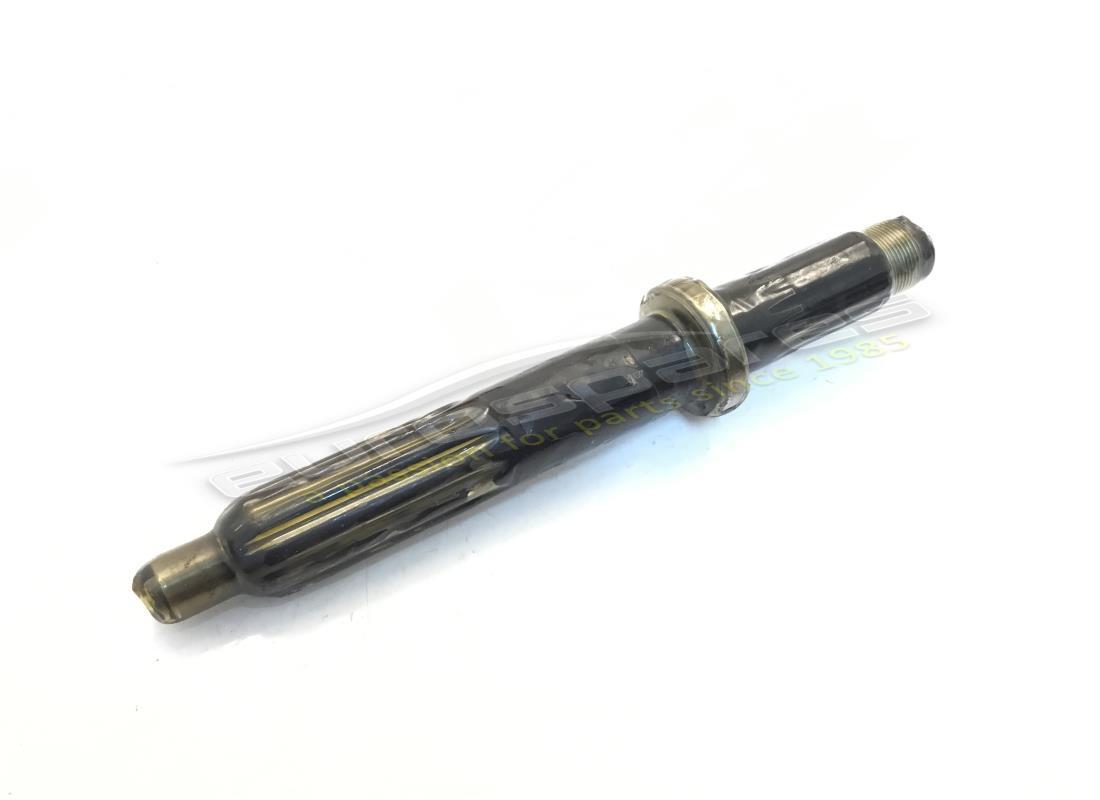

CLUTCH SHAFT
from £493.35
from £493.35
# 031
MPN: 125499
BEARING
Supersession
Supersession
This part replaces part number 121818 - and 1 more. Click to view details
# 032
MPN: 10440990
CLAMP
from £0.83
from £0.83
# 033
MPN: 125458
THRUST BEARING
from £817.62
from £817.62
This part replaces part number 131221
# 034
MPN: 123359
BUSH FOR BEARING
from £249.68
from £249.68
# 035
MPN: 123360
SLEEVE FOR BUSH
from £1,216.00
from £1,216.00
# 036
MPN: 123696
PLATE
from £1,162.99
from £1,162.99
# 037
MPN: 10977521
SCREW
from £0.53
from £0.53
This part replaces part number 10977501 which we have in stock - and 1 more. Click to view details
# 038
MPN: 106849
WASHER
Supersession
Supersession
This part replaces part number 11195473
# 039
MPN: 139440
SEALING RING
from £39.60
from £39.60
This part replaces part number 122033
# 040
MPN: 139439
SEALING RING
from £47.00
from £47.00
This part replaces part number 124674
# 041
MPN: 65928500
PLUG
from £25.62
from £25.62
This part replaces part number 10267550
# 042
MPN: 166432
O.R. GASKET
from £0.53
from £0.53
# 043
MPN: 121814
SEALING RING
from £7.83
from £7.83
# 044
MPN: 138680
SEALING RING
from £35.66
from £35.66
This part replaces part number 125461 - and 1 more. Click to view details
# 045
MPN: 121717
PRE LOAD SPRING
from £2.45
from £2.45
# 046
MPN: 123110
SAFETY RING
from £10.65
from £10.65
# 047
MPN: 121699
BLEED SCREW
from £12.06
from £12.06
# 048
MPN: 13516621
STUD
from £0.47
from £0.47
# 049
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 050
MPN: 16108811
NUT
# 051
MPN: 123309
FLEXIBLE HOSE
from £330.44
from £330.44
# 052
MPN: 110810
BRACKET FOR HOSE
from £1.40
from £1.40
This part replaces part number 994922
# 053
MPN: 123308
PIPE
from £158.76
from £158.76
