037 - Rear Suspension - Wishbones

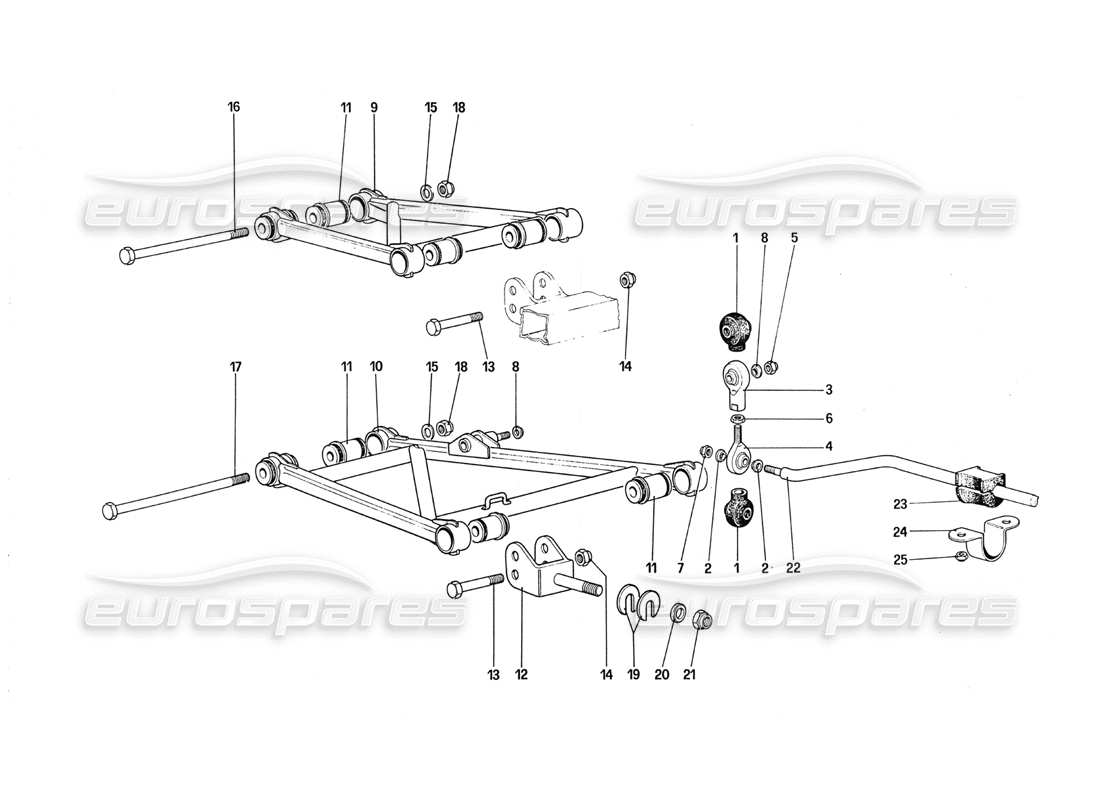

Ferrari 288 GTO Rear Suspension - Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 124622
PROTECTION FOR BALL JOINT
from £11.31
from £11.31
# 002
MPN: 122425
SPACER
from £12.85
from £12.85
# 003
MPN: 123194
BALL JOINT
from £7.89
from £7.89
# 004
MPN: 123195
BALL JOINT
# 005
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 006
MPN: 10788521
NUT
# 007
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 008
MPN: 122425
SPACER
from £12.85
from £12.85
# 009
MPN: 121396
UPPER LEVER
from £982.04
from £982.04
# 010
MPN: 121394
LOWER LEVER, RIGHT
from £801.24
from £801.24
# 010
MPN: 121395
LOWER LEVER, LEFT
from £763.08
from £763.08
# 011
MPN: 154536
FLAMBLOCK
from £57.75
from £57.75
This part replaces part number 103170 - and 1 more. Click to view details
# 012
MPN: 124163
LOWER FORK
from £148.32
from £148.32
# 013
MPN: 121693
SCREW
from £79.23
from £79.23
This part replaces part number 127849
# 014
MPN: 148020
NUT
from £2.40
from £2.40
This part replaces part number 102825 - and 3 more. Click to view details
# 015
MPN: 106616
WASHER
from £0.83
from £0.83
# 016
MPN: 112439
SCREW
from £43.71
from £43.71
# 017
MPN: 112440
SCREW
from £30.65
from £30.65
# 018
MPN: 148020
NUT
from £2.54
from £2.54
This part replaces part number 102825 - and 3 more. Click to view details
# 019
MPN: 101039
DITTO, THICKNESS 1 MM.
from £2.06
from £2.06
This part replaces part number 107025 - and 1 more. Click to view details
# 019
MPN: 107338
DITTO, THICKNESS 1, 5 MM.
from £13.76
from £13.76
This part replaces part number 107418
# 019
MPN: 107339
DITTO, THICKNESS 2 MM.
from £1.23
from £1.23
This part replaces part number 107419
# 019
MPN: 107340
SHIM FOR LOWER FORK THICKNESS 2,5 MM.
Possible fitting
from £1.27
from £1.27
This part replaces part number 107420
# 019
MPN: 107341
DITTO, THICKNESS 3 MM.
from £4.50
from £4.50
This part replaces part number 107421
# 019
MPN: 107342
DITTO, THICKNESS 3, 25 MM.
from £0.55
from £0.55
This part replaces part number 107422
# 020
MPN: 101041
WASHER
from £0.53
from £0.53
This part replaces part number 10730821
# 021
MPN: 150238
NUT
from £0.53
from £0.53
This part replaces part number 12575821 - and 2 more. Click to view details
# 022
MPN: 123506
STABILIZER ROD
from £1,025.69
from £1,025.69
# 023
MPN: 116381
PAD FOR ROD
from £106.21
from £106.21
# 024
MPN: 104417
ROD RETAINER
from £20.83
from £20.83
This part replaces part number 64429 - and 5 more. Click to view details
# 025
MPN: 12575621
NUT
from £1.37
from £1.37
