0058 - Engine oil radiator and tank
Ferrari 296 Challenge ENGINE OIL RADIATOR AND TANK Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 742173

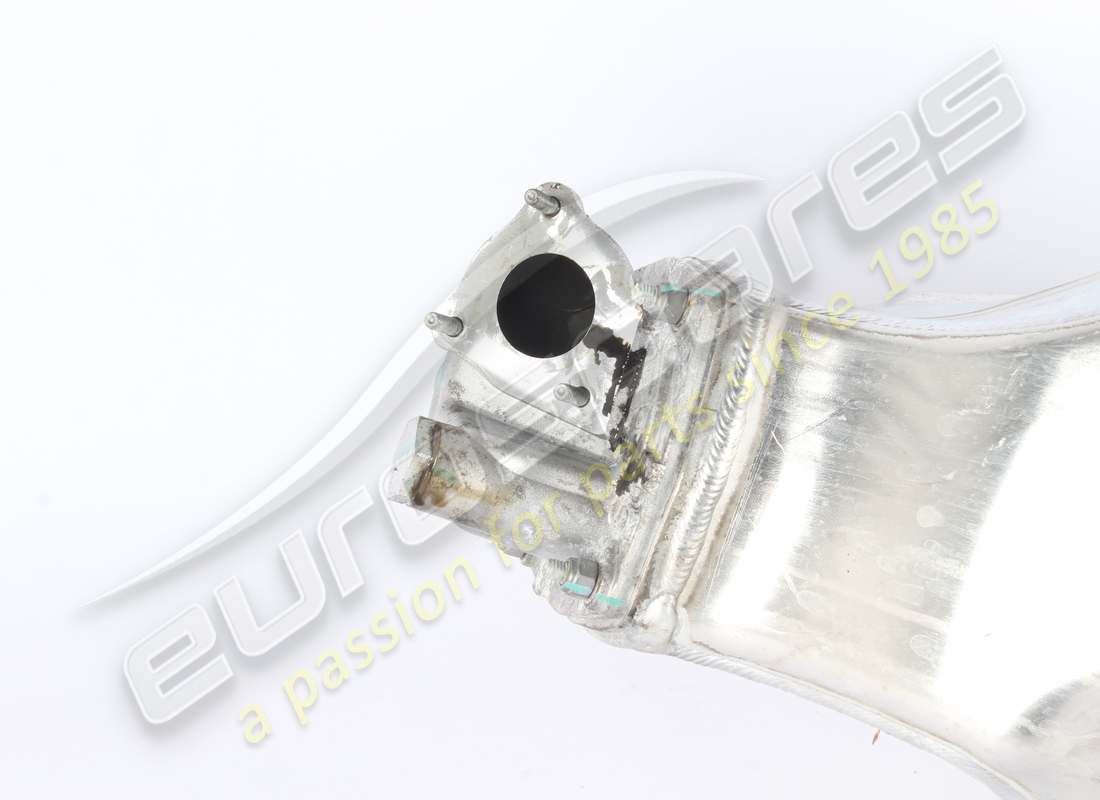

COMPL. OIL TANK
from £844.55
from £844.55
This part replaces part number 800479 - and 2 more. Click to view details
# 002
MPN: 802684
FILLER PIPE
from £77.86
from £77.86
# 003
MPN: 987863
COMPL. OIL CAP WITH DIPSTICK
from £226.50
from £226.50
# 004
MPN: 797265
SCREW
from £0.47
from £0.47
# 005
MPN: 104212
O-RING
from £0.53
from £0.53
# 006
MPN: 871810
VAPOUR PRESSURE SENSOR
from £80.15
from £80.15
# 007
MPN: 85833900
SCREW
from £0.54
from £0.54
This part replaces part number 81972800
# 008
MPN: 964212
RH INTAKE BLOW-BY PIPE
from £113.24
from £113.24
# 009
MPN: 82328600
CLIP
Supersession
Supersession
# 010
MPN: 909581
OIL PICKUP
from £169.87
from £169.87
# 011
MPN: 865758
O-RING
from £10.70
from £10.70
# 012
MPN: 100332
OIL PICKUP FILTER
from £10.21
from £10.21
This part replaces part number 240387 - and 11 more. Click to view details
# 013
MPN: 102948
NUT
from £0.52
from £0.52
This part replaces part number 12574211 - and 3 more. Click to view details
# 014
MPN: 12601274
WASHER
from £0.50
from £0.50
This part replaces part number 12601221 - and 5 more. Click to view details
# 015
MPN: 10300711
PLUG
from £0.58
from £0.58
This part replaces part number 10300771
# 016
MPN: 10261460
GASKET
from £0.47
from £0.47
# 017
MPN: 845767
OIL DELIVERY PIPE
from £207.63
from £207.63
# 018
MPN: 862084
GASKET
from £3.12
from £3.12
# 019
MPN: 12578011
NUT
from £0.54
from £0.54
# 020
MPN: 11001124
STUD BOLT
from £40.39
from £40.39
This part replaces part number 11001324
# 021
MPN: 103021
O-RING
from £0.81
from £0.81
# 022
MPN: 231618
SCREW
from £0.53
from £0.53
# 023
MPN: 746453
OIL RETURN PIPE
from £195.61
from £195.61
# 024
MPN: 139934
O-RING
from £0.47
from £0.47
# 025
MPN: 256323
SCREW
from £0.53
from £0.53
# 026
MPN: 777796
OIL TANK HEAT SHIELD
from £176.48
from £176.48
# 027
MPN: 85692200
SCREW
from £0.47
from £0.47
# 028
MPN: 772341
COMPL. PIPE FROM OIL TANK TO PLENUM
from £98.62
from £98.62
# 029
MPN: 868624
BRACKET
from £1.88
from £1.88
# 030
MPN: 743029
PIPE FROM RH HEAD TANK
from £59.14
from £59.14
# 031
MPN: 10884087
CLIP
from £0.47
from £0.47
# 032
MPN: 776839
SCREW
from £0.47
from £0.47
# 033
MPN: 789073
WASHER
from £0.47
from £0.47
# 034
MPN: 149707
SPACER
from £0.67
from £0.67
# 035
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 036
MPN: 12643778
WASHER
from £0.53
from £0.53
This part replaces part number 12643777 - and 1 more. Click to view details
# 037
MPN: 267798
BUSH
from £5.94
from £5.94
# 038
MPN: 309169
BRACKET WITH SHEATH
from £10.37
from £10.37
# 039
MPN: 949703
INJECTION CABLE MOUNTING BRACKET ON OIL TANK
# 040
MPN: 169814
SCREW
from £0.79
from £0.79
This part replaces part number 13288119 - and 1 more. Click to view details
