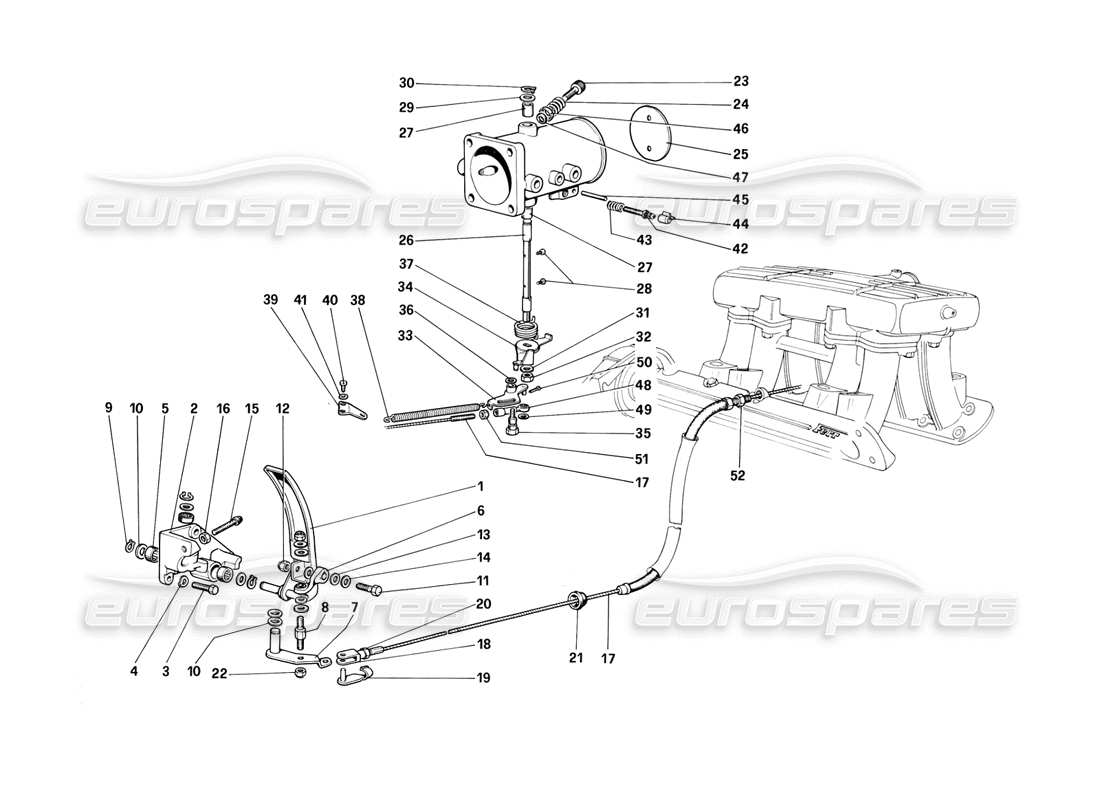

012 - Throttle Housing and Linkage

Ferrari 308 (1981) GTBi/GTSi Throttle Housing and Linkage Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price

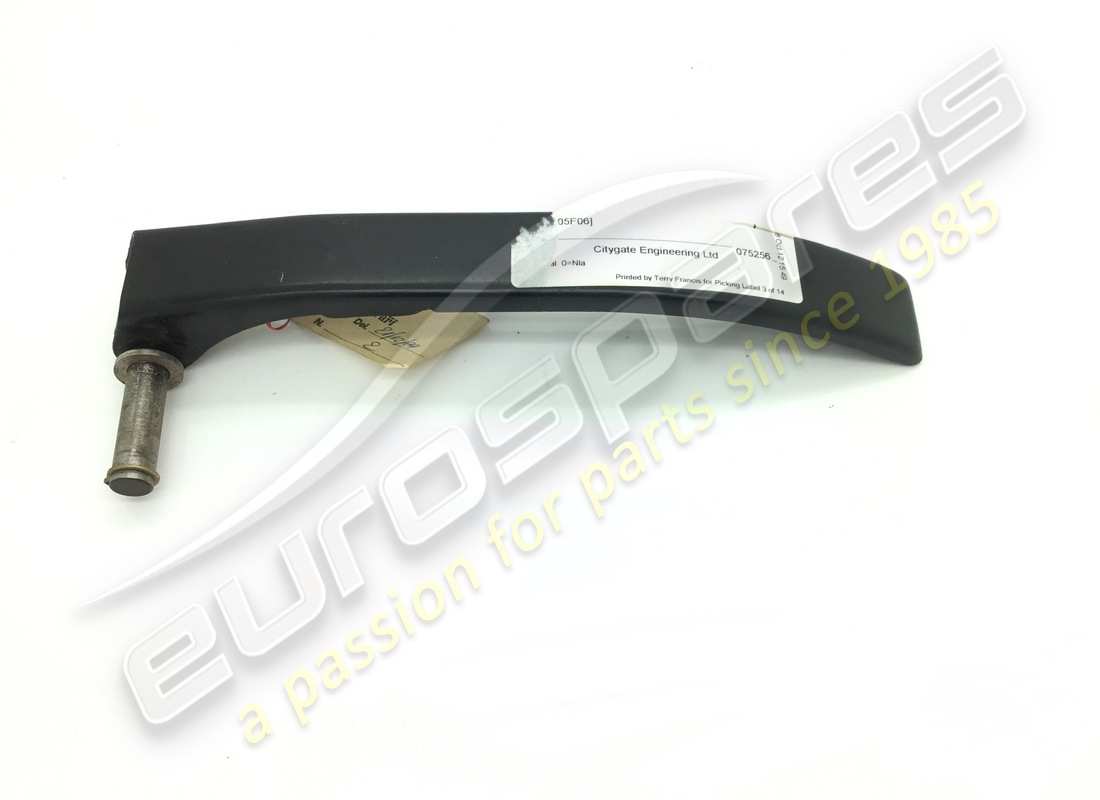

                                                                                                          # 001
                                                                                                          MPN: 108578
                                                                                                          Accelerator Pedal
                                                                                                          from £290.59
                                                                                                          from £290.59
                                                                                                          This part replaces part number 103329 which we have in stock
                                                                                                          # 002
                                                                                                          MPN: 110932
                                                                                                          SUPPORT
                                                                                                          from £177.19
                                                                                                          from £177.19
                                                                                                          This part replaces part number 106587
                                                                                                          # 003
                                                                                                          MPN: 16135721
                                                                                                          BOLT
                                                                                                          from £1.14
                                                                                                          from £1.14
                                                                                                          # 004
                                                                                                          MPN: 12601371
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 005
                                                                                                          MPN: 101677
                                                                                                          ROLLER BEARING
                                                                                                          from £2.03
                                                                                                          from £2.03
                                                                                                          # 006
                                                                                                          MPN: 105237
                                                                                                          PEDAL LINK
                                                                                                          from £84.64
                                                                                                          from £84.64

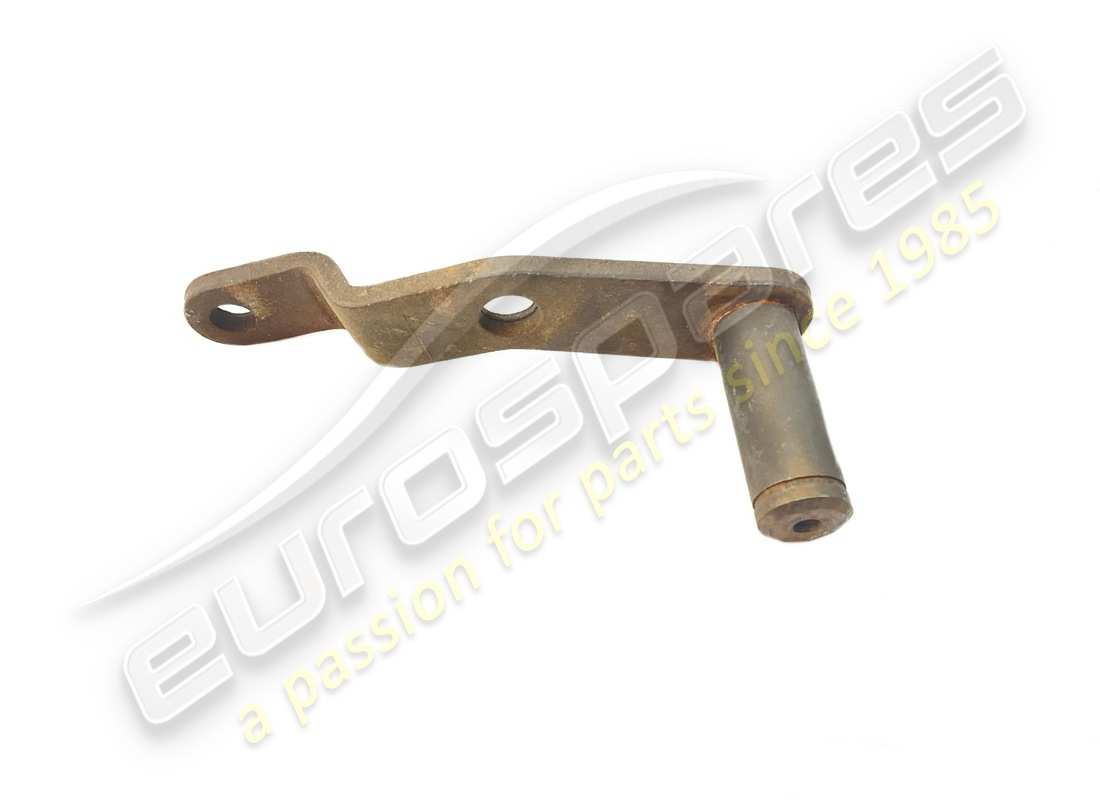

                                                                                                          # 007
                                                                                                          MPN: 108582
                                                                                                          LEVER
                                                                                                          from £121.69
                                                                                                          from £121.69
                                                                                                          This part replaces part number 105235 which we have in stock
                                                                                                          # 008
                                                                                                          MPN: 105679
                                                                                                          STUD BOLT
                                                                                                          from £16.31
                                                                                                          from £16.31
                                                                                                          # 009
                                                                                                          MPN: 11066075
                                                                                                          SEEGER RING
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 010
                                                                                                          MPN: 108576
                                                                                                          WASHER
                                                                                                          from £0.95
                                                                                                          from £0.95
                                                                                                          # 011
                                                                                                          MPN: 10902621
                                                                                                          BOLT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 10902611 which we have in stock
                                                                                                          # 012
                                                                                                          MPN: 12574211
                                                                                                          NUT
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 013
                                                                                                          MPN: 10519401
                                                                                                          WASHER
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 014
                                                                                                          MPN: 12643701
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                          # 015
                                                                                                          MPN: 105232
                                                                                                          CONTROL SCREW
                                                                                                          from £3.71
                                                                                                          from £3.71
                                                                                                          # 016
                                                                                                          MPN: 16102311
                                                                                                          NUT
                                                                                                          from £0.42
                                                                                                          from £0.42
                                                                                                          This part replaces part number 16102315
                                                                                                          # 017
                                                                                                          MPN: 115134
                                                                                                          LHD ACCELERATOR CABLE
                                                                                                          from £50.89
                                                                                                          from £50.89
                                                                                                          # 017
                                                                                                          MPN: 116702
                                                                                                          RHD ACCELERATOR CABLE
                                                                                                          from £51.04
                                                                                                          from £51.04
                                                                                                          # 018
                                                                                                          MPN: 100655
                                                                                                          FORK
                                                                                                          from £56.31
                                                                                                          from £56.31
                                                                                                          This part replaces part number 550015 - and 3 more. Click to view details
                                                                                                          # 019
                                                                                                          MPN: 100656
                                                                                                          PIVOT
                                                                                                          from £2.25
                                                                                                          from £2.25
                                                                                                          # 020
                                                                                                          MPN: 10725911
                                                                                                          LOCKNUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 95900403
                                                                                                          # 021
                                                                                                          MPN: 105369
                                                                                                          CABLE GROMMET
                                                                                                          from £19.10
                                                                                                          from £19.10
                                                                                                          # 022
                                                                                                          MPN: 16104411
                                                                                                          SELF LOCKING NUT
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          # 023
                                                                                                          MPN: 113556
                                                                                                          SCREW
                                                                                                          from £12.12
                                                                                                          from £12.12
                                                                                                          # 024
                                                                                                          MPN: 113571
                                                                                                          SPRING
                                                                                                          from £40.12
                                                                                                          from £40.12
                                                                                                          # 025
                                                                                                          MPN: 114851
                                                                                                          FARFALLA
                                                                                                          from £24.73
                                                                                                          from £24.73
                                                                                                          # 026
                                                                                                          MPN: 114852
                                                                                                          ALBERINO PER FARFALLA
                                                                                                          from £48.79
                                                                                                          from £48.79
                                                                                                          # 027
                                                                                                          MPN: 107443
                                                                                                          CENTERING DOWEL
                                                                                                          from £7.23
                                                                                                          from £7.23
                                                                                                          # 028
                                                                                                          MPN: 115361
                                                                                                          SCREW
                                                                                                          from £0.67
                                                                                                          from £0.67
                                                                                                          # 029
                                                                                                          MPN: 13550401
                                                                                                          WASHER
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 030
                                                                                                          MPN: 11065976
                                                                                                          SEEGER RING
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 11065975
                                                                                                          # 031
                                                                                                          MPN: 113566
                                                                                                          WASHER
                                                                                                          from £1.96
                                                                                                          from £1.96
                                                                                                          # 032
                                                                                                          MPN: 16102321
                                                                                                          NUT
                                                                                                          from £1.30
                                                                                                          from £1.30
                                                                                                          # 033
                                                                                                          MPN: 114853
                                                                                                          LEVER
                                                                                                          from £147.53
                                                                                                          from £147.53
                                                                                                          # 034
                                                                                                          MPN: 115590
                                                                                                          LEVER
                                                                                                          from £57.39
                                                                                                          from £57.39
                                                                                                          # 035
                                                                                                          MPN: 114863
                                                                                                          PIVOT
                                                                                                          from £17.36
                                                                                                          from £17.36
                                                                                                          # 036
                                                                                                          MPN: 114986
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          # 038
                                                                                                          MPN: 102951
                                                                                                          SPRING
                                                                                                          from £35.06
                                                                                                          from £35.06
                                                                                                          This part replaces part number 9180972 - and 1 more. Click to view details
                                                                                                          # 039
                                                                                                          MPN: 115594
                                                                                                          PLATE
                                                                                                          from £3.30
                                                                                                          from £3.30
                                                                                                          # 040
                                                                                                          MPN: 10977721
                                                                                                          SCREW
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 13833524
                                                                                                          # 041
                                                                                                          MPN: 10571470
                                                                                                          WASHER
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 042
                                                                                                          MPN: 114366
                                                                                                          SCREW
                                                                                                          from £4.53
                                                                                                          from £4.53
                                                                                                          # 043
                                                                                                          MPN: 107824
                                                                                                          SPRING
                                                                                                          from £0.93
                                                                                                          from £0.93
                                                                                                          # 044
                                                                                                          MPN: 111182
                                                                                                          ANTI TAMPER PLUG
                                                                                                          from £12.77
                                                                                                          from £12.77
                                                                                                          # 045
                                                                                                          MPN: 114367
                                                                                                          PIVOT
                                                                                                          from £0.58
                                                                                                          from £0.58
                                                                                                          # 046
                                                                                                          MPN: 115204
                                                                                                          PIATTELLO
                                                                                                          from £10.28
                                                                                                          from £10.28
                                                                                                          # 047
                                                                                                          MPN: 114919
                                                                                                          RUBBER GROMMET
                                                                                                          from £0.96
                                                                                                          from £0.96
                                                                                                          This part replaces part number 103037
                                                                                                          # 048
                                                                                                          MPN: 111530
                                                                                                          SNODO SFERICO PER CAVO
                                                                                                          from £24.99
                                                                                                          from £24.99
                                                                                                          # 049
                                                                                                          MPN: 10519301
                                                                                                          WASHER
                                                                                                          from £12.57
                                                                                                          from £12.57
                                                                                                          This part replaces part number 10517377 - and 2 more. Click to view details
                                                                                                          # 050
                                                                                                          MPN: 10794601
                                                                                                          SPLIT PIN
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 051
                                                                                                          MPN: 15896411
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896401
                                                                                                          # 052
                                                                                                          MPN: 16100824
                                                                                                          NUT
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
