028 - Calipers for Front and Rear Brakes

Ferrari 308 (1981) GTBi/GTSi Calipers for Front and Rear Brakes Parts Diagram

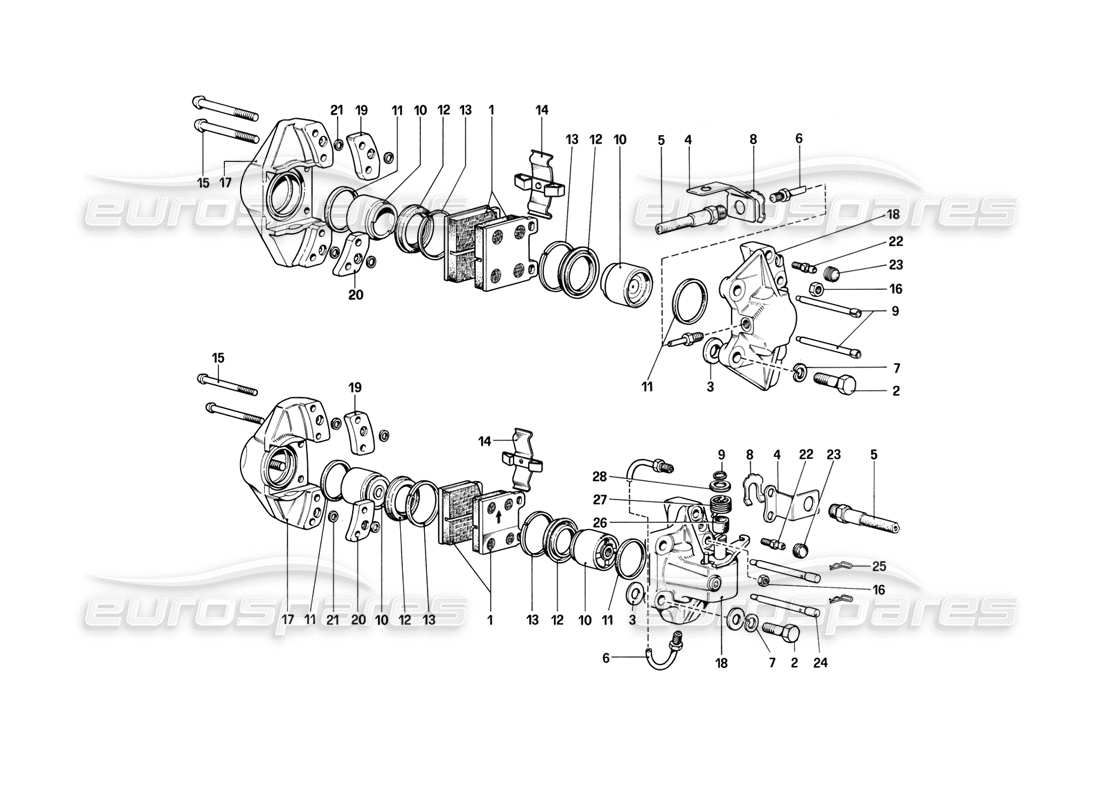

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 000
            MPN: 104458/A
            COMPLETE REAR BRAKE KIT
            Includes Rear Disks 104458 x 2, Pads 108134 x 1 and Caliper Clips 106360/A x 1
            ALTERNATIVE REAR BRAKE DISC Genuine Ferrari Part - New (to order)
            # 000
            MPN: 104458/A
            COMPLETE REAR BRAKE KIT
            Includes Rear Disks 104458 x 2, Pads 108134 x 1 and Caliper Clips 106360/A x 1
            ALTERNATIVE REAR BRAKE DISC Genuine Ferrari Part - New (to order)
            # 000
            MPN: 106072/A
            COMPLETE FRONT BRAKE KIT
            Includes Front Disks 106072 x 2, Pads 108133 x 1 and Caliper Clips 106357/A x 1
            COMPLETE FRONT BRAKE KIT Genuine Ferrari Part - New (to order)
            # 000
            MPN: 106072/A
            COMPLETE FRONT BRAKE KIT
            Includes Front Disks 106072 x 2, Pads 108133 x 1 and Caliper Clips 106357/A x 1
            COMPLETE FRONT BRAKE KIT Genuine Ferrari Part - New (to order)
            # 000
            MPN: 95691535
            FRONT CALIPER REPAIR KIT
            (per caliper)
            from £31.45
            from £31.45
            FRONT CALIPER REPAIR KIT Genuine Ferrari Part - New In stock
            # 001
            MPN: 106357
            RH FRONT BRAKE CALIPER ASSY
            Exchange unit
            from £802.71
            from £802.71
            This part replaces part number 680976 - and 2 more. Click to view details
            RH FRONT BRAKE CALIPER ASSY Genuine Ferrari Part - New (to order)
            RH FRONT BRAKE CALIPER ASSY Genuine Ferrari Part - Used In stock
            RH FRONT BRAKE CALIPER ASSY Genuine Ferrari Part - Reconditioned In stock
            # 001
            MPN: 106358
            LH FRONT BRAKE CALIPER ASSY
            Exchange Caliper
            from £650.00
            from £650.00
            This part replaces part number 680991 - and 4 more. Click to view details
            LH FRONT BRAKE CALIPER ASSY Genuine Ferrari Part - New (to order)
            LH FRONT BRAKE CALIPER ASSY Genuine Ferrari Part - Used In stock
            LH FRONT BRAKE CALIPER ASSY Genuine Ferrari Part - Reconditioned In stock
            # 001
            MPN: 106359
            LEFT REAR CALIPER
            Exchange only
            from £939.75
            from £939.75
            Genuine Ferrari Part (no longer available to order)
            LH REAR BRAKE CALIPER ASSY Genuine Ferrari Part - Reconditioned In stock
            # 001
            MPN: 106360
            RIGHT REAR CALIPER
            Exchange only
            from £938.44
            from £938.44
            Genuine Ferrari Part (no longer available to order)
            RH REAR BRAKE CALIPER ASSY Genuine Ferrari Part - Used In stock
            RH REAR BRAKE CALIPER ASSY Genuine Ferrari Part - Reconditioned In stock
            # 001
            MPN: 108133
            FRONT BRAKE PADS SET
            from £18.90
            from £18.90
            This part replaces part number 144897
            front pad set (108133) Eurospares Approved Part - New In stock
            front pad set (108133) Eurospares Approved Part - New (other) In stock
            FRONT BRAKE PAD SET Genuine Ferrari Part - New In stock
            # 001
            MPN: 108134
            REAR BRAKE PADS SET
            from £28.30
            from £28.30
            This part replaces part number 117412
            REAR BRAKE PAD SET (108134) Eurospares Approved Part - New In stock
            REAR BRAKE PAD SET (108134) Eurospares Approved Part - New (to order)
            Genuine Ferrari Part (no longer available to order)
            # 002
            MPN: 104455
            BOLT
            from £7.52
            from £7.52
            This part replaces part number 680911 - and 1 more. Click to view details
            CALIPER BOLT Genuine Ferrari Part - New (to order)
            CALIPER BOLT Genuine Ferrari Part - Used In stock
            # 002
            MPN: 104598
            BOLT
            from £19.27
            from £19.27
            CALIPER BOLT Genuine Ferrari Part - New (to order)
            # 003
            MPN: 108922
            IDEM SPESSORE MM. 0,7
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 003
            MPN: 108922
            IDEM SPESSORE MM. 0,7
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 003
            MPN: 156260
            WASHER
            (di eventuale montaggio)
            from £0.70
            from £0.70
            This part replaces part number 108918
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156260
            WASHER
            (di eventuale montaggio)
            from £0.70
            from £0.70
            This part replaces part number 108918
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156261
            IDEM SPESSORE MM. 0,3
            from £2.97
            from £2.97
            This part replaces part number 108919
            SPACER 0.3MM Genuine Ferrari Part - New (to order)
            # 003
            MPN: 156261
            IDEM SPESSORE MM. 0,3
            from £2.97
            from £2.97
            This part replaces part number 108919
            SPACER 0.3MM Genuine Ferrari Part - New (to order)
            # 003
            MPN: 156262
            IDEM SPESSORE MM. 0,5
            from £0.64
            from £0.64
            This part replaces part number 108920
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156262
            IDEM SPESSORE MM. 0,5
            from £0.64
            from £0.64
            This part replaces part number 108920
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156263
            IDEM SPESSORE MM. 0,6
            from £0.65
            from £0.65
            This part replaces part number 108921
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156263
            IDEM SPESSORE MM. 0,6
            from £0.65
            from £0.65
            This part replaces part number 108921
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156265
            IDEM SPESSORE MM. 0,8
            from £1.56
            from £1.56
            This part replaces part number 108923
            SPACER 0.8MM Genuine Ferrari Part - New (to order)
            # 003
            MPN: 156265
            IDEM SPESSORE MM. 0,8
            from £1.56
            from £1.56
            This part replaces part number 108923
            SPACER 0.8MM Genuine Ferrari Part - New (to order)
            # 003
            MPN: 156266
            IDEM SPESSORE MM. 1
            from £0.64
            from £0.64
            This part replaces part number 108924
            WASHER Genuine Ferrari Part - New In stock
            # 003
            MPN: 156266
            IDEM SPESSORE MM. 1
            from £0.64
            from £0.64
            This part replaces part number 108924
            WASHER Genuine Ferrari Part - New In stock
            # 004
            MPN: 104476
            BRACKET / SUPPORT
            from £17.84
            from £17.84
            This part replaces part number 680886
            BRAKE HOSE CALIPER BRACKET Genuine Ferrari Part - New (to order)
            # 004
            MPN: 116490
            BRACKET / SUPPORT
            from £10.88
            from £10.88
            BRACKET Genuine Ferrari Part - New (to order)
            # 005
            MPN: 116489
            FRONT BRAKE HOSE
            Alternative use - 116489/A
            from £60.85
            from £60.85
            BRAKE HOSE 400MM Genuine Ferrari Part - New In stock
            # 005
            MPN: 116489/A
            FRONT BRAKE HOSE
            Longer brake hose (500mm)
            from £120.05
            from £120.05
            ALTERNATIVE LONGER BRAKE HOSE 500MM Genuine Ferrari Part - New (to order)
            # 005
            MPN: 116491
            REAR BRAKE HOSE
            from £40.80
            from £40.80
            REAR HOSE 285MM (116491) Eurospares Approved Part - New In stock
            REAR HOSE 285MM Genuine Ferrari Part - New In stock
            # 006
            MPN: 101401
            TUBETTO DAL FLESSIBILE ALIA PINZA
            Supersession
            Supersession
            This part replaces part number 680675
            Genuine Ferrari Part (no longer available to order)
            # 006
            MPN: 143699
            TUBETTO DAL FLESSIBILE ALLE PINZE
            from £74.76
            from £74.76
            This part replaces part number 106671 - and 2 more. Click to view details
            BRAKE PIPE (CALIPER) Genuine Ferrari Part - New (to order)
            # 007
            MPN: 10517071
            WASHER
            from £0.47
            from £0.47
            This part replaces part number 10571911
            WASHER Genuine Ferrari Part - New (to order)
            # 007
            MPN: 106854
            WASHER
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 008
            MPN: 116374
            CLIP
            from £1.17
            from £1.17
            CLIP Genuine Ferrari Part - New In stock
            CLIP (116374) Genuine Maserati Part - New (to order)
            # 008
            MPN: 116374
            CLIP
            from £1.17
            from £1.17
            CLIP Genuine Ferrari Part - New In stock
            CLIP (116374) Genuine Maserati Part - New (to order)
            # 009
            MPN: ATE
            PIN
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 009
            MPN: ATE
            RING
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 010
            MPN: ATE
            CILINDRETTO
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 010
            MPN: ATE
            CILINDRETTO
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 011
            MPN: 95691535
            FRONT CALIPER REPAIR KIT
            (per caliper) - Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            from £31.45
            from £31.45
            FRONT CALIPER REPAIR KIT Genuine Ferrari Part - New In stock
            # 011
            MPN: 95691536
            REAR CALIPER REPAIR KIT
            (per caliper)
            Supersession
            Supersession
            Genuine Ferrari Part (no longer available to order)
            # 011
            MPN: ATE
            SEALING RING
            Con I'assieme n. 95691535 - Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 011
            MPN: ATE
            SEALING RING
            Con I'assieme n. 95691536
            ATE Genuine Ferrari Part - New (to order)
            # 012
            MPN: ATE
            RING
            Con I'assieme n. 95691535 - Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 012
            MPN: ATE
            RING
            Con I'assieme n. 95691 536
            ATE Genuine Ferrari Part - New (to order)
            # 013
            MPN: ATE
            RING
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 013
            MPN: ATE
            RING
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 014
            MPN: 106357/A
            PAIR FRONT BRAKE PAD PIN SET
            (kit per axle)
            from £31.45
            from £31.45
            ALTERNATIVE RH FRONT BRAKE CALIPER Genuine Ferrari Part - New In stock
            # 014
            MPN: 106360/A
            PAIR REAR BRAKE PAD PIN SET
            (kit per axle)
            from £30.40
            from £30.40
            PAIR REAR BRAKE PAD PIN SET Genuine Ferrari Part - New In stock
            # 015
            MPN: ATE
            BOLT
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 015
            MPN: ATE
            BOLT
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 016
            MPN: ATE
            DADI
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 016
            MPN: ATE
            DADI
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 017
            MPN: ATE
            CORPO ESTERNO CILINDRETTI
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 017
            MPN: ATE
            CORPO ESTERNO CILINDRETTI
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 018
            MPN: ATE
            CORPO INTERNO CILINDRETTI
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 018
            MPN: ATE
            CORPO INTERNO CILINDRETTI
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 019
            MPN: ATE
            DISTANZIALE SUPERIORE
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 019
            MPN: ATE
            DISTANZIALE SUPERIORE
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 020
            MPN: ATE
            DISTANZIALE INFERIORE
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 020
            MPN: ATE
            DISTANZIALE INFERIORE
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 021
            MPN: ATE
            SEALING RING
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 021
            MPN: ATE
            SEALING RING
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 022
            MPN: ATE
            VALVOLA DI SPURGO
            Non sono forniti a ricambio ma con I complessivi n. 106357 - 106358
            ATE Genuine Ferrari Part - New (to order)
            # 022
            MPN: ATE
            VALVOLA DI SPURGO
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 023
            MPN: ATE
            CAPPUCCIO PER VALVOLA DI SPURGO
            ATE Genuine Ferrari Part - New (to order)
            # 023
            MPN: ATE
            CAPPUCCIO PER VALVOLA DI SPURGO
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 024
            MPN: ATE
            PIN
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 025
            MPN: ATE
            FERMO PER SPINA
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 026
            MPN: ATE
            BUSH
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 027
            MPN: ATE
            SPRING
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            # 028
            MPN: ATE
            WASHER
            Non sono forniti a ricambio ma con I complessivi n. 106360 - 106359
            ATE Genuine Ferrari Part - New (to order)
            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
