042 - Throttle Control (Variants for RHD Versions)

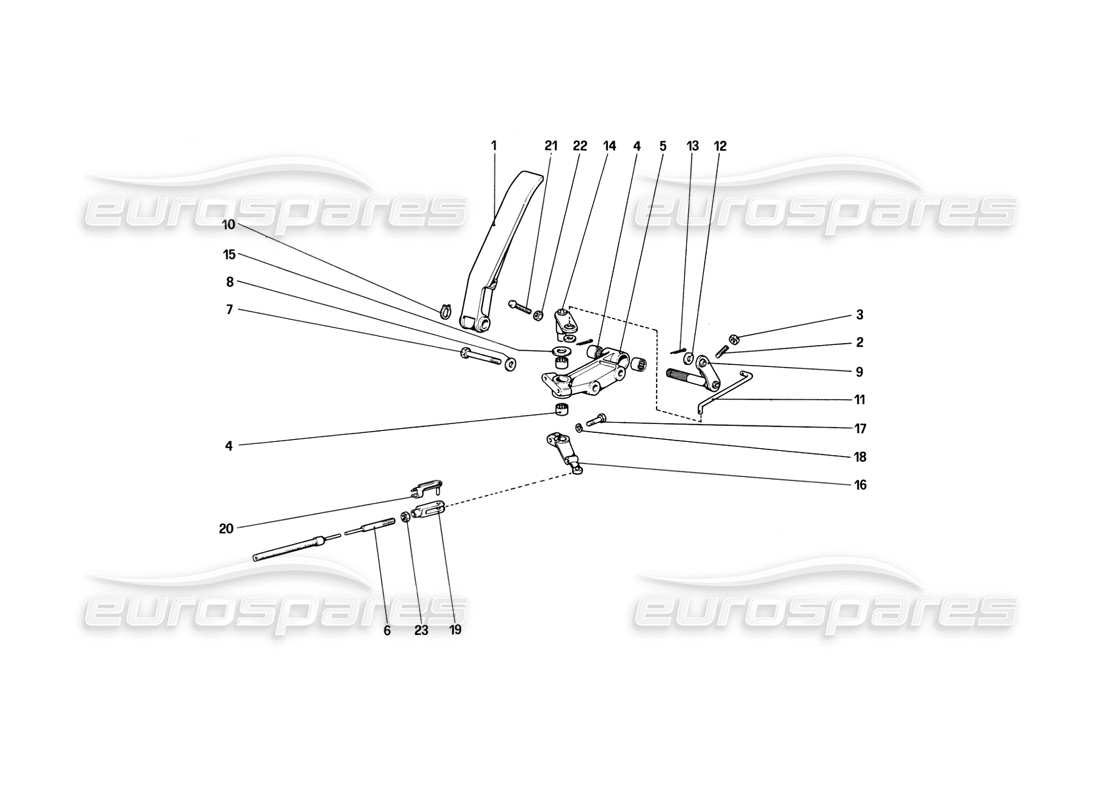

Ferrari 308 (1981) GTBi/GTSi Throttle Control (Variants for RHD Versions) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 105006
                                                PEDALE ACCELERATORE
                                                from £131.95
                                                from £131.95
                                                # 002
                                                MPN: 13708910
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                # 003
                                                MPN: 158896411
                                                CONTRODADO PER REGISTRO
                                                # 004
                                                MPN: 101677
                                                ROLLER BEARING
                                                from £2.03
                                                from £2.03
                                                # 005
                                                MPN: 110933
                                                SUPPORT
                                                from £87.18
                                                from £87.18
                                                This part replaces part number 106293 - and 3 more. Click to view details
                                                # 006
                                                MPN: 116702
                                                FLESSIBILE COMANDO ACCELERATORS..
                                                from £51.04
                                                from £51.04
                                                # 007
                                                MPN: 16136321
                                                SCREW
                                                from £0.81
                                                from £0.81
                                                # 008
                                                MPN: 12601371
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 009
                                                MPN: 106295
                                                PIVOT
                                                from £139.78
                                                from £139.78
                                                # 010
                                                MPN: 11066075
                                                SEEGER RING
                                                Supersession
                                                Supersession
                                                # 011
                                                MPN: 106297
                                                TIE ROD
                                                from £7.16
                                                from £7.16
                                                # 012
                                                MPN: 12643724
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 109684 - and 3 more. Click to view details
                                                # 013
                                                MPN: 10734201
                                                SPLIT PIN
                                                Supersession
                                                Supersession
                                                # 014
                                                MPN: 107158
                                                PIVOT
                                                from £73.80
                                                from £73.80
                                                # 015
                                                MPN: 107826
                                                WASHER
                                                from £3.15
                                                from £3.15
                                                # 016
                                                MPN: 110934
                                                LEVER
                                                from £56.33
                                                from £56.33
                                                This part replaces part number 107143 - and 2 more. Click to view details
                                                # 017
                                                MPN: 16043421
                                                SCREW
                                                from £2.74
                                                from £2.74
                                                This part replaces part number 95524
                                                # 018
                                                MPN: 106852
                                                WASHER
                                                Supersession
                                                Supersession
                                                This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                # 019
                                                MPN: 100655
                                                FORK
                                                from £56.31
                                                from £56.31
                                                This part replaces part number 550015 - and 3 more. Click to view details
                                                # 020
                                                MPN: 100656
                                                PIVOT
                                                from £2.25
                                                from £2.25
                                                # 021
                                                MPN: 100640
                                                SCREW
                                                from £3.15
                                                from £3.15
                                                This part replaces part number 9181141 - and 1 more. Click to view details
                                                # 022
                                                MPN: 16102311
                                                LOCKNUT
                                                from £0.42
                                                from £0.42
                                                This part replaces part number 16102315
                                                # 024
                                                MPN: 10752911
                                                CONTRODADO PER FLESSIBILE
