ferrari 308 gt4 dino (1976) electrical system parts diagram

120 - electrical system

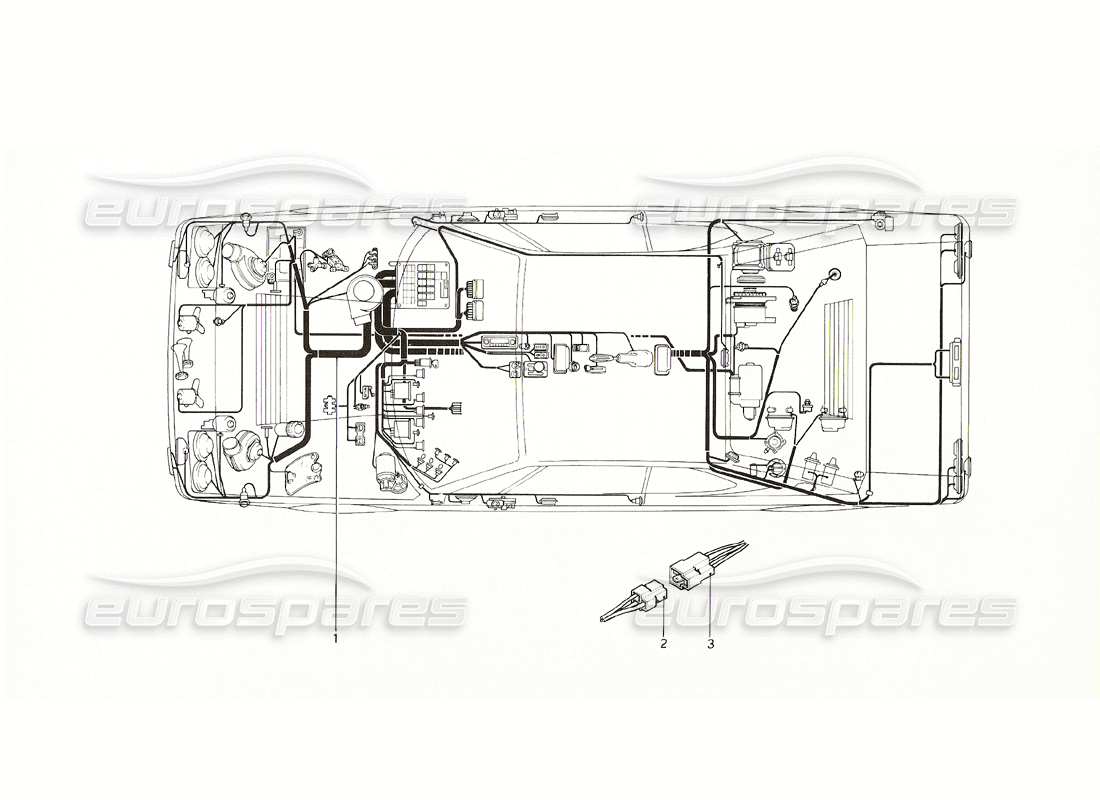

Ferrari 308 GT4 Dino (1976) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 40133605
    COMPLESSIVO IMPIANTO ELETTRICO
    Vale fino alla 1480 - Non vale per USA - CDN -GD-AUS
    # 001
    MPN: 40193708
    COMPLESSIVO IMPIANTO ELETTRICO
    Vale fino alla 1480 - Vale per GD - AUS
    from £939.35
    from £939.35
    # 001
    MPN: 40219800
    COMPLESSIVO IMPIANTO ELETTRICO
    Vale per USA - CDN
    # 001
    MPN: 40325102
    COMPLESSIVO IMPIANTO EIETTRICO
    Vaie dalla 1481 - Non vale per USA - CDN - GD-AUS
    from £631.63
    from £631.63
    # 001
    MPN: 40332504
    COMPLESSIVO IMPIANTO ELETTRICO
    Vale dalla 1481 - Vale per GD - AUS
    from £802.39
    from £802.39
    # 002
    MPN: 20165304
    CARRIER BLOC 4 WAY MALE
    Supersession
    Supersession
    # 002
    MPN: 20165601
    CARRIER BLOC 3 WAY MALE
    from £1.65
    from £1.65
    This part replaces part number MC4815/3
    # 002
    MPN: 20165809
    CARRIER BLOC 2 WAY MALE
    from £1.43
    from £1.43
    # 002
    MPN: 20165908
    CARRIER BLOC 6 WAY MALE
    from £1.19
    from £1.19
    # 002
    MPN: 40328809
    BLOCCHETTO A 8 VIE PORTAFEMMINA
    Vale dalla 1481
    from £1.29
    from £1.29
    # 002
    MPN: 50115609
    BLOCCHETTO A 11 VIE PORTAFEMMINA
    Vale dalla 1481
    from £3.30
    from £3.30
    # 003
    MPN: 20185104
    3 WAY FEMALE CONNECTOR
    from £2.27
    from £2.27
    This part replaces part number MC4815/4
