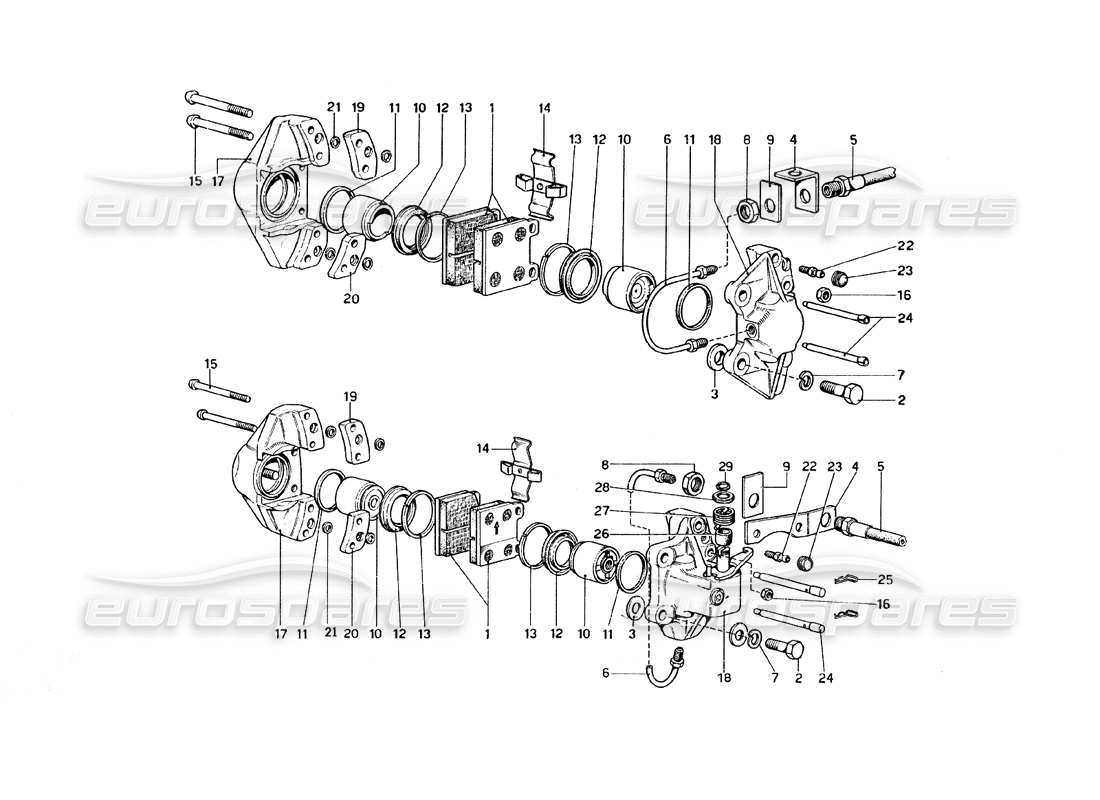

028 - Caliper for Front and Rear Brakes
Ferrari 308 GT4 Dino (1979) Caliper for Front and Rear Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 104458/A
COMPLETE REAR BRAKE KIT
Includes Rear Disks 104458 x 2, Pads 108134 x 1 and Caliper Clips 106360/A x 1
# 000
MPN: 106072/A
COMPLETE FRONT BRAKE KIT
Includes Front Disks 106072 x 2, Pads 108133 x 1 and Caliper Clips 106357/A x 1
# 000
MPN: 308HBK
HANDBRAKE REBUILD KIT
Includes Seals And Dustcover
from £29.95
from £29.95
# 000
MPN: 95691535
FRONT CALIPER REPAIR KIT
(per caliper)
from £29.95
from £29.95
# 000
MPN: 95691536
REAR CALIPER REPAIR KIT
(per caliper)
from £29.95
from £29.95
# 001
MPN: 106357
RH FRONT BRAKE CALIPER ASSY
Exchange unit
from £802.71
from £802.71
This part replaces part number 680976 - and 2 more. Click to view details
# 001
MPN: 106358
LH FRONT BRAKE CALIPER ASSY
Exchange Caliper
from £805.88
from £805.88
This part replaces part number 680991 - and 4 more. Click to view details
# 001
MPN: 108133
FRONT BRAKE PADS SET
from £18.90
from £18.90
This part replaces part number 144897
# 001
MPN: 108134
REAR BRAKE PADS SET
from £28.30
from £28.30
This part replaces part number 117412
# 002
MPN: 104455
BOLT
Rear brake caliper only
from £7.52
from £7.52
This part replaces part number 680911 - and 1 more. Click to view details
# 002
MPN: 104598
BOLT
Front brake caliper only
from £19.27
from £19.27
# 003
MPN: 108922
IDEM SPESSORE MM. 0,7
Front brake caliper only
Supersession
Supersession
# 003
MPN: 108922
IDEM SPESSORE MM. 0,7
Rear brake caliper only
Supersession
Supersession
# 003
MPN: 156260
WASHER
Front brake caliper only
from £0.69
from £0.69
This part replaces part number 108918
# 003
MPN: 156260
WASHER
Rear brake caliper only
from £0.69
from £0.69
This part replaces part number 108918
# 003
MPN: 156261
IDEM SPESSORE MM. 0,3
Front brake caliper only
from £2.97
from £2.97
This part replaces part number 108919
# 003
MPN: 156261
IDEM SPESSORE MM. 0,3
Rear brake caliper only
from £2.97
from £2.97
This part replaces part number 108919
# 003
MPN: 156262
IDEM SPESSORE MM. 0,5
Front brake caliper only
from £0.69
from £0.69
This part replaces part number 108920
# 003
MPN: 156262
IDEM SPESSORE MM. 0,5
Rear brake caliper only
from £0.69
from £0.69
This part replaces part number 108920
# 003
MPN: 156263
IDEM SPESSORE MM. 0,6
Front brake caliper only
from £0.70
from £0.70
This part replaces part number 108921
# 003
MPN: 156263
IDEM SPESSORE MM. 0,6
Rear brake caliper only
from £0.70
from £0.70
This part replaces part number 108921
# 003
MPN: 156265
IDEM SPESSORE MM. 0,8
Front brake caliper only
from £1.56
from £1.56
This part replaces part number 108923
# 003
MPN: 156265
IDEM SPESSORE MM. 0,8
Rear brake caliper only
from £1.56
from £1.56
This part replaces part number 108923
# 003
MPN: 156266
IDEM SPESSORE MM. 1
Front brake caliper only
from £0.69
from £0.69
This part replaces part number 108924
# 003
MPN: 156266
IDEM SPESSORE MM. 1
Rear brake caliper only
from £0.69
from £0.69
This part replaces part number 108924
# 004
MPN: 104476
BRACKET / SUPPORT
Front brake caliper only
from £17.84
from £17.84
This part replaces part number 680886
# 004
MPN: 107911
BRACKET / SUPPORT
Rear brake caliper only
from £3.30
from £3.30
# 005
MPN: 101392
REAR BRAKE HOSE
from £35.00
from £35.00
This part replaces part number 680665 - and 1 more. Click to view details
# 005
MPN: 101393
FRONT BRAKE HOSES
from £27.04
from £27.04
This part replaces part number 680666
# 006
MPN: 101401
TUBETTO DAL FLESSIBILE ALIA PINZA
Rear brake caliper only
Supersession
Supersession
This part replaces part number 680675
# 006
MPN: 143699
TUBETTO DAL FLESSIBILE ALLE PINZE
from £74.76
from £74.76
This part replaces part number 106671 - and 2 more. Click to view details
# 007
MPN: 10517071
WASHER
Rear brake caliper only
from £0.47
from £0.47
This part replaces part number 10571911
# 007
MPN: 106854
WASHER
Front brake caliper only
Supersession
Supersession
# 008
MPN: 101413
NUT
Front brake caliper only
from £18.56
from £18.56
This part replaces part number 94630
# 008
MPN: 101413
NUT
Rear brake caliper only
from £18.56
from £18.56
This part replaces part number 94630
# 009
MPN: 14199111
PLATE
Front brake caliper only
from £0.47
from £0.47
# 009
MPN: 14199111
PLATE
Rear brake caliper only
from £0.47
from £0.47
# 010
-
CILINDRETTO
Front brake caliper only
# 010
-
CILINDRETTO
Rear brake caliper only
# 011
-
SEALING RING
Front brake caliper only
# 011
-
SEALING RING
Rear brake caliper only
# 012
-
ANEILO PARAPOLVERE
Front brake caliper only
# 012
-
RING
Rear brake caliper only
# 013
-
RING
Front brake caliper only
# 013
-
RING
Rear brake caliper only
# 014
MPN: 106357/A
PAIR FRONT BRAKE PAD PIN SET
(kit per axle)
from £49.95
from £49.95
# 014
MPN: 106360/A
PAIR REAR BRAKE PAD PIN SET
(kit per axle)
from £30.40
from £30.40
# 015
-
BOLT
Front brake caliper only
# 015
-
BULLONI BLOCCAGGIO CORPI PASTIGLIE
Rear brake caliper only
# 016
-
DADI PER BULLONI
Front brake caliper only
# 016
-
DADI PER BULLONI
Rear brake caliper only
# 017
-
CORPO ESTERNO CILINDRETTI
Front brake caliper only
# 017
-
CORPO ESTERNO CILINDRETTI
Rear brake caliper only
# 018
-
CORPO INTERNO CILINDRETTI
Front brake caliper only
# 018
-
CORPO INTERNO CILINDRETTI
Rear brake caliper only
# 019
-
DISTANZIALE S> PERIORE
Front brake caliper only
# 019
-
DISTANZIALE SUPERIORE
Rear brake caliper only
# 020
-
DISTANZIALE INFERIORE
Front brake caliper only
# 020
-
DISTANZIALE INFERIORE
Rear brake caliper only
# 021
-
SEALING RING
Front brake caliper only
# 021
-
SEAL
Rear brake caliper only
# 022
-
VALVOLA DI SPURGO
Front brake caliper only
# 022
-
VALVOLA DI SPURGO
Rear brake caliper only
# 023
-
CAPPUCCIO PER VALVOLA DI SPURGO
Front brake caliper only
# 023
-
CAPPUCCIO VALVOLA SPURGO
Rear brake caliper only
# 024
-
PIN
Front brake caliper only
# 024
-
PIN
Rear brake caliper only
# 025
-
FERMO PER SPINA
Rear brake caliper only
# 026
-
BUSH
Rear brake caliper only
# 027
-
SPRING
Rear brake caliper only
# 028
-
WASHER
Rear brake caliper only
# 029
-
RING
Rear brake caliper only
-part-diagram-029.webp "FERRARI 308 GT4 DINO (1979) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 308 GT4 DINO (1979) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 308 GT4 DINO (1979) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 308 GT4 DINO (1979) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 308 GT4 DINO (1979) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 308 GT4 DINO (1979) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 308 GT4 DINO (1979) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 308 GT4 DINO (1979) WHEELS PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 308 GT4 DINO (1979) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 308 GT4 DINO (1979) ENGINE IGNITION (FROM N. 14070 GS - 14020 GD) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 308 GT4 DINO (1979) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 308 GT4 DINO (1979) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 308 GT4 DINO (1979) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 308 GT4 DINO (1979) TOOL KIT PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 308 GT4 DINO (1979) THROTTLE CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 308 GT4 DINO (1979) PEDAL BOARD - CLUTCH CONTROLS (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 308 GT4 DINO (1979) BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 308 GT4 DINO (1979) AIR PUMP AND PIPINGS (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 308 GT4 DINO (1979) GUARDS (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 308 GT4 DINO (1979) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 308 GT4 DINO (1979) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 308 GT4 DINO (1979) INTAKE AIR CLEANER VALVE AND LINES (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 308 GT4 DINO (1979) INTAKE AIR CLEANER VALVE AND LINES (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 308 GT4 DINO (1979) FUEL SYSTEM - CARBURETTORS AND CONTROLS (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 308 GT4 DINO (1979) EXHAUST SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 308 GT4 DINO (1979) EXHAUST SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 308 GT4 DINO (1979) ENGINE IGNITION (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS (USA 78 - J) PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS (USA 77 - AUS) PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 308 GT4 DINO (1979) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 308 GT4 DINO (1979) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 308 GT4 DINO (1979) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 308 GT4 DINO (1979) DOORS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 308 GT4 DINO (1979) DOORS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 308 GT4 DINO (1979) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 308 GT4 DINO (1979) BUMPERS (U.S. AND JAPANESE VERSION) PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 308 GT4 DINO (1979) GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 308 GT4 DINO (1979) INTERIOR TRIM, ACCESSORIES AND SLIDING ROOF PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 308 GT4 DINO (1979) INTERIOR TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 308 GT4 DINO (1979) SEATS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 308 GT4 DINO (1979) CARPETING PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 308 GT4 DINO (1979) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 308 GT4 DINO (1979) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 308 GT4 DINO (1979) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 308 GT4 DINO (1979) LIGHTS PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 308 GT4 DINO (1979) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 308 GT4 DINO (1979) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 308 GT4 DINO (1979) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 308 GT4 DINO (1979) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 308 GT4 DINO (1979) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 308 GT4 DINO (1979) FLYWHEEL AND CLUTCH HOUSING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 308 GT4 DINO (1979) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 308 GT4 DINO (1979) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 308 GT4 DINO (1979) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 308 GT4 DINO (1979) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 308 GT4 DINO (1979) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 308 GT4 DINO (1979) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 308 GT4 DINO (1979) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 308 GT4 DINO (1979) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 308 GT4 DINO (1979) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 308 GT4 DINO (1979) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 308 GT4 DINO (1979) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 308 GT4 DINO (1979) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 308 GT4 DINO (1979) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 308 GT4 DINO (1979) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 308 GT4 DINO (1979) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 308 GT4 DINO (1979) GEAR - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 308 GT4 DINO (1979) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 308 GT4 DINO (1979) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 308 GT4 DINO (1979) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 308 GT4 DINO (1979) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 308 GT4 DINO (1979) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 308 GT4 DINO (1979) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 308 GT4 DINO (1979) BRAKE SYSTEM PARTS DIAGRAM")
