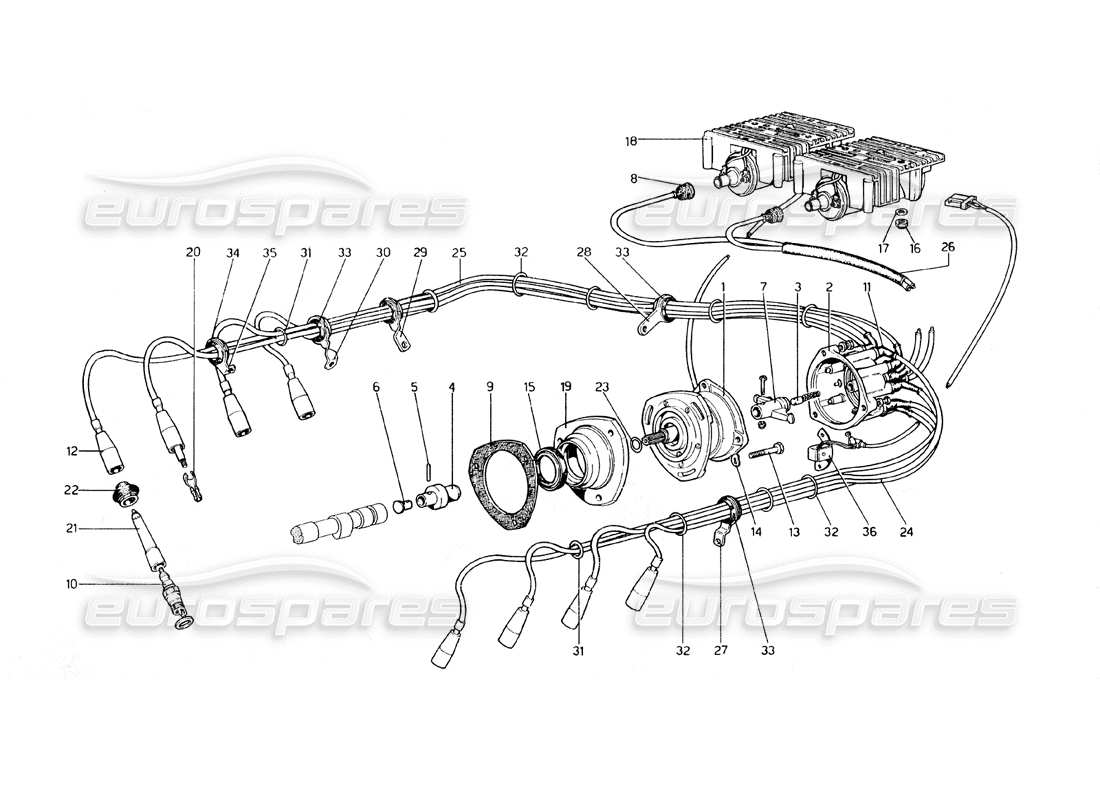

038 - Engine Ignition (From N. 14070 GS - 14020 GD)
Ferrari 308 GT4 Dino (1979) Engine Ignition (From N. 14070 GS - 14020 GD) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FHT017
COMPLETE HT LEADS SET
Valid for cars with TWIN distributor
from £295.00
from £295.00
# 000
MPN: FHT019
COMPLETE HT LEADS SET
Valid for cars with SINGLE distributor (with electronic ignition)
from £344.82
from £344.82
# 000
MPN: FHT020
COMPLETE HT LEADS SET
Valid for cars with SINGLE distributor (non electric)
from £357.44
from £357.44
COMPLETE HT LEADS SET Genuine Ferrari Part - New (other) In stock
Valid for cars with SINGLE distributor (non electric)
Valid for cars with SINGLE distributor (non electric)
# 001
MPN: 112901
DISTRIBUTORE DI ACCENSIONE COMPLETO MARELLI SM805A
from £1,566.35
from £1,566.35
# 002
MPN: 95300046
DISTRIBUTOR CAP
(electronic type)
from £275.00
from £275.00
# 003
MPN: 95300069
CARBONCINO CON MOLLA
Non a ricambio
# 004
MPN: 108005
INNESTO
from £239.27
from £239.27
# 005
MPN: 100279
PIN
from £11.85
from £11.85
This part replaces part number 13904770 - and 2 more. Click to view details
# 006
MPN: 112547
PLUG
from £16.65
from £16.65
# 007
MPN: 95300317
ROTOR ARM
from £110.00
from £110.00
# 008
MPN: 12056986
CAPPUCCIO DI PROTEZIONE
from £0.94
from £0.94
This part replaces part number 12056286 - and 2 more. Click to view details
# 009
MPN: 147642
GASKET
from £4.00
from £4.00
This part replaces part number 103815
# 010
MPN: 107603
SPARK PLUG
(champion N7Y)
from £2.81
from £2.81
This part replaces part number 113224
# 010
MPN: 107603/A
SPARK PLUG
(NGK)
from £9.05
from £9.05
# 010
MPN: 109297
CANDELA DI ACCENSIONE (BOSCH W200T3)
In alternativa al N. 107603
from £3.22
from £3.22
# 011
MPN: 100284
CAPPUCCIO PROTEZIONE CAVI SUL DISTRIBUTORE
from £6.10
from £6.10
This part replaces part number 29288
# 012
MPN: 29171
TERMINALE
from £4.14
from £4.14
This part replaces part number 12056886 which we have in stock
# 013
MPN: 16043921
SCREW
from £1.43
from £1.43
# 014
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 015
MPN: 108009
SEALING RING
from £12.14
from £12.14
# 016
MPN: 102741
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 017
MPN: 12643721
WASHER
from £0.92
from £0.92
# 018
MPN: 112902
BOBINA DI ACCENSIONE CON GRUPPO MODULO ELETTRONICO
from £1,297.12
from £1,297.12
# 019
MPN: 117670
CRANKCASE COMPLETE
from £5,047.52
from £5,047.52
This part replaces part number 114229
# 020
MPN: 12656340
CAPOCORDA
# 021
MPN: 116613
SPARK PLUG EXTENSION
from £8.62
from £8.62
This part replaces part number 107310
# 022
MPN: 108333
CAPPUCCETTO PROTEZIONE CANDELE
from £11.62
from £11.62
This part replaces part number 61605900
# 023
MPN: 100015
RING
from £1.21
from £1.21
# 024
MPN: 108910
ASSIEME CAVI ACCENSIONE LATO SX.
from £248.18
from £248.18
This part replaces part number 113638
# 025
MPN: 108911
ASSIEME CAVI ACCENSIONE LATO DX.
from £228.74
from £228.74
This part replaces part number 113639
# 026
MPN: 113641
ASSIEME CAVI COLLEGAMENTO BOBINA DISTRIBUTORE
from £8.33
from £8.33
# 027
MPN: 105902
BRACKET
from £11.54
from £11.54
This part replaces part number 29268
# 028
MPN: 109670
BRACKET
from £6.09
from £6.09
# 029
MPN: 110092
BRACKET
from £5.65
from £5.65
# 030
MPN: 107361
BRACKET
from £29.97
from £29.97
This part replaces part number 29267
# 031
MPN: 109672
SEAL
# 032
MPN: 103702
SEAL
from £6.84
from £6.84
This part replaces part number 29265
# 033
MPN: 10396580
CABLE GROMMET
from £1.09
from £1.09
This part replaces part number 100286
# 034
MPN: 10396480
CABLE GROMMET
from £2.34
from £2.34
This part replaces part number 103516
# 035
MPN: 110094
BRACKET
# 036
MPN: 95300027
BOBINETTA COMPLETA DI FILO E SQUADRETTA
from £82.76
from £82.76
