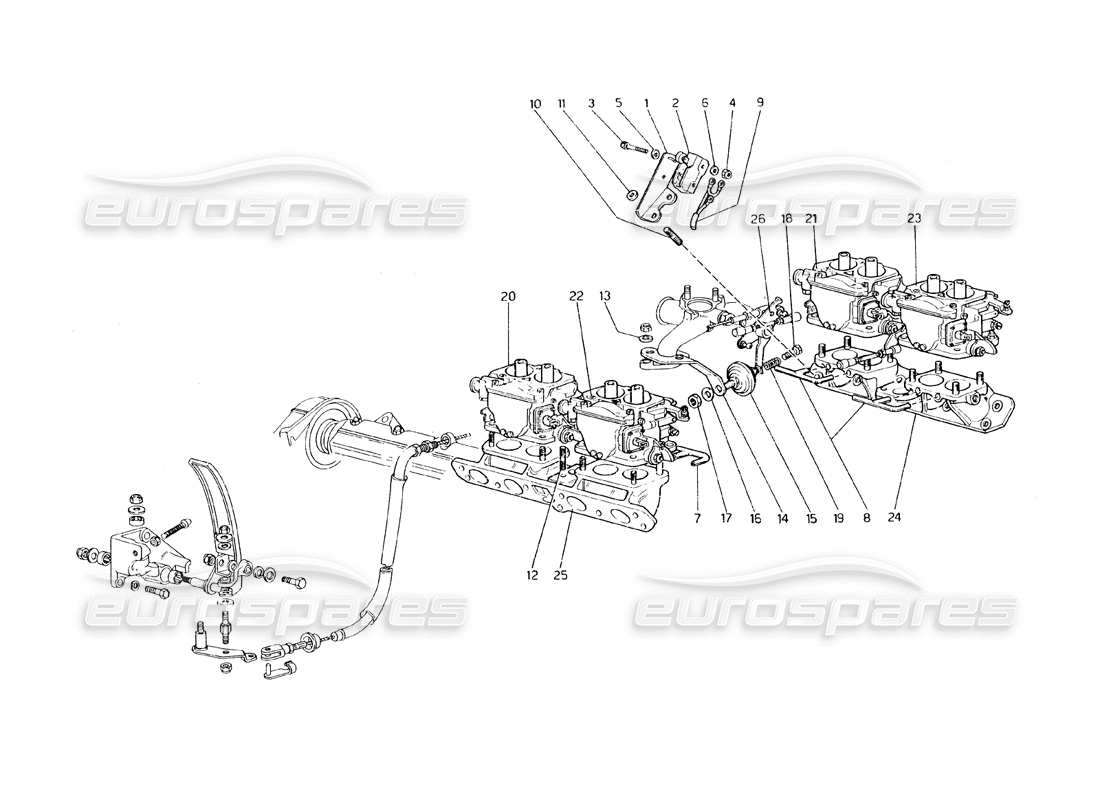

052 - Fuel System - Carburettors and Controls (Variants for USA - AUS and J Version)
Ferrari 308 GT4 Dino (1979) Fuel System - Carburettors and Controls (Variants for USA - AUS and J Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107792
SUPPORT
This part replaces part number 40362402
# 002
MPN: 106603
MICROINTERRUTTORE
from £249.54
from £249.54
# 003
MPN: 107157
BOLT
from £0.99
from £0.99
# 004
MPN: 16101711
NUT
from £0.47
from £0.47
This part replaces part number 16101715
# 005
MPN: 12639401
WASHER
from £0.54
from £0.54
# 006
MPN: 10615171
WASHER
from £0.47
from £0.47
This part replaces part number 10615174
# 007
MPN: 112634
PRESA DEPRESSIONE PER FILTRO CARBONE ATTIVO
from £45.63
from £45.63
# 008
MPN: 107785
PRESA DEPRESSIONE PER FILTRO CARBONE ATTIVO ED ELETTROVALVOLA
Per AUS e Giappone q=1
from £29.37
from £29.37
# 009
MPN: 108030
CAVETTO UNIPOLARE SCHERMATO
from £13.45
from £13.45
# 010
MPN: 13517021
THREADED STUD
from £2.80
from £2.80
# 011
MPN: 10730321
WASHER
from £0.66
from £0.66
This part replaces part number 10730301 - and 2 more. Click to view details
# 012
MPN: 13516924
THREADED STUD
from £1.23
from £1.23
This part replaces part number 13516921
# 013
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 014
MPN: 112640
BRACKET / SUPPORT
Solo per la versione USA dal 78 in poi
from £9.42
from £9.42
# 015
MPN: 112638
DASHPOT COMANDO CARBURATORI
Solo per la versione USA dal 78 in poi
from £91.88
from £91.88
# 016
MPN: 106852
WASHER
Solo per la versione USA dal 78 in poi
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 017
MPN: 110859
NUT
Solo per la versione USA dal 78 in poi
from £0.51
from £0.51
# 018
MPN: 107823
SCREW
Solo per la versione USA dal 78 in poi
from £3.14
from £3.14
# 019
MPN: 107824
SPRING
Solo per la versione USA dal 78 in poi
from £0.93
from £0.93
# 020
MPN: 110061
CARBURATORE ANTERIORE DX. (WEBER 40 DCNF 65)
Solo per AUS
from £399.14
from £399.14
# 020
MPN: 111726
CARBURATORE ANTERIORE DX. (WEBER 40 DCNF 73)
Solo per versione USA
from £441.90
from £441.90
# 020
MPN: 113842
CARBURATORE ANTERIORE DX. (WEBER 40 DCNF 73/100)
Solo per Giappone
from £343.55
from £343.55
# 021
MPN: 110062
CARBURATORE POSTERIORE DX. (WEBER 40 DCNF 67)
Solo per AUS
from £399.14
from £399.14
# 021
MPN: 111727
CARBURATORE POSTERIORE DX. (WEBER 40 DCNF 75)
Solo per versione USA
from £587.87
from £587.87
# 021
MPN: 113843
CARBURATORE POSTERIORE DX. (WEBER 40 DCNF 75/100)
Solo per Giappone
from £343.55
from £343.55
# 022
MPN: 110063
CARBURATORE ANTERIORE SX. (WEBER 40 DCNF 64)
Solo per AUS
from £399.14
from £399.14
# 022
MPN: 111728
CARBURATORE ANTERIORE SX. (WEBER 40 DCNF 72)
Solo per versione USA
from £411.51
from £411.51
# 022
MPN: 113844
CARBURATORE ANTERIORE SX. (WEBER 40 DCNF 72/100)
Solo per Giappone
from £360.73
from £360.73
# 023
MPN: 107726
COLLETTORE DI ASPIRAZIONE DX. COMPLETO
Vale per USA
from £522.77
from £522.77
# 023
MPN: 110064
CARBURATORE POSTERIORE SX. (WEBER 40 DCNF 66)
Solo per AUS
from £419.10
from £419.10
# 023
MPN: 111729
CARBURATORE POSTERIORE SX. (WEBER 40 DCNF 74)
Solo per versione USA
# 023
MPN: 113845
CARBURATORE POSTERIORE SX. (WEBER 40 DCNF 74/100)
Solo per Giappone
from £343.55
from £343.55
# 024
MPN: 107673
COLLETTORE DI ASPIRAZIONE DX.
Col complessivo n. 107726
# 024
MPN: 107727
COLLETTORE DI ALIMENTAZIONE SX. COMPLETO
Vale per AUS
from £468.34
from £468.34
# 024
MPN: 109786
COLLETTORE DI ASPIRAZIONE DX. COMPLETO
Vale per AUS
from £794.37
from £794.37
# 024
MPN: 109787
COLLETTORE DI ASPIRAZIONE DX.
Col complessivo n. 109786
# 024
MPN: 113864
COLLETTORE DI ASPIRAZIONE DX.
Col complessivo n. 1 14670
# 024
MPN: 114670
COLLETTORE DI ASPIRAZIONE DX. COMPLETO
Vale per Giappone
from £524.36
from £524.36
# 025
MPN: 107674
COLLETTORE DI ASPIRAZIONE SX.
Col complessivo n. 107727
# 025
MPN: 112636
COLLETTORE DI ASPIRAZIONE SX.
Col complessivo n. 114072
# 025
MPN: 114072
COLLETTORE DI ASPIRAZIONE SX. COMPLETO
Non vale per AUS
from £662.09
from £662.09
# 026
MPN: 107790
LEVER
Vale per AUS e J
from £164.59
from £164.59
This part replaces part number 106114
# 026
MPN: 112639
LEVER
Vale per USA
