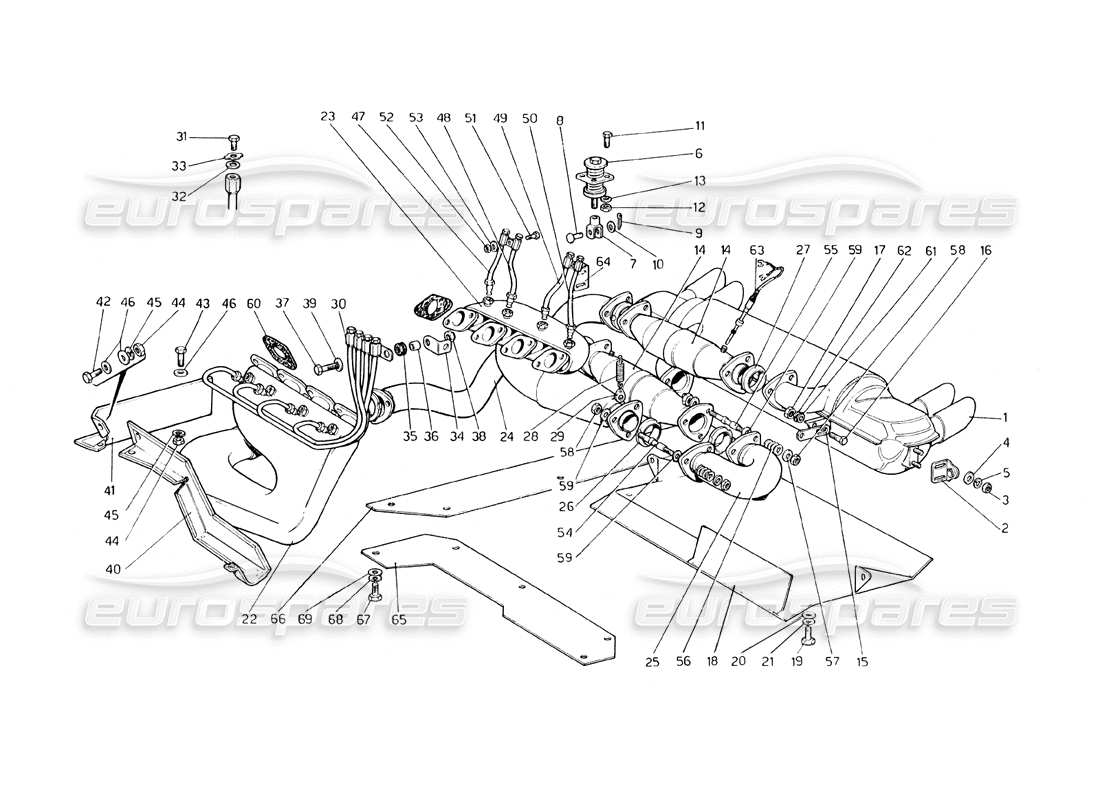

053 - Exhaust System (Variants for USA - AUS and J Version)
Ferrari 308 GT4 Dino (1979) Exhaust System (Variants for USA - AUS and J Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 111902
MARMITTA
For U.S. and JAPANESE Version / Part Number 111902
from £2.54
from £2.54
# 002
MPN: 113686
BRACKET / SUPPORT
For U.S. and JAPANESE Version
from £47.94
from £47.94
# 003
MPN: 114748
NUT
For U.S. and JAPANESE Version
from £8.91
from £8.91
# 004
MPN: 10519624
WASHER
For U.S. and JAPANESE Version
from £0.53
from £0.53
This part replaces part number 10519601 - and 3 more. Click to view details
# 005
MPN: 106852
WASHER
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 006
MPN: 106052
EXHAUST MOUNT
from £57.78
from £57.78
# 007
MPN: 108257
FORK
For U.S. and JAPANESE Version
from £100.31
from £100.31
# 008
MPN: 10033411
PIVOT
For U.S. and JAPANESE Version
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 009
MPN: 10796440
COPIGLIA SUL PERNO FORCELLA
For U.S. and JAPANESE Version
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 010
MPN: 103167
WASHER
For U.S. and JAPANESE Version
from £1.96
from £1.96
# 011
MPN: 10977621
SCREW
For U.S. and JAPANESE Version
from £1.13
from £1.13
# 012
MPN: 15896411
NUT
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 15896401
# 013
MPN: 106849
WASHER
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 11195473
# 014
MPN: 111583
CATALIZZATORE
For U.S. and JAPANESE Version
from £1,259.29
from £1,259.29
# 015
MPN: 112494
BRACKET / SUPPORT
For U.S. and JAPANESE Version
from £9.42
from £9.42
# 016
MPN: 16043221
SCREW
For U.S. and JAPANESE Version
from £0.54
from £0.54
This part replaces part number 13842414 - and 1 more. Click to view details
# 017
MPN: 114748
NUT
For U.S. and JAPANESE Version
from £8.96
from £8.96
# 018
MPN: 111716
PARATIA
For U.S. and JAPANESE Version / Per Giappone n. 113847
# 019
MPN: 10902021
SCREW
For U.S. and JAPANESE Version / Per Giappone q.= 5
from £1.16
from £1.16
This part replaces part number 10902020
# 020
MPN: 12643701
WASHER
For U.S. and JAPANESE Version / Per Giappone q.= 5
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 021
MPN: 106850
WASHER
For U.S. and JAPANESE Version / Per Giappone q.= 5
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 022
MPN: 111697
COLLETTORE DI SCARICO ANTERIORE
For U.S. and JAPANESE Version
from £720.40
from £720.40
# 023
MPN: 111698
COLLETTORE DI SCARICO POBTERIORE
For U.S. and JAPANESE Version
from £1,295.13
from £1,295.13
# 024
MPN: 111699
TUBO DAL COLLETTORE AL CATALIZZATORE
For U.S. and JAPANESE Version
from £725.22
from £725.22
# 025
MPN: 111700
TUBO DAL COLLETTORE AL CATALIZZATORE
For U.S. and JAPANESE Version
from £321.06
from £321.06
# 026
MPN: 147830
GASKET
For U.S. and JAPANESE Version
from £14.00
from £14.00
This part replaces part number 113111
# 027
MPN: 147829
GASKET
from £18.46
from £18.46
This part replaces part number 111693
# 028
MPN: 112982
SPRING
For U.S. and JAPANESE Version
from £8.08
from £8.08
# 029
MPN: 112983
PLATE
For U.S. and JAPANESE Version
from £3.31
from £3.31
# 030
MPN: 108258
TUBETTI ANALIZZATORI ANTERIORI
For U.S. and JAPANESE Version
# 031
MPN: 103748
PLUG
For U.S. and JAPANESE Version
from £80.70
from £80.70
This part replaces part number 20429
# 032
MPN: 103749
GASKET
For U.S. and JAPANESE Version
from £0.47
from £0.47
This part replaces part number 20430
# 033
MPN: 103587
PLATE
For U.S. and JAPANESE Version
from £5.85
from £5.85
This part replaces part number 92692 - and 1 more. Click to view details
# 034
MPN: 108260
BRACKET / SUPPORT
For U.S. and JAPANESE Version
from £5.44
from £5.44
# 035
MPN: 103549
RUBBER BUSH
from £0.72
from £0.72
# 036
MPN: 103550
BUSH
For U.S. and JAPANESE Version
from £11.58
from £11.58
This part replaces part number 4130913
# 037
MPN: 10902621
SCREW
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 10902611 which we have in stock
# 038
MPN: 12574211
SELF LOCKING NUT
For U.S. and JAPANESE Version
from £0.71
from £0.71
# 039
MPN: 106744
WASHER
For U.S. and JAPANESE Version
from £5.51
from £5.51
# 040
MPN: 108716
PARATIA PROTEZIONE TUBO COLLEGAMENTO SERBATOI
For U.S. and JAPANESE Version
from £76.53
from £76.53
This part replaces part number 60233509 - and 1 more. Click to view details
# 041
MPN: 108717
PARATIA PROTEZIONE SERBATOIO DX.
For U.S. and JAPANESE Version
from £32.16
from £32.16
This part replaces part number 60233103 - and 1 more. Click to view details
# 042
MPN: 10902321
SCREW
For U.S. and JAPANESE Version
from £0.71
from £0.71
# 043
MPN: 10902121
SCREW
For U.S. and JAPANESE Version
from £0.71
from £0.71
This part replaces part number 20146601
# 044
MPN: 15896211
NUT
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 045
MPN: 106850
WASHER
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 046
MPN: 12643701
WASHER
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 047
MPN: 113220
TUBETTO ANALIZZATORE - CILINDRO N. 1
For U.S. and JAPANESE Version
from £57.71
from £57.71
# 048
MPN: 113221
TUBETTO ANALIZZATORE - CILINDRO N. 2
For U.S. and JAPANESE Version
from £57.66
from £57.66
# 049
MPN: 113222
TUBETTO ANALIZZATORE - CILINDRO N. 3
For U.S. and JAPANESE Version
from £94.66
from £94.66
# 050
MPN: 113223
TUBETTO ANALIZZATORE - CILINDRO N. 4
For U.S. and JAPANESE Version
from £62.91
from £62.91
# 051
MPN: 10977621
SCREW
For U.S. and JAPANESE Version
from £1.13
from £1.13
# 052
MPN: 15896411
NUT
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 15896401
# 053
MPN: 106849
WASHER
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 11195473
# 054
MPN: 111744
THREADED STUD
For U.S. and JAPANESE Version
from £5.05
from £5.05
# 055
MPN: 113108
THREADED STUD
For U.S. and JAPANESE Version
from £18.28
from £18.28
# 056
MPN: 111743
SPRING
For U.S. and JAPANESE Version
from £7.14
from £7.14
# 057
MPN: 113113
WASHER
For U.S. and JAPANESE Version
from £4.35
from £4.35
# 058
MPN: 113112
SELF LOCKING NUT
For U.S. and JAPANESE Version
from £1.86
from £1.86
# 059
MPN: 128010
WASHER
For U.S. and JAPANESE Version
from £2.16
from £2.16
# 060
MPN: 106125
GASKET
For U.S. and JAPANESE Version
from £7.60
from £7.60
This part replaces part number 105942 - and 1 more. Click to view details
# 061
MPN: 10519624
WASHER
For U.S. and JAPANESE Version
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 062
MPN: 106852
WASHER
For U.S. and JAPANESE Version
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 063
MPN: 111703
TERMOCOPPIA TIPO CROMEL - ALUMEL PER IMPIANTO DI SCARICO
For U.S. and JAPANESE Version
from £229.74
from £229.74
# 064
MPN: 113687
BRACKET / SUPPORT
For U.S. and JAPANESE Version / Vale solo per Giappone
from £47.94
from £47.94
# 065
MPN: 113869
PARATIA CENTRALE
For U.S. and JAPANESE Version / Vale solo per Giappone
from £234.63
from £234.63
# 066
MPN: 113870
PARATIA LATERALE
For U.S. and JAPANESE Version / Vale solo per Giappone
from £203.06
from £203.06
# 067
MPN: 10902021
SCREW
For U.S. and JAPANESE Version / Vale solo per Giappone
from £1.13
from £1.13
This part replaces part number 10902020
# 068
MPN: 106850
WASHER
For U.S. and JAPANESE Version / Vale solo per Giappone
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 069
MPN: 12643724
WASHER
For U.S. and JAPANESE Version / Vale solo per Giappone
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
-part-diagram-054.webp "FERRARI 308 GT4 DINO (1979) EXHAUST SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 308 GT4 DINO (1979) ENGINE IGNITION (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS (USA 78 - J) PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS (USA 77 - AUS) PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 308 GT4 DINO (1979) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 308 GT4 DINO (1979) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 308 GT4 DINO (1979) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 308 GT4 DINO (1979) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 308 GT4 DINO (1979) DOORS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 308 GT4 DINO (1979) DOORS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 308 GT4 DINO (1979) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 308 GT4 DINO (1979) BUMPERS (U.S. AND JAPANESE VERSION) PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 308 GT4 DINO (1979) GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 308 GT4 DINO (1979) INTERIOR TRIM, ACCESSORIES AND SLIDING ROOF PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 308 GT4 DINO (1979) INTERIOR TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 308 GT4 DINO (1979) SEATS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 308 GT4 DINO (1979) CARPETING PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 308 GT4 DINO (1979) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 308 GT4 DINO (1979) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 308 GT4 DINO (1979) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 308 GT4 DINO (1979) LIGHTS PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 308 GT4 DINO (1979) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 308 GT4 DINO (1979) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 308 GT4 DINO (1979) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 308 GT4 DINO (1979) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 308 GT4 DINO (1979) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 308 GT4 DINO (1979) FLYWHEEL AND CLUTCH HOUSING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 308 GT4 DINO (1979) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 308 GT4 DINO (1979) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 308 GT4 DINO (1979) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 308 GT4 DINO (1979) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 308 GT4 DINO (1979) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 308 GT4 DINO (1979) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 308 GT4 DINO (1979) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 308 GT4 DINO (1979) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 308 GT4 DINO (1979) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 308 GT4 DINO (1979) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 308 GT4 DINO (1979) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 308 GT4 DINO (1979) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 308 GT4 DINO (1979) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 308 GT4 DINO (1979) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 308 GT4 DINO (1979) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 308 GT4 DINO (1979) GEAR - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 308 GT4 DINO (1979) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 308 GT4 DINO (1979) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 308 GT4 DINO (1979) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 308 GT4 DINO (1979) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 308 GT4 DINO (1979) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 308 GT4 DINO (1979) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 308 GT4 DINO (1979) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 308 GT4 DINO (1979) CALIPER FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 308 GT4 DINO (1979) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 308 GT4 DINO (1979) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 308 GT4 DINO (1979) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 308 GT4 DINO (1979) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 308 GT4 DINO (1979) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 308 GT4 DINO (1979) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 308 GT4 DINO (1979) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 308 GT4 DINO (1979) WHEELS PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 308 GT4 DINO (1979) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 308 GT4 DINO (1979) ENGINE IGNITION (FROM N. 14070 GS - 14020 GD) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 308 GT4 DINO (1979) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 308 GT4 DINO (1979) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 308 GT4 DINO (1979) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 308 GT4 DINO (1979) TOOL KIT PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 308 GT4 DINO (1979) THROTTLE CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 308 GT4 DINO (1979) PEDAL BOARD - CLUTCH CONTROLS (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 308 GT4 DINO (1979) BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 308 GT4 DINO (1979) AIR PUMP AND PIPINGS (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 308 GT4 DINO (1979) GUARDS (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 308 GT4 DINO (1979) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 308 GT4 DINO (1979) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 308 GT4 DINO (1979) INTAKE AIR CLEANER VALVE AND LINES (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 308 GT4 DINO (1979) INTAKE AIR CLEANER VALVE AND LINES (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 308 GT4 DINO (1979) FUEL SYSTEM - CARBURETTORS AND CONTROLS (VARIANTS FOR USA - AUS AND J VERSION) PARTS DIAGRAM")
