123 - Heating System

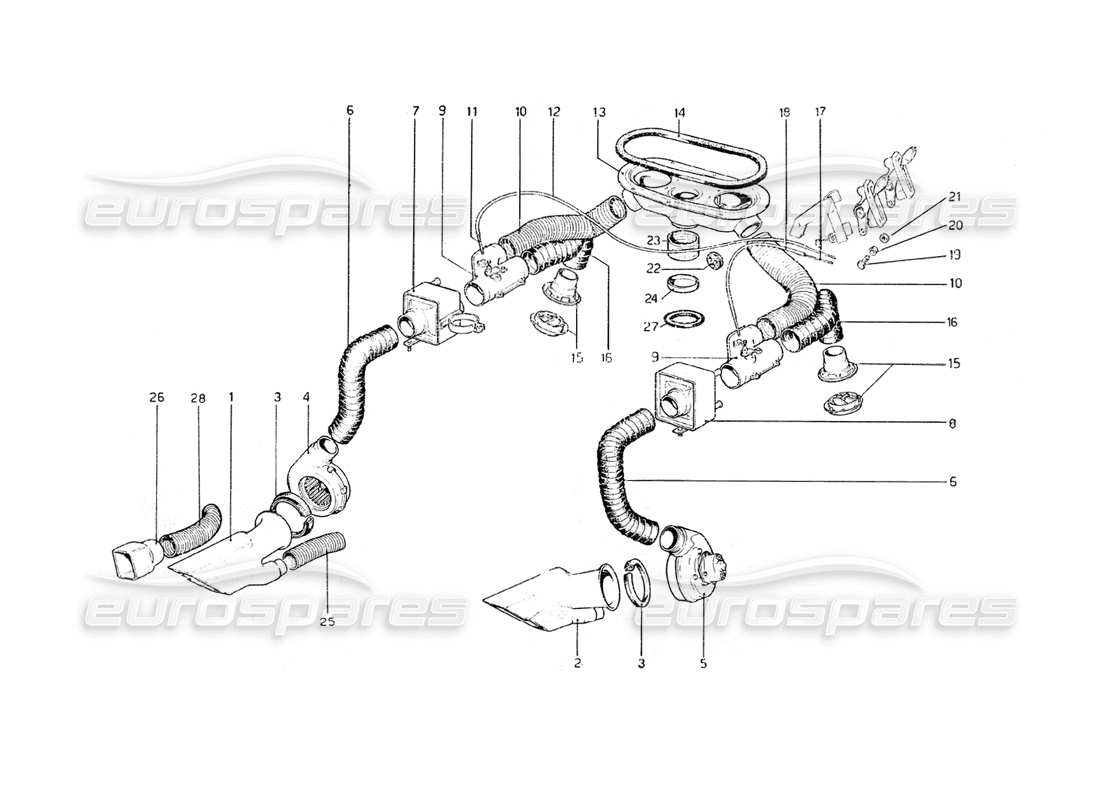

Ferrari 308 GT4 Dino (1979) Heating System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

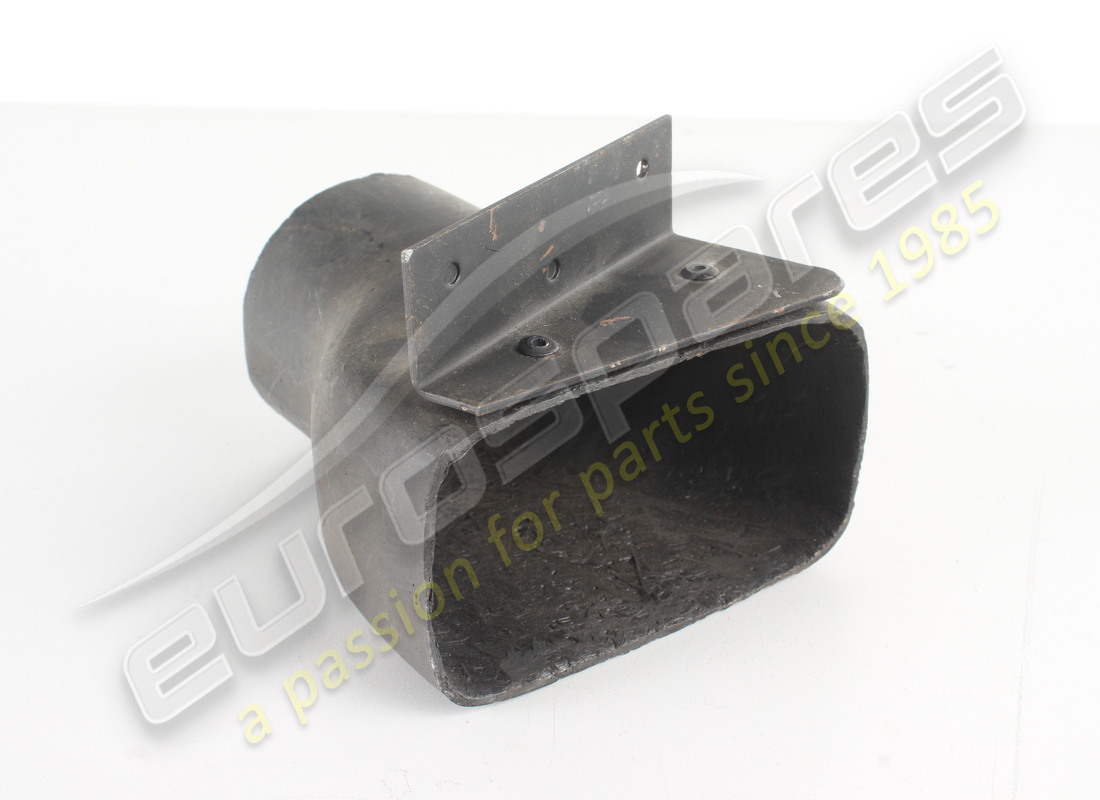

# 001
MPN: 40116006
RH AIR INTAKE
from £462.17
from £462.17

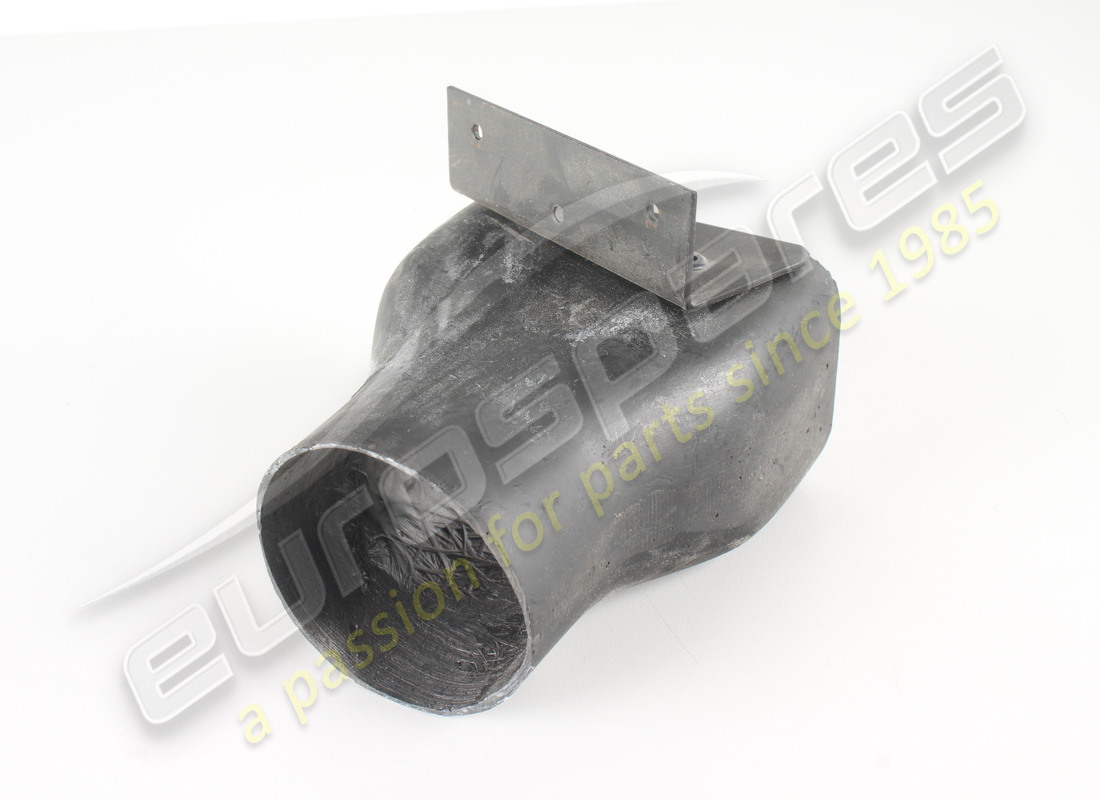

# 002
MPN: 40116105
LH AIR INTAKE
from £169.46
from £169.46

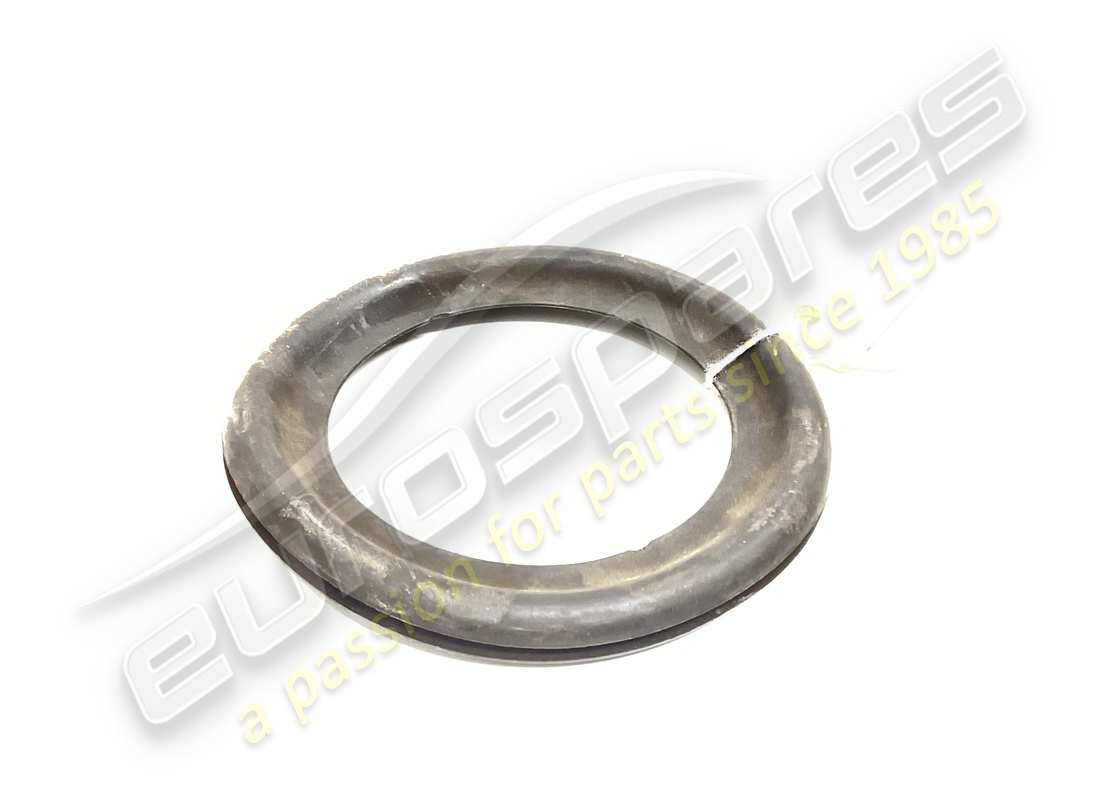

# 003
MPN: 40057101
RUBBER
from £29.24
from £29.24
# 004
MPN: 20094405
FAN MOTOR CLOCKWISE
Supersession
Supersession
This part replaces part number 102185 - and 4 more. Click to view details
# 005
MPN: 60091600
RH HEATER BLOWER
from £295.00
from £295.00
This part replaces part number 20094504 - and 1 more. Click to view details
# 006
MPN: 40043101
AIR HOSE
from £56.16
from £56.16

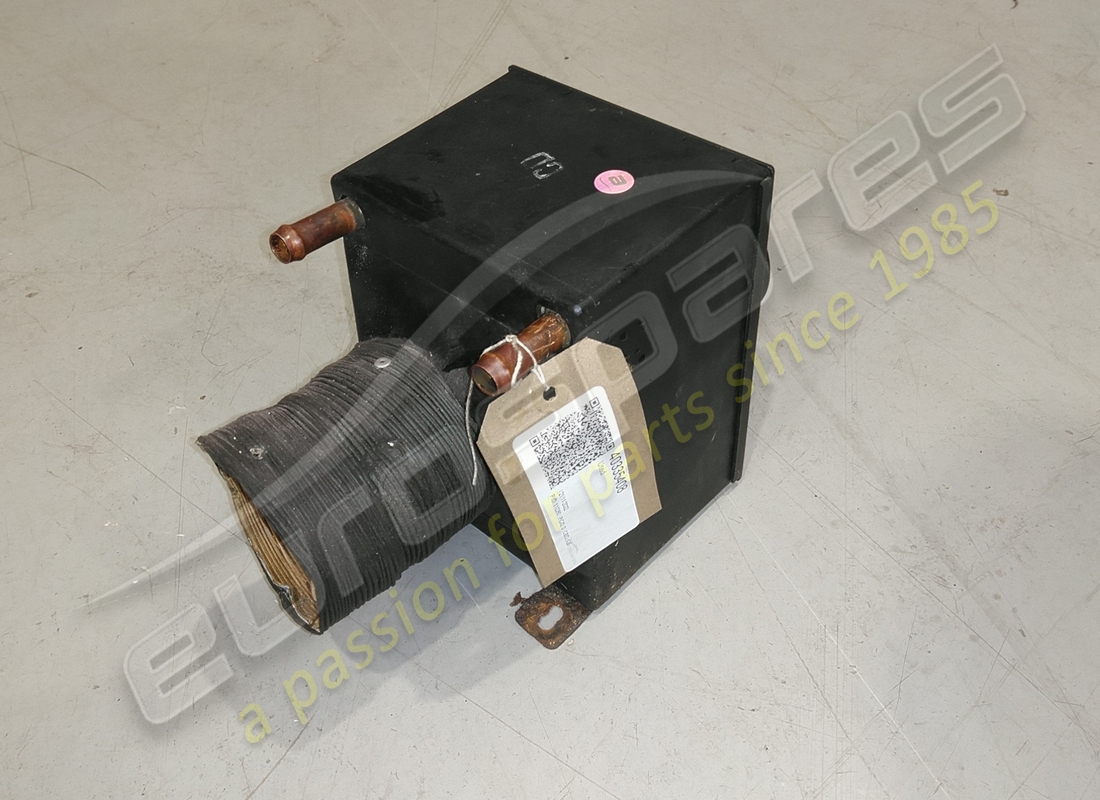

# 007
MPN: 40335408
RISCALDATORE DX.
Vale per GD
from £144.44
from £144.44
# 008
MPN: 40323008
LH HEATER BOX
This part replaces part number 106688 which we have in stock - and 3 more. Click to view details
# 009
MPN: 60135001
DIVERTER
from £230.51
from £230.51
# 009
MPN: 60135100
LH DIVERTER
from £105.00
from £105.00
This part replaces part number 40131609 - and 3 more. Click to view details
# 010
MPN: 40265407
CONDOTTO ARIA DX.
from £132.29
from £132.29
# 010
MPN: 40265506
CONDOTTO ARIA SX.
from £102.10
from £102.10
# 011
MPN: 40128704
RH DEFROST VENT CABLE LHD
from £4.29
from £4.29
# 011
MPN: 40336604
CAVO DEFROSTER DX.
Vale per GD
from £3.62
from £3.62

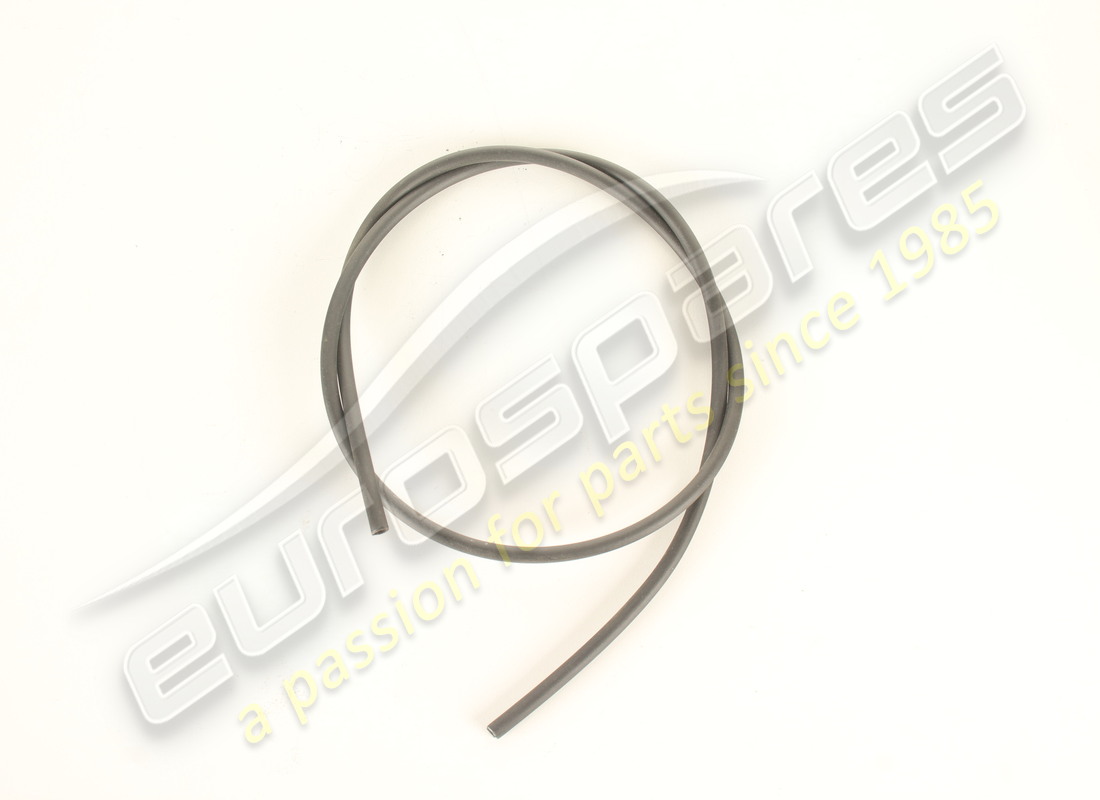

# 012
MPN: 40128605
RH CABLE SHEATH LHD
from £13.34
from £13.34
# 012
MPN: 40336505
GUAINA CAVO DEFROSTER DX.
Vale per GD
# 013
MPN: 20142709
DIVERTER
from £971.46
from £971.46
This part replaces part number 50022805 - and 1 more. Click to view details
# 014
MPN: 50091503
GASKET
from £23.42
from £23.42
# 015
MPN: 40230500
DIFFUSER
# 016
MPN: 40043309
TUBE
from £47.17
from £47.17
# 017
MPN: 40127804
CAVO DEFROSTER SX.
Non vale per GD
# 017
MPN: 40336604
CAVO DEFROSTER SX.
Vale per GD
from £3.62
from £3.62
# 018
MPN: 40211706
CABLE SHEATH RHD
Supersession
Supersession
# 018
MPN: 40327801
GUAINA CAVO DEFROSTER
Non vale per GD
from £12.09
from £12.09
# 019
MPN: 20091609
PIVOT
from £2.53
from £2.53
# 020
MPN: 20046900
BUSH
from £2.43
from £2.43
# 021
MPN: 10794011
NUT
from £0.26
from £0.26
# 022
MPN: 40167900
FAIRLEAD GROMMET
from £22.24
from £22.24
# 023
MPN: 40326407
CONDOTTO
Vale per A.C.
from £43.47
from £43.47
# 024
MPN: 20143202
PLUG
Non vale per A.C.
from £12.85
from £12.85
# 025
MPN: 40042806
CONDOTTO ARIA AL FRENI
from £34.98
from £34.98
# 026
MPN: 40376709
CONVOGLIATORE ARIA FRENI DX.
from £94.36
from £94.36
This part replaces part number 60532500 which we have in stock
# 026
MPN: 60532500
CONVOGLIATORE ARIA FRENI DX.
Vale dalla 2831ª vettura No per USA 78 - J
from £122.25
from £122.25
# 026
MPN: 60532600
CONVOGLIATORE ARIA FRENI SX,
Vale dalla 2331ª vettura No per USA 78 - J
from £58.47
from £58.47
# 026
MPN: 60532700
CONVOGLIATORE ARIA FRENI DX.
Vale per USA 78 - J
from £70.97
from £70.97
# 026
MPN: 60532800
CONVOGLIATORE ARIA FRENI SX.
Vale per USA 78 - J
from £70.97
from £70.97
# 027
MPN: 50307107
GROMMET
Vale per A.C.
from £11.05
from £11.05
# 028
MPN: 40304404
CONTOTTO ARIA AL FRENI
Vale con convogliatori 60532500 - 60537600
from £108.77
from £108.77
This part replaces part number 50021302
