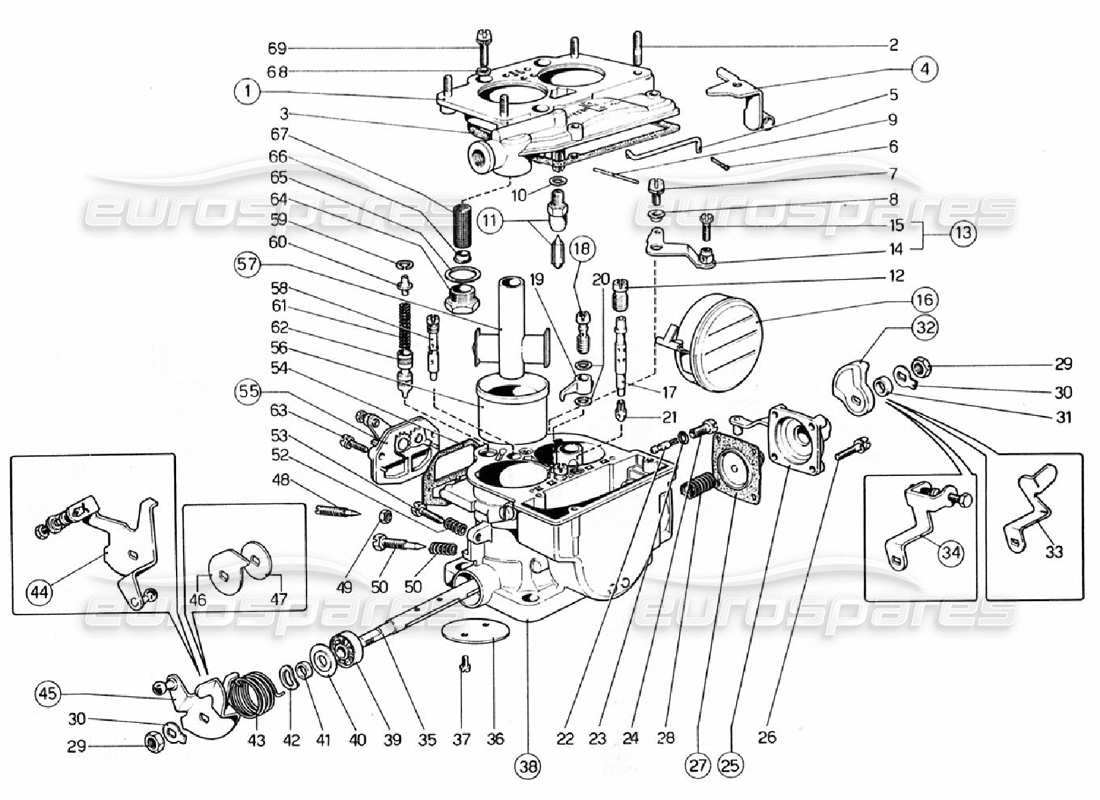

011 - Carburettors (Weber 40 DCNF 57 - 58 - 59 - 60)
Ferrari 308 GTB (1976) Carburettors (Weber 40 DCNF 57 - 58 - 59 - 60) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 31716.220
COVER
from £193.89
from £193.89
# 002
MPN: 64960.002
SCREW
Supersession
Supersession
This part replaces part number 95180659
# 003
MPN: 41705.046
GASKET OR SEAL
from £9.02
from £9.02
# 004
MPN: 58700.034
SUPPORT
Percarb. 40 DCNF 57
# 005
MPN: 61280.111
ROD
# 006
MPN: 32610.005
SPLIT PIN
from £0.72
from £0.72
# 007
MPN: 64700.012
SCREW
Percarb. 40 DCNF 57-59
from £1.48
from £1.48
# 008
MPN: 12775.017
BUSH
Percarb. 40 DCNF 57-59
# 009
MPN: 52000.01
PIVOT FASTENING
from £0.71
from £0.71
# 010
MPN: 83102.070
GASKET OR SEAL
from £0.98
from £0.98
# 011
MPN: 79503.175
NEEDLE VALVE 175
from £15.28
from £15.28
This part replaces part number 79401.175 - and 1 more. Click to view details
# 012
MPN: 41370.001
JET
# 013
MPN: 45096.033
LEVER
# 014
MPN: 45096.032
LEVER
Percarb. 40 DCNF 57-59
# 015
MPN: 64615.004
SCREW
from £2.34
from £2.34
# 016
MPN: 41015.005
FLOAT COMPLETE
from £66.68
from £66.68
# 017
MPN: 61450.224
EMULSION JET
from £17.31
from £17.31
# 018
MPN: 64290.014
VALVE
# 019
MPN: 41252.018
JET
# 020
MPN: 41530.012
WASHER
Supersession
Supersession
# 021
MPN: 41115.003
JET
# 022
MPN: 41160.005
PUMP JET
# 023
MPN: 41565.002
WASHER
from £4.32
from £4.32
This part replaces part number 95180514
# 024
MPN: 52570.006
IDLE JET HOLDER
from £6.59
from £6.59
# 025
MPN: 32486.041
COVER
# 026
MPN: 64700.006
SCREW
# 027
MPN: 47407.050
DIAPHRAM
# 028
MPN: 47600.107
SPRING
from £1.22
from £1.22
# 030
MPN: 55520.004
WASHER
from £1.71
from £1.71
# 031
MPN: 12750.032
BUSH
# 032
MPN: 14852.011
CAM
from £30.50
from £30.50
This part replaces part number 95180577
# 033
MPN: 45136.061
LEVER
Percarb. 40 DCNF 60
# 034
MPN: 45041.099
LEVER
Percarb. 40 DCNF 58
# 035
MPN: 10005.211
SPINDLE KIT
Supersession
Supersession
# 036
MPN: 64005020
THROTTLE BUTTERFLY
from £38.18
from £38.18
# 037
MPN: 64520.027
BUTTERFLY SCREW
from £3.38
from £3.38
# 038
-
CORPO CARBURATORE
# 039
MPN: 32650.001
BEARING
from £9.57
from £9.57
# 040
MPN: 58000.017
THRUST WASHER
# 041
MPN: 12750.053
SPACER
# 042
MPN: 55530.010
WASHER
from £7.16
from £7.16
# 043
MPN: 47610.078
SPRING
# 044
MPN: 45048.043
LEVER
Per carb. 40 DCNF 59
This part replaces part number 45408.043
# 045
MPN: 45048.040
LEVER
Per carb. 40 DCNF 57
# 046
MPN: 55555.040
WASHER
Percarb. 40 DCNF 58-60
# 047
MPN: 55555.005
WASHER
Percarb. 40 DCNF 58 -60
# 048
MPN: 64750.002
NUT
from £7.43
from £7.43
# 049
MPN: 34705.001
NUT
from £1.26
from £1.26
# 050
MPN: 64750.001
SCREW
from £8.20
from £8.20
This part replaces part number 64755.003 which we have in stock - and 1 more. Click to view details
# 051
MPN: 47600.007
SPRING
from £2.13
from £2.13
This part replaces part number 95180573
# 052
MPN: 47600.007
SPRING
Per carb. 40 DCNF 57- 59
from £2.13
from £2.13
This part replaces part number 95180573
# 053
MPN: 64625.014
SCREW
Per carb. 40 DCNF 57- 59
from £1.29
from £1.29
# 054
MPN: 41640.048
gaskets
from £3.50
from £3.50
# 055
MPN: 32556.029
COVER
from £82.92
from £82.92
# 056
MPN: 34914.019
DIFFUSER
# 057
MPN: 31966.008
VENTURI 4.5L
# 058
MPN: 41205.102
STARTER JET
Supersession
Supersession
# 059
MPN: 10140.002
SEEGER RING
from £0.47
from £0.47
This part replaces part number 95180594
# 060
MPN: 12775.024
SPRING SEAT
from £0.47
from £0.47
This part replaces part number 95180593
# 061
MPN: 47600.139
SPRING
# 062
MPN: 64330.008
STARTER VALVE
from £4.18
from £4.18
This part replaces part number 95180605
# 063
MPN: 64700.004
SCREW
Supersession
Supersession
# 064
MPN: 61002.010
FILTER PLUG
from £2.00
from £2.00
# 065
MPN: 41530.024
WASHER
from £1.22
from £1.22
This part replaces part number 100365 which we have in stock
# 066
MPN: 61060.001
PLUG
# 067
MPN: 37020.002
FILTER
from £6.28
from £6.28
This part replaces part number 18437 - and 1 more. Click to view details
# 068
MPN: 55510.034
WASHER
from £0.90
from £0.90
# 069
MPN: 64700.005
SCREW
from £3.47
from £3.47
-part-diagram-012.webp "FERRARI 308 GTB (1976) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 308 GTB (1976) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 308 GTB (1976) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 308 GTB (1976) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 308 GTB (1976) OIL FILTER AND PUMPS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 308 GTB (1976) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 308 GTB (1976) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 308 GTB (1976) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 308 GTB (1976) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 308 GTB (1976) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 308 GTB (1976) GEARBOX - DIFFERENTIAL HOUSMG AND OIL SUMP PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 308 GTB (1976) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 308 GTB (1976) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 308 GTB (1976) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 308 GTB (1976) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 308 GTB (1976) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 308 GTB (1976) PEDAL BOARD -BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 308 GTB (1976) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 308 GTB (1976) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 308 GTB (1976) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 308 GTB (1976) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 308 GTB (1976) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 308 GTB (1976) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 308 GTB (1976) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 308 GTB (1976) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 308 GTB (1976) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 308 GTB (1976) WHEELS PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 308 GTB (1976) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 308 GTB (1976) ELETRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 308 GTB (1976) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 308 GTB (1976) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 308 GTB (1976) TOOL-KIT PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 308 GTB (1976) THROTTLE CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 308 GTB (1976) PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 308 GTB (1976) BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 308 GTB (1976) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 308 GTB (1976) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 308 GTB (1976) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 308 GTB (1976) PASSENGER AND LUGGAGE COMPARTMENTS INSULATION PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 308 GTB (1976) FRONT COMPARTMENT LID TABLE PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 308 GTB (1976) REAR BONNET AND LUGGAGE COMPARTMENT COVERING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 308 GTB (1976) DOORS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 308 GTB (1976) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 308 GTB (1976) GLASSES PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 308 GTB (1976) INTERIOR TRIM, ACCESSORIES AND SEATS PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 308 GTB (1976) TUNNEL AND ROOF PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 308 GTB (1976) INSTRUMENT PANEL PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 308 GTB (1976) CARPETING PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 308 GTB (1976) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 308 GTB (1976) BODY ELECTRICAL PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 308 GTB (1976) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 308 GTB (1976) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 308 GTB (1976) LIGHTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 308 GTB (1976) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 308 GTB (1976) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-152.webp "FERRARI 308 GTB (1976) BODY SHELL - OUTER ELEMENTS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-153.webp "FERRARI 308 GTB (1976) BODY SHELL - INNER ELEMENTS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-154.webp "FERRARI 308 GTB (1976) BODY SHELL - INNER ELEMENTS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-155.webp "FERRARI 308 GTB (1976) PASSENGER AND LUGGAGE COMPARTMENTS INSULATION (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-156.webp "FERRARI 308 GTB (1976) FRONT COMPARTMENT LID (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-157.webp "FERRARI 308 GTB (1976) REAR BONNET AND LUGGAGE COMPARTMENT COVERING (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-158.webp "FERRARI 308 GTB (1976) DOORS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-159.webp "FERRARI 308 GTB (1976) BUMPERS AND MOULDINGS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-160.webp "FERRARI 308 GTB (1976) GLASSES (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-161.webp "FERRARI 308 GTB (1976) INTERIOR TRIM, ACCESSORIES AND SEATS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-162.webp "FERRARI 308 GTB (1976) TUNNEL AND ROOF (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-163.webp "FERRARI 308 GTB (1976) INSTRUMENT PANEL (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-164.webp "FERRARI 308 GTB (1976) CARPETING (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-165.webp "FERRARI 308 GTB (1976) INSTRUMENTS AND ACCESSORIES (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-166.webp "FERRARI 308 GTB (1976) BODY ELECTRICAL (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-167.webp "FERRARI 308 GTB (1976) FUSES AND RELAYS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-168.webp "FERRARI 308 GTB (1976) HEADLIGHTS LIFTING DEVICE (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-169.webp "FERRARI 308 GTB (1976) LIGHTS (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-170.webp "FERRARI 308 GTB (1976) WINDSHIELD WIPER, WASHER AND HORN (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-171.webp "FERRARI 308 GTB (1976) HEATING SYSTEM (VALID FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 308 GTB (1976) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 308 GTB (1976) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 308 GTB (1976) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 308 GTB (1976) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 308 GTB (1976) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 308 GTB (1976) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 308 GTB (1976) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 308 GTB (1976) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 308 GTB (1976) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 308 GTB (1976) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")
