ferrari 308 gtb (1976) gearbox - differential housmg and oil sump parts diagram

022 - Gearbox - Differential Housmg and Oil Sump

Ferrari 308 GTB (1976) Gearbox - Differential Housmg and Oil Sump Parts Diagram

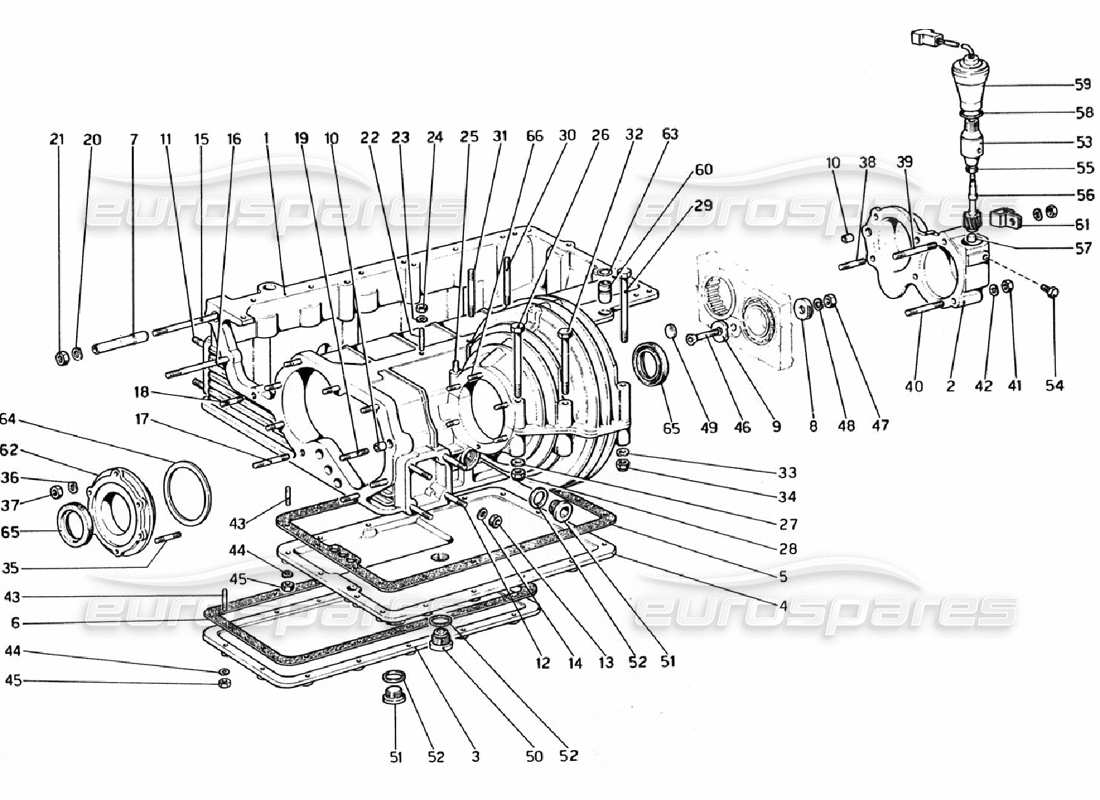

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                      #
                                                                                                                                      Part number
                                                                                                                                      Description
                                                                                                                                      Price
                                                                                                                                      # 000
                                                                                                                                      MPN: 109812
                                                                                                                                      CAMBIO COMPLETO DI RUOTISMI. DIFFERENZIALE E SUPPORTI
                                                                                                                                      from £12,632.08
                                                                                                                                      from £12,632.08
                                                                                                                                      # 001
                                                                                                                                      MPN: 109290
                                                                                                                                      SCATOLA CAMBIO DIFFERENZIALE E COPPA OLIO
                                                                                                                                      # 001
                                                                                                                                      MPN: 109587
                                                                                                                                      SCATOLA CAMBIO COMPLETA
                                                                                                                                      from £2,929.65
                                                                                                                                      from £2,929.65
                                                                                                                                      # 002
                                                                                                                                      MPN: 105673

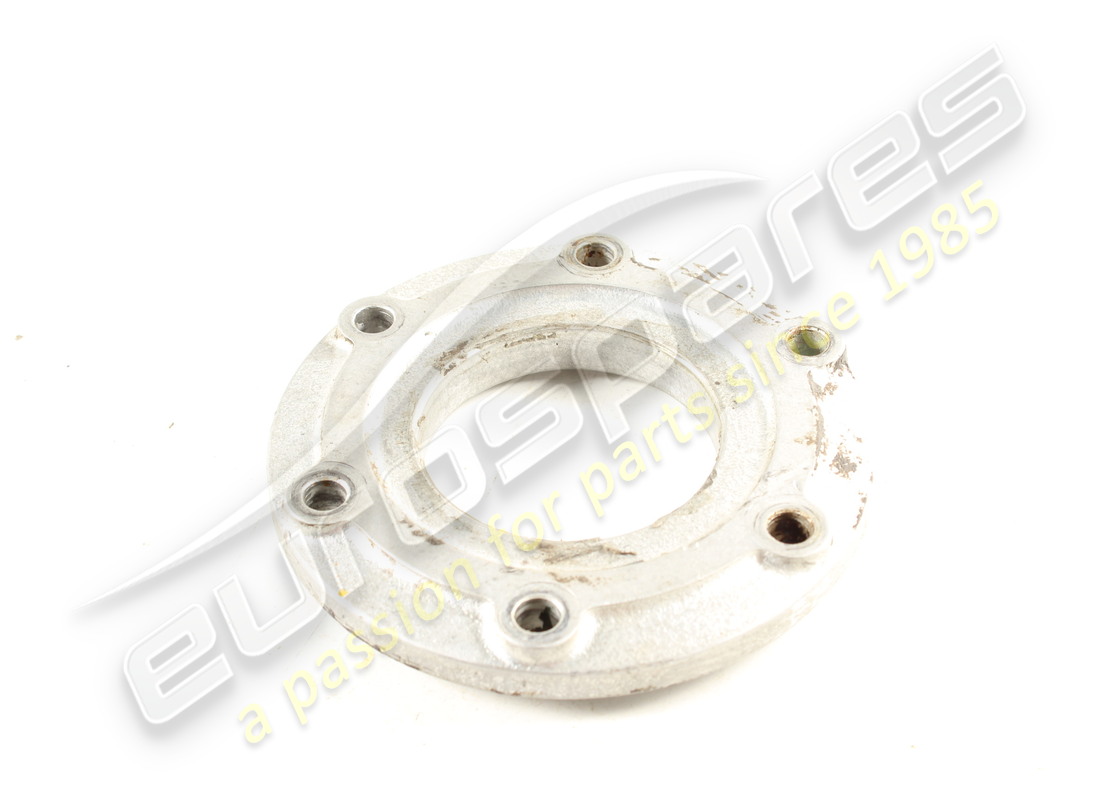

                                                                                                                                      COVER
                                                                                                                                      from £351.51
                                                                                                                                      from £351.51
                                                                                                                                      This part replaces part number 524960
                                                                                                                                      # 003
                                                                                                                                      MPN: 109313
                                                                                                                                      SUMP COVER
                                                                                                                                      from £619.86
                                                                                                                                      from £619.86
                                                                                                                                      # 004
                                                                                                                                      MPN: 115353
                                                                                                                                      COVER
                                                                                                                                      from £707.61
                                                                                                                                      from £707.61
                                                                                                                                      This part replaces part number 108491
                                                                                                                                      # 005
                                                                                                                                      MPN: 147675

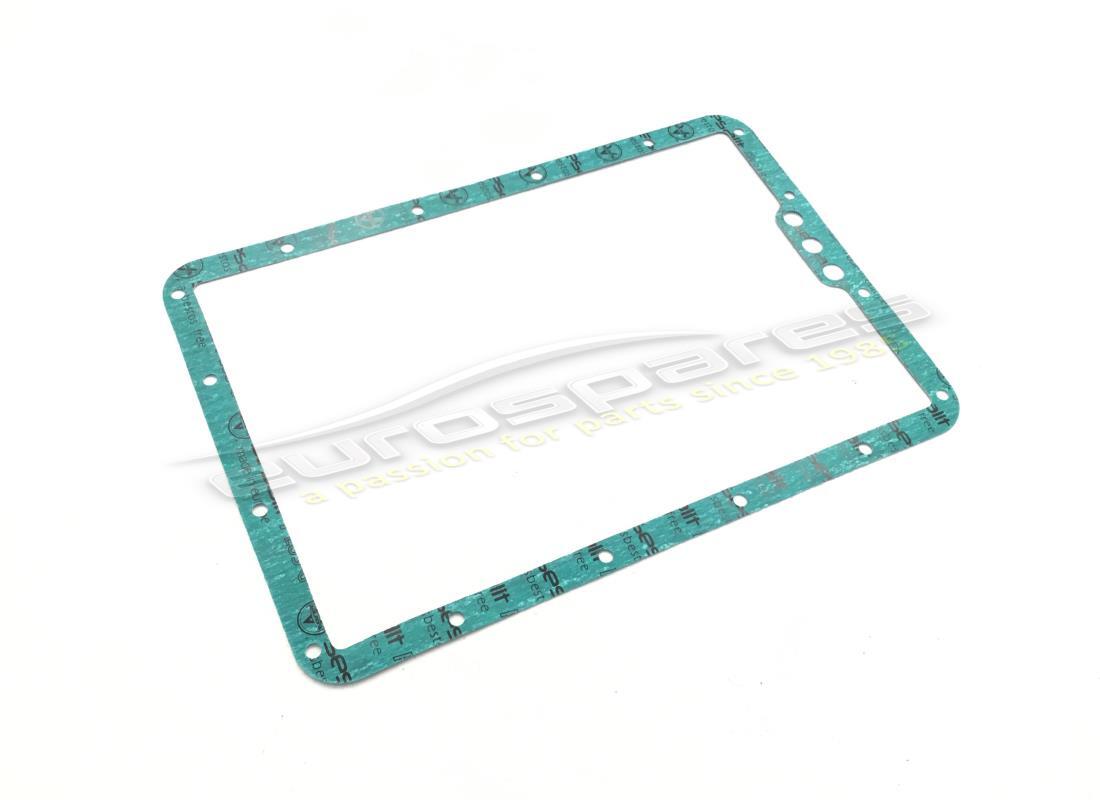

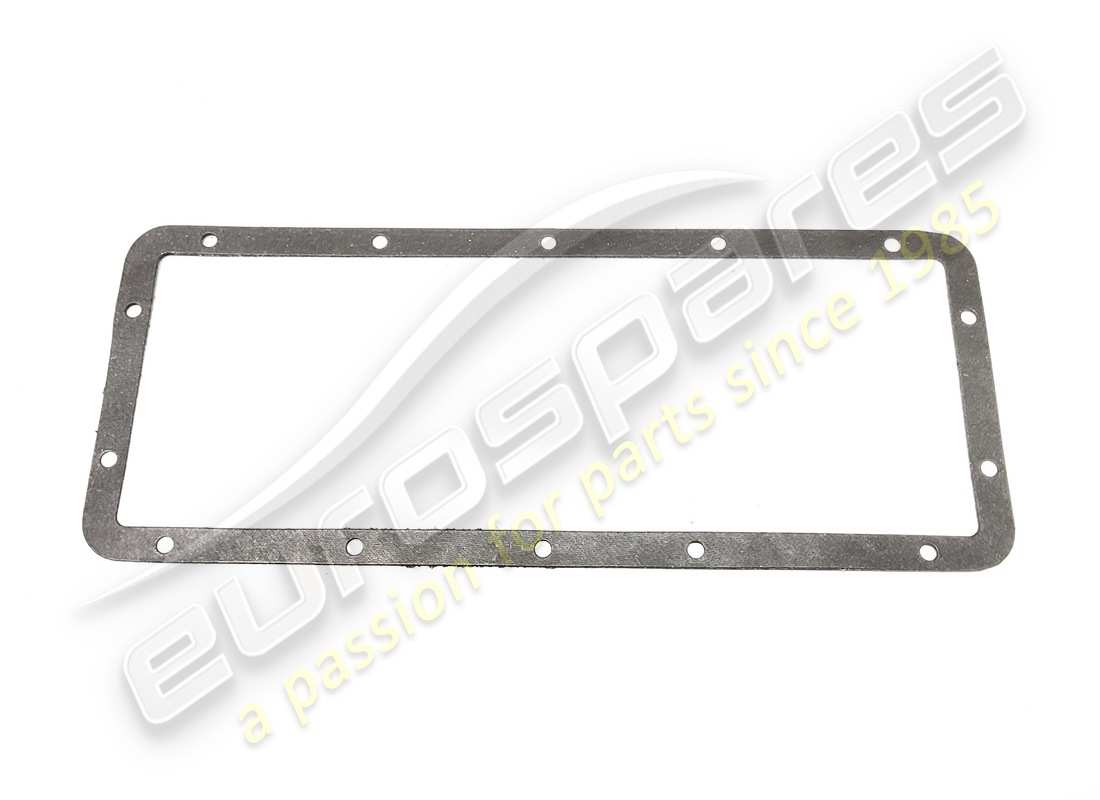

                                                                                                                                      GEARBOX SUMP GASKET
                                                                                                                                      from £17.47
                                                                                                                                      from £17.47
                                                                                                                                      This part replaces part number 104196
                                                                                                                                      # 006
                                                                                                                                      MPN: 147676
                                                                                                                                      ENGINE SUMP GASKET
                                                                                                                                      from £16.08
                                                                                                                                      from £16.08
                                                                                                                                      This part replaces part number 104197
                                                                                                                                      # 007
                                                                                                                                      MPN: 104033
                                                                                                                                      CENTERING DOWEL
                                                                                                                                      from £21.92
                                                                                                                                      from £21.92
                                                                                                                                      # 008
                                                                                                                                      MPN: 104198
                                                                                                                                      WASHER
                                                                                                                                      from £8.77
                                                                                                                                      from £8.77
                                                                                                                                      This part replaces part number 523924
                                                                                                                                      # 009
                                                                                                                                      MPN: 104199
                                                                                                                                      WASHER
                                                                                                                                      from £5.20
                                                                                                                                      from £5.20
                                                                                                                                      This part replaces part number 523925
                                                                                                                                      # 010
                                                                                                                                      MPN: 102704
                                                                                                                                      CENTERING DOWEL
                                                                                                                                      from £1.77
                                                                                                                                      from £1.77
                                                                                                                                      This part replaces part number 500805
                                                                                                                                      # 011
                                                                                                                                      MPN: 13449521
                                                                                                                                      STUD
                                                                                                                                      from £9.25
                                                                                                                                      from £9.25
                                                                                                                                      # 012
                                                                                                                                      MPN: 13450021
                                                                                                                                      STUD
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      This part replaces part number 13450020 which we have in stock
                                                                                                                                      # 013
                                                                                                                                      MPN: 12164711
                                                                                                                                      NUT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 12164712
                                                                                                                                      # 014
                                                                                                                                      MPN: 127497
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                      # 015
                                                                                                                                      MPN: 13518921
                                                                                                                                      THREADED STUD
                                                                                                                                      # 016
                                                                                                                                      MPN: 13518721
                                                                                                                                      THREADED STUD
                                                                                                                                      from £3.15
                                                                                                                                      from £3.15
                                                                                                                                      # 017
                                                                                                                                      MPN: 13517421
                                                                                                                                      THREADED STUD
                                                                                                                                      from £53.42
                                                                                                                                      from £53.42
                                                                                                                                      This part replaces part number 13517420
                                                                                                                                      # 018
                                                                                                                                      MPN: 13517221
                                                                                                                                      STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 019
                                                                                                                                      MPN: 13517321
                                                                                                                                      THREADED STUD
                                                                                                                                      from £16.90
                                                                                                                                      from £16.90
                                                                                                                                      This part replaces part number 13517320
                                                                                                                                      # 020
                                                                                                                                      MPN: 11198074
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                      # 021
                                                                                                                                      MPN: 16100824
                                                                                                                                      NUT
                                                                                                                                      from £0.50
                                                                                                                                      from £0.50
                                                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                      # 022
                                                                                                                                      MPN: 108966
                                                                                                                                      STUD
                                                                                                                                      from £10.05
                                                                                                                                      from £10.05
                                                                                                                                      # 023
                                                                                                                                      MPN: 11198074
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                      # 024
                                                                                                                                      MPN: 16100824
                                                                                                                                      NUT
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                      # 025
                                                                                                                                      MPN: 13450421
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 026
                                                                                                                                      MPN: 107710
                                                                                                                                      BOLT
                                                                                                                                      from £4.29
                                                                                                                                      from £4.29
                                                                                                                                      # 027
                                                                                                                                      MPN: 12638601
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 20232104
                                                                                                                                      # 028
                                                                                                                                      MPN: 12574511
                                                                                                                                      SELF LOCKING NUT
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      # 029
                                                                                                                                      MPN: 104189
                                                                                                                                      BOLT
                                                                                                                                      from £27.43
                                                                                                                                      from £27.43
                                                                                                                                      This part replaces part number 95565 - and 1 more. Click to view details
                                                                                                                                      # 030
                                                                                                                                      MPN: 13518021
                                                                                                                                      PR.IGIONIERO
                                                                                                                                      from £4.35
                                                                                                                                      from £4.35
                                                                                                                                      # 031
                                                                                                                                      MPN: 13517821
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 032
                                                                                                                                      MPN: 107711
                                                                                                                                      BOLT
                                                                                                                                      from £7.44
                                                                                                                                      from £7.44
                                                                                                                                      # 033
                                                                                                                                      MPN: 10519624
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                                      # 034
                                                                                                                                      MPN: 104030
                                                                                                                                      SELF LOCKING NUT
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 16104125
                                                                                                                                      # 035
                                                                                                                                      MPN: 12429721
                                                                                                                                      THREADED STUD
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 036
                                                                                                                                      MPN: 104030
                                                                                                                                      SELF LOCKING NUT
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 16104125
                                                                                                                                      # 037
                                                                                                                                      MPN: 12601371
                                                                                                                                      NUT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 038
                                                                                                                                      MPN: 13517221
                                                                                                                                      STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 039
                                                                                                                                      MPN: 13517821
                                                                                                                                      THREADED STUD
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 040
                                                                                                                                      MPN: 13517621
                                                                                                                                      THREADED STUD
                                                                                                                                      from £9.04
                                                                                                                                      from £9.04
                                                                                                                                      # 041
                                                                                                                                      MPN: 16100824
                                                                                                                                      NUT
                                                                                                                                      from £0.50
                                                                                                                                      from £0.50
                                                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                      # 042
                                                                                                                                      MPN: 11198074
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                      # 043
                                                                                                                                      MPN: 13541124
                                                                                                                                      THREADED STUD
                                                                                                                                      from £11.28
                                                                                                                                      from £11.28
                                                                                                                                      This part replaces part number 13541121
                                                                                                                                      # 044
                                                                                                                                      MPN: 11197774
                                                                                                                                      WASHER
                                                                                                                                      from £0.50
                                                                                                                                      from £0.50
                                                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                                      # 045
                                                                                                                                      MPN: 15896211
                                                                                                                                      NUT
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                                                                      # 046
                                                                                                                                      MPN: 104218
                                                                                                                                      SCREW
                                                                                                                                      from £1.14
                                                                                                                                      from £1.14
                                                                                                                                      # 047
                                                                                                                                      MPN: 16100824
                                                                                                                                      NUT
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                      # 048
                                                                                                                                      MPN: 127496
                                                                                                                                      WASHER
                                                                                                                                      from £0.54
                                                                                                                                      from £0.54
                                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                      # 049
                                                                                                                                      MPN: 10158801
                                                                                                                                      PLUG
                                                                                                                                      from £0.81
                                                                                                                                      from £0.81
                                                                                                                                      This part replaces part number 10158800
                                                                                                                                      # 050
                                                                                                                                      MPN: 104280
                                                                                                                                      PLUG
                                                                                                                                      from £4.95
                                                                                                                                      from £4.95
                                                                                                                                      This part replaces part number 523977
                                                                                                                                      # 051
                                                                                                                                      MPN: 10275011
                                                                                                                                      PLUG
                                                                                                                                      from £1.05
                                                                                                                                      from £1.05
                                                                                                                                      This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                                                      # 052
                                                                                                                                      MPN: 10263460
                                                                                                                                      GASKET
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 95119
                                                                                                                                      # 053
                                                                                                                                      MPN: 106427
                                                                                                                                      CORPO RINVIO CONTACHILOMETRI
                                                                                                                                      from £168.00
                                                                                                                                      from £168.00
                                                                                                                                      # 054
                                                                                                                                      MPN: 101349
                                                                                                                                      BOLT
                                                                                                                                      from £10.21
                                                                                                                                      from £10.21
                                                                                                                                      This part replaces part number 520709
                                                                                                                                      # 055
                                                                                                                                      MPN: 104103
                                                                                                                                      SEALING RING
                                                                                                                                      from £5.53
                                                                                                                                      from £5.53
                                                                                                                                      # 056
                                                                                                                                      MPN: 107096
                                                                                                                                      PIGNONE CONTACHILOMETRI
                                                                                                                                      from £352.70
                                                                                                                                      from £352.70
                                                                                                                                      # 057
                                                                                                                                      MPN: 105674
                                                                                                                                      RULLO REGGISPINTA
                                                                                                                                      from £6.60
                                                                                                                                      from £6.60
                                                                                                                                      This part replaces part number 524961
                                                                                                                                      # 058
                                                                                                                                      MPN: 101848
                                                                                                                                      SEALING RING
                                                                                                                                      from £1.75
                                                                                                                                      from £1.75
                                                                                                                                      # 059
                                                                                                                                      MPN: 124146

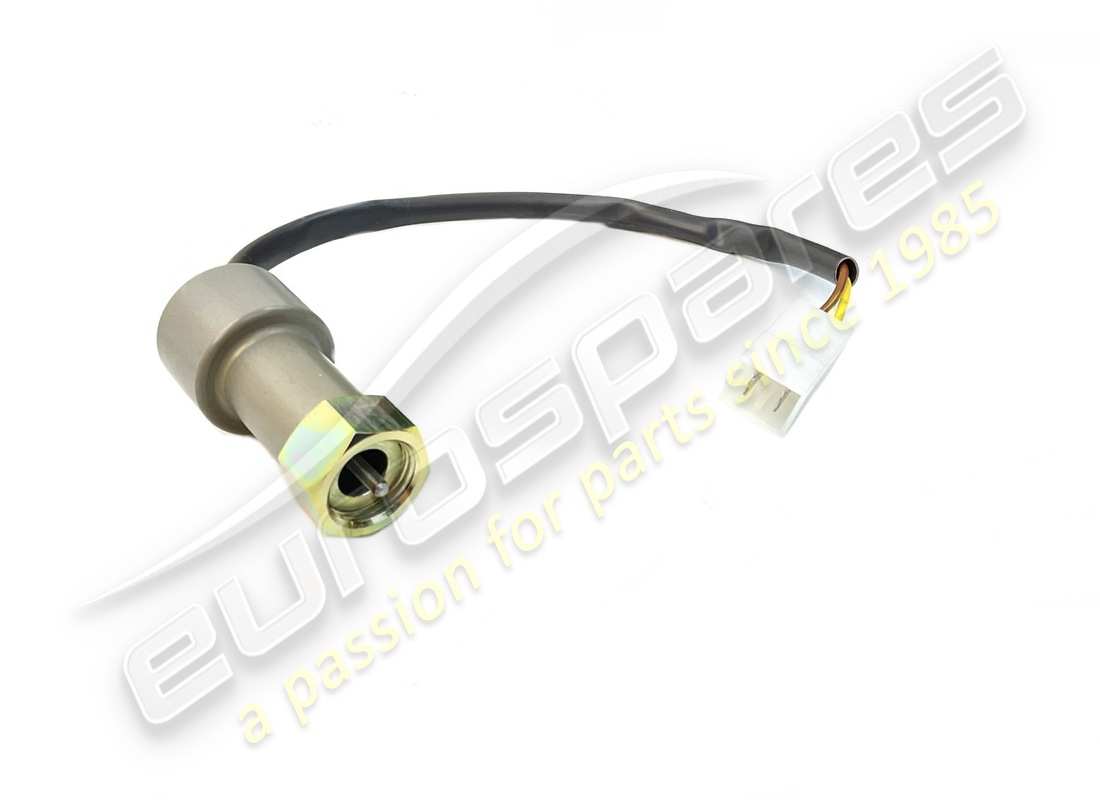

                                                                                                                                      SPEEDO PULSE GENERATOR
                                                                                                                                      from £261.08
                                                                                                                                      from £261.08
                                                                                                                                      This part replaces part number 106324
                                                                                                                                      # 060
                                                                                                                                      MPN: 103838
                                                                                                                                      DOWEL
                                                                                                                                      from £2.24
                                                                                                                                      from £2.24
                                                                                                                                      This part replaces part number 9100588
                                                                                                                                      # 061
                                                                                                                                      MPN: 10450090
                                                                                                                                      JUBILEE CLIP
                                                                                                                                      from £1.58
                                                                                                                                      from £1.58
                                                                                                                                      # 062
                                                                                                                                      MPN: 108226
                                                                                                                                      COVER
                                                                                                                                      from £65.47
                                                                                                                                      from £65.47
                                                                                                                                      # 063
                                                                                                                                      MPN: 103839
                                                                                                                                      ANELLINO
                                                                                                                                      from £10.35
                                                                                                                                      from £10.35
                                                                                                                                      This part replaces part number 100589 - and 1 more. Click to view details
                                                                                                                                      # 064
                                                                                                                                      MPN: 103422
                                                                                                                                      IDEM SPESSORE MM 2,40
                                                                                                                                      from £52.02
                                                                                                                                      from £52.02
                                                                                                                                      # 064
                                                                                                                                      MPN: 103423
                                                                                                                                      IDEM SPESSORE MM 2,60
                                                                                                                                      from £90.41
                                                                                                                                      from £90.41
                                                                                                                                      # 064
                                                                                                                                      MPN: 103424
                                                                                                                                      DISTANZIALE PER CUSCINETTI DIFFERENZIALE, SPESSORE MM 2,862
                                                                                                                                      Di eventuate montaggio
                                                                                                                                      from £103.92
                                                                                                                                      from £103.92
                                                                                                                                      This part replaces part number 103231
                                                                                                                                      # 064
                                                                                                                                      MPN: 103424
                                                                                                                                      IDEM SPESSORE MM 2,80
                                                                                                                                      from £103.92
                                                                                                                                      from £103.92
                                                                                                                                      This part replaces part number 103231
                                                                                                                                      # 064
                                                                                                                                      MPN: 103425
                                                                                                                                      IDEM SPESSORE MM 3,00
                                                                                                                                      from £52.02
                                                                                                                                      from £52.02
                                                                                                                                      # 064
                                                                                                                                      MPN: 103426
                                                                                                                                      IDEM SPESSORE MM 3,20
                                                                                                                                      from £110.82
                                                                                                                                      from £110.82
                                                                                                                                      # 064
                                                                                                                                      MPN: 109145
                                                                                                                                      IDEM SPESSORE RNM 4,3
                                                                                                                                      from £28.70
                                                                                                                                      from £28.70
                                                                                                                                      # 065
                                                                                                                                      MPN: 125078
                                                                                                                                      SEALING RING
                                                                                                                                      from £14.63
                                                                                                                                      from £14.63
                                                                                                                                      This part replaces part number 104300 - and 1 more. Click to view details
                                                                                                                                      # 066
                                                                                                                                      MPN: 13443421
                                                                                                                                      THREADED STUD
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
