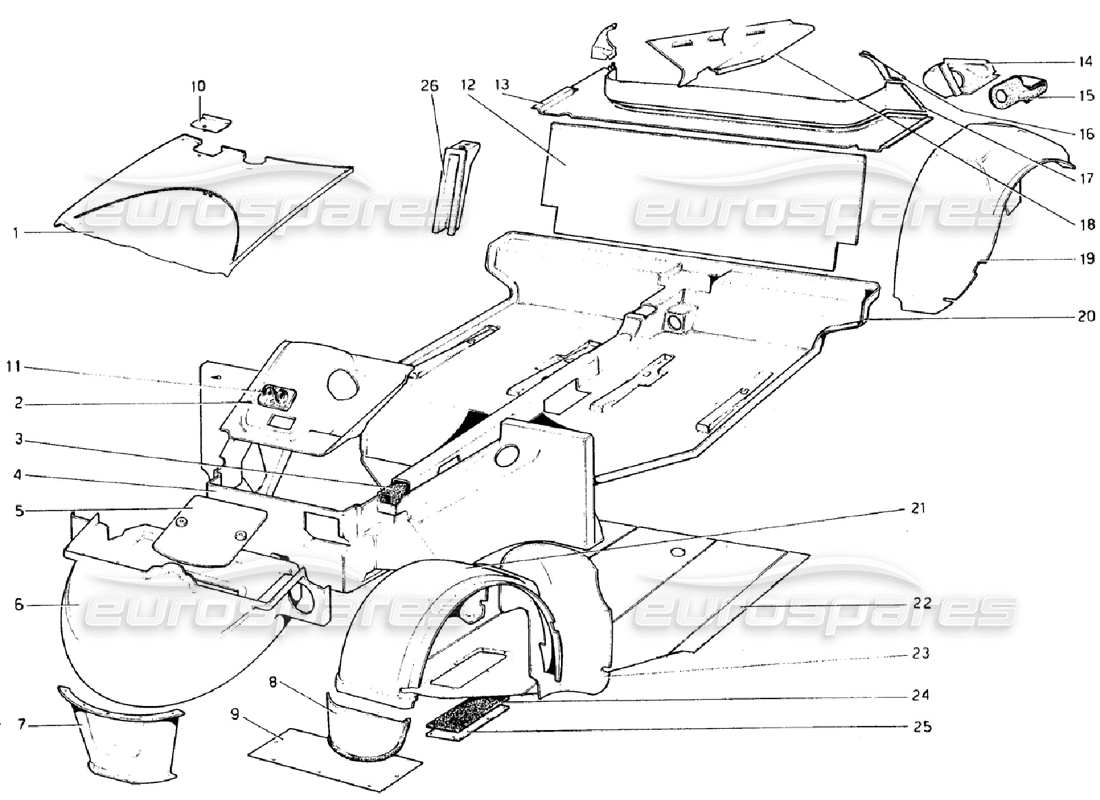

153 - Body Shell - Inner Elements (Valid for RHD - AUS Versions)
Ferrari 308 GTB (1976) Body Shell - Inner Elements (Valid for RHD - AUS Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60197308
PARATIA COPRIRUOTA DI SCORTA
Supersession
Supersession
# 002
MPN: 60191202
RIPORTO SUPERIORE CRUSCOTTO
from £291.41
from £291.41
# 003
MPN: 60218807
ISOLANTE PER TUNNEL CENTRALE
from £124.03
from £124.03
# 004
MPN: 60048907
CRUSCOTTO PARA FIAMMA
Supersession
Supersession
# 005
MPN: 60030905
COVER
Supersession
Supersession
# 006
MPN: 60007408
CONTENITORE RUOTA DI SCORTA
Supersession
Supersession
# 007
MPN: 60023801
RIPARO BATTERIA
from £53.87
from £53.87
# 008
MPN: 60115409
PARA SASSI ANT. DX.
from £101.78
from £101.78
# 008
MPN: 60115508
PARA SASSI ANT. SX.
from £101.78
from £101.78
# 009
MPN: 60208600
GREMBIALINA SOTTOFONDO ANT.
from £87.71
from £87.71
# 010
MPN: 60218401
SPORTELLO ISPEZIONE OLIO FRENI
# 011
MPN: 60199703
PASSAFILI PER Tubi A.C.
# 012
MPN: 60162302
PARATIA PER SCHIENALE
Non vale per AUS
from £112.28
from £112.28
# 012
MPN: 60231909
PARATIA PER SCHIENALE
Vale per AUS
Supersession
Supersession
# 013
MPN: 60148608
PIANETTO SOTTOLUNOTTO
from £235.45
from £235.45
# 014
MPN: 60059003
CONTENITORE BOCCHETTONE BENZINA
from £132.90
from £132.90
# 015
MPN: 60134202
RUBBER PROTECTION
use : 16327240
Supersession
Supersession
# 016
MPN: 60148806
PARTE SUPERIORE NICCHIA DX.
from £88.55
from £88.55
# 016
MPN: 60148905
PARTE SUPERIORE NICCHIA SX.
from £54.67
from £54.67
This part replaces part number 60148903
# 017
MPN: 60148707
PARATIA SOTTO LUNOTTO
from £68.35
from £68.35
# 018
MPN: 60071701
RIVESTIMENTO INTERNO PINNA DX.
from £100.94
from £100.94
# 018
MPN: 60071800
RIVESTIMENTO INTERNO PINNA SX.
from £100.94
from £100.94
# 019
MPN: 60091303
PASSARUOTA POST. DX.
from £403.37
from £403.37
This part replaces part number 61017900
# 019
MPN: 60091402
PASSARUOTA POST. SX.
from £642.66
from £642.66
This part replaces part number 61018000
# 020
MPN: 60063302
PIANALE IN RESINA
from £796.85
from £796.85
# 021
MPN: 60188703
PASSARUOTA ANT. DX;
from £389.39
from £389.39
# 021
MPN: 60188802
PASSARUOTA ANT. SX.
from £325.99
from £325.99
# 022
MPN: 60059607
SOTTOPIANALE
from £297.03
from £297.03
# 023
MPN: 60189503
PARA SASSI PER PASSARUOTA SX.
from £149.67
from £149.67
# 024
MPN: 60059904
GASKET
# 025
MPN: 60224904
COPERCHIETTO ISPEZIONE ACCELERATORE
Supersession
Supersession
# 026
MPN: 60241809
RIPARO TUBO GUAINA CAVO STARTER
from £113.93
from £113.93
# 026
MPN: 60241908
RIPARO TUBO GUAINA CAVO ACCELERATORE
from £100.60
from £100.60
