ferrari 308 gtb (1976) bumpers and mouldings (valid for rhd - aus versions) parts diagram

159 - Bumpers and Mouldings (Valid for RHD - AUS Versions)

Ferrari 308 GTB (1976) Bumpers and Mouldings (Valid for RHD - AUS Versions) Parts Diagram

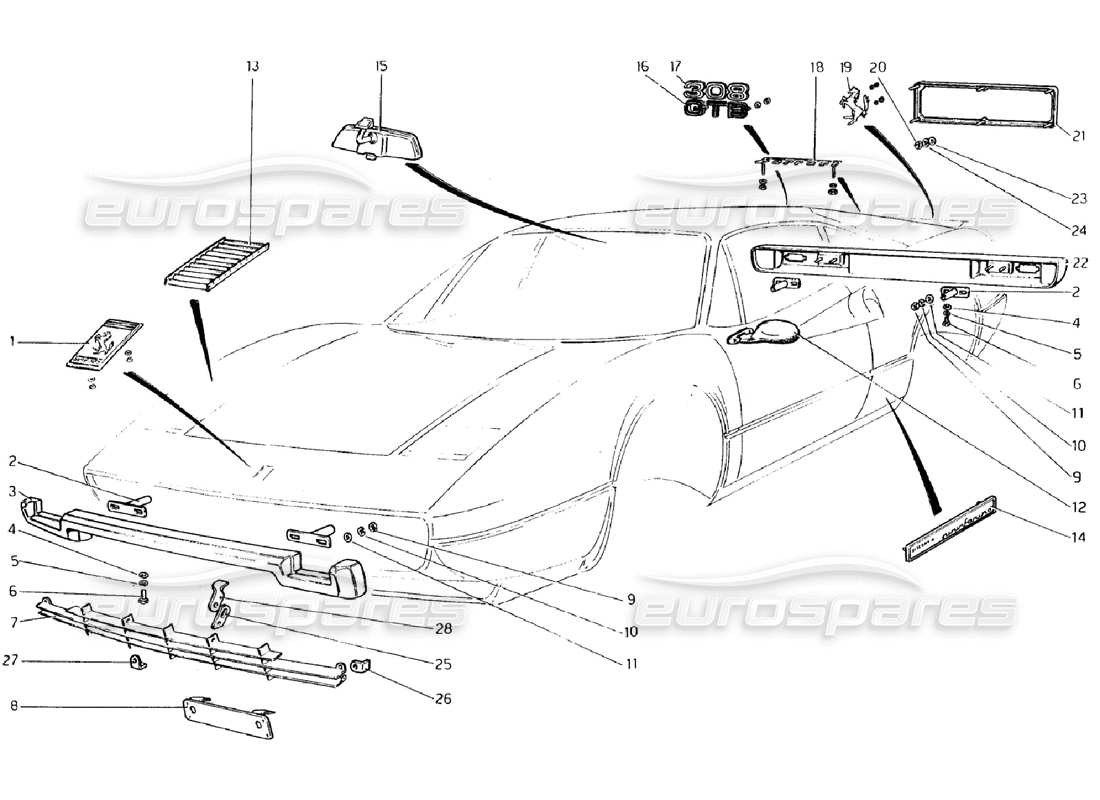

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 60795400
                                              FRONT ORNAMENT
                                              Two pin type.
                                              from £122.04
                                              from £122.04
                                              This part replaces part number 60043007
                                              # 002
                                              MPN: 60118700
                                              BRACKET / SUPPORT
                                              from £129.69
                                              from £129.69
                                              # 003
                                              MPN: 60076007
                                              PARAURTI ANTERIORE
                                              Supersession
                                              Supersession
                                              # 004
                                              MPN: 10519624
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10519601 - and 3 more. Click to view details
                                              # 005
                                              MPN: 10615670
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              # 006
                                              MPN: 16043211
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 007
                                              MPN: 60024304
                                              GRIGLIA RADIATORE
                                              from £1,308.99
                                              from £1,308.99
                                              # 008
                                              MPN: 20108205
                                              FRONT NUMBER PLATE HOLDER
                                              from £82.78
                                              from £82.78
                                              This part replaces part number 20089405 - and 2 more. Click to view details
                                              # 009
                                              MPN: 16100824
                                              NUT
                                              from £0.48
                                              from £0.48
                                              This part replaces part number 16100814 - and 1 more. Click to view details
                                              # 010
                                              MPN: 10615670
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              # 011
                                              MPN: 12642001
                                              WASHER
                                              from £0.52
                                              from £0.52
                                              # 013
                                              MPN: 60024213
                                              GRIGLIA RETRO PROIETTORE SX.
                                              from £786.62
                                              from £786.62
                                              This part replaces part number 60024205
                                              # 013
                                              MPN: 61082400
                                              GRIGLIA RETRO PROIETTORE DX.
                                              Non vale per AUS Vale per AUS
                                              from £1,868.84
                                              from £1,868.84
                                              # 014
                                              MPN: 20043105
                                              PININFARINA MOTIF
                                              from £33.13
                                              from £33.13
                                              # 015
                                              MPN: 60032703
                                              SPECCHIO RETROVISORE INTERNO
                                              from £593.22
                                              from £593.22
                                              This part replaces part number 50047109 - and 1 more. Click to view details
                                              # 016
                                              MPN: 60174604
                                              SIGLA GTB
                                              Supersession
                                              Supersession
                                              # 017
                                              MPN: 60044104
                                              SIGLA 308
                                              from £89.34
                                              from £89.34
                                              This part replaces part number 60174703
                                              # 018
                                              MPN: 30028500
                                              Ferrari REAR SCRIPT
                                              Motif (3-Stud) - Metal Chrome type
                                              from £120.23
                                              from £120.23
                                              This part replaces part number 42297
                                              # 019
                                              MPN: 60032109
                                              CAVALLINO RAMPANTE POST.
                                              (75mm x 50mm)
                                              from £33.60
                                              from £33.60
                                              This part replaces part number 253-44-302-02 which we have in stock - and 3 more. Click to view details
                                              # 020
                                              MPN: 15896411
                                              NUT
                                              Supersession
                                              Supersession
                                              This part replaces part number 15896401
                                              # 021
                                              MPN: 60096401
                                              PORTATARGA POST.
                                              from £25.16
                                              from £25.16
                                              This part replaces part number 60097002
                                              # 022
                                              MPN: 60065109
                                              PARAURTI POST.
                                              (with reverse light model)
                                              Supersession
                                              Supersession
                                              # 023
                                              MPN: 12638101
                                              WASHER
                                              from £0.71
                                              from £0.71
                                              # 024
                                              MPN: 10615370
                                              WASHER
                                              Supersession
                                              Supersession
                                              # 025
                                              MPN: 60163409
                                              BRACKET / SUPPORT
                                              from £14.05
                                              from £14.05
                                              # 026
                                              MPN: 60227709
                                              BRACKET / SUPPORT
                                              from £17.22
                                              from £17.22
                                              # 026
                                              MPN: 60227808
                                              BRACKET / SUPPORT
                                              from £11.29
                                              from £11.29
                                              # 027
                                              MPN: 60227907
                                              BRACKET / SUPPORT
                                              from £10.87
                                              from £10.87
                                              This part replaces part number 40343402
                                              # 028
                                              MPN: 60136405
                                              BRACKET / SUPPORT
                                              from £10.74
                                              from £10.74
