167 - Fuses and Relays (Valid for RHD - AUS Versions)

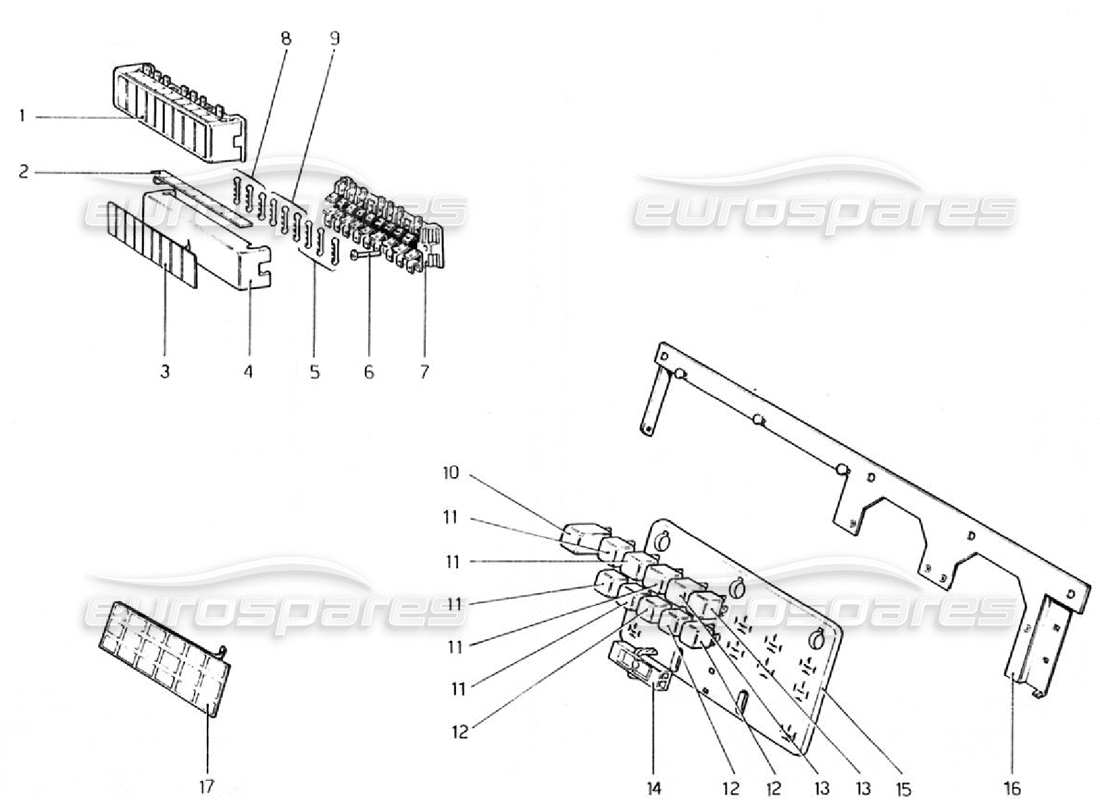

Ferrari 308 GTB (1976) Fuses and Relays (Valid for RHD - AUS Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 50181007
SCATOLA PORTA VALVOLE N. 2 BIANCA
from £275.00
from £275.00
This part replaces part number 40052508
# 001
MPN: 60278702
SCATOLA PORTA VALVOLE N. 1 NERA
from £167.33
from £167.33
This part replaces part number 60101805 - and 1 more. Click to view details
# 002
MPN: 50201102
TARGHETTA LATERALE PER SCATOLA N.2
from £0.75
from £0.75
# 002
MPN: 60101607
TARGHETTA LATERALE PER SCATOLA N.1
# 003
MPN: 50201003
TARGHETTA AUTOADESIVA PER SCATOLA N.2
# 003
MPN: 60101706
TARGHETTA AUTOADESIVA PER SCATOLA N.1
from £7.69
from £7.69
# 004
MPN: 40052300
COVER
from £65.39
from £65.39
# 005
MPN: 10858090
FUSE 8 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403001
# 006
MPN: 10375301
SCREW
# 007
MPN: 40052508
LH FUSE BOX
Supersession
Supersession
This part replaces part number 95404505
# 007
MPN: 40052607
RH FUSE BOX COMPLETE
from £216.71
from £216.71
This part replaces part number 40052409 which we have in stock - and 1 more. Click to view details
# 008
MPN: 11048990
FUSE 16 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403002
# 009
MPN: 11048890
VALVOLE FUSIBILI DA 25 AMPERE
from £0.47
from £0.47
This part replaces part number 108132
# 010
MPN: 40129306
INDICATOR RELAY
Supersession
Supersession
# 010
MPN: 50319300
MICRO INTERMITTENZA ELETTRONICA
Vale dalla 301 - Non vale per AUS
from £62.91
from £62.91
# 010
MPN: 60246501
MICRO INTERMITTENZA ELETTRONICA
Vale per AUS
Supersession
Supersession
# 011
MPN: 40130007
RELAY
0332209151
from £16.05
from £16.05
This part replaces part number 110356 - and 1 more. Click to view details
# 012
MPN: 40130106
RELAY
from £10.40
from £10.40
This part replaces part number 110355
# 013
MPN: 40283905
MICRORELAY
from £37.86
from £37.86
This part replaces part number 110354 which we have in stock - and 2 more. Click to view details
# 014
MPN: 40130205
DOUBLE CONNECTOR
from £9.66
from £9.66
This part replaces part number MC4812/1
# 015
MPN: 60035805
PIASTRA PER CENTRALINA ELETTRICA
Supersession
Supersession
# 016
MPN: 60193901
SUPPORT
# 017
MPN: 60041209
TARGHETTA IDENTIF ICAZIONE TELERUTTORI
from £0.72
from £0.72
