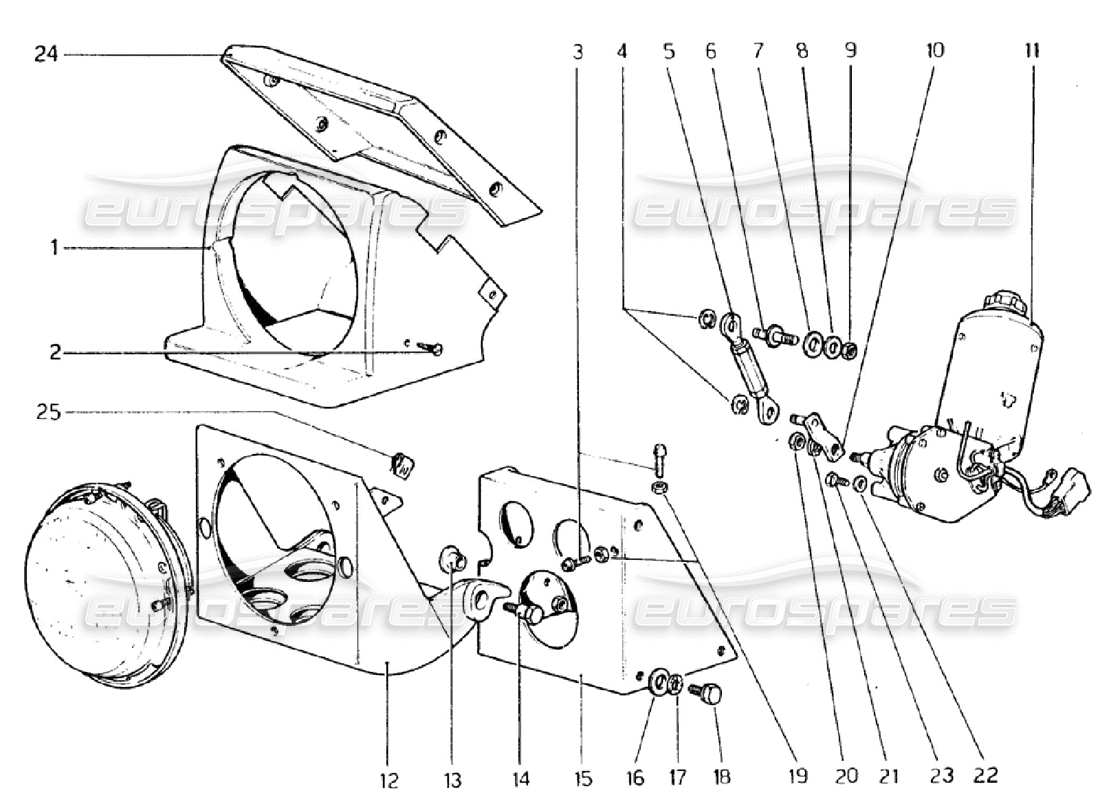

168 - Headlights Lifting Device (Valid for RHD - AUS Versions)
Ferrari 308 GTB (1976) Headlights Lifting Device (Valid for RHD - AUS Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 60227303
DISPOSITIVE ALZAFARI DX. COMPLETO DI PROIETTORE
# 000
MPN: 60227402
DISPOSITIVO ALZAFARI SX. COMPLETO DI PROIETTORE
# 001
MPN: 60333705
CONTENITORE PER PROIETTORE DX.
Supersession
Supersession
This part replaces part number 60219003
# 001
MPN: 60333804
CONTENITORE PER PROIETTORE SX.
from £427.25
from £427.25
This part replaces part number 60219102
# 002
MPN: 60099801
SCREW
from £18.89
from £18.89
# 003
MPN: 50087709
PUNTALINO FERMO CORSA
from £9.37
from £9.37
This part replaces part number 62783000
# 004
MPN: 11087975
SEEGER RING
Supersession
Supersession
# 005
MPN: 61268600
CONNENTING ROD
from £82.07
from £82.07
This part replaces part number 50038009 - and 2 more. Click to view details
# 006
MPN: 60098803
PIVOT
from £17.65
from £17.65
This part replaces part number 60098801
# 007
MPN: 12638601
WASHER
from £0.54
from £0.54
This part replaces part number 20232104
# 008
MPN: 10615770
WASHER
Supersession
Supersession
# 009
MPN: 12164711
NUT
Supersession
Supersession
This part replaces part number 12164712
# 010
MPN: 40213902
PIVOT
from £13.13
from £13.13
This part replaces part number 30152508 - and 2 more. Click to view details
# 011
MPN: 40089401
MOTORINO ALZAFARI DX.
from £204.46
from £204.46
This part replaces part number 102272 - and 1 more. Click to view details
# 011
MPN: 40089500
LH HEAD LAMP MOTOR
from £893.72
from £893.72
This part replaces part number 102271 - and 1 more. Click to view details
# 012
MPN: 60097409
GHIERA DX.
Vale fino alla 233
from £204.75
from £204.75
# 012
MPN: 60097508
GHIERA SX.
Vale fino alla 233
from £204.75
from £204.75
# 012
MPN: 60238409
GHIERA DX.
Vale dalla 234
from £325.14
from £325.14
This part replaces part number 60097409 which we have in stock - and 1 more. Click to view details
# 012
MPN: 60238508
GHIERA SX.
Vale dalla 234
from £236.25
from £236.25
This part replaces part number 60097508 which we have in stock - and 1 more. Click to view details
# 013
MPN: 50070507
BUSH
from £5.08
from £5.08
# 014
MPN: 50070606
PIN
from £12.87
from £12.87
# 015
MPN: 60098407
SUPPORT
from £113.93
from £113.93
# 015
MPN: 60098506
SUPPORT
from £125.69
from £125.69
# 016
MPN: 12608570
WASHER
from £0.71
from £0.71
# 017
MPN: 12642001
WASHER
from £0.52
from £0.52
# 018
MPN: 50145804
SCREW
from £14.29
from £14.29
# 019
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 020
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 021
MPN: 12605370
WASHER
Supersession
Supersession
# 022
MPN: 12605370
WASHER
Supersession
Supersession
# 023
MPN: 10902111
SCREW
from £1.07
from £1.07
# 024
MPN: 60172608
RIVESTIMENTO CONTENITORE DX.
from £215.30
from £215.30
# 024
MPN: 60172707
RIVESTIMENTO CONTENITORE SX.
from £414.75
from £414.75
# 025
MPN: 60215209
CLIP
from £1.18
from £1.18
