031 - Brake System

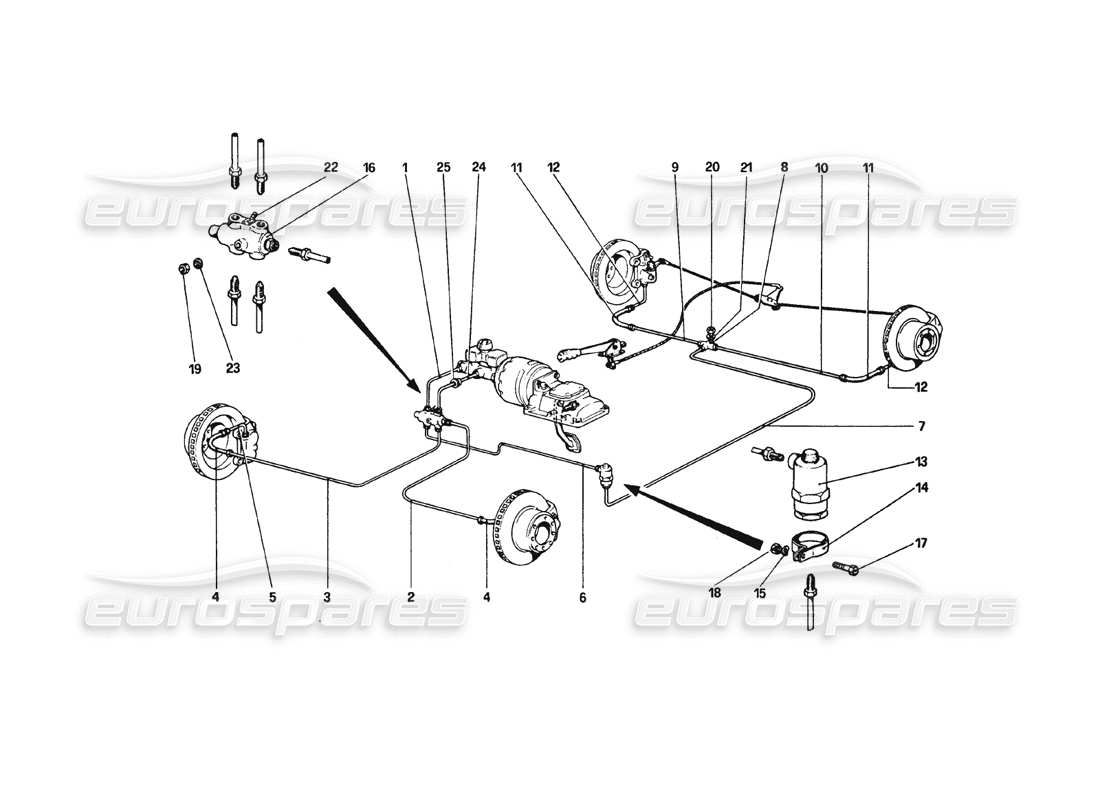

Ferrari 308 GTB (1980) Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 101407
TUBETTO DAL SERVOFRENO AL SEGNALATORE INEFFICIENZA FRENI CIRCUITO POST.
from £26.03
from £26.03
This part replaces part number 680683
# 002
MPN: 105850
TUBETTO DAL SEGNALATORE AL FLESSIBILE ANTERIORE SX.
Non vale per GD
from £3.23
from £3.23
# 002
MPN: 107366
TUBETTO DAL SEGNALATORE AL FLESSIBILE ANTERIORE SX.
Vale per GD
from £8.75
from £8.75
This part replaces part number 101409 - and 2 more. Click to view details
# 003
MPN: 104469
TUBETTO DAL SEGNALATORE AL FLESSIBILE ANTERIORE DX.
Non vale per GD
from £11.10
from £11.10
# 003
MPN: 107366
TUBETTO DAL SEGNALATORE AL FLESSIBILE ANTERIORE DX.
Vale per GD
from £8.75
from £8.75
This part replaces part number 101409 - and 2 more. Click to view details
# 004
MPN: 101393
FRONT BRAKE HOSES
from £38.40
from £38.40
This part replaces part number 680666
# 005
MPN: 143699
TUBETTO DAL FLESSIBILE AL CALIPER
from £74.76
from £74.76
This part replaces part number 106671 - and 2 more. Click to view details
# 006
MPN: 106973
TUBETTO DALLA VALVOLA AL DEPRESSORE
Non vale per GD e GTS. Per - GTB-GS fino vett. n. 2531 5
from £10.05
from £10.05
# 006
MPN: 109017
TUBETTO DALLA VALVOLA AL DEPRESSORE
Vale perGTB-GDfinon.27441
from £7.82
from £7.82
# 006
MPN: 113022
TUBETTO DALLA VALVOLA AL 3 VIE POST.
Per GTS. Per GTB-GS dalla vett. 25317
Supersession
Supersession
# 006
MPN: 113023
TUBETTO DALLA VALVOLA AL 3 VIE POST.
Per GTS-GD. Per GTB-GD dalla vettura 27443
from £25.40
from £25.40
# 007
MPN: 109276
TUBETTO DAL DEPRESSORE AL 3 VIE
Non vale per GD e GTS
from £18.98
from £18.98
# 007
MPN: 110599
TUBETTO DAL DEPRESSORE AL 3 VIE
Vale per GD fino vett. 27441
from £21.65
from £21.65
# 008
MPN: 101394
UNION
from £27.42
from £27.42
This part replaces part number 680980 - and 7 more. Click to view details
# 009
MPN: 104470
TUBETTO DAL 3 VIE AL FLESSIBILE DX.
Supersession
Supersession
# 010
MPN: 106672
TUBETTO DAL 3 VIE AL FLESSIBILE SX.
from £7.07
from £7.07
# 011
MPN: 101392
REAR BRAKE HOSE
from £35.00
from £35.00
This part replaces part number 680665 - and 1 more. Click to view details
# 012
MPN: 101401
TUBETTO DAL FLESSIB. AL CALIPER POST.
Supersession
Supersession
This part replaces part number 680675
# 013
MPN: 104479
REGOLATORE FRENATA POSTERIORE
Non vale per GTS - PerGTB fino 2531 5 GS - e 27441 GD
from £338.89
from £338.89
# 014
MPN: 106866
JUBILEE CLIP
Non vale per GTS - PerGTB fino 2531 5 GS - e 27441 GD
from £4.08
from £4.08
# 015
MPN: 12643724
WASHER
Non vale per GTS - PerGTB fino 2531 5 GS - e 27441 GD
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 016
MPN: 127757
BRAKE FAILURE INDICATOR
from £1,031.48
from £1,031.48
This part replaces part number 108803 - and 1 more. Click to view details
# 016
MPN: 127757
SEGNALATORE ELETTRICO
from £1,031.48
from £1,031.48
This part replaces part number 108803 - and 1 more. Click to view details
# 017
MPN: 10902221
SCREW
Non vale per GTS per GTB - fino 25315 GS e 27441 GD
from £0.52
from £0.52
# 019
MPN: 12574211
NUT
Non vale per GTS per GTB - fino 25315 GS e 27441 GD
from £0.71
from £0.71
# 020
MPN: 12574211
NUT
from £0.71
from £0.71
# 021
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 022
MPN: 108955
SEGNALATORE ELETTRICO
# 023
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 024
MPN: 105278
TUBETTO DAL SERVOFRENO AL SEGNAL
Non vale per GD
from £10.39
from £10.39
# 024
MPN: 105855
TUBETTO DAL SERVOFRENO AL SEGNAL
Vale per GD
from £15.15
from £15.15
# 025
MPN: 105369
CABLE GROMMET
from £19.10
from £19.10
