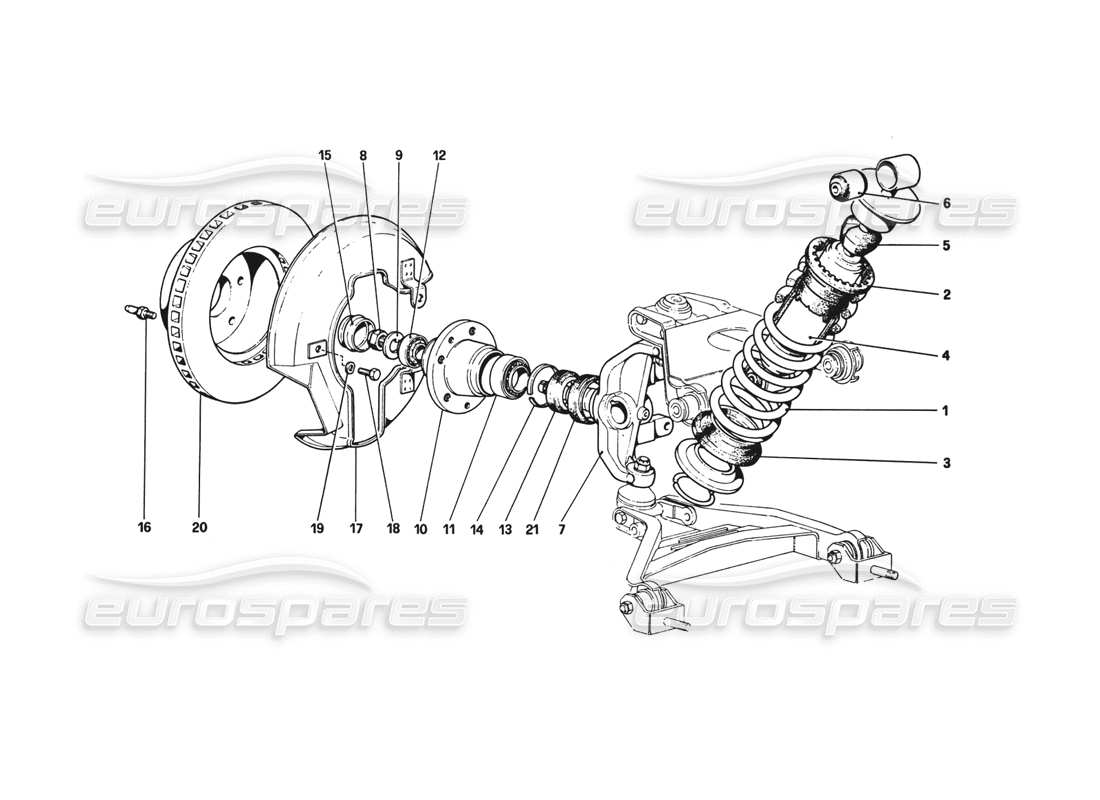

036 - Front Suspension - Shock Absorber and Brake Disc
Ferrari 308 GTB (1980) Front Suspension - Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 104458/A
COMPLETE REAR BRAKE KIT
Includes Rear Disks 104458 x 2, Pads 108134 x 1 and Caliper Clips 106360/A x 1
# 000
MPN: 106072/A
COMPLETE FRONT BRAKE KIT
Includes Front Disks 106072 x 2, Pads 108133 x 1 and Caliper Clips 106357/A x 1
# 001

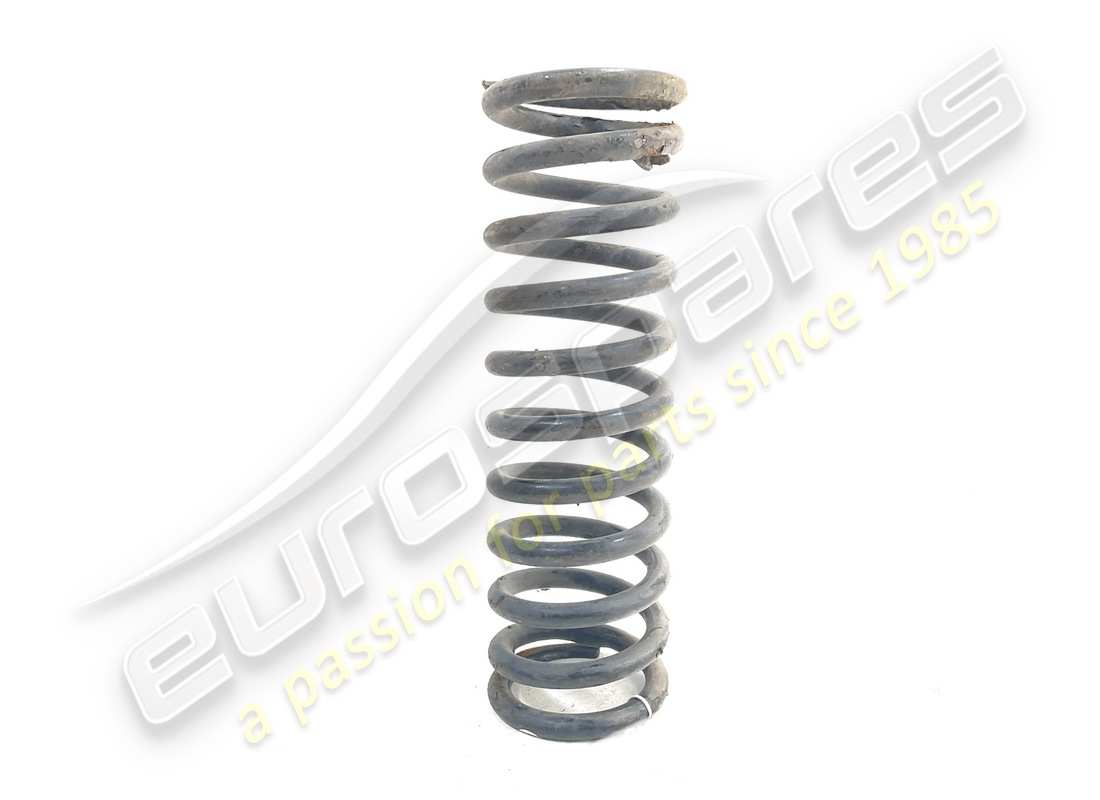

MPN: 110784
FRONT ROAD SPRING
(GTB only)
from £240.77
from £240.77
This part replaces part number 109024 - and 1 more. Click to view details
# 001

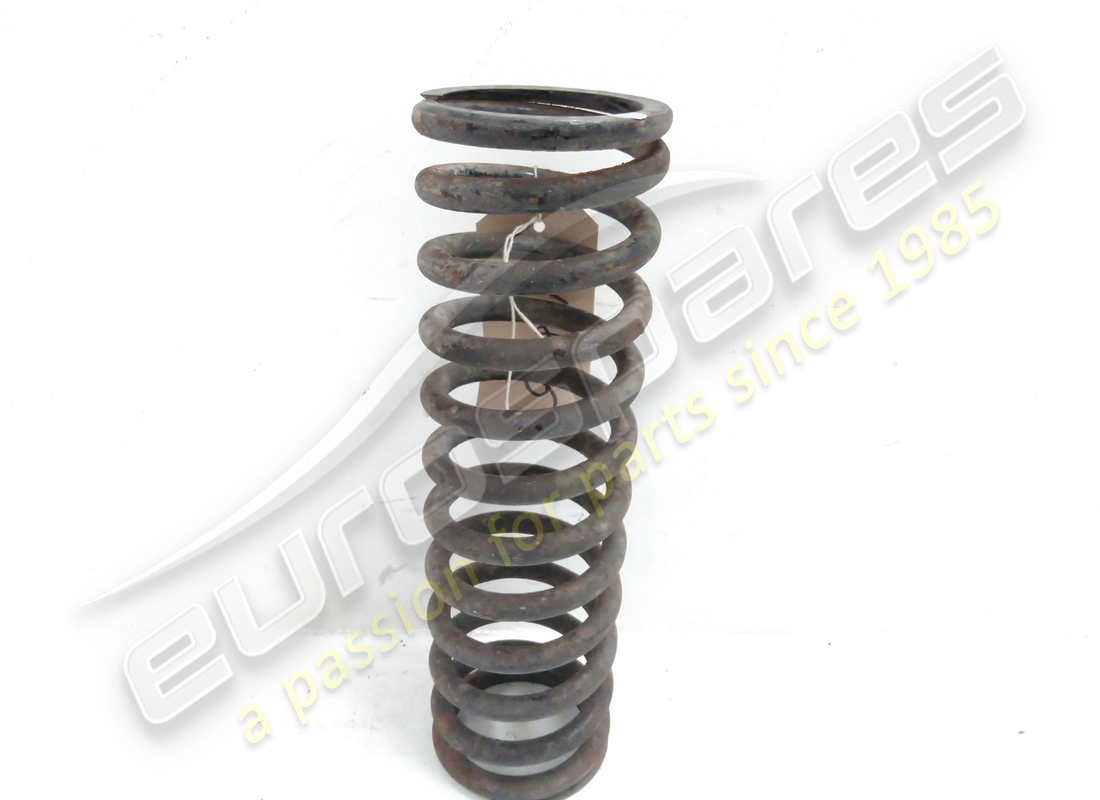

MPN: 112876
FRONT ROAD SPRING
(GTS only)
from £215.80
from £215.80
This part replaces part number 111909 - and 1 more. Click to view details
# 001
MPN: 113040
SPRING
Solo per GTS-AUS
from £702.59
from £702.59
This part replaces part number 105582
# 001
MPN: 113516
SPRING
Solo per GTB-AUS
from £304.79
from £304.79
# 002
MPN: 103263/a
SHOCK ABSORBER DUST COVER KIT
from £51.45
from £51.45
# 002
MPN: 105223
DISTANZIALE SUPERIORE
from £19.31
from £19.31
# 003
MPN: 103264
DISTANZIALE INFERIORE
from £15.72
from £15.72
This part replaces part number 640423 - and 3 more. Click to view details
# 004

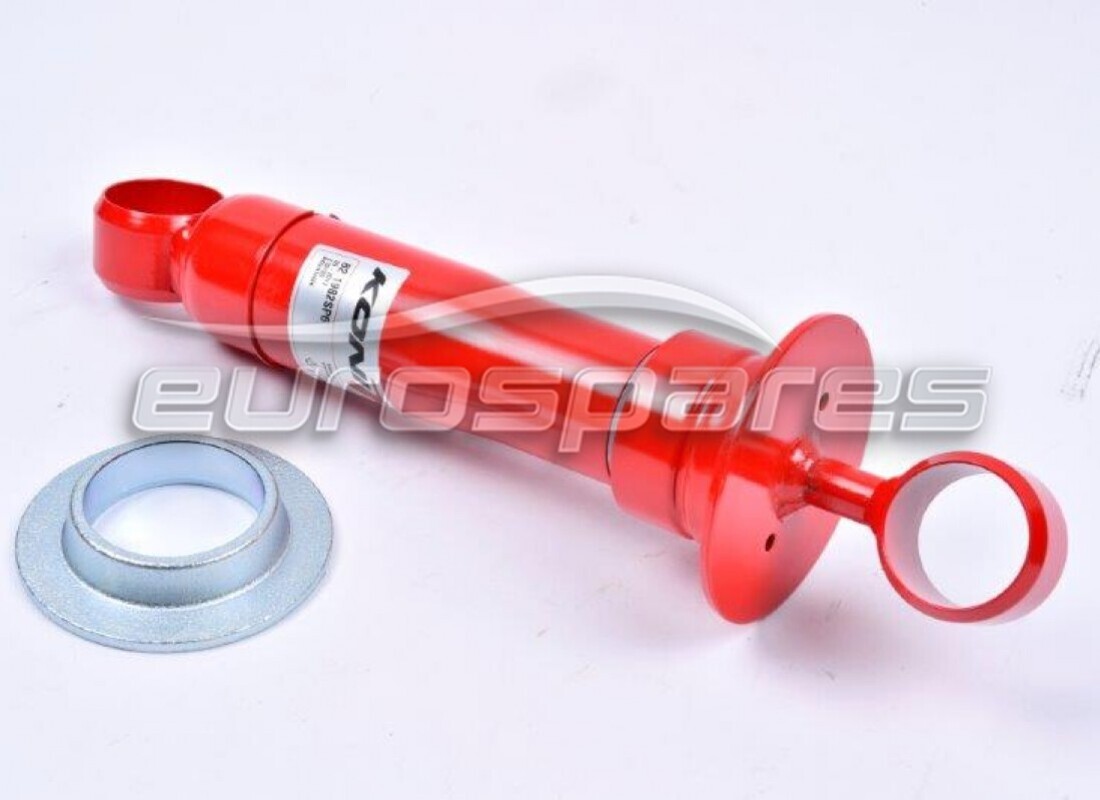

MPN: 110786
FRONT SHOCK ABSORBER
from £168.00
from £168.00
This part replaces part number 106261 - and 9 more. Click to view details
# 004
MPN: MC6552/1
KONI SHOCK ABSORBER STICKER
from £3.95
from £3.95
# 005
MPN: 10-44-14
TAMPONE FINE CORSA
Con l'ammortizzatore
Supersession
Supersession
This part replaces part number 641457
# 006
MPN: 100809
ESTENDBLOK PER AMMORTIZZATORE
from £13.28
from £13.28
This part replaces part number 101051 - and 1 more. Click to view details
# 007

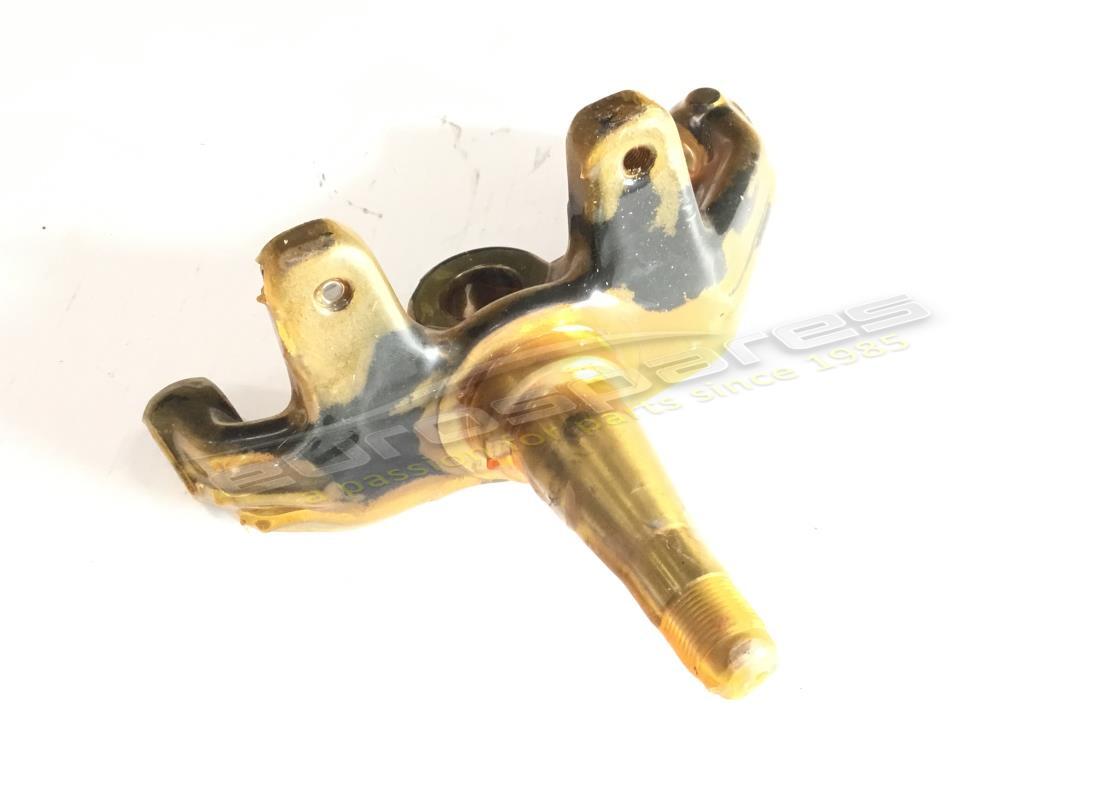

MPN: 104374
FUSE A SNODO DX.
Vale fino alla vettura n…..
Supersession
Supersession
# 007
MPN: 104375
FUSOA SNODO SX.
Vale fino alla vettura n…..
from £441.00
from £441.00
# 007

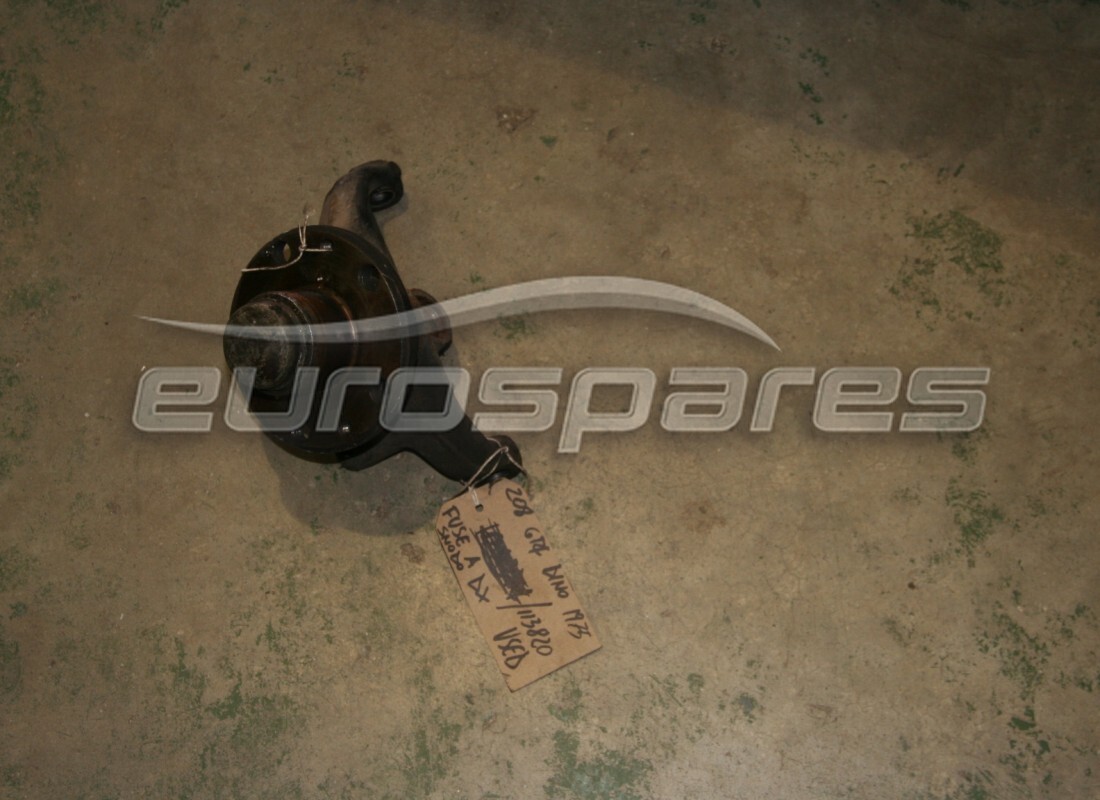

MPN: 113820
FUSOA SNODO DX.
Dalla vettura n….. Alla vettura n. 30243
from £441.00
from £441.00
This part replaces part number 104374 - and 1 more. Click to view details
# 007
MPN: 113821
FUSOA SNODO SX.
Dalla vettura n….. Alla vettura n. 30244
from £309.75
from £309.75
This part replaces part number 104375 which we have in stock - and 1 more. Click to view details
# 007
MPN: 115964
FUSO A SNODO DX.
Vale dalla vettura n. 30245
from £519.75
from £519.75
# 007
MPN: 115965
FUSO A SNODO SX.
Vale dalla vettura n. 30246
from £414.75
from £414.75
# 008
MPN: 14044171
NUT
from £14.86
from £14.86
# 008
MPN: 14044871
NUT
from £15.36
from £15.36
# 009
MPN: 101446
WASHER
from £14.76
from £14.76
This part replaces part number 60052397 - and 1 more. Click to view details
# 010

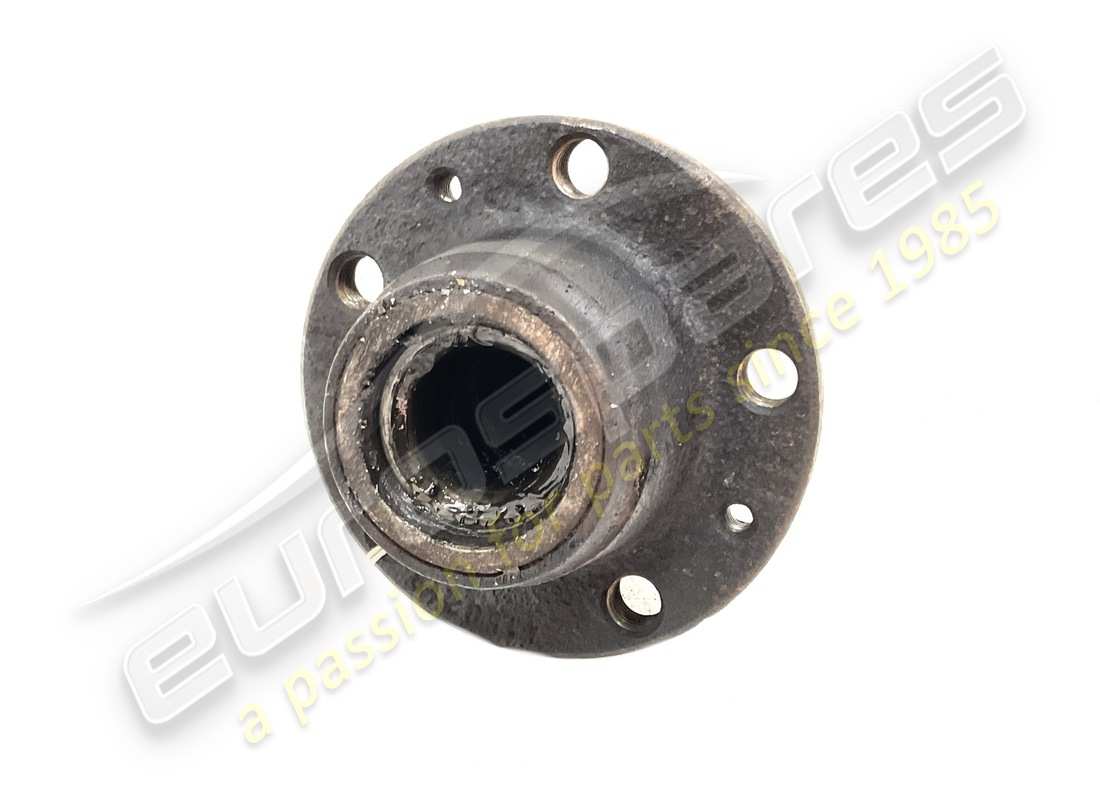

MPN: 104349
MOZZO RUOTE ANTERIORI
Vale fino alla vettura n. 30243
Supersession
Supersession
This part replaces part number 104380 - and 2 more. Click to view details
# 010
MPN: 115966
MOZZO RUOTE ANTERIORI
Vale dalla vettura n. 30245
from £768.76
from £768.76
This part replaces part number 104349 - and 1 more. Click to view details
# 011
MPN: 105844
CUSCINETTO INTERNO
Supersession
Supersession
This part replaces part number 4096101
# 012
MPN: 105845
CUSCINETTO ESTERNO
from £13.47
from £13.47
This part replaces part number 4096104
# 013
MPN: 104359
SEALING RING
Vale fino alla vett. n. 30243
from £10.74
from £10.74
This part replaces part number 4117608
# 013
MPN: 115968/A
SEALING RING
Vale dalla vett. N. 30245
from £32.12
from £32.12
# 014
MPN: 104360
SPACER
Vale fino alla vett. n. 30243
from £5.96
from £5.96
This part replaces part number 700742
# 014
MPN: 115967
SPACER
Vale dalla vet.. N . 30245
from £3.56
from £3.56
# 015
MPN: 104361
COPPA PER MOZZO
Dopo esaur. Vale n. 114095
Supersession
Supersession
# 016
MPN: 104368
SCREW
from £2.89
from £2.89
This part replaces part number 4252343 - and 1 more. Click to view details
# 017
MPN: 108722
PROTEZIONE DISCO FRENO DX.
from £268.74
from £268.74
# 017
MPN: 108723
PROTEZIONE DISCO FRENO SX.
from £149.12
from £149.12
# 018
MPN: 16043221
SCREW
from £0.47
from £0.47
This part replaces part number 13842414 - and 1 more. Click to view details
# 019
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 020
MPN: 106072
FRONT BRAKE DISC
(price each disc)
from £320.68
from £320.68
This part replaces part number 106072/X - and 1 more. Click to view details
# 021
MPN: 113818
RING
Con fusi a snodo n. 113820 e 113821 - Dalla vett. N. 24951
from £32.47
from £32.47
