ferrari 308 gtb (1980) body shell - inner elements parts diagram

104 - Body Shell - Inner Elements

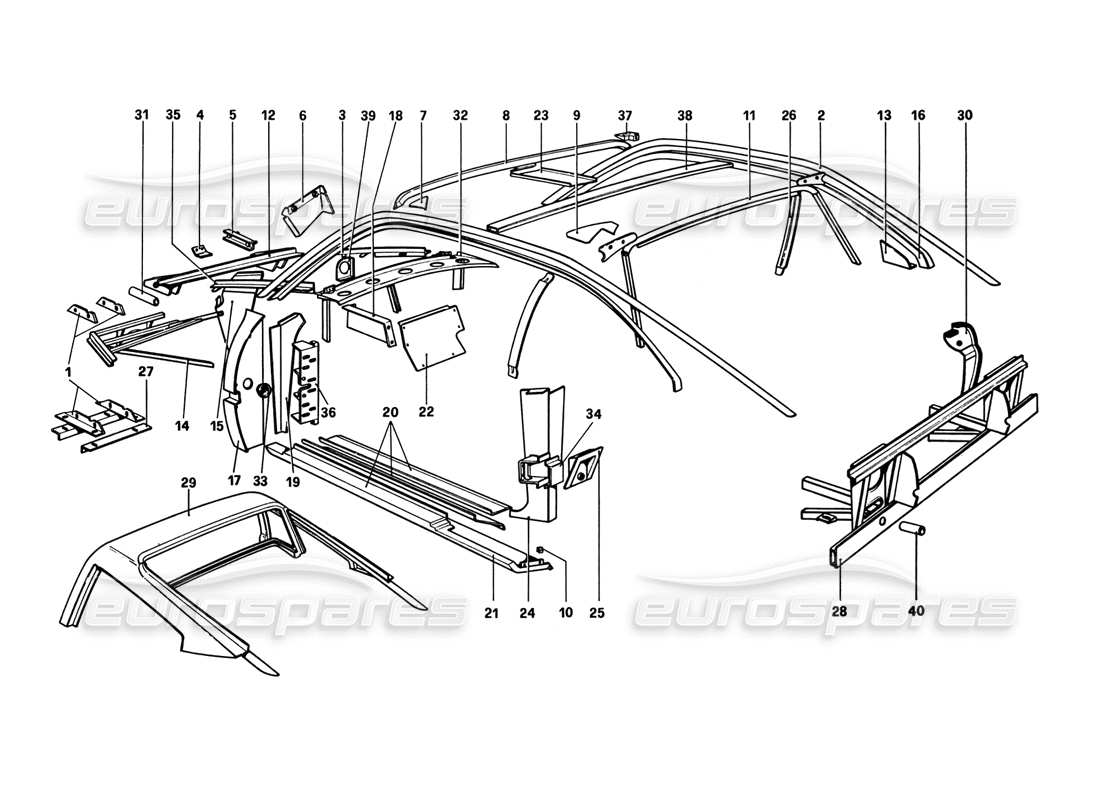

Ferrari 308 GTB (1980) Body Shell - Inner Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 60238201
                                                  BRACKET / SUPPORT
                                                  Fino ad introduzione n. 60581800/900
                                                  from £23.16
                                                  from £23.16
                                                  This part replaces part number 60098209 - and 2 more. Click to view details
                                                  # 001
                                                  MPN: 60581800
                                                  BRACKET / SUPPORT
                                                  Dopo sopressione 60238201
                                                  Supersession
                                                  Supersession
                                                  # 001
                                                  MPN: 60581900
                                                  BRACKET / SUPPORT
                                                  Dopo sopressione 60238201
                                                  from £6.10
                                                  from £6.10
                                                  # 002
                                                  MPN: 60260304
                                                  TUBO LONGHERINA SX. GTB
                                                  Supersession
                                                  Supersession
                                                  # 002
                                                  MPN: 61010000
                                                  RH RAIL GTB
                                                  from £99.13
                                                  from £99.13
                                                  This part replaces part number 60260205
                                                  # 003
                                                  MPN: 60350006
                                                  RINFORZO DX. VANO ANTERIORE
                                                  from £24.58
                                                  from £24.58
                                                  # 004
                                                  MPN: 60065000
                                                  STAFFETTA PER TROMBE (GTB)
                                                  Fino vettura n……….
                                                  from £18.95
                                                  from £18.95
                                                  # 004
                                                  MPN: 60309804
                                                  STAFFETTA PER TROMBE (GEMINI) GTB
                                                  Dalla vettura n………
                                                  from £3.47
                                                  from £3.47
                                                  # 005
                                                  MPN: 40111601
                                                  SUPPORT
                                                  from £41.32
                                                  from £41.32
                                                  This part replaces part number 40111604
                                                  # 006
                                                  MPN: 60084308
                                                  SUPPORT
                                                  Fino vettura n……….
                                                  from £37.71
                                                  from £37.71
                                                  # 006
                                                  MPN: 60370905
                                                  ASSIEME INTELAIATURA PADIGIIONE GTB
                                                  from £949.38
                                                  from £949.38
                                                  # 006
                                                  MPN: 60399904
                                                  SUPPORT
                                                  Dalla vettura n………
                                                  from £38.37
                                                  from £38.37
                                                  # 006
                                                  MPN: 60414505
                                                  SUPPORT
                                                  from £22.74
                                                  from £22.74
                                                  # 007
                                                  MPN: 60223005
                                                  RINFORZO ANT. DX. PADIGLIONE GTB
                                                  Fino alla vettura n……….
                                                  from £31.46
                                                  from £31.46
                                                  This part replaces part number 60119203
                                                  # 007
                                                  MPN: 60223104
                                                  RINFORZO ANT. SX. PADIGLIONE GTB
                                                  Fino alla vettura n……….
                                                  from £31.46
                                                  from £31.46
                                                  This part replaces part number 60119302
                                                  # 007
                                                  MPN: 60371101
                                                  RINFORZO ANT. DX. PADIGLIONE GTB
                                                  Dalla vettura n………
                                                  from £4.14
                                                  from £4.14
                                                  # 007
                                                  MPN: 60374600
                                                  RINFORZO ANT. SX. PADIGLIONE GTB
                                                  Dalla vettura n………
                                                  from £4.14
                                                  from £4.14
                                                  # 008
                                                  MPN: 60371309
                                                  CENTINA ANT. SOSTEGNO POADIGLIONE GTB
                                                  Dalla vettura n………
                                                  from £176.94
                                                  from £176.94
                                                  This part replaces part number 60299203
                                                  # 009
                                                  MPN: 60222700
                                                  RINFORZO POST. DX. PADIGLIONE GTB
                                                  Fino alla vettura n……….
                                                  Supersession
                                                  Supersession
                                                  # 009
                                                  MPN: 60222809
                                                  RINFORZO POST. SX. PADIGIIONE GTB
                                                  Fino alla vettura n……….
                                                  Supersession
                                                  Supersession
                                                  # 009
                                                  MPN: 60371408
                                                  RINFORZO POST. DX. PADIGLIONE GTB
                                                  Dalla vettura n………
                                                  from £43.15
                                                  from £43.15
                                                  # 009
                                                  MPN: 60371507
                                                  RINFORZO POST. SX. PADIGIIONE GTB
                                                  Dalla vettura n………
                                                  from £43.15
                                                  from £43.15
                                                  # 010
                                                  MPN: 60361805
                                                  CLIP
                                                  from £1.22
                                                  from £1.22
                                                  # 011
                                                  MPN: 60296001
                                                  CENTINA POST, SOSTEGNO PADIGLIONE
                                                  from £98.53
                                                  from £98.53
                                                  # 012
                                                  MPN: 60301504
                                                  RINFORZO ANT. VANO ANT.
                                                  from £136.11
                                                  from £136.11
                                                  This part replaces part number 60253804
                                                  # 013
                                                  MPN: 60282001
                                                  LAMIERA SOTTOGRIGLIA DX. GTB
                                                  from £41.02
                                                  from £41.02
                                                  # 013
                                                  MPN: 60357605
                                                  LAMIERA SOTTOGRIGLIA DX. GTS
                                                  from £11.86
                                                  from £11.86
                                                  # 014
                                                  MPN: 60063609
                                                  TELAIETTO ANT. DX. GTB
                                                  Fino alla vettura n……….
                                                  from £146.77
                                                  from £146.77
                                                  This part replaces part number 60349800
                                                  # 014
                                                  MPN: 60063708
                                                  TELAIETTO ANT. SX. GTB
                                                  Fino alla vettura n……….
                                                  This part replaces part number 60349909
                                                  # 014
                                                  MPN: 60651800
                                                  TELAIETTO ANT. DX. GTB
                                                  Dalla vettura n………
                                                  from £147.24
                                                  from £147.24
                                                  # 014
                                                  MPN: 60651900
                                                  TELAIETTO ANT. SX. GTB
                                                  Dalla vettura n. ...............
                                                  from £171.70
                                                  from £171.70
                                                  # 015
                                                  MPN: 60304102
                                                  PARATIA DX. RADIATORE
                                                  from £44.81
                                                  from £44.81
                                                  # 015
                                                  MPN: 60304201
                                                  PARATIA SX. RADIATORE
                                                  from £39.35
                                                  from £39.35
                                                  # 016
                                                  MPN: 60260007
                                                  LAMIERA LONGHERINA SX. GTB
                                                  from £110.44
                                                  from £110.44
                                                  # 016
                                                  MPN: 60260106
                                                  LAMIERA LONGHERINA DX. GTB
                                                  from £110.25
                                                  from £110.25
                                                  # 017
                                                  MPN: 60252400
                                                  MONTANTE CERNIERA PORTA DX.
                                                  from £36.91
                                                  from £36.91
                                                  # 017
                                                  MPN: 60252509
                                                  MONTANTE CERNIERA PORTA SX.
                                                  from £59.03
                                                  from £59.03
                                                  # 018
                                                  MPN: 60106903
                                                  BRACKET / SUPPORT
                                                  from £19.22
                                                  from £19.22
                                                  # 019
                                                  MPN: 60397106
                                                  RIPORTO MONTANTE DX.
                                                  from £30.30
                                                  from £30.30
                                                  This part replaces part number 61009800 which we have in stock
                                                  # 019
                                                  MPN: 60397205
                                                  RIPORTO MONTANTE SX.
                                                  from £30.30
                                                  from £30.30
                                                  This part replaces part number 61009900
                                                  # 020
                                                  MPN: 60303203
                                                  RIVESTIMENTO SOTTOPORTA DX. GTB
                                                  This part replaces part number 61009600
                                                  # 020
                                                  MPN: 60303302
                                                  RIVESTIMENTO SOTTOPORTA SX. GTB
                                                  from £227.73
                                                  from £227.73
                                                  This part replaces part number 61009700
                                                  # 020
                                                  MPN: 60419504
                                                  RIVESTIMENTO SOTTOPORTA DX. GTS
                                                  from £668.78
                                                  from £668.78
                                                  # 020
                                                  MPN: 60419603
                                                  RIVESTIMENTO SOTTOPORTA SX. GTS
                                                  from £516.14
                                                  from £516.14
                                                  # 021
                                                  MPN: 60003803
                                                  RIVESTIMENTO ESTERNO SOTTOPORTA DX.
                                                  from £401.52
                                                  from £401.52
                                                  # 021
                                                  MPN: 60003902
                                                  RIVESTIMENTO ESTERNO SOTTOPORTA SX.
                                                  from £402.05
                                                  from £402.05
                                                  # 022
                                                  MPN: 60107109
                                                  PARATIA APPOGGIAPIEDI PASSEGGERO GTB
                                                  from £48.73
                                                  from £48.73
                                                  # 022
                                                  MPN: 60306404
                                                  PARATIA APPOGGIAPIEDI PASSEGGERO GTS
                                                  from £36.49
                                                  from £36.49
                                                  # 023
                                                  MPN: 60361805
                                                  RINFORZO CENTINE ANTERIORI GTB
                                                  Dalla vettura n. ..................
                                                  from £1.22
                                                  from £1.22
                                                  # 024
                                                  MPN: 60302304
                                                  FIANCHETTO SX. GTB
                                                  from £106.32
                                                  from £106.32
                                                  This part replaces part number 60295300
                                                  # 024
                                                  MPN: 60302403
                                                  FIANCHETTO DX. GTB
                                                  from £111.64
                                                  from £111.64
                                                  This part replaces part number 60295201
                                                  # 024
                                                  MPN: 60421203
                                                  FIANCHETTO DX. GTS
                                                  from £70.31
                                                  from £70.31
                                                  This part replaces part number 60357704
                                                  # 024
                                                  MPN: 60421302
                                                  FIANCHETTO SX. GTS
                                                  from £58.28
                                                  from £58.28
                                                  This part replaces part number 60357803
                                                  # 025
                                                  MPN: 60347705
                                                  SUPPORT
                                                  from £26.85
                                                  from £26.85
                                                  # 026
                                                  MPN: 60260502
                                                  MONTANTE DX. COMPLETO GTB
                                                  from £230.26
                                                  from £230.26
                                                  # 026
                                                  MPN: 60260502
                                                  MONTANTE SX. COMPLETO GTB
                                                  from £230.26
                                                  from £230.26
                                                  # 027
                                                  MPN: 60652200
                                                  BRACKET / SUPPORT
                                                  Con staffe 60581800 - 60581900
                                                  from £31.29
                                                  from £31.29
                                                  # 028
                                                  MPN: 60271707
                                                  TELAIETTO POSTERIORE
                                                  Fino alla vettura n……….
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 60056702
                                                  # 028
                                                  MPN: 60374303
                                                  TELAIETTO POSTERIORE
                                                  Dalla vettura n. ...............
                                                  from £1,450.80
                                                  from £1,450.80
                                                  This part replaces part number 60271707
                                                  # 029
                                                  MPN: 61128800
                                                  PADIGIIONE COMPLETO GTS
                                                  from £2,578.45
                                                  from £2,578.45
                                                  This part replaces part number 60172509 - and 2 more. Click to view details
                                                  # 030
                                                  MPN: 60313608
                                                  RIPORTO DX. SOTTOSCOCCA COMPLETO
                                                  Fino alla vettura n……….
                                                  from £29.02
                                                  from £29.02
                                                  This part replaces part number 60300803
                                                  # 030
                                                  MPN: 60313707
                                                  RIPORTO SX. SOTTOSCOCCA COMPLETO
                                                  Fino alla vettura n……….
                                                  This part replaces part number 60300902
                                                  # 031
                                                  MPN: 60118908
                                                  TUBO FISSAGGIO PARAURTI ANTERIORE
                                                  Senza attacco fendinebbia
                                                  from £12.85
                                                  from £12.85
                                                  This part replaces part number 60118900
                                                  # 031
                                                  MPN: 60592200
                                                  TUBO FISSAGGIO PARAURTI ANT. DX.
                                                  Senza attacco fendinebbia
                                                  from £26.13
                                                  from £26.13
                                                  # 031
                                                  MPN: 60592300
                                                  TUBO FISSAGGIO PARAURTI ANT. SX.
                                                  Con attacco fendinebbia
                                                  from £26.13
                                                  from £26.13
                                                  # 032
                                                  MPN: 60252905
                                                  RINFORZO SOTTOPARABREZZA
                                                  Fino alla vettura n……….
                                                  from £246.13
                                                  from £246.13
                                                  # 032
                                                  MPN: 60351004
                                                  RINFORZO SOTTOPARABREZZA
                                                  Dalla vettura n. ...............
                                                  Supersession
                                                  Supersession
                                                  # 033
                                                  MPN: 60284304
                                                  PLUG
                                                  from £8.97
                                                  from £8.97
                                                  # 034
                                                  MPN: 60302601
                                                  RINFORZO POST, SCONTRINO SERRATURA
                                                  from £8.43
                                                  from £8.43
                                                  # 035
                                                  MPN: 60350105
                                                  RINFORZO SX. VANO COFANO ANTERIORE
                                                  Fino alla vettura n……….
                                                  from £28.66
                                                  from £28.66
                                                  # 036
                                                  MPN: 60285202
                                                  MONTANTE FISSAGGIO CERNIERE
                                                  from £89.75
                                                  from £89.75
                                                  # 037
                                                  MPN: 60336807
                                                  BRACKET / SUPPORT
                                                  from £42.32
                                                  from £42.32
                                                  # 038
                                                  MPN: 60371705
                                                  CENTINA CENTRALE GTB
                                                  Dalla vettura n. ...............
                                                  from £14.83
                                                  from £14.83
                                                  # 039
                                                  MPN: 60352002
                                                  PARATIA DX.
                                                  Per GTS - Per GTB dalla vettura n……..
                                                  from £24.88
                                                  from £24.88
                                                  # 039
                                                  MPN: 60352101
                                                  PARATIA SX.
                                                  Per GTS- Per GTB dalla vettura n. ...................
                                                  from £24.88
                                                  from £24.88
                                                  # 040
                                                  MPN: 60064508
                                                  TUBO FISSAGGIO PARAURTI POSTERIORE
                                                  from £43.39
                                                  from £43.39
