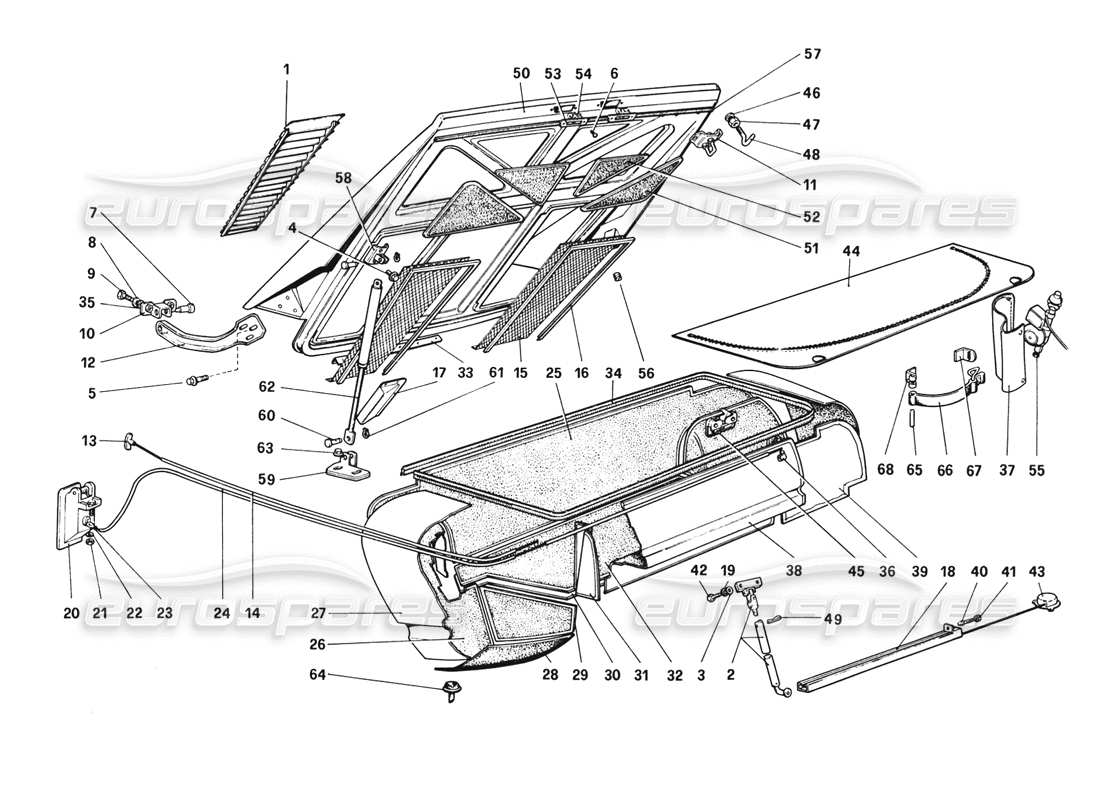

158 - Rear Bonnet and Luggage Compartment Covering (Variants for RHD - AUS Versions)
Ferrari 308 GTB (1980) Rear Bonnet and Luggage Compartment Covering (Variants for RHD - AUS Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60023900
GRIGLIA DX.
Supersession
Supersession
# 001
MPN: 60024007
GRIGLIA SX.
Supersession
Supersession
# 002
MPN: 60073905
ASTA SOSTEGNO COFANO
Fino al 27581 GTB e 27307 GTS
from £180.74
from £180.74
This part replaces part number 60334604
# 003
MPN: 12644406
WASHER
Supersession
Supersession
# 004
MPN: 13835871
SCREW
from £1.37
from £1.37
# 005
MPN: 13838911
SCREW
from £2.03
from £2.03
This part replaces part number 13838971
# 006
MPN: 20297800
SCREW
from £0.70
from £0.70
# 007
MPN: 60017506
PIVOT FASTENING
from £6.93
from £6.93
# 008
MPN: 12646701
WASHER
from £0.53
from £0.53
# 009
MPN: 16043321
SCREW
from £0.47
from £0.47
# 010
MPN: 60257706
CERNIERA FISSA DX.
from £40.95
from £40.95
# 010
MPN: 60257805
CERNIERA FISSA SX.
from £16.58
from £16.58
# 011
MPN: 60510200
PIVOT
Dopo soppressione voce 48
from £54.96
from £54.96
# 012
MPN: 60256807
CERNIERA MOBILE DX.
from £15.34
from £15.34
# 012
MPN: 60256906
CERNIERA MOBILE SX.
from £42.00
from £42.00
# 013
MPN: 60088002
CAVO DI SICUREZZA
Senza maniglia
from £5.72
from £5.72
# 013
MPN: 60510500
CAVO DI SICUREZZA
Con maniglia
from £9.14
from £9.14
# 014
MPN: 60024502
TUBO CAVO DI SICUREZZA
from £51.38
from £51.38
# 015
MPN: 60149606
RETE DI PROTEZIONE SOTTOGRIGLIA DX.
# 015
MPN: 60149705
RETE DI PROTEZIONE SOTTOGRIGLIA SX.
# 016
MPN: 60152402
CORNICE DX.
from £96.67
from £96.67
# 016
MPN: 60152501
CORNICE SX.
from £96.67
from £96.67
# 017
MPN: 60134806
GOCCIOLATOIO
Fino alla vettura n. ...............… - Mon vale per AUS
from £35.60
from £35.60
# 017
MPN: 60313806
GOCCIOLATOIO
Solo per AUS
from £106.69
from £106.69
This part replaces part number 60220100
# 018
MPN: 60077401
GUIDA PER ASTA SOSTEGNO COFANO
Solo con voce 2
from £123.30
from £123.30
# 019
MPN: 10615470
WASHER
Solo con voce 2
Supersession
Supersession
# 020
MPN: 63011800
INNER HANDLE RELEASE
from £168.70
from £168.70
This part replaces part number 60086105 - and 2 more. Click to view details
# 021
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 022
MPN: 10519301
WASHER
from £12.68
from £12.68
This part replaces part number 10517377 - and 2 more. Click to view details
# 023
MPN: 60277001
CAVO APRICOFANO
from £17.79
from £17.79
This part replaces part number 60126505 which we have in stock - and 5 more. Click to view details
# 024
MPN: 60191509
TUBO PER CAVO APRICOFANO
from £41.25
from £41.25
# 025
MPN: 60117603
TAPPETO ANT. BAULE
Non vale per AUS
from £43.30
from £43.30
# 025
MPN: 60243508
TAPPETO ANT. BAULE
Solo per AUS
from £118.71
from £118.71
# 026
MPN: 60129608
TAPPETO SUL PASSARUOTA DX.
Non vale per AUS
from £34.80
from £34.80
# 026
MPN: 60129707
TAPPETO SUL PASSARUOTA SX.
Non vale per AUS
from £37.34
from £37.34
# 026
MPN: 60244407
TAPPETO SUL PASSARUOTA DX.
Solo per AUS
from £110.38
from £110.38
# 026
MPN: 60244506
TAPPETO SUL PASSARUOTA SX.
Solo per AUS
from £77.77
from £77.77
# 027
MPN: 60129004
TAPPETO LATERALE DX.
from £54.74
from £54.74
# 027
MPN: 60129103
TAPPETO LATERALE SX.
from £54.74
from £54.74
# 028
MPN: 60130002
TAPPETO NICCHIA LATERALE
from £58.82
from £58.82
# 029
MPN: 60130309
TAPPETO NICCHIA DX.
Non vale per AUS
from £20.23
from £20.23
# 029
MPN: 60130408
TAPPETO NICCHIA SX.
Mon vale per AUS
from £39.21
from £39.21
# 029
MPN: 60244803
TAPPETO NICCHIA DX.
Solo per AUS
from £53.80
from £53.80
# 029
MPN: 60244902
TAPPETO NICCHIA SX.
Solo per AUS
from £53.80
from £53.80
# 030
MPN: 60131307
CARTONE CATRAMATO PAVIMENTO
# 031
MPN: 60130804
TAPPETO SULLA PARATIA DX.
Non vale per AUS
from £13.97
from £13.97
# 031
MPN: 60130903
TAPPETO SULLA PARATIA SX.
Non vale per AUS
from £14.59
from £14.59
# 031
MPN: 60245305
TAPPETO SULLA PARATIA DX.
Solo per AUS
from £32.00
from £32.00
# 031
MPN: 60245404
TAPPETO SULLA PARATIA SX.
Solo per AUS
from £32.00
from £32.00
# 032
MPN: 60128204
TAPPETO PAVIMENTO BAULE
Non vale per AUS
from £114.77
from £114.77
# 032
MPN: 60243904
TAPPETO PAVIMENTO BAULE
Vale per AUS
from £113.05
from £113.05
# 033
MPN: 60218906
GOCCIOLATOIO
from £23.88
from £23.88
# 034
MPN: MC3477/1
BOOT RUBBER
(per meter) COD.420
from £5.98
from £5.98
This part replaces part number 20101101 - and 21 more. Click to view details
# 034
MPN: MC3477/1
BOOT RUBBER
(per meter) COD.420
from £5.98
from £5.98
This part replaces part number 20101101 - and 21 more. Click to view details
# 035
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 036
MPN: 60153301
MORSETTO
Fino vettura n. .................
from £0.90
from £0.90
This part replaces part number 113415
# 036
MPN: 60276607
MORSETTO
Dalla vettura n. .................
from £11.82
from £11.82
This part replaces part number 60276707 - and 4 more. Click to view details
# 037
MPN: 40279606
PROTEZIONE ANTENNA RADIO
# 038
MPN: 60128501
TAPPETO POST, BAULE
Non vale pei AUS
from £94.87
from £94.87
# 038
MPN: 60244001
TAPPETO POST, BAULE
Solo pei AUS
from £86.25
from £86.25
# 039
MPN: 60120201
TAPPETO POST. DX.
Non vale per AUS
from £59.03
from £59.03
# 039
MPN: 60120300
TAPPETO POST. SX.
Non vale pei AUS
# 039
MPN: 60246204
TAPPETO POST. DX.
Solo per AUS
from £107.58
from £107.58
# 039
MPN: 60246303
TAPPETO POST. SX.
Solo per AUS
from £107.58
from £107.58
# 040
MPN: 60077609
TAMPONE DI FERMO ASTA
Solo con vote 2
from £6.93
from £6.93
# 041
MPN: 14098000
NUT
Solo con voce 2
from £0.47
from £0.47
# 042
MPN: 10902426
SCREW
Solo con voce 2
Supersession
Supersession
# 043
MPN: 60108206
SPRING
Solo con voce 2
from £215.96
from £215.96
# 044
MPN: 60114808
COPERTURA BAULE
from £416.37
from £416.37
# 045
MPN: 60277407
SERRATURA COFANO POSTERIORE
from £278.31
from £278.31
This part replaces part number 60023405 - and 13 more. Click to view details
# 046
MPN: 12642001
WASHER
Solo con perno 60035201
from £0.54
from £0.54
# 047
MPN: 16100824
LOCKNUT
Solo con perno 60035201
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 048
MPN: 60035201
PIVOT
Fino ad introduzione voce 11
# 049
MPN: 60074903
CLIP
Solo con voce 2
from £8.08
from £8.08
# 050
MPN: 60788400
ENGINE COVER
from £2,321.66
from £2,321.66
This part replaces part number 60272903 - and 5 more. Click to view details
# 051
MPN: 60286903
TAPPETO ESTERNO COFANO DX.
from £19.62
from £19.62
# 051
MPN: 60287000
TAPPETO ESTERNO COFANO SX.
from £19.62
from £19.62
# 052
MPN: 60286705
TAPPETO INTERNO COFANO DX.
from £19.62
from £19.62
# 052
MPN: 60286804
TAPPETO INTERNO COFANO SX.
# 053
MPN: 186180
FANALE ILLUMINAZIONE TARGA
from £23.90
from £23.90
This part replaces part number 175204 - and 3 more. Click to view details
# 054
MPN: 20083002
BULB 12V-5W
Supersession
Supersession
This part replaces part number 101524 - and 1 more. Click to view details
# 055
MPN: 20270609
RADIO AERIAL (PATTERN)
# 055
MPN: 66235900
RADIO AERIAL (ORIGINAL)
from £207.24
from £207.24
This part replaces part number 61928800
# 056
MPN: 60568000
TASSELTO APPOGGIA COFANO POSTERIORE
Supersession
Supersession
# 057
MPN: 60564600
GASKET OR SEAL
from £10.56
from £10.56
# 058
MPN: 60597700
BRACKET / SUPPORT
from £62.22
from £62.22
# 058
MPN: 60597800
BRACKET / SUPPORT
from £113.12
from £113.12
# 059
MPN: 60597900
BRACKET / SUPPORT
Solo con voce 62
from £26.84
from £26.84
# 059
MPN: 60598000
BRACKET / SUPPORT
Solo con voce 62
from £30.84
from £30.84
# 060
MPN: 60599500
PIVOT
Solo con voce 62
from £13.53
from £13.53
# 061
MPN: 11087876
SEEGER RING
Solo con voce 62
from £0.47
from £0.47
# 062
MPN: 60592800
ENGINE COVER STRUT
Dalla vettura 27583 GTB e 27309 GTS
from £30.66
from £30.66
# 063
MPN: 13832101
NUT
Solo con voce 62
from £0.53
from £0.53
# 064
MPN: 60731300
TAPPO SCARICO ACQUA
from £6.30
from £6.30
# 065
MPN: 20103107
PIVOT
Solo per AUS
from £2.22
from £2.22
# 066
MPN: 20171005
CINGHIETTA FISSAGGIO BORSA ATTREZZI
Solo per AUS
from £50.40
from £50.40
# 067
MPN: 20103206
BRACKET / SUPPORT
Solo per AUS
from £24.88
from £24.88
# 068
MPN: 60507800
BRACKET / SUPPORT
Solo per AUS
from £11.05
from £11.05
This part replaces part number 20103008 - and 1 more. Click to view details
-part-diagram-159.webp "FERRARI 308 GTB (1980) DOORS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-160.webp "FERRARI 308 GTB (1980) BUMPERS AND MOULDINGS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-161.webp "FERRARI 308 GTB (1980) GLASSES (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-162.webp "FERRARI 308 GTB (1980) INTERIOR TRIM, ACCESSORIES AND SEATS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-163.webp "FERRARI 308 GTB (1980) TUNNEL AND ROOF (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-164.webp "FERRARI 308 GTB (1980) INSTRUMENT PANEL (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-165.webp "FERRARI 308 GTB (1980) CARPETING (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-166.webp "FERRARI 308 GTB (1980) INSTRUMENTS AND ACCESSORIES (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-167.webp "FERRARI 308 GTB (1980) BODY ELECTRICAL (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-168.webp "FERRARI 308 GTB (1980) FUSES AND RELAYS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-169.webp "FERRARI 308 GTB (1980) HEADLIGHTS LIFTING DEVICE (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-170.webp "FERRARI 308 GTB (1980) LIGHTS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-171.webp "FERRARI 308 GTB (1980) WINDSHIELD WIPER, WASHER AND HORN (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-172.webp "FERRARI 308 GTB (1980) HEATING SYSTEM (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 308 GTB (1980) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 308 GTB (1980) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 308 GTB (1980) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 308 GTB (1980) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 308 GTB (1980) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 308 GTB (1980) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 308 GTB (1980) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 308 GTB (1980) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 308 GTB (1980) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 308 GTB (1980) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 308 GTB (1980) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 308 GTB (1980) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 308 GTB (1980) BLOW - BY SYSTEM (308 GTB) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 308 GTB (1980) BLOW - BY SYSTEM (308 GTS AND AUS) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 308 GTB (1980) LUBRIFICATION SYSTEM (308 GTB) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 308 GTB (1980) OIL FILTER AND PUMPS (308 GTB) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 308 GTB (1980) LUBRIFICATION SYSTEM (308 GTS AND AUS) PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 308 GTB (1980) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 308 GTB (1980) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 308 GTB (1980) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 308 GTB (1980) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 308 GTB (1980) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 308 GTB (1980) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP (308 GTB) PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 308 GTB (1980) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP (308 GTS AND AUS) PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 308 GTB (1980) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 308 GTB (1980) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 308 GTB (1980) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 308 GTB (1980) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 308 GTB (1980) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 308 GTB (1980) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 308 GTB (1980) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 308 GTB (1980) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 308 GTB (1980) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 308 GTB (1980) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 308 GTB (1980) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 308 GTB (1980) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 308 GTB (1980) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 308 GTB (1980) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 308 GTB (1980) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 308 GTB (1980) WHEELS PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 308 GTB (1980) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 308 GTB (1980) ENGINE IGNITION (FROM CAR NO. 23561 GTB AND 23265 GTS) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 308 GTB (1980) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 308 GTB (1980) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 308 GTB (1980) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 308 GTB (1980) TOOL-KIT PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 308 GTB (1980) THROTTLE CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 308 GTB (1980) PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 308 GTB (1980) BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 308 GTB (1980) AIR PUMP AND PIPINGS (VARIANTS FOR AUS VERSION) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 308 GTB (1980) GUARDS (VARIANTS FOR AUS VERSION) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 308 GTB (1980) FUEL SYSTEM (VARIANTS FOR AUS VERSION) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 308 GTB (1980) FUEL SYSTEM - CARBURETTORS AND CONTROLS (VARIANTS FOR AUS VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 308 GTB (1980) EXHAUST SYSTEM (VARIANTS FOR AUS VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 308 GTB (1980) ENGINE IGNITION (VARIANTS FOR AUS VERSION) PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 308 GTB (1980) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 308 GTB (1980) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 308 GTB (1980) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 308 GTB (1980) PASSENGER AND LUGGAGE COMPARTMENTS INSULATION PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 308 GTB (1980) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 308 GTB (1980) REAR BONNET AND LUGGAGE COMPARTMENT COVERING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 308 GTB (1980) DOORS PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 308 GTB (1980) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 308 GTB (1980) USA BUMPERS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 308 GTB (1980) GLASSES PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 308 GTB (1980) INTERIOR TRIM, ACCESSORIES AND SEATS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 308 GTB (1980) TUNNEL AND ROOF PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 308 GTB (1980) INSTRUMENT PANEL PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 308 GTB (1980) CARPETING PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 308 GTB (1980) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 308 GTB (1980) BODY ELECTRICAL PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 308 GTB (1980) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 308 GTB (1980) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 308 GTB (1980) LIGHTS PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 308 GTB (1980) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 308 GTB (1980) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-153.webp "FERRARI 308 GTB (1980) BODY SHELL - OUTER ELEMENTS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-154.webp "FERRARI 308 GTB (1980) BODY SHELL - INNER ELEMENTS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-155.webp "FERRARI 308 GTB (1980) BODY SHELL - INNER ELEMENTS (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-156.webp "FERRARI 308 GTB (1980) PASSENGER AND LUGGAGE COMPARTMENTS INSULATION (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
-part-diagram-157.webp "FERRARI 308 GTB (1980) FRONT COMPARTMENT LID (VARIANTS FOR RHD - AUS VERSIONS) PARTS DIAGRAM")
