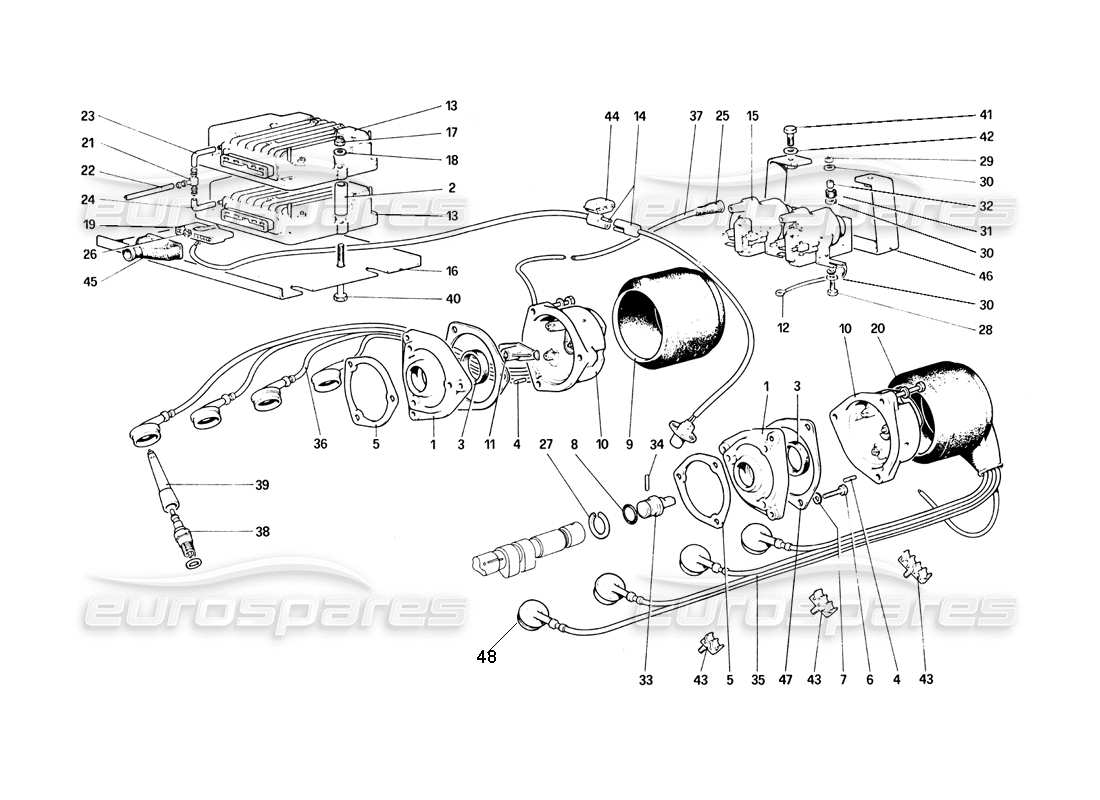

037 - engine ignition
Ferrari 308 Quattrovalvole (1985) Engine Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FHT021

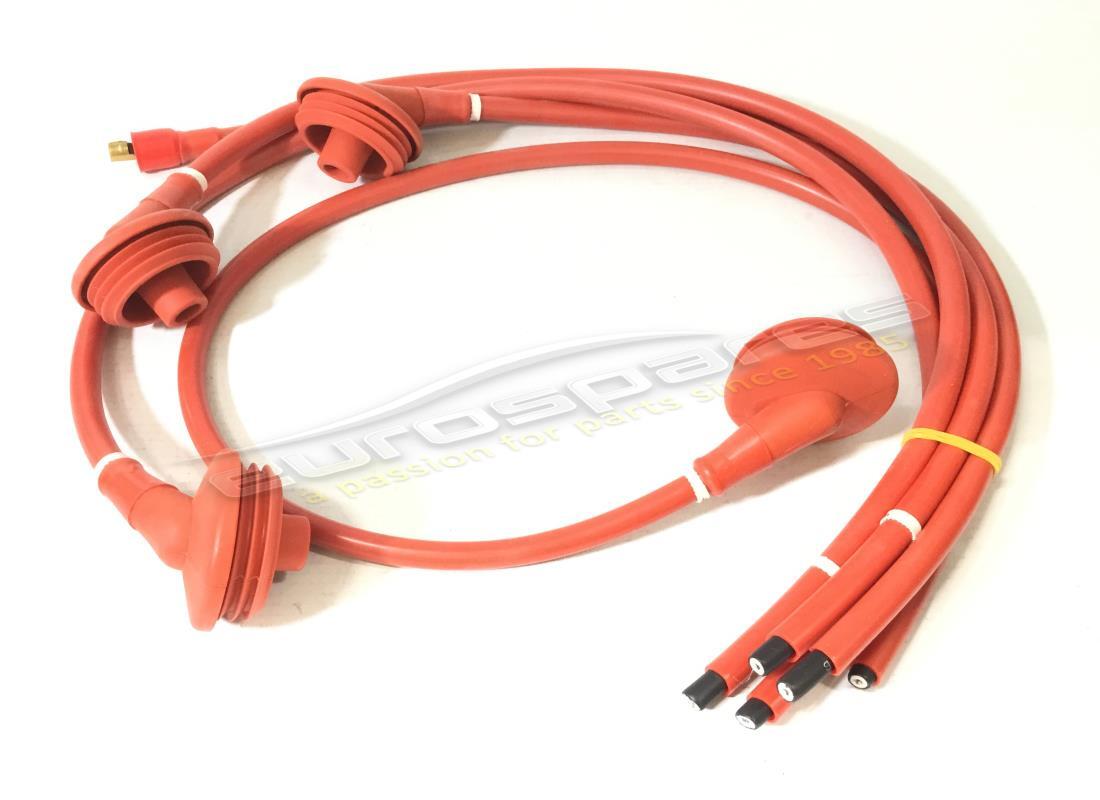

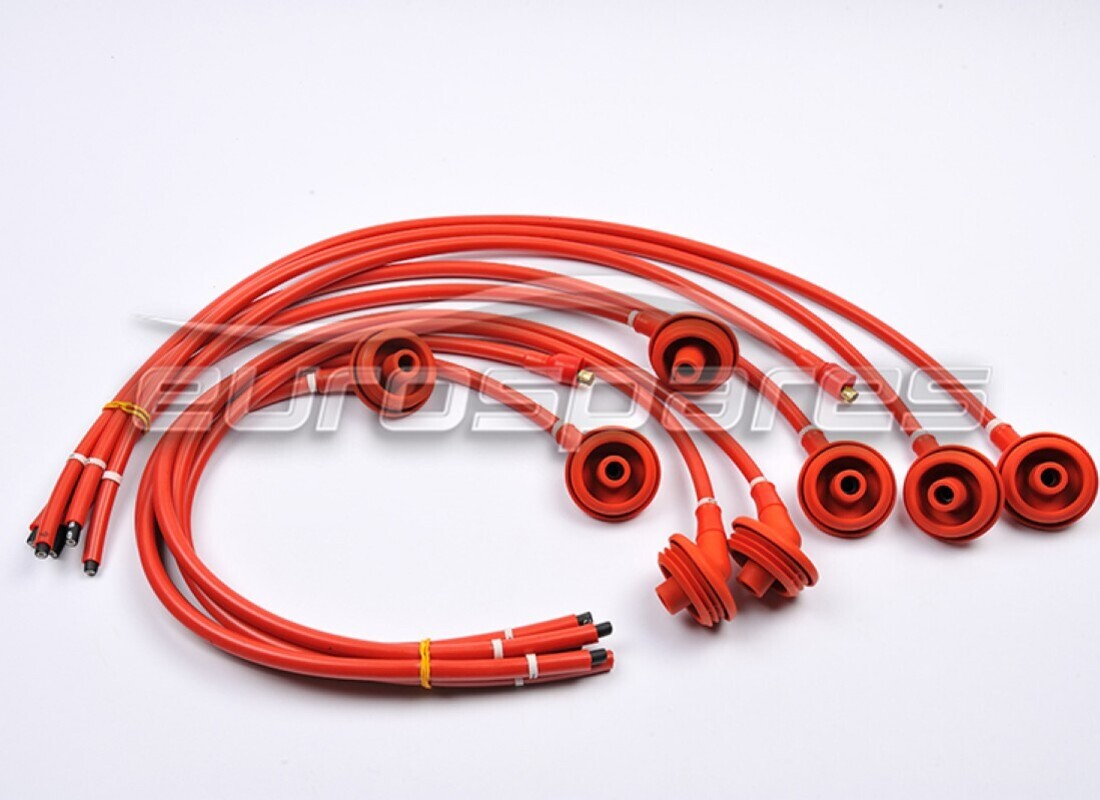

COMPLETE HT LEADS SET + COIL LEAD
from £456.04
from £456.04
# 001
MPN: 119399
CAP DISTRIBUTOR SUPPORT
from £308.72
from £308.72
This part replaces part number 119400
# 002
MPN: 117556
SPACER
from £7.92
from £7.92
# 003
MPN: 117293
SEALING RING
from £14.39
from £14.39
This part replaces part number 119482
# 004
MPN: 10331111
DOWEL
from £22.58
from £22.58

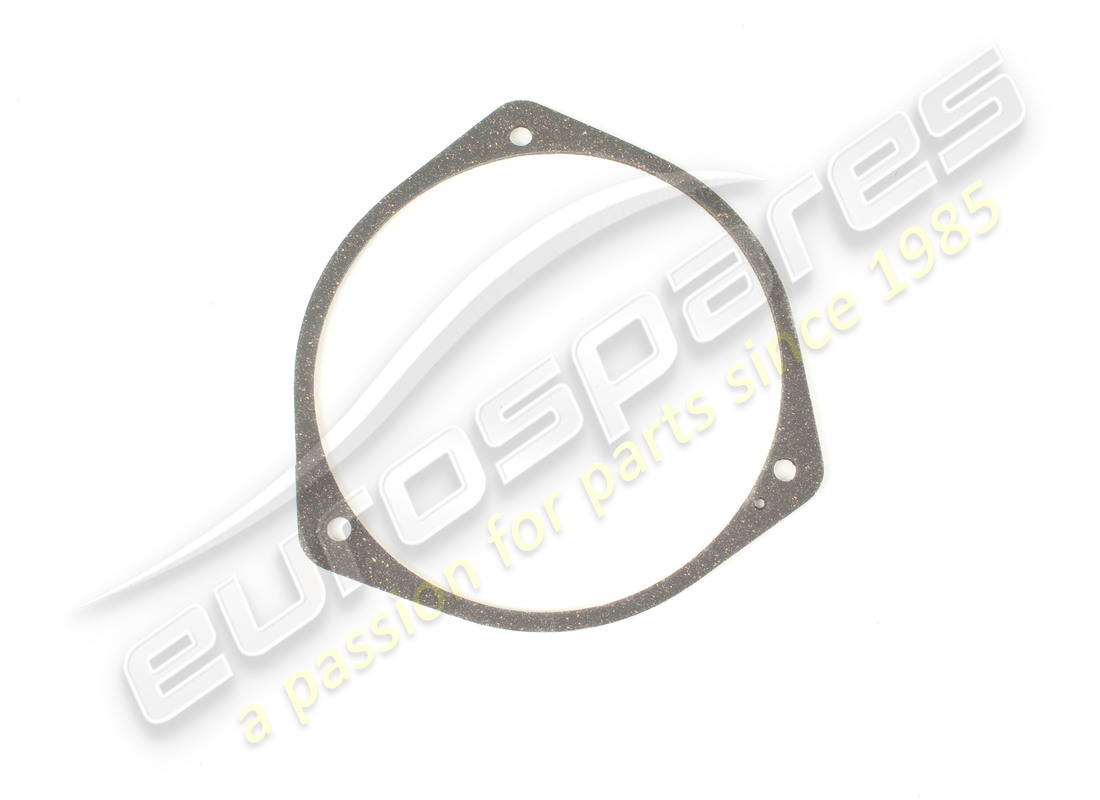

# 005
MPN: 150198

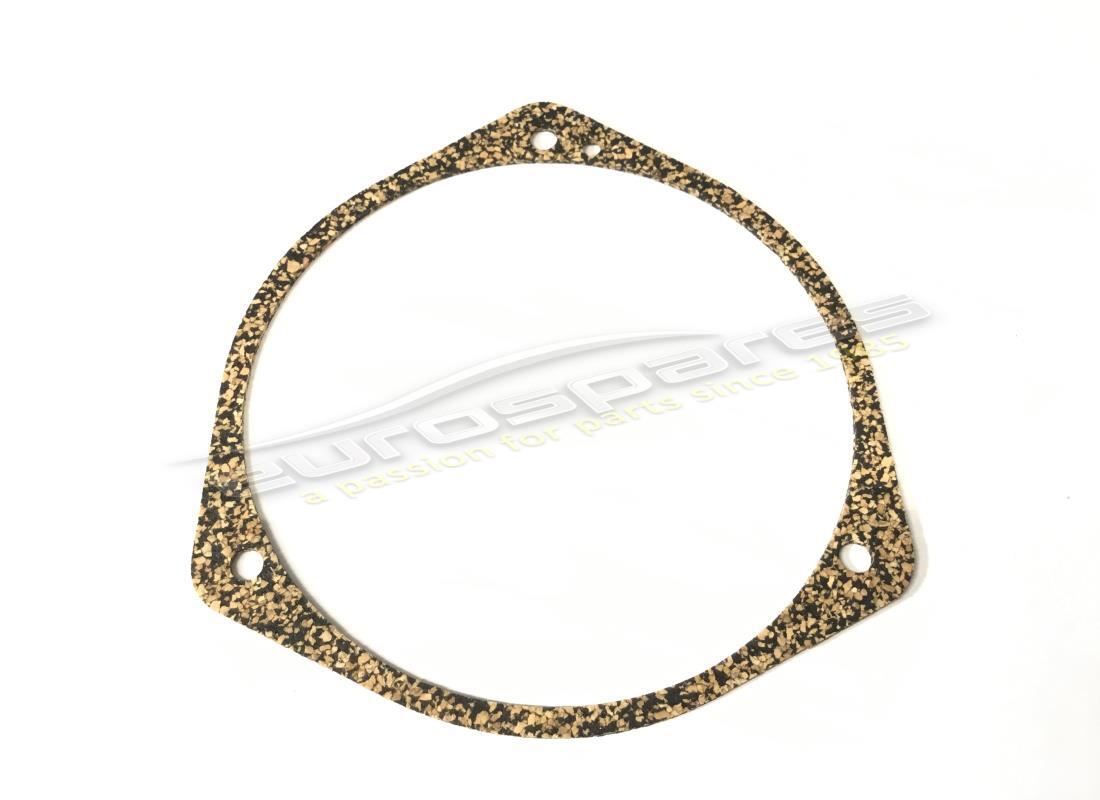

GASKET
from £12.51
from £12.51
This part replaces part number 117261 - and 3 more. Click to view details
# 006
MPN: 10902321
SCREW
from £0.71
from £0.71
# 007
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 008
MPN: 109478
SEALING RING
from £3.95
from £3.95
# 009
MPN: 112043
RH DISTRIBUTOR BOOT
# 010
MPN: 115518
DISTRIBUTOR CAP (TWIN)
from £110.00
from £110.00
This part replaces part number 95300044
# 011
MPN: 124288

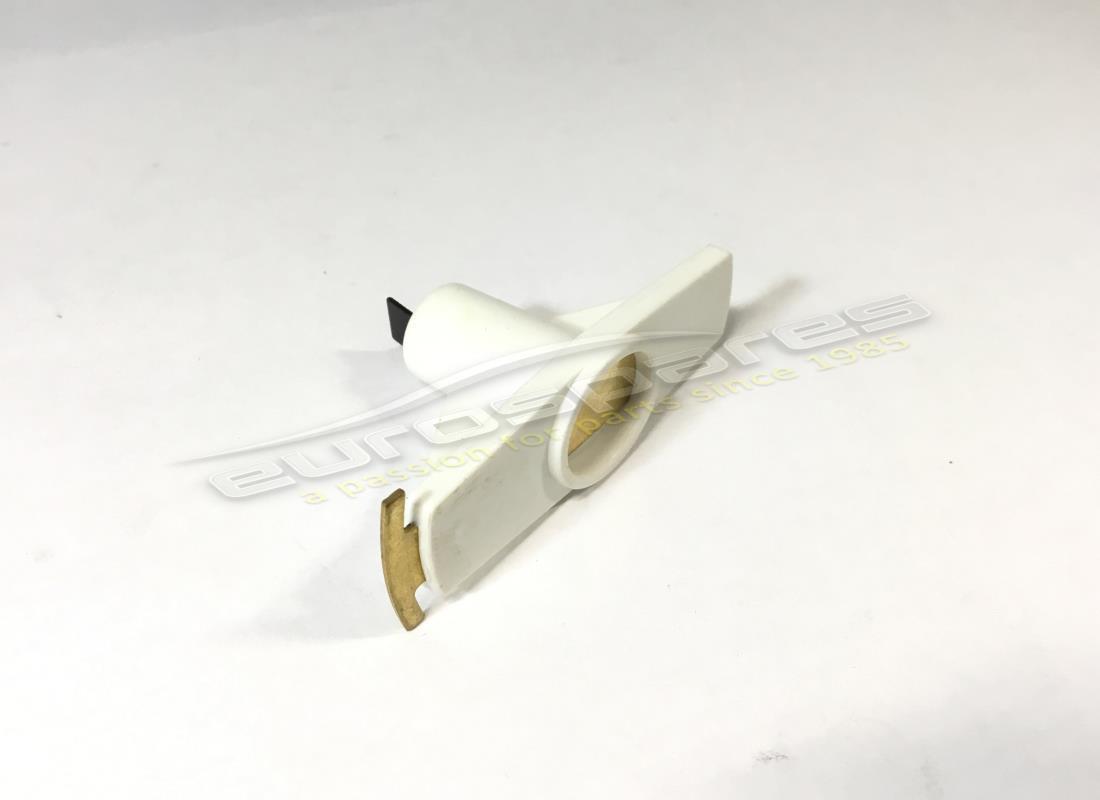

ROTOR ARM
from £36.48
from £36.48
This part replaces part number 118030 - and 1 more. Click to view details
# 012
MPN: 115648
COPPER BRAID FOR IGNITION COIL EARTH
from £4.35
from £4.35
# 013
MPN: 118451
ELECTRONIC IGNITION MODULE
For CH use no. 118961
Supersession
Supersession

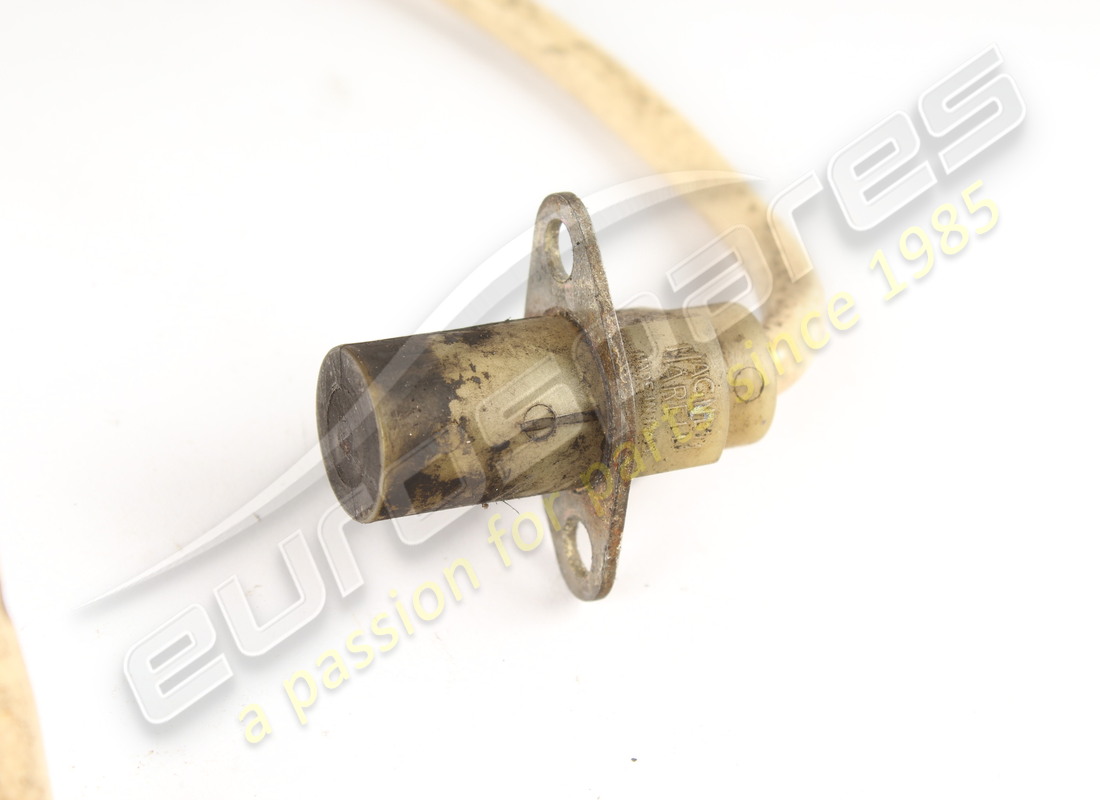

# 014
MPN: 119052

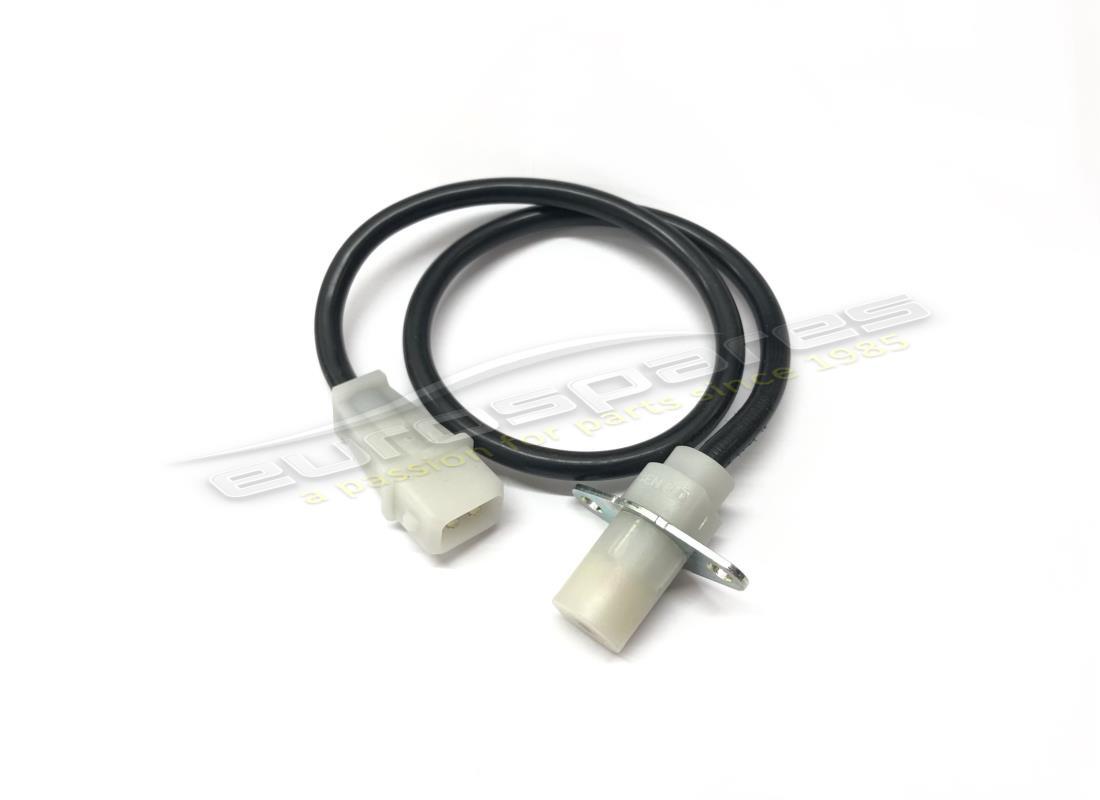

ELECTROMAGNETIC SENSOR
To engine no. 863 use no. 115019
from £93.38
from £93.38
This part replaces part number 115019 - and 1 more. Click to view details
# 015
MPN: 115013
COIL
from £106.89
from £106.89
# 016
MPN: 117555
PLATE
from £91.40
from £91.40
# 017
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 018
MPN: 12601279
WASHER
from £0.47
from £0.47
This part replaces part number 12601271 - and 2 more. Click to view details
# 019
MPN: 115598
1 1 WAY BLOCK
from £19.84
from £19.84
# 020
MPN: 110626
LH DISTRIBUTOR BOOT
Supersession
Supersession
# 021
MPN: 107440
3 WAY UNION
from £2.66
from £2.66
# 022
MPN: 115665
TUBE FROM 3 WAY UNION TO AIR DELIVERY BODY
from £19.62
from £19.62
# 023
MPN: 115866
RUBBER HOSE
# 023
MPN: 117934
COUPLING
from £66.04
from £66.04
# 024
MPN: 115149
RUBBER HOSE
from £20.79
from £20.79
# 025
MPN: 12056986
BOOT
from £0.94
from £0.94
This part replaces part number 12056286 - and 2 more. Click to view details
# 026
MPN: 60909700
SMALL CLIP OF SECURITY
from £0.95
from £0.95
# 027
MPN: 119484
CENTRIFUGER RING
from £0.47
from £0.47
# 028
MPN: 10302621
SCREW
# 029
MPN: 12575411
NUT
Supersession
Supersession
# 030
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 031
MPN: 103549
RUBBER BUSH
from £0.70
from £0.70

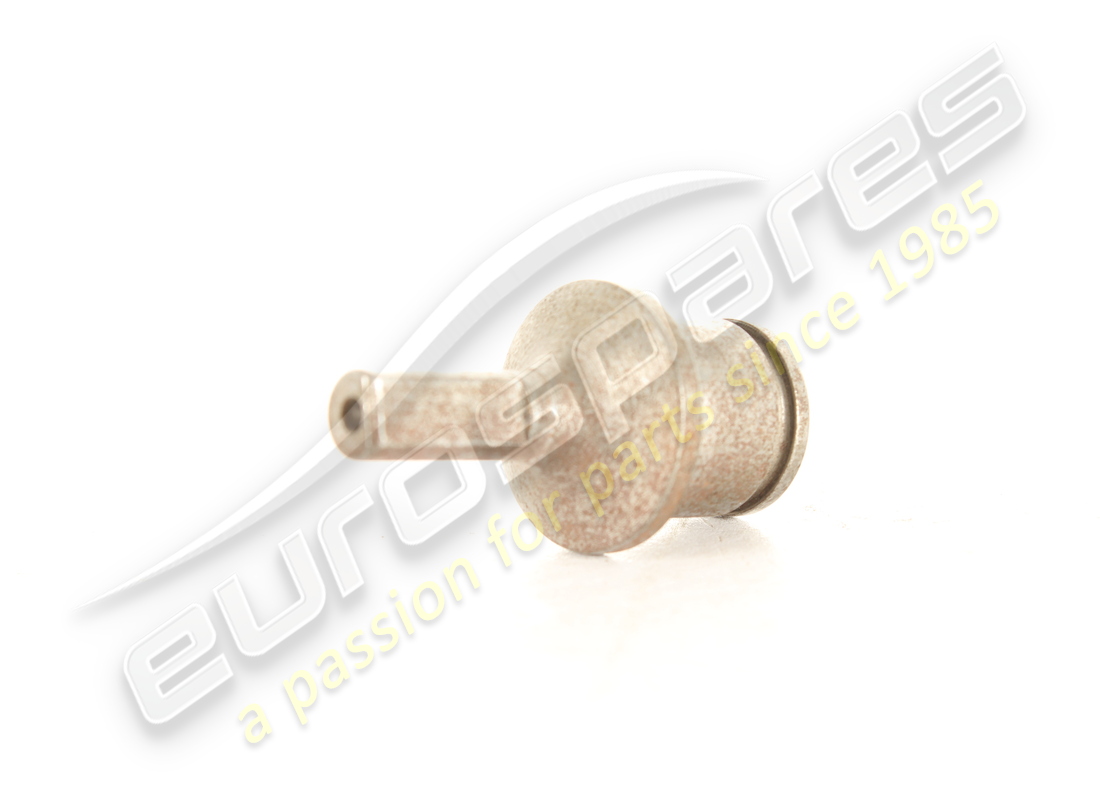

# 032
MPN: 103550
SPACER
from £1.91
from £1.91
This part replaces part number 4130913
# 034
MPN: 13899970
PIN
from £0.47
from £0.47
# 035
MPN: 118826
LH HT LEADS SET
from £273.32
from £273.32
# 036
MPN: 118827
RH HT LEADS SET
from £186.37
from £186.37
# 037
MPN: 128166
CABLE COIL - RIGHT DISTRIBUTOR IN RED
from £47.33
from £47.33
This part replaces part number 121174 - and 1 more. Click to view details
# 038
MPN: 100604
Spark Plugs
Supersession
Supersession
# 038
MPN: 117599
SPARK PLUG
BOSCH W 6 DS (In alternative)
Supersession
Supersession
# 038
MPN: 119492/A
SPARK PLUG
from £9.40
from £9.40
# 039
MPN: 116613
SPARK PLUG EXTENSION
from £8.62
from £8.62
This part replaces part number 107310
# 040
MPN: 11032321
BOLT
from £0.47
from £0.47
# 041
MPN: 16043121
BOLT
from £0.47
from £0.47
# 042
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 043
MPN: 119402
SMALL CLIP FOR CABLES SUPPORT
Up to exhaustion
from £1.61
from £1.61

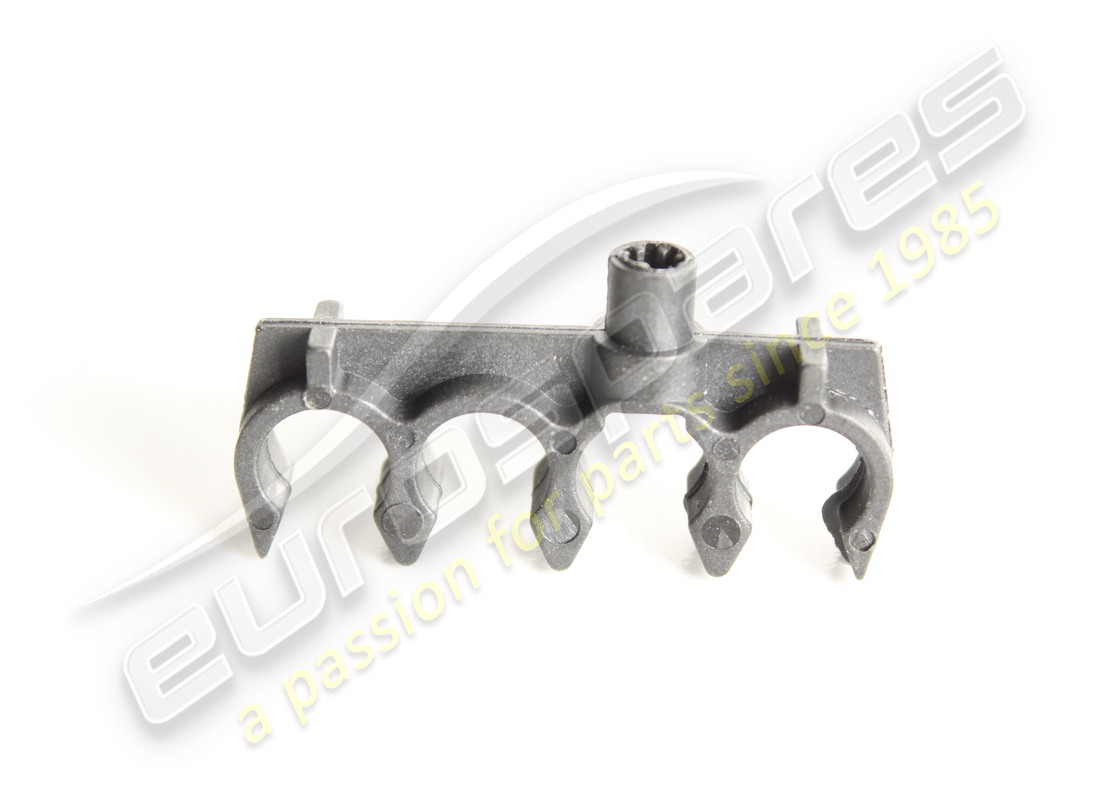

# 043
MPN: 121788
X4 - CABLE SUPPORT CLIP
On exhaustion no. 119402
from £1.61
from £1.61

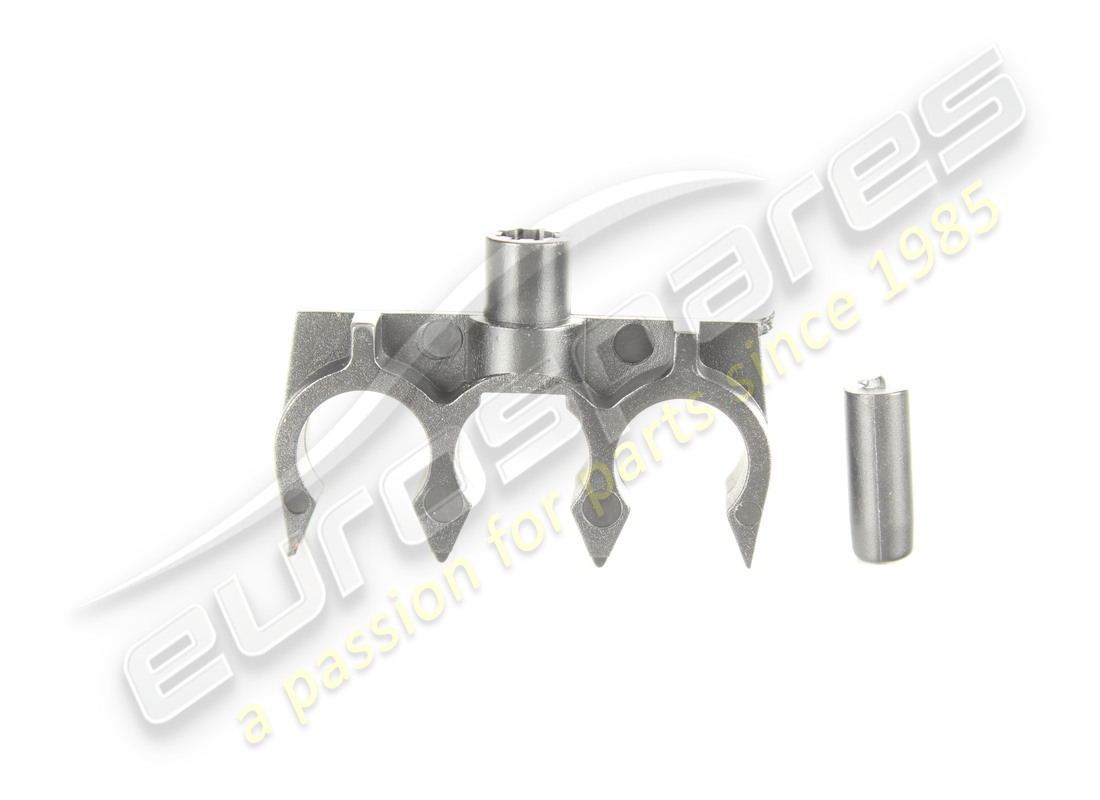

# 043
MPN: 121789
X3 - CABLE SUPPORT CLIP
On exhaustion no. 119403
from £5.85
from £5.85
# 043
MPN: 121790
SMALL CLIP FOR CABLES SUPPORT
Up to exhaustion
from £5.85
from £5.85
This part replaces part number 119404 - and 1 more. Click to view details
# 043
MPN: 121790
SMALL CLIP FOR CABLES SUPPORT
On exhaustion no. 119404
from £5.85
from £5.85
This part replaces part number 119404 - and 1 more. Click to view details
# 043
MPN: 129665
HT LEADS CLIPS SET
2x 121790, 2x 121789, 4x 121788, 8x pins
# 044
MPN: 117429
COVER (RED) FOR SENSOR
P.M. 5 - 8
from £0.88
from £0.88
# 044
MPN: 117430
COVER (WHITE) FOR SENSOR
P.M. 1-4
from £6.31
from £6.31
# 045
MPN: 115550
PROTECTION COVER FOR SMALL BLOCK
from £35.46
from £35.46
# 046
MPN: 115646
BACKET FOR COIL
from £13.96
from £13.96

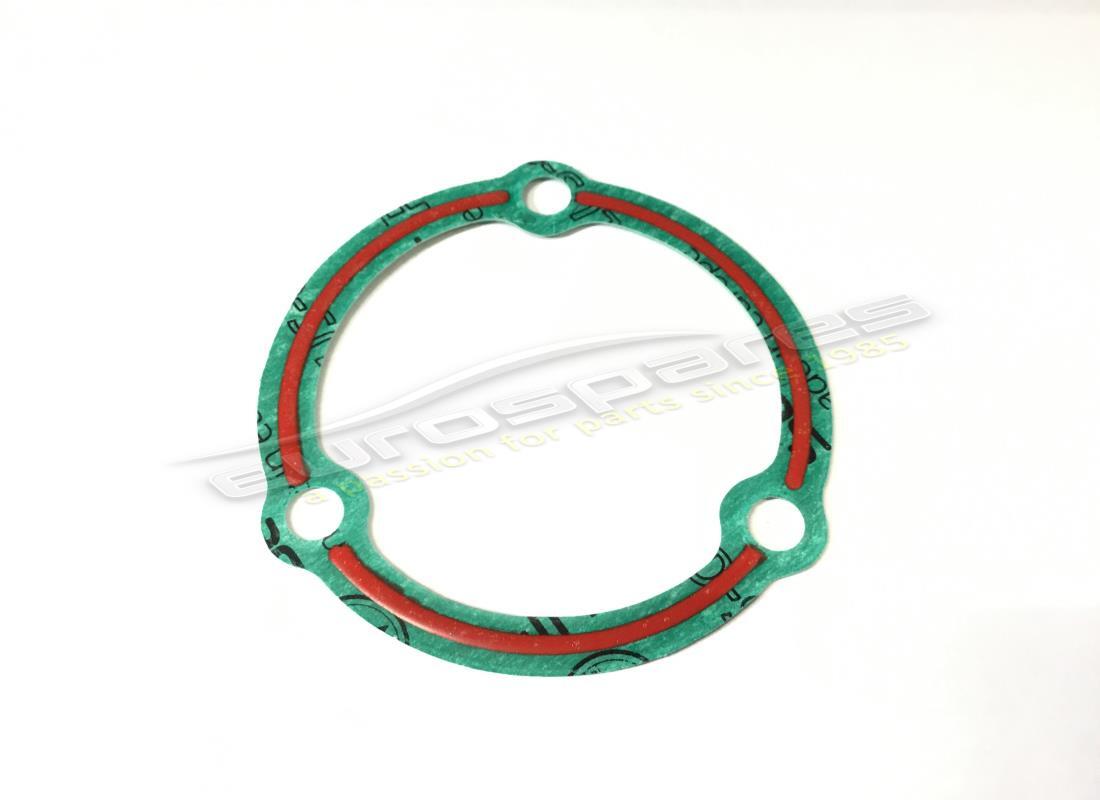

# 047
MPN: 119409

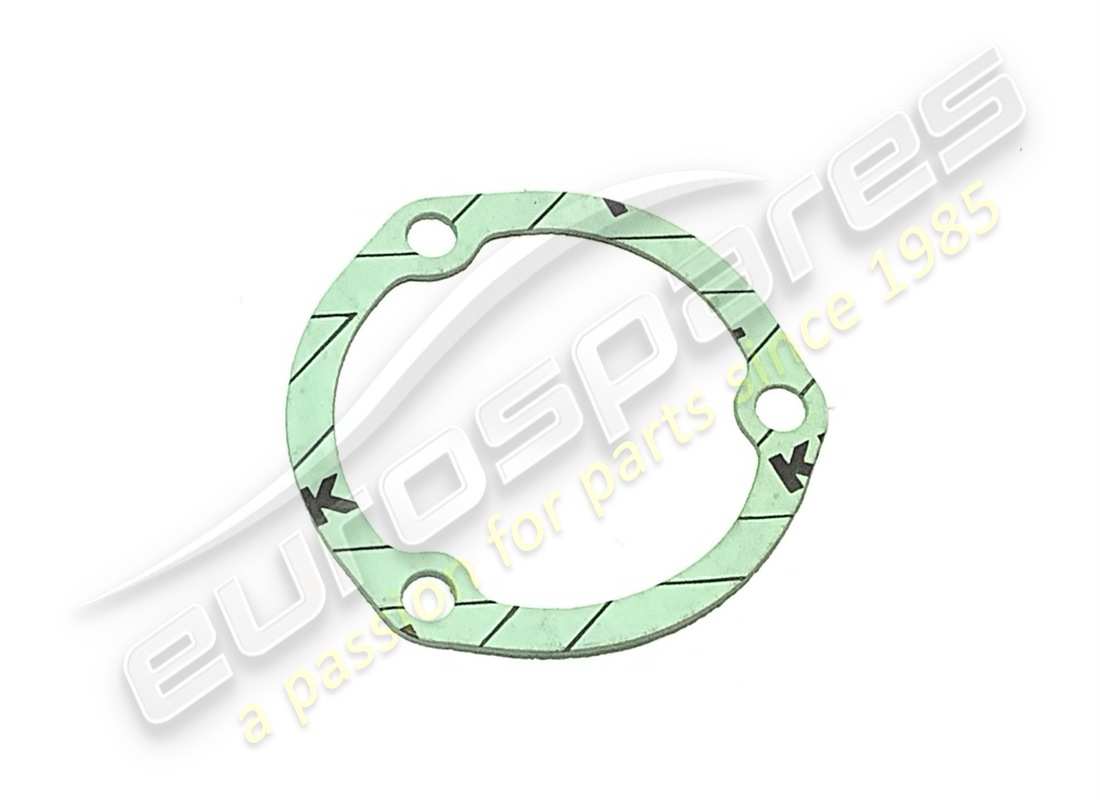

GASKET
from £3.10
from £3.10
# 048
MPN: 126231
RUBBER CAP
