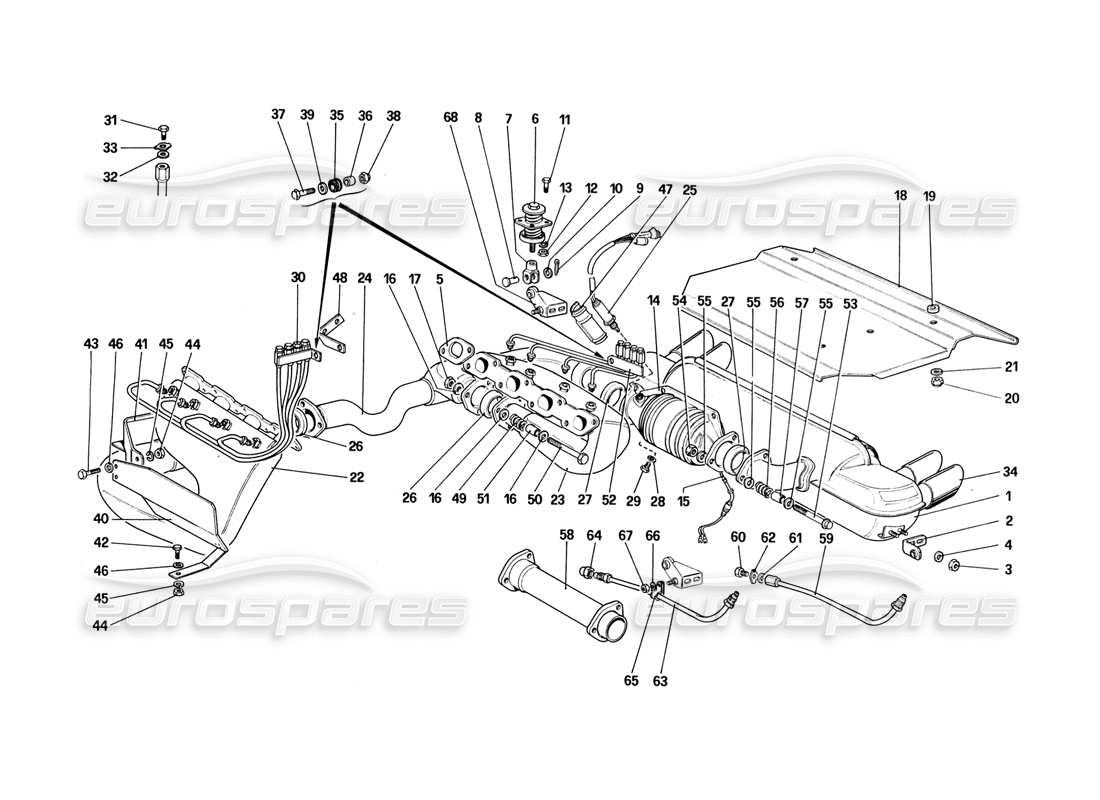

019 - Exhaust System (for US - SA - CH87 and CH88 Version)
Ferrari 328 (1988) Exhaust System (for US - SA - CH87 and CH88 Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 128524
EXHAUST SILENCER - FOR US
from £2,655.54
from £2,655.54
# 001
MPN: 131194
EXHAUST SILENCER - FOR AUS AND SA
Supersession
Supersession
# 001
MPN: 131954
AFTER EXHAUSTION USE NO. 131954 - EXHAUST SILENCER - FOR C7 AND C8
from £3,887.34
from £3,887.34
This part replaces part number 131194
# 002
MPN: 108290
BRACKET - UNIT CAR NO. 75608
from £97.55
from £97.55
# 003
MPN: 114748
NUT
from £9.07
from £9.07
# 004
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 005
MPN: 147705
GASKET
from £10.36
from £10.36
This part replaces part number 111532
# 006
MPN: 106052
EXHAUST MOUNT
from £57.78
from £57.78
# 007
MPN: 108257
FORK ON BUFFER
from £100.31
from £100.31
# 008
MPN: 10033411
PIN
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 009
MPN: 10796440
SPLIT PIN
Supersession
Supersession
This part replaces part number 264555
# 010
MPN: 103167
WASHER
from £1.99
from £1.99
# 011
MPN: 10977621
SCREW FIXING BUFFER TO CHISSIS
from £1.09
from £1.09
# 012
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 013
MPN: 106849
WASHER
Supersession
Supersession
This part replaces part number 11195473
# 014
MPN: 121385
CATALYTIC CONVERTER - NOT FOR SA
Supersession
Supersession
# 015
MPN: 61402400
THERMOCOUPLE - FOR US
from £513.43
from £513.43
# 015
MPN: 62691800
THERMOCOUPLE - FOR C7 AND C8 - STARTING FROM CAR NO. 76529 - USE FOR US
from £277.30
from £277.30
This part replaces part number 62347100
# 016
MPN: 128010
WASHER
from £2.16
from £2.16
# 017
MPN: 114748
SELF LOCKING NUT
from £9.05
from £9.05
# 018
MPN: 128711
PROTECITON PLATE
from £140.96
from £140.96
# 019
MPN: 146712
SPACER
from £1.68
from £1.68
This part replaces part number 105924
# 020
MPN: 116416
NUT
from £9.27
from £9.27
# 021
MPN: 106744
WASHER
from £4.91
from £4.91
# 022
MPN: 118821
FRONT EXHAUST MANIFOLD
from £701.86
from £701.86
# 023
MPN: 129003
REAR EXHAUST MANIFOLD
from £820.74
from £820.74
# 024
MPN: 128188
EXTENSION PIPE FROM MANIFOLD
from £400.87
from £400.87
# 025
MPN: 10300811
PLUG - ONLY FOR C7
Supersession
Supersession
# 025
MPN: 121515
OXYGEN SENSOR - NOT FOR C7 AND SA
from £190.51
from £190.51
This part replaces part number 125881
# 026
MPN: 146698
GASKET
Alternative use :154984
from £10.27
from £10.27
This part replaces part number 103377 - and 1 more. Click to view details
# 027
MPN: 154985
GASKET
from £12.03
from £12.03
This part replaces part number 121426 - and 1 more. Click to view details
# 028
MPN: 10298460
GASKET - UP TO CAR NO. 75608
from £0.47
from £0.47
This part replaces part number 93353
# 029
MPN: 110860
PLUG - UP TO CAR NO. 75608
from £8.68
from £8.68
This part replaces part number 11903240
# 030
MPN: 118886
ANALYZING PIPES, FRONT
from £217.96
from £217.96
# 031
MPN: 103748
PLUG
from £80.70
from £80.70
This part replaces part number 20429
# 032
MPN: 103749
GASKET
from £0.47
from £0.47
This part replaces part number 20430
# 033
MPN: 103587
PLATE
from £5.85
from £5.85
This part replaces part number 92692 - and 1 more. Click to view details
# 034
MPN: 114743
TERMINAL - NOT C7
from £162.67
from £162.67
# 034
MPN: 132577
TERMINAL - FOR C7 - C8 - SA AND AUS
from £47.68
from £47.68
# 035
MPN: 103549
RUBBER BUSH
from £0.70
from £0.70
# 036
MPN: 103550
BUSH FOR RUBBER
from £1.94
from £1.94
This part replaces part number 4130913
# 037
MPN: 10902621
SCREW FOR PIPES
Supersession
Supersession
This part replaces part number 10902611 which we have in stock
# 038
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 039
MPN: 106744
WASHER
from £4.91
from £4.91
# 040
MPN: 115557
PROTECTION PLATE
from £100.77
from £100.77
# 041
MPN: 115552
PROTECTION PLATE
from £95.97
from £95.97
# 042
MPN: 10902321
SCREW
from £0.71
from £0.71
# 043
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601
# 044
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 045
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 046
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 047
MPN: 121833
PROTECTION FOR OXYGEN SENSOR NOT FOR C7 AND SA
from £39.97
from £39.97
# 048
MPN: 118999
BRACKET
from £8.58
from £8.58
# 048
MPN: 132577
BRACKET - ONLY FOR SA
from £47.68
from £47.68
# 049
MPN: 111743
SPRING, FIXING FLANGES
from £6.97
from £6.97
# 050
MPN: 16044534
SCREW
from £0.81
from £0.81
# 051
MPN: 114749
SPACER FOR SPRING
from £1.24
from £1.24
# 052
MPN: 121780
ANALYZING PIPES, REAR
from £454.10
from £454.10
# 053
MPN: 15971324
SCREW
from £0.82
from £0.82
This part replaces part number 123198 - and 1 more. Click to view details
# 054
MPN: 121677
NUT
from £3.82
from £3.82
# 055
MPN: 121678
WASHER
from £6.73
from £6.73
# 056
MPN: 121674
SPRING
from £12.27
from £12.27
# 057
MPN: 121675
SPACER
from £23.19
from £23.19
# 058
MPN: 126534
PIPE TO EXTENSION PIPE FROM SILENCER - ONLY FOR SA
from £616.26
from £616.26
# 059
MPN: 136253
ANALYZING PIPE - FROM CAR NO. 75609 AND UNTIL EXHAUSTION - NOT FOR C8
Supersession
Supersession
# 060
MPN: 103748
PLUG
For pipe no. 136253
from £80.70
from £80.70
This part replaces part number 20429
# 061
MPN: 103749
GASKET
For pipe no. 136253
from £0.47
from £0.47
This part replaces part number 20430
# 062
MPN: 103587
PLATE
For pipe no. 136253
from £5.85
from £5.85
This part replaces part number 92692 - and 1 more. Click to view details
# 063
MPN: 136747
ANALIZING PIPE - AFTER EXHAUSTION NO. 136253
from £72.63
from £72.63
This part replaces part number 136253
# 064
MPN: 16109642
PLUG - FOR PIPE NO. 136747
Supersession
Supersession
# 065
MPN: 10418101
CLAMP
from £0.47
from £0.47
# 066
MPN: 12644601
WASHER
# 067
MPN: 116416
NUT
from £9.27
from £9.27
# 068
MPN: 108290
LEFT BRACKET - FROM CAR NO. 75609
from £97.55
from £97.55
# 068
MPN: 136251
RIGHT BRACKET - FROM CAR NO. 75609
from £42.98
from £42.98
-part-diagram-020.webp "FERRARI 328 (1988) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 328 (1988) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 328 (1988) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 328 (1988) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 328 (1988) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 328 (1988) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 328 (1988) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 328 (1988) GEARBOX - DIFFERENTIAL HOUSING AND OIL PUMP PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 328 (1988) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 328 (1988) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 328 (1988) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 328 (1988) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 328 (1988) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 328 (1988) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 328 (1988) CLUTCH HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 328 (1988) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 328 (1988) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 328 (1988) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 328 (1988) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 328 (1988) HAND - BRAKE CONTROLL PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 328 (1988) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 328 (1988) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 328 (1988) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 328 (1988) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 328 (1988) FRONT SUSPENSION - WISHBONES (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 328 (1988) FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI 328 (1988) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI 328 (1988) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI 328 (1988) REAR SUSPENSION - WISHBONES (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI 328 (1988) REAR SUSPENSION - WISHBONES (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI 328 (1988) WHEELS (UP TO CAR NO. 76625) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI 328 (1988) WHEELS (STARTING FROM CAR NO. 76626) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI 328 (1988) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI 328 (1988) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI 328 (1988) AIR CONDITIONING COMPRESSOR AND CONTROLS (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI 328 (1988) AIR CONDITIONING COMPRESSOR AND CONTROLS (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI 328 (1988) TOOL KIT & CAR COVER PARTS DIAGRAM")
-part-diagram-057.webp "FERRARI 328 (1988) THROTTLE CONTROLL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-058.webp "FERRARI 328 (1988) PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-059.webp "FERRARI 328 (1988) PEDAL BOARD - CLUTCH CONTROLL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-060.webp "FERRARI 328 (1988) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-061.webp "FERRARI 328 (1988) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 328 (1988) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 328 (1988) FRONT BUMPERS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 328 (1988) REAR BUMPERS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (NOT FOR AUS - US - SA - J - CH87 - CH88) PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (FOR AUS AND CH87 AND CH88) PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 328 (1988) BODY SHELL - INNER ELEMENTS (FOR US - SA - J) PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (UNTILL CAR NO. 66965 - NOT FOR US - AUS - CH87 - SA - J) PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FROM CAR NO. 66967 - NOT FOR US - AUS - CH87 - SA - J) PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR US - AUS - SA - J) PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 328 (1988) LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 - CH88) PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI 328 (1988) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 328 (1988) REAR BONNET AND LUGGAGE COMPARTMENT COVERING PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 328 (1988) DOORS (UNTILL CAR NO. 71595) PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 328 (1988) DOORS (FROM CAR NO. 75929) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 328 (1988) GLASSES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 328 (1988) INTERIOR TRIM, ACCESSORIES AND SEATS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 328 (1988) SEAT PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 328 (1988) TUNNEL AND ROOF PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 328 (1988) INSTRUMENTS PANEL (UNTILL CAR NO. 71595) PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 328 (1988) INSTRUMENTS PANEL (FROM CAR NO. 71597) PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 328 (1988) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 328 (1988) ELECTRICAL SYSTEM - CABLES PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI 328 (1988) ELECRRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI 328 (1988) EXTERNAL LIGHTS AND MOULDING PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI 328 (1988) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI 328 (1988) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI 328 (1988) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI 328 (1988) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 328 (1988) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 328 (1988) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 328 (1988) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 328 (1988) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 328 (1988) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 328 (1988) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI 328 (1988) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI 328 (1988) TIMING SYSTER - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI 328 (1988) AIR INJECTION (FOR CH86 AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI 328 (1988) AIR INJECTION (FOR USA AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI 328 (1988) ANTIEVAPORATIVE EMISSION CONTROLL SYSTEM (FOR USA - SA AND CH88 VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI 328 (1988) FUEL PUMP AND PIPES PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI 328 (1988) FUEL DISTRIBUTORS LINES (FOR CH88 VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI 328 (1988) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 328 (1988) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 328 (1988) EXHAUST SYSTEM (NOT FOR US - SA - CH87 AND CH88 VERSION) PARTS DIAGRAM")
