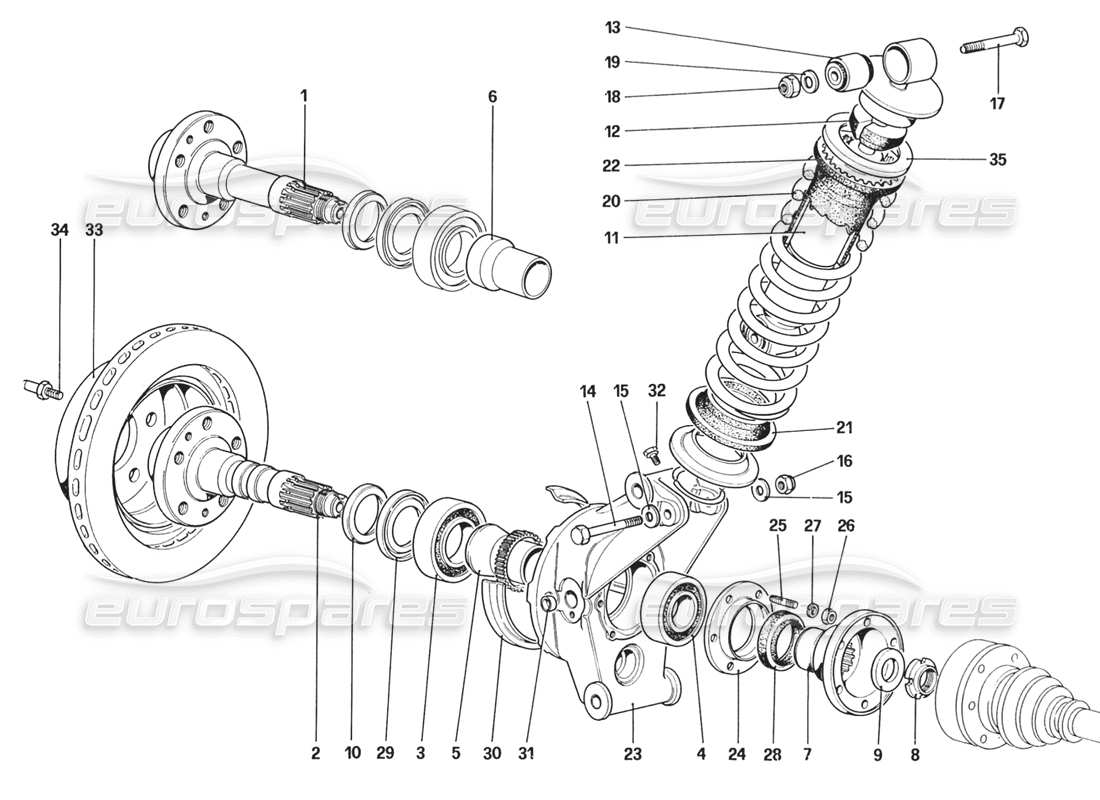

047 - Rear Suspension - Shock Absorber and Brake Disc (Starting From Car No. 76626)
Ferrari 328 (1988) Rear Suspension - Shock Absorber and Brake Disc (Starting From Car No. 76626) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 124964
(B) SHAFT WITH REAR HUB
from £1,404.00
from £1,404.00
# 002
MPN: 144951
SHAFT WITH REAR HUB
from £1,670.82
from £1,670.82
This part replaces part number 132408
# 003
MPN: 144807
OUTER BEARING
from £125.00
from £125.00
This part replaces part number 125935
# 004
MPN: 145805
INNER BEARING
from £73.60
from £73.60
This part replaces part number 125934
# 005
MPN: 136308
(A) SPACER WITH TOOTHED WHEEL
from £440.11
from £440.11
# 006
MPN: 120876
(B) SPACER
from £83.31
from £83.31
# 007
MPN: 119372
FLANGE CONNECTING AXLE SHAFTS
from £341.84
from £341.84
# 008
MPN: 102289
RING NUT
from £45.52
from £45.52
This part replaces part number 700648
# 009
MPN: 105511
WASHER
from £33.71
from £33.71
This part replaces part number 700753
# 010
MPN: 124965
SPACER
from £38.21
from £38.21
# 011
MPN: 138264
SHOCK ABSORBER
Koni type - / Up to car no. 78612
from £1,666.11
from £1,666.11
# 011
MPN: 138264
SHOCK ABSORBER
R/Shock Absorber Frm Ch76626
from £1,666.11
from £1,666.11
# 011
MPN: 138897
PLATE FOR SHOCK ABSORBER WITH SHOCK ABSORBER NO. 138264
from £44.38
from £44.38
# 011
MPN: 138898
SEEGER RING
from £0.47
from £0.47
# 012
MPN: 104442
PAD - WITH SHOCK ABSORBER NO. 130729
# 012
MPN: 138435
PAD - WITH SHOCK ABSORBER NO. 138264
from £43.53
from £43.53
# 013
MPN: 130516
ESTENDBLOCK
from £28.17
from £28.17
# 014
MPN: 112441
SCREW
from £44.01
from £44.01
# 015
MPN: 106616
WASHER
Supersession
Supersession
# 016
MPN: 148020
SELF LOCKING NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 017
MPN: 106419
SCREW
from £10.86
from £10.86
This part replaces part number 100808 - and 11 more. Click to view details
# 018
MPN: 148020
SELF LOCKING NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 019
MPN: 13550521
WASHER
from £0.53
from £0.53
This part replaces part number 107027
# 020
MPN: 113516
SUSPENSION SPRING
from £304.79
from £304.79
# 021
MPN: 103264
LOWER SPACER
from £15.72
from £15.72
This part replaces part number 640423 - and 3 more. Click to view details
# 022
MPN: 105223
UPPER SPACER
from £19.31
from £19.31
# 023
MPN: 130309
HUB HOLDER, (RIGHT)
from £701.30
from £701.30
# 023
MPN: 130310
HUB HOLDER, (LEFT)
from £671.36
from £671.36
# 024
MPN: 125976
FLANGE FOR BEARING
from £28.01
from £28.01
# 025
MPN: 13543324
STUD
from £0.83
from £0.83
This part replaces part number 13543321
# 026
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 027
MPN: 127496
WASHER
from £0.52
from £0.52
This part replaces part number 10516671 - and 2 more. Click to view details
# 028
MPN: 115968/A
SEALING RING
from £32.12
from £32.12
# 029
MPN: 108047
CENTRIFUGAL RING
from £54.21
from £54.21
# 030
MPN: 103117
SPLASH GUARD
from £6.13
from £6.13
# 031
MPN: 14328601
(B) PLUG
from £0.79
from £0.79
# 032
MPN: 10979421
(B) SCREW
from £0.47
from £0.47
# 033
MPN: 117186
BRAKE DISC
from £175.00
from £175.00
# 034
MPN: 104370
CENTERING SCREW
from £5.12
from £5.12
This part replaces part number 139981
# 035
MPN: 129435
SPACER - FOR US-CH-SA
from £42.16
from £42.16
