050 - Wheels (Up To Car No. 76625)

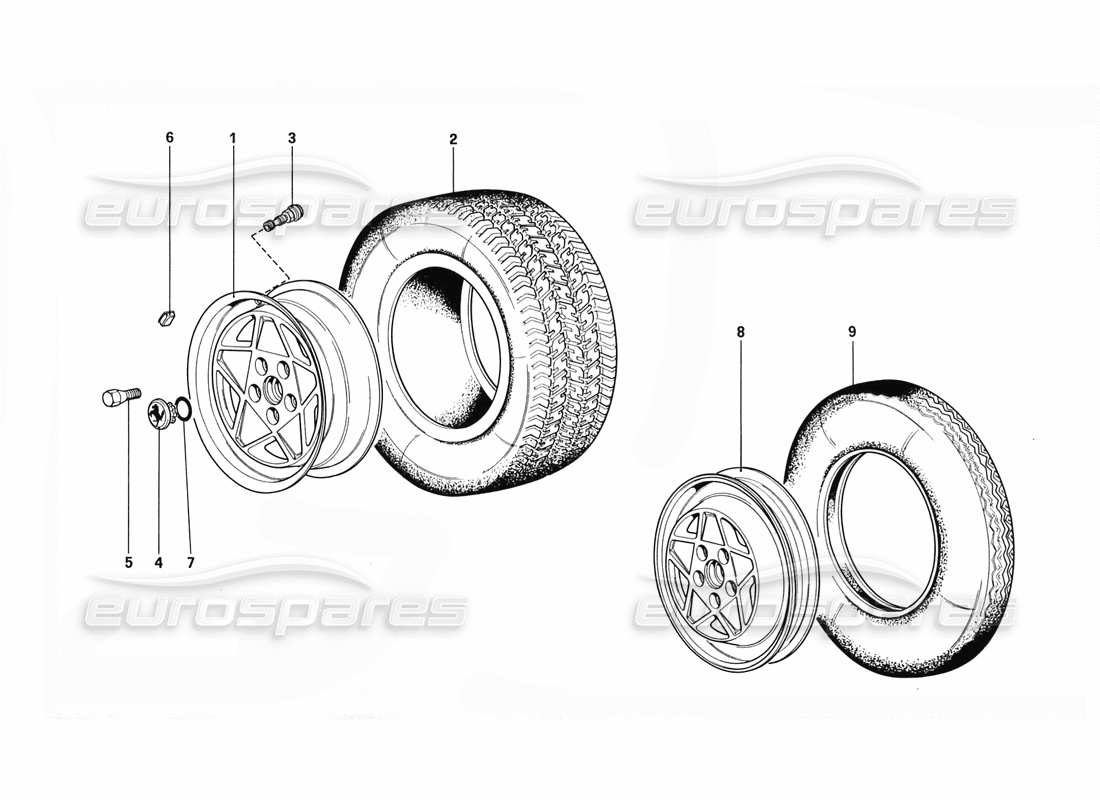

Ferrari 328 (1988) Wheels (Up To Car No. 76625) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
125757/SET
16 Wheel Set Front 7J X 16
Consist 2x 7J x 16 & 2x 8J x 16
from
£2,995.00
from
£2,995.00
#
001
MPN:
125757
FRONT RIM 7J X 16
from
£2,020.03
from
£2,020.03
This part replaces part number 130790
#
001
MPN:
125925
REAR WHEEL 8J X 16
from
£742.23
from
£742.23
This part replaces part number 130791
#
001
MPN:
130790
FRONT RIM 7J X 16 - IN ALTERNATIVE NO. 125757 - NOT FOR J AND AUSTRIA 87
Supersession
Supersession
#
002
MPN:
112471
FRONT TYRE - PIRELLI P7 205/55 VR16 - (OPTIONAL UNTIL EXHAUSTION) NOT FOR US
#
002
MPN:
112472
REAR TYRE - PIRELLI P7 225/50 VR16 - (OPTIONAL UNTIL EXHAUSTION)NOT FOR US
Supersession
Supersession
#
002
MPN:
124344
REAR TYRE - GOOD YEAR 225/50 VR1 6 EAGLE - NOT FOR C7 - AUS AND SA
#
002
MPN:
129866
FRONT TYRE - GOOD YEAR 205/55 VR16 EAGLE - NOT FOR C7 - AUS AND SA
#
002
MPN:
132647
REAR TYRE - 225/50 VR16 MICHELIN MXW - IN ALTERNATIVE NO. 124344 - NOT FOR US
Supersession
Supersession
#
002
MPN:
133224
FRONT TYRE - 205/55 VR16 MICHELIN MXW - IN ALTERNATIVE NO. 129866 - NOT FOR US
Supersession
Supersession
#
002
MPN:
136029
FRONT TYRE - PIRELLI P700 - 205/55 VR16 - (OPTIONAL AFTER EXHAUSTION NO. 112471) NOT FOR US
#
002
MPN:
136030
REAR TYRE - PIRELLI P700 - 225/50 VR16 - (OPTIONAL AFTER EXHAUSTION NO. 112472) NOT FOR US
This part replaces part number 112472
#
003
MPN:
174166
VALVE
from
£5.20
from
£5.20
This part replaces part number 105069
- and 1 more. Click to view details
#
003
MPN:
70002212
VALVE CAP KIT
(includes 4x Ferrari logo chromium valve caps)
from
£43.82
from
£43.82
#
004
MPN:
340066
WHEEL BADGE
from
£8.02
from
£8.02
This part replaces part number 226245
- and 1 more. Click to view details
#
005
MPN:
108843/A
REAR WHEEL STUD
from
£18.90
from
£18.90
This part replaces part number 108843
- and 3 more. Click to view details
#
006
MPN:
108851
COUNTER WEIGHT 10 GR.
Supersession
Supersession
This part replaces part number 108852
#
007
MPN:
120065
SEALING RING
from
£0.83
from
£0.83
#
008
MPN:
136861
SPARE RIM 3 1/4 BX 18 - NOT FOR RHD - SA - AUS - UNTIL TO
from
£911.66
from
£911.66
#
009
MPN:
123253
SPARE TYRE - GOOD YEAR T 1 05/80 R 1 8 - AFTER EXHAUSTION AND UNTIL TO USE NO. 130273
Supersession
Supersession
#
009
MPN:
123859
SPARE TYRE - MICHELIN 115/85 R 18 - IN ALTERNATIVE NO. 130273 NOT FOR US
Supersession
Supersession
#
009
MPN:
130273
SPARE TYRE - GOOD YEAR T 105/80 R 18 - FOR - J - AUSTRIA 87
Supersession
Supersession
This part replaces part number 123253
#
009
MPN:
133737
SPARE RIM 1/4 B X 18 (BLACK) STARTING FROM
from
£635.34
from
£635.34
This part replaces part number 127378
#
009
MPN:
133817
SPARE TYRE - GOOD YEAR T 1 05/80 R 1 8 - UNTIL TO
Supersession
Supersession
This part replaces part number 130273
#
009
MPN:
134123
SPARE TYRE - MICHELIN 115/85 R 18 IN ALTERNATIVE NO. 133817
from
£866.18
from
£866.18
This part replaces part number 123859
