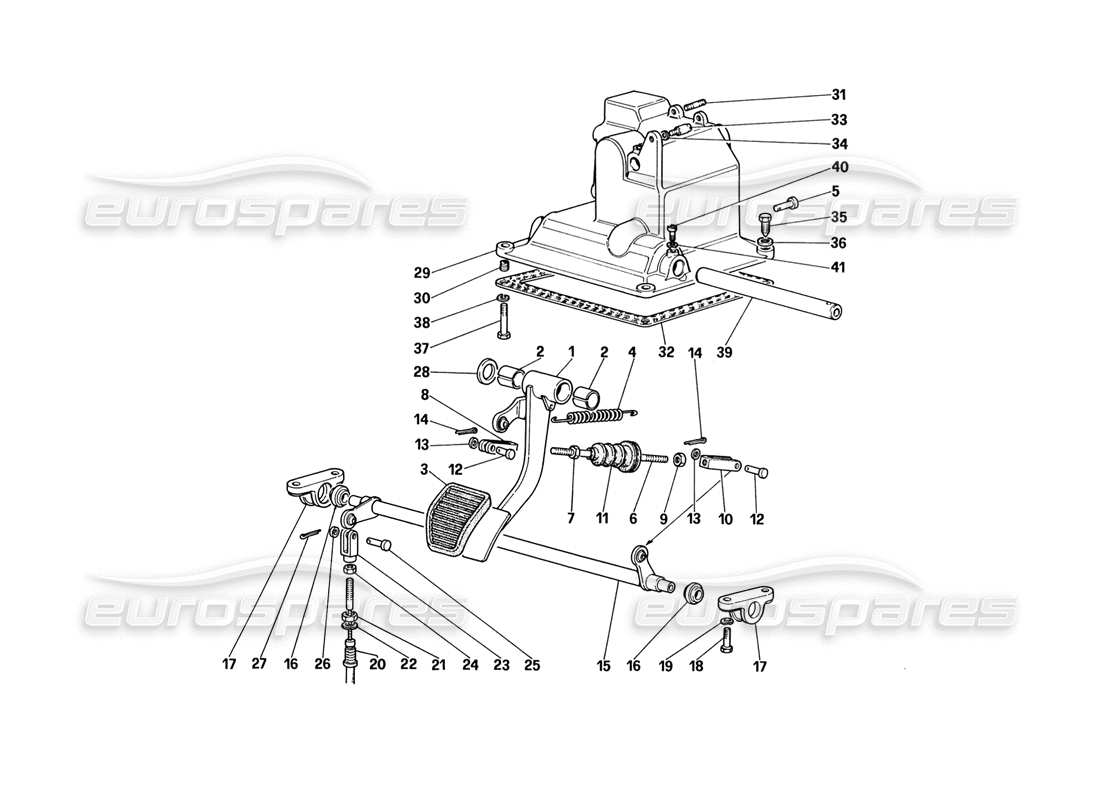

059 - Pedal Board - Clutch Controll (for Car With Antiskid System - Variants for RHD Version)
Ferrari 328 (1988) Pedal Board - Clutch Controll (for Car With Antiskid System - Variants for RHD Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 136786
CLUTCH PEDAL
from £316.11
from £316.11
# 002
MPN: 103163
BUSH
from £2.85
from £2.85
# 003
MPN: 132818
PEDAL COVER
from £6.71
from £6.71
# 004
MPN: 117374
RETURN SPRING
from £4.78
from £4.78
# 005
MPN: 129612
PIN
from £1.41
from £1.41
# 006
MPN: 108343
TIE ROD
from £35.07
from £35.07
# 006
MPN: 16102311
NUT
Right thread
from £0.43
from £0.43
This part replaces part number 16102315
# 007
MPN: 106594
FORK
Right thread
from £5.25
from £5.25
# 008
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 010
MPN: 106120
BELLOWS
from £12.39
from £12.39
# 011
MPN: 10004910
PIN
from £0.93
from £0.93
This part replaces part number 10004911
# 012
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 013
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 014
MPN: 136788
RETURN CAMSHAFT
from £251.10
from £251.10
# 015
MPN: 106102
BALL JOINT
from £24.92
from £24.92
# 016
MPN: 136791
SUPPORT
from £73.95
from £73.95
# 017
MPN: 16043621
SCREW
from £1.08
from £1.08
# 018
MPN: 12601371
WASHER
Supersession
Supersession
# 019
MPN: 136794
CLUTCH CONTROL CABLE
from £43.39
from £43.39
# 021
MPN: 16103611
NUT
from £0.47
from £0.47
# 022
MPN: 12601571
WASHER
Supersession
Supersession
This part replaces part number 12601574
# 023
MPN: 108575
FORK
from £33.34
from £33.34
# 024
MPN: 100861
NUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 025
MPN: 103218
PIN
from £16.94
from £16.94
This part replaces part number 100857 - and 1 more. Click to view details
# 026
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 027
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 028
MPN: 106083
SHIM
from £0.71
from £0.71
# 029
MPN: 136878
PEDAL SUPPORT
from £1,450.43
from £1,450.43
# 030
MPN: 13525770
HELI - COIL
from £1.55
from £1.55
This part replaces part number 103830
# 031
MPN: 11500121
STUD
Supersession
Supersession
This part replaces part number 13540820
# 032
MPN: 133848
GASKET
from £11.70
from £11.70
# 033
MPN: 137144
PIN
from £1.38
from £1.38
# 034
MPN: 106744
WASHER
from £5.52
from £5.52
# 035
MPN: 16139021
SCREW
from £2.27
from £2.27
# 036
MPN: 12601479
WASHER
from £0.47
from £0.47
# 037
MPN: 16043421
SCREW
from £2.69
from £2.69
This part replaces part number 95524
# 038
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 039
MPN: 129954
PIN
from £198.75
from £198.75
# 040
MPN: 13276121
SCREW
from £1.06
from £1.06
# 041
MPN: 12601279
WASHER
from £0.47
from £0.47
This part replaces part number 12601271 - and 2 more. Click to view details
