015 - Inner under carpets (Isolanti)

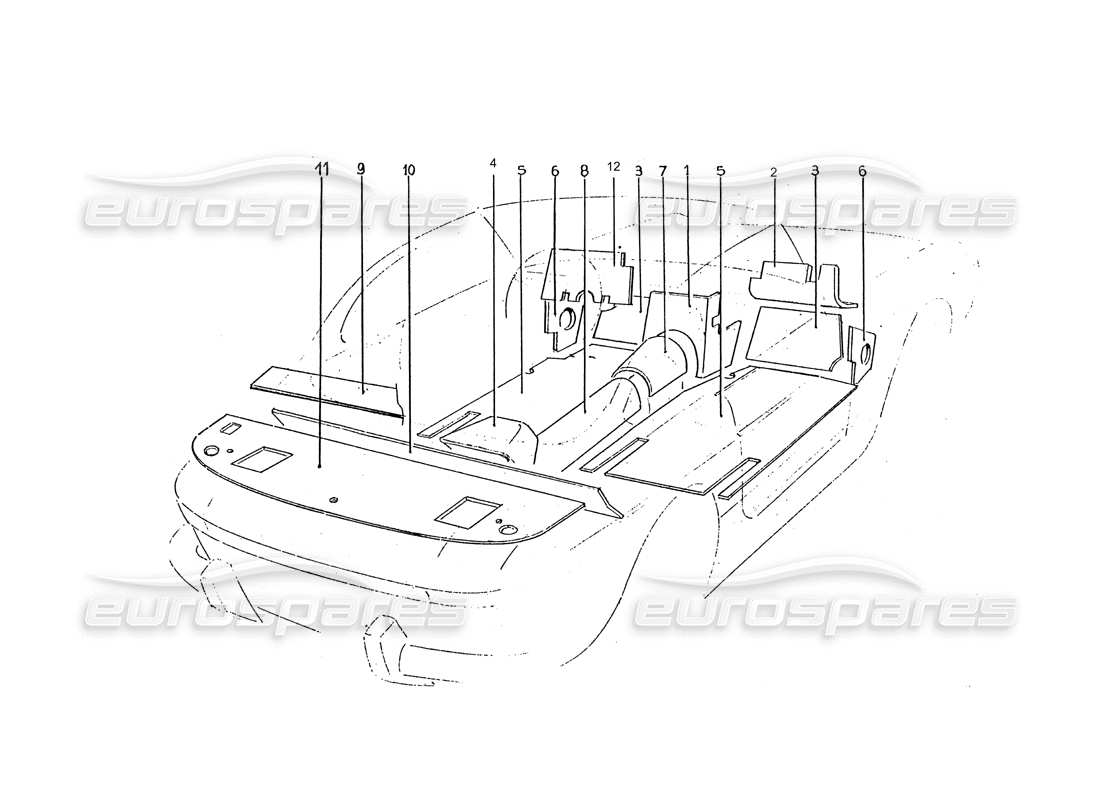

Ferrari 330 GTC / 365 GTC (Coachwork) Inner under carpets (Isolanti) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 246-62-304-00
DOUBLE-SIDED FELT FOR INSULATING THE CENTRAL PART OF THE DASHBOARD FOR GS
# 001
MPN: 248-62-304-00
DOUBLE-COATED FELT FOR INSULATING THE CENTRAL PART OF THE DASHBOARD FOR GD
# 002
MPN: 246-62-308-00
BITUATO FELT FOR INSULATING THE UPPER PART OF THE DASHBOARD
FVN 600
# 002
MPN: 246-62-308-10
FELTRO BITUMATO PER ISOLANTE LAT. D PARTS SUP. CRUSCOTTO G.S.
DVN 601
# 002
MPN: 246-62-309-10
BITRUM-COATED FELT FOR SIDE INSULATION S UPPER PASTE GS DASHBOARD
DVN 601
# 002
MPN: 248-62-308-10
BITRUM-COATED FELT FOR SIDE INSULATION D UPPER PART GD DASHBOARD
DVN 601
# 002
MPN: 248-62-309-00
BITRUM-COATED FELT FOR SIDE INSULATING UPPER S. PARTS OF THE DASHBOARD FOR GD
FVN 600
# 002
MPN: 248-62-309-70
BITRUM-COATED FELT FOR SIDE INSULATION S UPPER PART GD DASHBOARD
DVN 601
# 003
MPN: 246-62-328-00
INSULATION FOR VERTICAL WALL D. FOOT REST TRAY FOR GS
# 003
MPN: 246-62-329-00
INSULATION FOR VERTICAL WALL S. FOOT REST TRAY FOR GS
# 003
MPN: 248-62-328-00
INSULATION FOR VERTICAL WALL D..FOOTREST TRAY FOR GD
# 003
MPN: 248-62-329-00
ISOLANTE PER PARETE VERTICALS S. VASCHETTA APPOGGIAPIEDI PER G.D.
# 004
MPN: 246-62-368-00
Transmission tunnel rear part insulation
DVN 601
# 004
MPN: 246-62-568-00
INSULATOR ON REAR PARTS TRANSMISSION TUNNEL
FVN 600
# 005
MPN: 246-62-460-00
FLOOR INSULATION D. FOR GS
# 005
MPN: 246-62-461-00
FLOOR INSULATION S.PER GS
# 005
MPN: 248-62-460-00
RIGHT FLOOR INSULATION FOR CD
# 005
MPN: 248-62-461-00
LEFT FLOOR INSULATION FOR CD
# 006
MPN: 246-62-344-00
ISOLANTE SOTTO FIACOHETTO ANTERIORE D.
FVN 250
# 006
MPN: 246-62-345-00
INSULATION UNDER THE L. FRONT SIDE.
FVN 250
# 007
MPN: 246-62-564-00
INSULATION ON FRONT TRANSMISSION TUNNEL
# 008
MPN: 246-62-566-00
INSULATING ON THE CENTRAL PART OF THE TRANSMISSION TUNNEL.
# 009
MPN: 246-62-606-00
ISOLANTE PARETE DIVISION. POST. LATO INT. VET.
# 010
MPN: 246-62-608-00
ISOLANTE INFRERIORE PARETE DIVISIONALE POST.
# 011
MPN: 246-222250-00
INSULATION FOR SHELF UNDER THE REAR WINDOW
# 012
MPN: 246-62-305-00
INSULATION FOR DRIVER'S SIDE UPPER PART OF THE DASHBOARD
FVN 600
# 012
MPN: 246-62-305-10
DRIVER'S SIDE INSULATOR, UPPER PART OF THE DASHBOARD
DVN 601
