003 - Crankshaft, Connecting Rods & Pistons

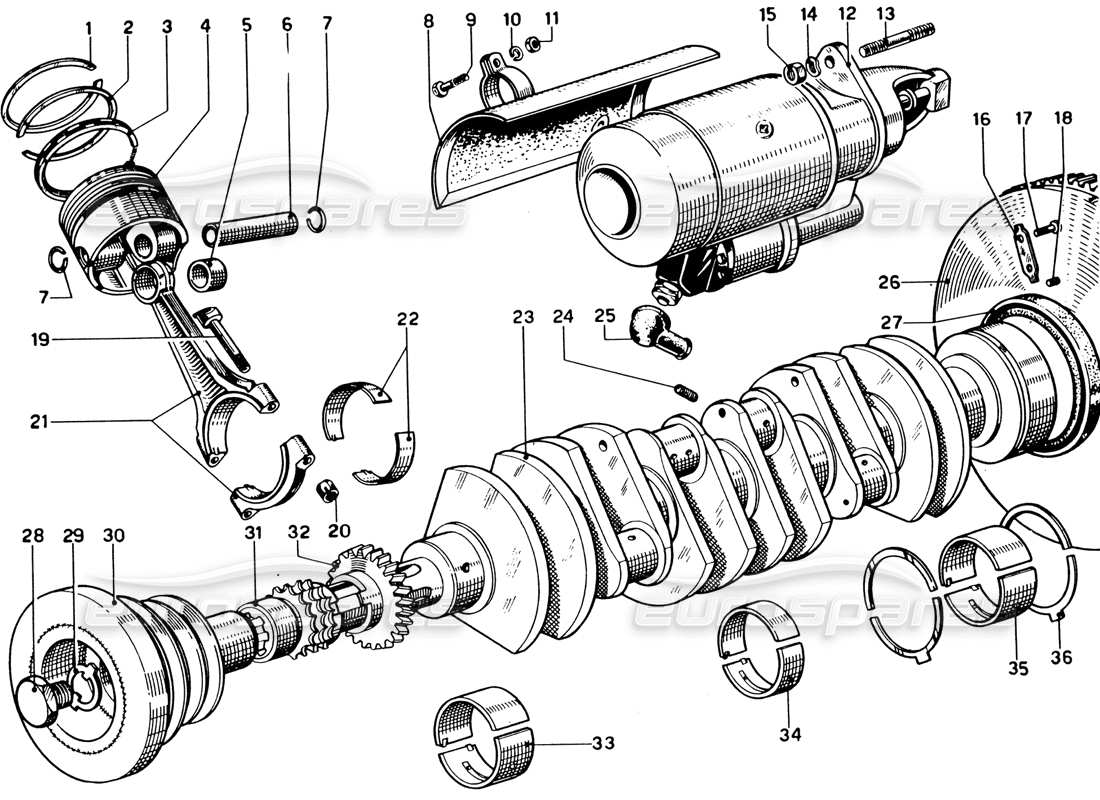

Ferrari 330 GTC Coupe Crankshaft, Connecting Rods & Pistons Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 95140105/RR
COMPLETE PISTON RINGS SET STD
(per piston)
from £98.86
from £98.86
This part replaces part number 95140105/R
# 001
MPN: 95140215
TOP PISTON RING STD
from £21.73
from £21.73
# 002
MPN: 95140218
MIDDLE PISTON RING STD
from £21.73
from £21.73
# 003
MPN: 95140221
SCRAPER RING STD
from £40.52
from £40.52
# 004
MPN: 95140105/AA
PISTONE STD
from £231.00
from £231.00
# 005
MPN: 107100
SMALL END BUSH
from £25.36
from £25.36
This part replaces part number 100155 - and 2 more. Click to view details
# 006
MPN: 14652
SPINOTTO PER PISTONE
from £42.14
from £42.14
# 007
MPN: 100174
GUDGEON PIN CIRCLIP
from £3.47
from £3.47
This part replaces part number 14594
# 008
MPN: 13219
DEFLECTOR WITH CLAMP
from £52.52
from £52.52
# 009
MPN: 6x20-UNl 187
BOLT
# 010
MPN: 6 R 4
WASHER
Supersession
Supersession
# 011
MPN: I D 6-UNI 207
NUT
# 012
MPN: 100454/R
STARTER MOTOR (MARELLI MT-21)
from £2,670.08
from £2,670.08
This part replaces part number 100454
# 012
MPN: 100454/RS
STARTER MOTOR SOLENOID
also use : 95130001
from £183.75
from £183.75
# 013
MPN: 93015
STUD
from £5.03
from £5.03
# 014
MPN: 12601571
WASHER
Supersession
Supersession
This part replaces part number 12601574
# 015
MPN: 93859
NUT
# 016
MPN: 100187
PLATE
from £3.42
from £3.42
This part replaces part number 12124
# 017
MPN: 94851
BOLT
from £13.90
from £13.90
# 018
MPN: 94129
CENTERING DOWEL
Supersession
Supersession
# 019
MPN: 14803
BOLT
from £54.11
from £54.11
This part replaces part number 14738
# 020
MPN: 104011
NUT
from £10.11
from £10.11
This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
# 021
MPN: 109738/U
CON ROD
from £230.00
from £230.00
# 022
MPN: 100150/A
BIG END BEARINGS SET STANDARD (PRICE PER PACK)
(3 packets required)
from £21.21
from £21.21
# 022
MPN: 100151/A
BIG END BEARINGS SET +10 (PRICE PER PACK)
(3 packets required)
from £475.00
from £475.00
# 022
MPN: 100152/A
BIG END BEARINGS SET +20 (PRICE PER PACK)
(3 packets required)
from £483.92
from £483.92
# 022
MPN: 106183
CON ROD HALF BEARING STANDARD
from £21.21
from £21.21
This part replaces part number 100150
# 023
MPN: 12513
crankshaft
from £19,225.50
from £19,225.50
# 023
MPN: 12513
1ª UNDERSIZE
from £19,225.50
from £19,225.50
# 023
MPN: 12513
2ª UNDERSIZE
from £19,225.50
from £19,225.50
# 023
MPN: 12513
3ª UNDERSIZE
from £19,225.50
from £19,225.50
# 023
MPN: 12513
1ª UNDERSIZE
from £19,225.50
from £19,225.50
# 023
MPN: 12513
2ª UNDERSIZE
from £19,225.50
from £19,225.50
# 023
MPN: 12513
3ª UNDERSIZE
from £19,225.50
from £19,225.50
# 024
MPN: 14326150
CRANKSHAFT CAP
from £0.48
from £0.48
This part replaces part number 12326150
# 025
MPN: 111337
COPRIMORSETTO
from £29.05
from £29.05
This part replaces part number 100457
# 026
MPN: 12473
ENGINE FLYWHEEL ASSEMBLY
from £2,981.52
from £2,981.52
# 027
MPN: 138391
SEALING RING
(100x120x13)
from £31.80
from £31.80
This part replaces part number 100014
# 027
MPN: 138391
SEALING RING
(100x120x13)
from £31.80
from £31.80
This part replaces part number 100014
# 027
MPN: OILK330GT
ENGINE OIL SEAL KIT
Original Oil seal kit consists of:x1 138391 / x1 95850302 / x1 95850003 / x2 101137
# 028
MPN: 12157
SCREW
from £76.38
from £76.38
# 029
MPN: 92987
PLATE
from £7.90
from £7.90
# 030
MPN: 220337
SMORZATORE TORSIONALE
This part replaces part number 220359
# 031
MPN: 12453
CHAIN SPROCKET
from £920.50
from £920.50
# 032
MPN: 12331
INGRANAGGIO
from £181.10
from £181.10
# 033
MPN: 100118
UPPER MAIN HALF BEARING SHELL STANDARD
from £44.37
from £44.37
This part replaces part number 9100035
# 033
MPN: 100118
UPPER MAIN HALF BEARING SHELL STANDARD
from £44.37
from £44.37
This part replaces part number 9100035
# 033
MPN: 100118
UPPER MAIN HALF BEARING SHELL STANDARD
from £44.37
from £44.37
This part replaces part number 9100035
# 033
MPN: 100118
UPPER MAIN HALF BEARING SHELL STANDARD
from £44.37
from £44.37
This part replaces part number 9100035
# 033
MPN: MC1819/1
MAIN BEARINGS SET STANDARD
from £1,613.23
from £1,613.23
# 033
MPN: MC1819/2
MAIN BEARINGS SET +10
from £1,422.09
from £1,422.09
# 033
MPN: MC1819/3
MAIN BEARINGS SET +20
from £1,149.75
from £1,149.75
# 034
MPN: 9100026/I
INTERMEDIATE BEARING
from £20.56
from £20.56
# 034
MPN: 9100026/I
1ª UNDERSIZE
from £20.56
from £20.56
# 034
MPN: 9100026/I
2ª UNDERSIZE
from £20.56
from £20.56
# 034
MPN: 9100026/I
3ª UNDERSIZE
from £20.56
from £20.56
# 035
MPN: 100138
SEMICUSCINETTO SUPERIORE
from £29.70
from £29.70
This part replaces part number 9100037
# 035
MPN: 100138
SEMICUSCINETTO SUPERIORE
from £29.70
from £29.70
This part replaces part number 9100037
# 035
MPN: 100138
SEMICUSCINETTO SUPERIORE
from £29.70
from £29.70
This part replaces part number 9100037
# 035
MPN: 100138
SEMICUSCINETTO SUPERIORE
from £29.70
from £29.70
This part replaces part number 9100037
# 036
MPN: 100146
THRUST WASHERS SET STD
sold in pairs -
from £23.62
from £23.62
This part replaces part number 10345 - and 1 more. Click to view details
# 036
MPN: 10345
1ª MAGGIORAZIONE (+ MM. 0,076)
Supersession
Supersession
# 036
MPN: 10345
2ª MAGGIORAZIONE (+ MM. 0,101)
Supersession
Supersession
# 036
MPN: 10345
3ª MAGGIORAZIONE (+ MM. 0.127)
Supersession
Supersession
