007 - Air Filter With Blow-By

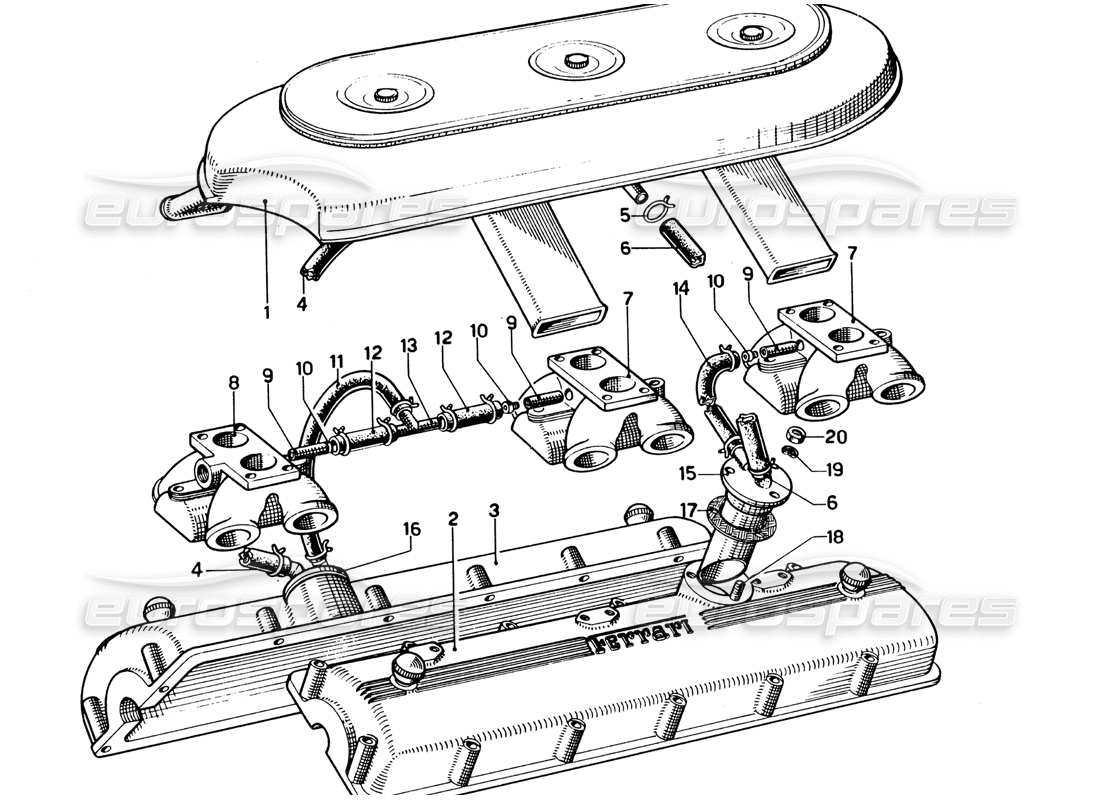

Ferrari 330 GTC Coupe Air Filter With Blow-By Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 1287
COMPLESSIVO BLOW-BY
# 001
MPN: 21017
FILTRO ARIA
# 002
MPN: 21013
COVER
from £759.68
from £759.68
# 003
MPN: 21014
COVER
# 004
MPN: 21002
VENT CONNECTION PIPE TO THE AIR INTAKE (LEFT)
# 005
MPN: 94951
SPRING
# 006
MPN: 21003
VENT CONNECTION PIPE TO THE AIR INTAKE (RIGHT)

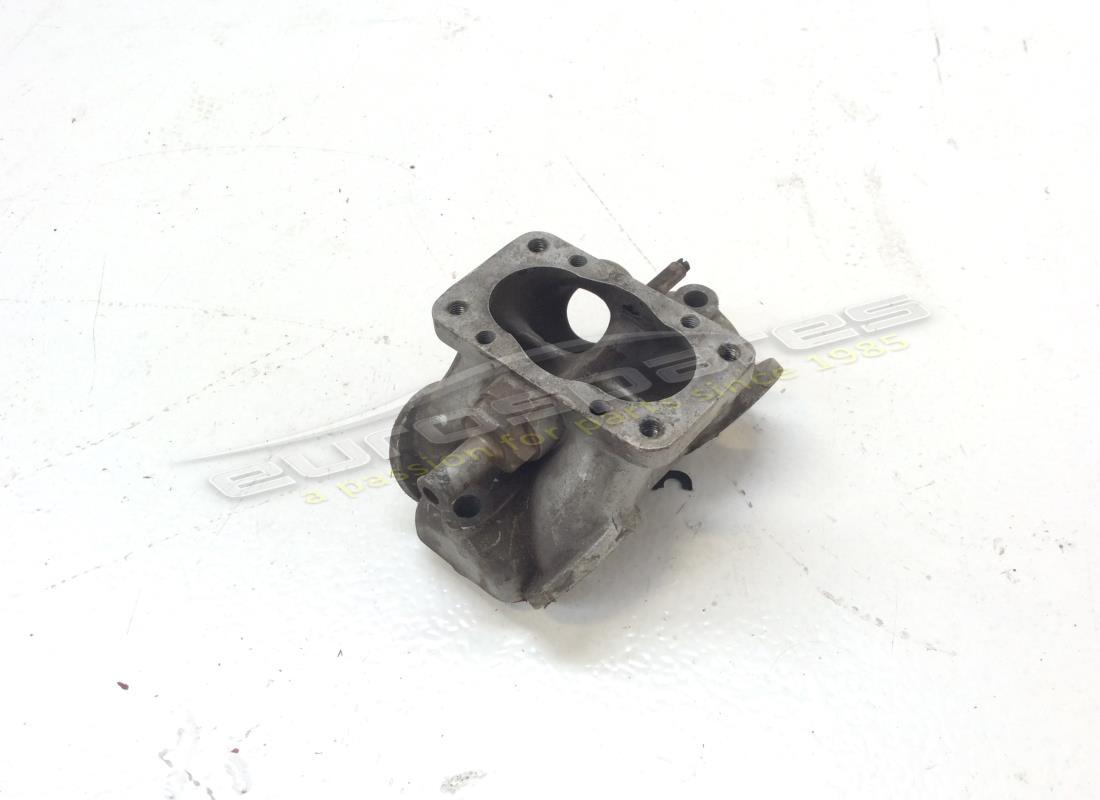

# 007
MPN: 19532
ADMISSION COLLECTOR
from £414.75
from £414.75

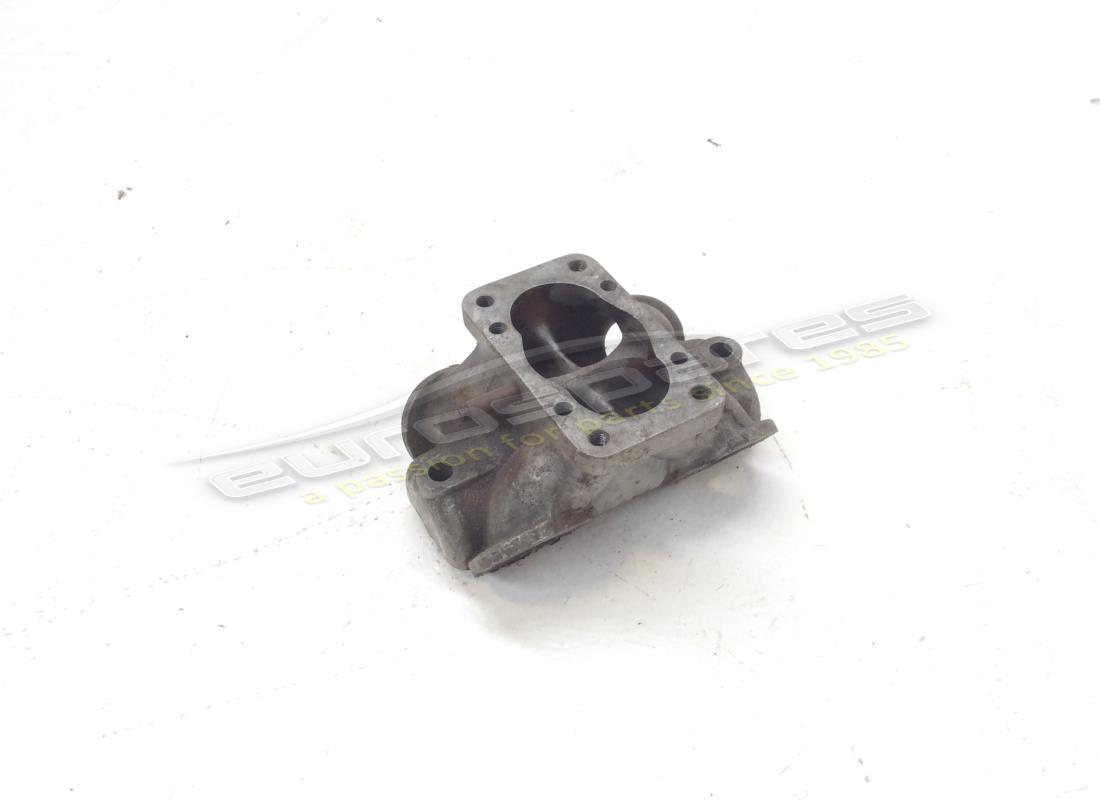

# 008
MPN: 19531
COLLETTORE POSTERIORE
from £414.75
from £414.75
# 009
MPN: 21012
PIPE ON THE MANIFOLD
from £9.42
from £9.42
# 010
MPN: 19846
SCREW
# 011
MPN: 21009
PIPE FROM LEFT VENT TO 3 WAY
# 012
MPN: 95042
SLEEVE ON THE INTERMEDIATE AND REAR MANIFOLDS
# 013
MPN: 21011
UNION
from £38.60
from £38.60
# 014
MPN: 21010
PIPE FROM RIGHT VENT TO FRONT MANIFOLD
# 015
MPN: 21008
RIGHT VENT ASSEMBLY ON THE HEAD COVER
# 016
MPN: 21027
LEFT VENT ASSEMBLY ON THE HEAD COVER
# 017
MPN: 95045
GASKET
from £2.66
from £2.66
# 018
MPN: 104185
THREADED STUD
from £28.19
from £28.19
This part replaces part number P1
# 019
MPN: 6 R 4
WASHER
Supersession
Supersession
# 020
MPN: I D 6-UNI 207
NUT
