ferrari 330 gt 2+2 oil sump parts diagram

002 - oil sump

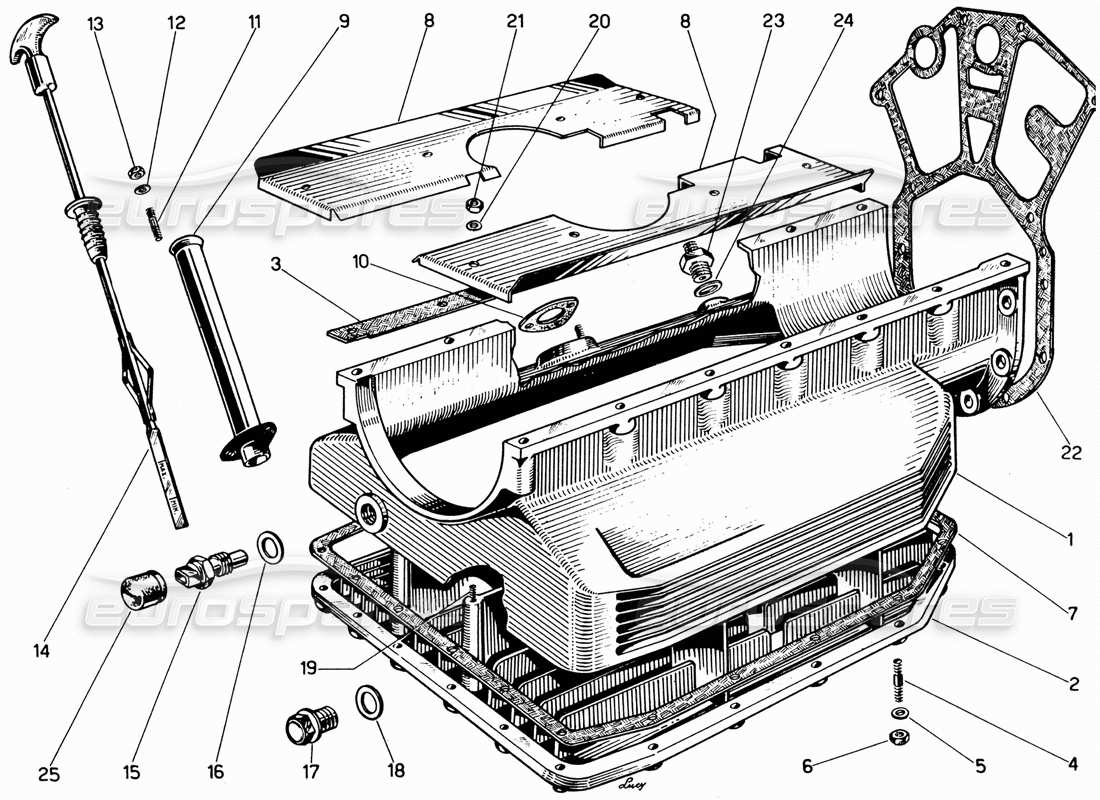

Ferrari 330 GT 2+2 Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 9111153
                                                  COPPA OLIO
                                                  from £1,837.50
                                                  from £1,837.50
                                                  # 002
                                                  MPN: 9111154
                                                  COVER
                                                  from £2,061.72
                                                  from £2,061.72
                                                  # 003
                                                  MPN: 9111157
                                                  GASKET OR SEAL
                                                  from £14.66
                                                  from £14.66
                                                  # 004
                                                  MPN: 95920107
                                                  STUD
                                                  from £1.50
                                                  from £1.50
                                                  # 005
                                                  MPN: 6R5
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  # 006
                                                  MPN: 15896211
                                                  NUT
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 15896210 which we have in stock
                                                  # 007
                                                  MPN: 9111158
                                                  GASKET OR SEAL
                                                  from £58.94
                                                  from £58.94
                                                  # 008
                                                  MPN: 9111159
                                                  PARATIA PER COPPA OLIO
                                                  from £17.81
                                                  from £17.81
                                                  # 009
                                                  MPN: 9111160
                                                  TUBO GUIDA PER ASTA LIVELLO OLIO
                                                  # 011
                                                  MPN: 95920107
                                                  STUD
                                                  from £1.50
                                                  from £1.50
                                                  # 012
                                                  MPN: 6 R 4
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  # 013
                                                  MPN: 15896211
                                                  NUT
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 15896210 which we have in stock
                                                  # 014
                                                  MPN: 9111167
                                                  ASTA LIVELLO OLIO
                                                  Complessivo
                                                  from £45.95
                                                  from £45.95
                                                  # 015
                                                  MPN: 100453
                                                  OIL THERMISTOR
                                                  from £13.59
                                                  from £13.59
                                                  This part replaces part number 100345 - and 1 more. Click to view details
                                                  # 016
                                                  MPN: 10257060
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                  # 017
                                                  MPN: 103974
                                                  TAPPO SCARICO OLIO DALLA COPPA
                                                  from £1.32
                                                  from £1.32
                                                  This part replaces part number 101477 - and 1 more. Click to view details
                                                  # 018
                                                  MPN: 95910605
                                                  GASKET OR SEAL
                                                  from £0.47
                                                  from £0.47
                                                  # 019
                                                  MPN: 92533
                                                  STUD
                                                  from £0.98
                                                  from £0.98
                                                  # 020
                                                  MPN: 95930507
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 021
                                                  MPN: 22708
                                                  NUT
                                                  from £20.23
                                                  from £20.23
                                                  # 022
                                                  MPN: 22708
                                                  NUT
                                                  from £20.23
                                                  from £20.23
                                                  # 023
                                                  MPN: 22708
                                                  NUT
                                                  from £20.23
                                                  from £20.23
                                                  # 024
                                                  MPN: 10257060
                                                  GASKET OR SEAL
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                  # 025
                                                  MPN: 95860402
                                                  CAPPUCCIO PROTEZIONE TERMISTORE
