003 - Crankshaft and Starter

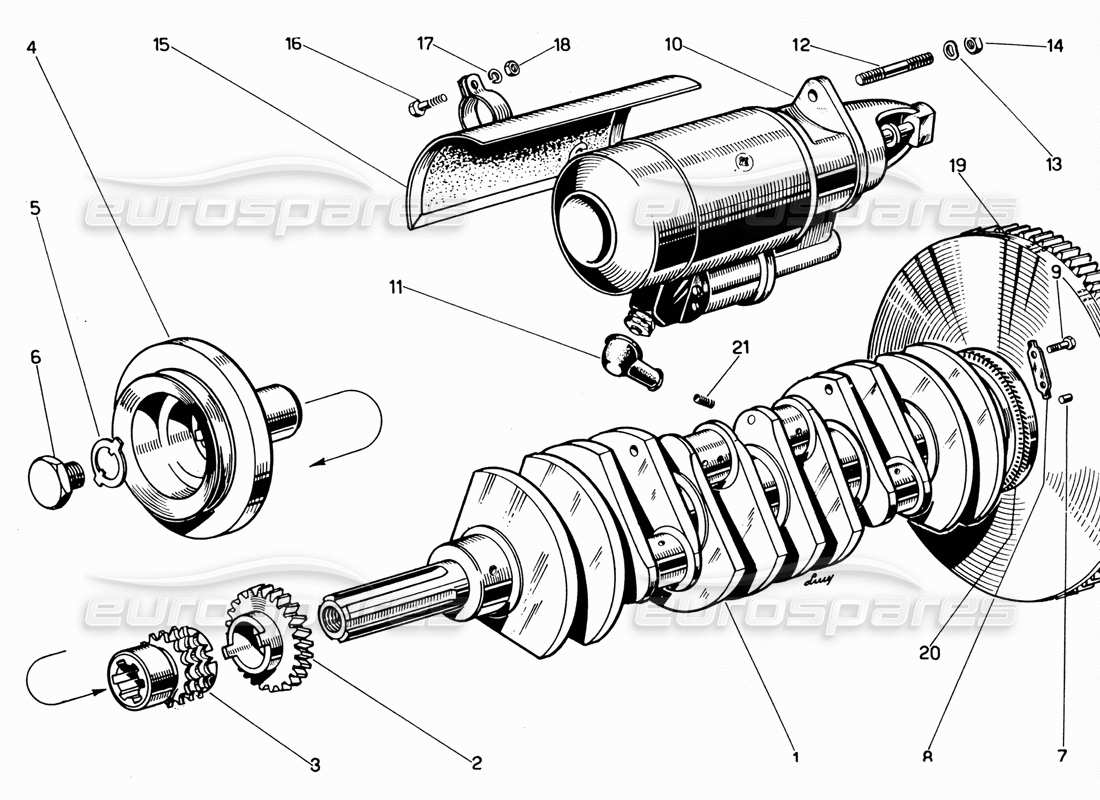

Ferrari 330 GT 2+2 Crankshaft and Starter Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 12445
crankshaft
# 002
MPN: 12331
INGRANAGGIO COMANDO POMPA OLIO
from £181.10
from £181.10
# 003
MPN: 12453
PINION ON THE CRANKSHAFT
from £932.20
from £932.20
# 004
MPN: 22340/A
SMORZATORE TORSIONALE
Supersession
Supersession

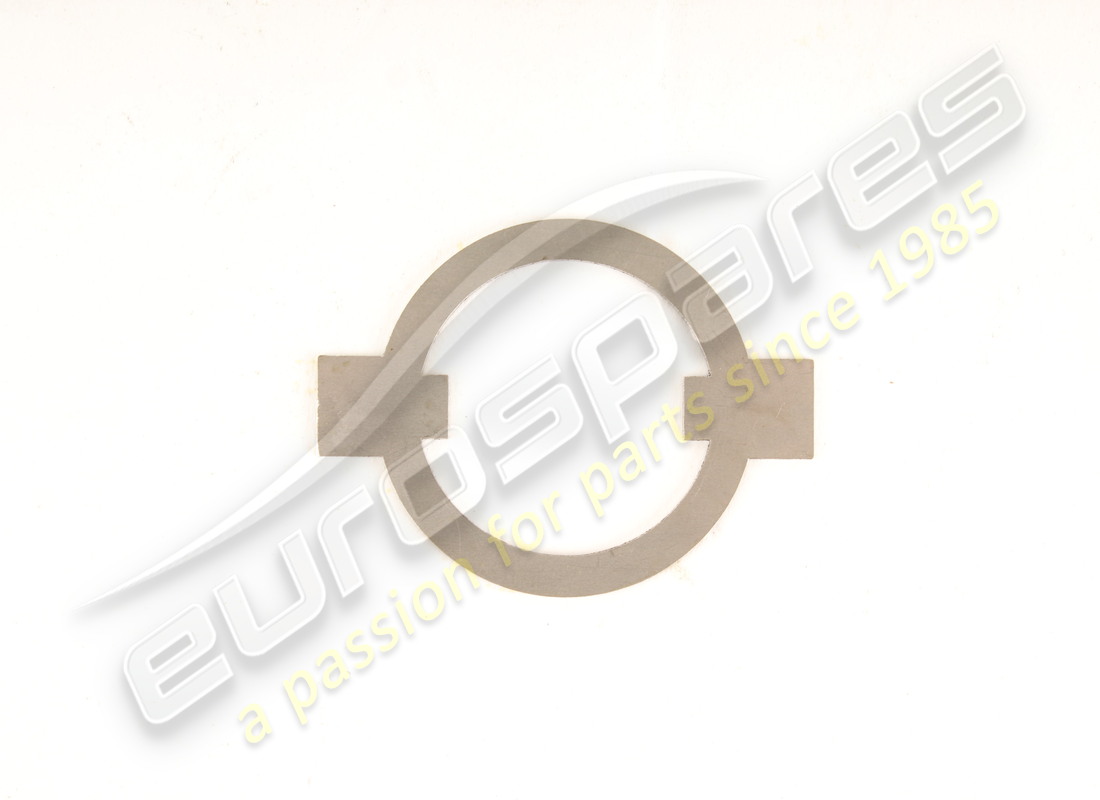

# 005
MPN: 92987
PIASTRLNA DI SICUREZZA FISSAGGIO PIGNONE
from £7.90
from £7.90
# 006
MPN: 12157
SCREW
from £76.38
from £76.38
# 007
MPN: 94129
GRANO CENTRAGGIO VOLANO
Supersession
Supersession
# 008
MPN: 100187
PLATE
from £3.42
from £3.42
This part replaces part number 12124
# 009
MPN: 94851
BOLT
from £13.90
from £13.90
# 010
MPN: 100454/R
STARTER MOTOR (MARELLI MT-21)
from £2,670.08
from £2,670.08
This part replaces part number 100454
# 010
MPN: 100454/RS
STARTER MOTOR SOLENOID
also use : 95130001
from £183.75
from £183.75
# 011
MPN: 111337
COPRIMORSETTO PER MOTORINO
from £29.05
from £29.05
This part replaces part number 100457
# 012
MPN: 93015
STUD
from £5.03
from £5.03
# 013
MPN: 12601571
WASHER
Supersession
Supersession
This part replaces part number 12601574
# 014
MPN: 92398
NUT
from £0.83
from £0.83
# 015
MPN: 13219
DEFLETTORE PER RIPARO MOTORINO
from £52.52
from £52.52
# 016
MPN: UNI 107
BOLT
# 017
MPN: 6 R 4
WASHER
Supersession
Supersession
# 018
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 019
MPN: 12479
ASSIEME VOLANO E CORONA
from £2,580.00
from £2,580.00
This part replaces part number 12478
# 020
MPN: 138391
SEALING RING
(100x120x13)
from £31.80
from £31.80
This part replaces part number 100014
# 020
MPN: 138391
SEALING RING
(100x120x13)
from £31.80
from £31.80
This part replaces part number 100014

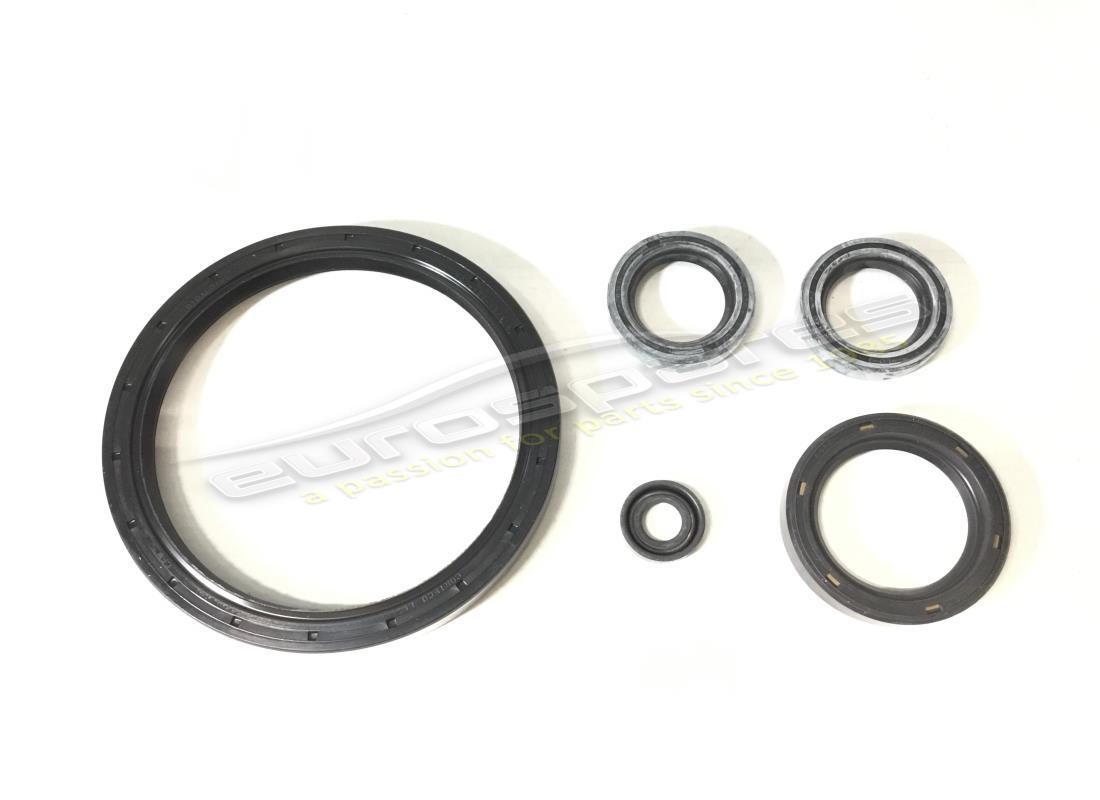

# 020
MPN: OILK330GT
ENGINE OIL SEAL KIT
Original Oil seal kit consists of:x1 138391 / x1 95850302 / x1 95850003 / x2 101137
# 021
MPN: 14326150
TAPPO PER CANALE OLIO ALBERO MOTORE
from £0.48
from £0.48
This part replaces part number 12326150
