005 - Cylinder Heads

Ferrari 330 GT 2+2 Cylinder Heads Parts Diagram

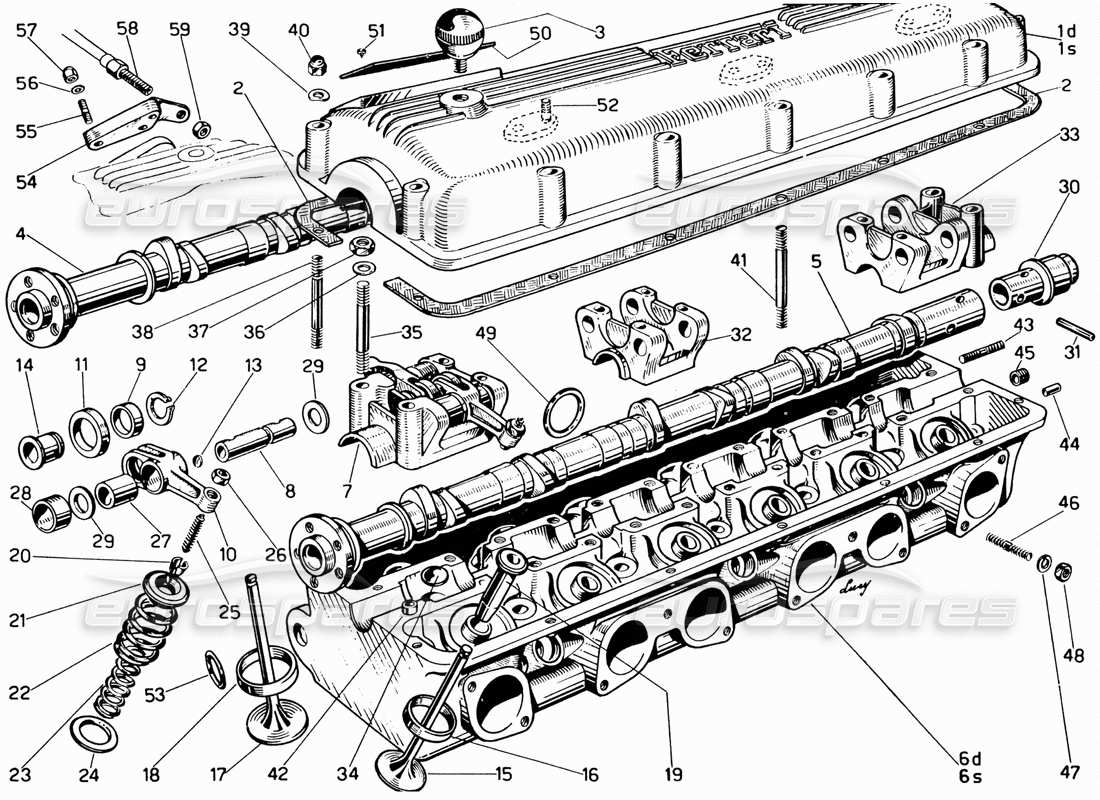

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 002
                                                                                                                    MPN: 9160479
                                                                                                                    CAM COVER GASKET
                                                                                                                    Alternative Use : FCCG009 Gasket kit
                                                                                                                    from £36.00
                                                                                                                    from £36.00
                                                                                                                    This part replaces part number 17972
                                                                                                                    # 003
                                                                                                                    MPN: 17415
                                                                                                                    CAM COVER KNOB (BLACK ALLOY)
                                                                                                                    from £34.52
                                                                                                                    from £34.52
                                                                                                                    This part replaces part number 16117
                                                                                                                    # 004
                                                                                                                    MPN: 9160811
                                                                                                                    ALBERO DISTRIBUZIONE DESTRO
                                                                                                                    from £3,070.60
                                                                                                                    from £3,070.60
                                                                                                                    This part replaces part number 17904
                                                                                                                    # 005
                                                                                                                    MPN: 9160811
                                                                                                                    ALBERO DISTRIBUZIONE SINISTRO
                                                                                                                    from £3,070.60
                                                                                                                    from £3,070.60
                                                                                                                    This part replaces part number 17904
                                                                                                                    # 006
                                                                                                                    MPN: 17942
                                                                                                                    CYLINDER HEAD RH
                                                                                                                    Original Old Stock
                                                                                                                    # 006
                                                                                                                    MPN: 17943
                                                                                                                    LH cylinder head
                                                                                                                    # 007
                                                                                                                    MPN: 17953
                                                                                                                    BEARING CAP FRONT
                                                                                                                    # 008
                                                                                                                    MPN: 16177
                                                                                                                    PIVOT
                                                                                                                    from £84.22
                                                                                                                    from £84.22
                                                                                                                    # 009
                                                                                                                    MPN: 9160780
                                                                                                                    BUSH
                                                                                                                    from £21.15
                                                                                                                    from £21.15
                                                                                                                    # 010
                                                                                                                    MPN: 9160076
                                                                                                                    BILANCERE A RULLO
                                                                                                                    # 011
                                                                                                                    MPN: 16643
                                                                                                                    RULLO PER BILANCERE
                                                                                                                    from £73.91
                                                                                                                    from £73.91
                                                                                                                    # 012
                                                                                                                    MPN: 11066276
                                                                                                                    SEEGER RING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 013
                                                                                                                    MPN: Te 8
                                                                                                                    EXPANSION PLUG
                                                                                                                    # 014
                                                                                                                    MPN: 9160781
                                                                                                                    PIVOT
                                                                                                                    from £33.87
                                                                                                                    from £33.87
                                                                                                                    # 015
                                                                                                                    MPN: 17693
                                                                                                                    VALVOLA DI SCARICO
                                                                                                                    from £69.00
                                                                                                                    from £69.00
                                                                                                                    # 016
                                                                                                                    MPN: 9160024
                                                                                                                    SEDE VALVOLA SCARICO
                                                                                                                    from £35.91
                                                                                                                    from £35.91
                                                                                                                    # 017
                                                                                                                    MPN: 17691
                                                                                                                    VALVOLA DI ASPIRAZIONE
                                                                                                                    from £79.95
                                                                                                                    from £79.95
                                                                                                                    # 018
                                                                                                                    MPN: 9160023
                                                                                                                    SEDE VALVOLA ASPIRAZIONE
                                                                                                                    from £28.33
                                                                                                                    from £28.33
                                                                                                                    # 019
                                                                                                                    MPN: 9160262
                                                                                                                    GUIDA VALVOLA
                                                                                                                    from £41.88
                                                                                                                    from £41.88
                                                                                                                    This part replaces part number 9160611
                                                                                                                    # 020
                                                                                                                    MPN: 100244
                                                                                                                    CONO PER SCODELLINO
                                                                                                                    from £7.32
                                                                                                                    from £7.32
                                                                                                                    This part replaces part number 17672
                                                                                                                    # 021
                                                                                                                    MPN: 17400
                                                                                                                    PIATTELLO TENUTA MOLLA VALVOLA
                                                                                                                    from £30.58
                                                                                                                    from £30.58
                                                                                                                    # 022
                                                                                                                    MPN: 17398
                                                                                                                    SPRING
                                                                                                                    from £35.60
                                                                                                                    from £35.60
                                                                                                                    # 023
                                                                                                                    MPN: 95160001
                                                                                                                    SPRING
                                                                                                                    from £12.53
                                                                                                                    from £12.53
                                                                                                                    # 024
                                                                                                                    MPN: 17414
                                                                                                                    PLATE
                                                                                                                    from £5.01
                                                                                                                    from £5.01
                                                                                                                    # 025
                                                                                                                    MPN: 17880
                                                                                                                    SCREW
                                                                                                                    from £19.62
                                                                                                                    from £19.62
                                                                                                                    This part replaces part number 16486
                                                                                                                    # 026
                                                                                                                    MPN: 93818
                                                                                                                    NUT
                                                                                                                    from £7.56
                                                                                                                    from £7.56
                                                                                                                    # 027
                                                                                                                    MPN: 16698
                                                                                                                    BUSH
                                                                                                                    from £18.56
                                                                                                                    from £18.56
                                                                                                                    # 028
                                                                                                                    MPN: 9160077
                                                                                                                    BUSSOLA DISTANZIALE
                                                                                                                    from £40.06
                                                                                                                    from £40.06
                                                                                                                    # 029
                                                                                                                    MPN: 17401
                                                                                                                    DISTANZIALE PER BILANCERE
                                                                                                                    from £8.26
                                                                                                                    from £8.26
                                                                                                                    # 030
                                                                                                                    MPN: 17056
                                                                                                                    REAR CLUTCH ON THE SHAFT
                                                                                                                    from £370.24
                                                                                                                    from £370.24
                                                                                                                    # 031
                                                                                                                    MPN: 100279
                                                                                                                    PIN
                                                                                                                    from £11.85
                                                                                                                    from £11.85
                                                                                                                    This part replaces part number 13904770 - and 2 more. Click to view details
                                                                                                                    # 032
                                                                                                                    MPN: 17241
                                                                                                                    CAPPELLLO INTERMEDIO ALBERO DISTRIBUZIONE
                                                                                                                    # 033
                                                                                                                    MPN: 17954
                                                                                                                    CAPPELLO POSTERIORE ALBERO DISTRIBUZIONE
                                                                                                                    # 034
                                                                                                                    MPN: 95940006
                                                                                                                    EXPANSION PLUG
                                                                                                                    from £5.36
                                                                                                                    from £5.36
                                                                                                                    # 035
                                                                                                                    MPN: 94300
                                                                                                                    STUD
                                                                                                                    from £24.99
                                                                                                                    from £24.99
                                                                                                                    # 036
                                                                                                                    MPN: 8R 5
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 037
                                                                                                                    MPN: 95900412
                                                                                                                    NUT
                                                                                                                    from £6.36
                                                                                                                    from £6.36
                                                                                                                    This part replaces part number 92401
                                                                                                                    # 038
                                                                                                                    MPN: 95920107
                                                                                                                    STUD
                                                                                                                    from £1.50
                                                                                                                    from £1.50
                                                                                                                    # 039
                                                                                                                    MPN: 95930508
                                                                                                                    WASHER
                                                                                                                    # 040
                                                                                                                    MPN: 100044
                                                                                                                    NUT
                                                                                                                    from £0.26
                                                                                                                    from £0.26
                                                                                                                    This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                                    # 042
                                                                                                                    MPN: 93218
                                                                                                                    GRANI CENTRAGGIO PRIGIONIERO FISSAGGIO CAPPELLI
                                                                                                                    # 044
                                                                                                                    MPN: 93338
                                                                                                                    GRANO CENTRAGGIO SUPPORTO SPINTEROGENO
                                                                                                                    from £13.72
                                                                                                                    from £13.72
                                                                                                                    # 046
                                                                                                                    MPN: P 2
                                                                                                                    STUD
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 047
                                                                                                                    MPN: 127496
                                                                                                                    WASHER
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                    # 048
                                                                                                                    MPN: 94803
                                                                                                                    NUT
                                                                                                                    from £8.34
                                                                                                                    from £8.34
                                                                                                                    # 049
                                                                                                                    MPN: 95860106
                                                                                                                    SEAL
                                                                                                                    from £2.36
                                                                                                                    from £2.36
                                                                                                                    # 050
                                                                                                                    MPN: 22573
                                                                                                                    TARGHETTA ORDINE ACCENSIONE
                                                                                                                    from £236.76
                                                                                                                    from £236.76
                                                                                                                    # 051
                                                                                                                    MPN: 1.85 X 3/16
                                                                                                                    CHIODO AUTOFILETTANTE FISSAGGIO TARGHETTA
                                                                                                                    # 052
                                                                                                                    MPN: 105557
                                                                                                                    STUD
                                                                                                                    from £0.82
                                                                                                                    from £0.82
                                                                                                                    # 053
                                                                                                                    MPN: 22108
                                                                                                                    SEAL
                                                                                                                    from £16.35
                                                                                                                    from £16.35
                                                                                                                    # 054
                                                                                                                    MPN: 19303
                                                                                                                    SUPPORT
                                                                                                                    from £1.50
                                                                                                                    from £1.50
                                                                                                                    # 055
                                                                                                                    MPN: 95920109
                                                                                                                    PRIGIONIERI FISSAGGIO SUPPORTO REGISTRO
                                                                                                                    # 056
                                                                                                                    MPN: 12601279
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                    # 057
                                                                                                                    MPN: URAMA N/70
                                                                                                                    NUT
                                                                                                                    # 058
                                                                                                                    MPN: 19036
                                                                                                                    REGISTRO CAVO BOWDEN
                                                                                                                    # 059
                                                                                                                    MPN: 103181
                                                                                                                    NUT
                                                                                                                    from £1.94
                                                                                                                    from £1.94
                                                                                                                    This part replaces part number 95209 - and 1 more. Click to view details
