009 - Exhaust Manifolds, Silencers & Extensions

Ferrari 330 GT 2+2 Exhaust Manifolds, Silencers & Extensions Parts Diagram

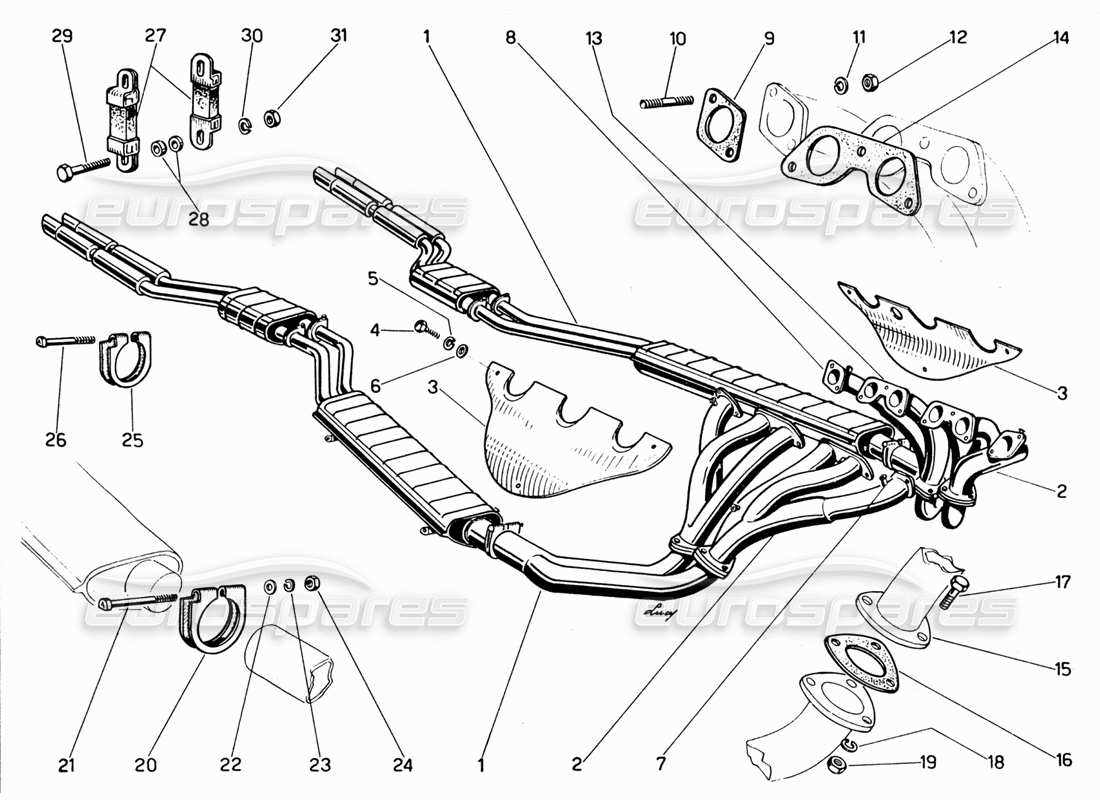

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 002
                                                          MPN: 20308

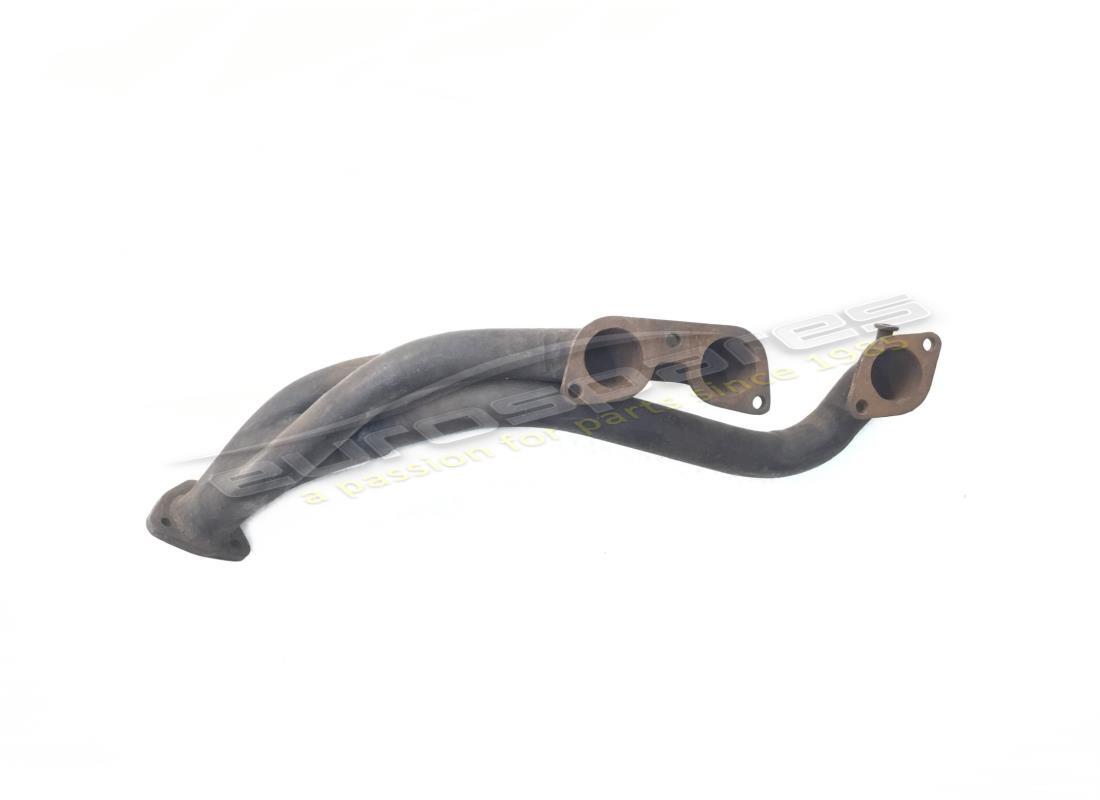

                                                          LH FRONT MANIFOLD
                                                          from £995.00
                                                          from £995.00
                                                          # 003
                                                          MPN: 20277
                                                          PARATIE PER COLLETTORI SCARICO
                                                          # 004
                                                          MPN: UNI 187
                                                          BULLONI FISSAGGIO PARATIE COLLETTORI
                                                          # 005
                                                          MPN: 12643701
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                          # 006
                                                          MPN: 6 R 4
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 007
                                                          MPN: 20227
                                                          BUSH
                                                          Supersession
                                                          Supersession
                                                          # 008
                                                          MPN: 20241
                                                          SIMPLE FLANGE CONNECTION Tubi EXHAUST
                                                          from £489.48
                                                          from £489.48
                                                          # 009
                                                          MPN: 147630
                                                          MANIFOLD GASKET
                                                          (replaces: 102015)
                                                          from £14.52
                                                          from £14.52
                                                          This part replaces part number 10-20-15
                                                          # 010
                                                          MPN: P 2
                                                          STUD
                                                          Supersession
                                                          Supersession
                                                          # 011
                                                          MPN: 127496
                                                          WASHER
                                                          from £0.51
                                                          from £0.51
                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                          # 012
                                                          MPN: 94803
                                                          NUT
                                                          from £8.34
                                                          from £8.34
                                                          # 013
                                                          MPN: 20275/A
                                                          FLANGIA DOPPIA ATTACCO COLLETTORI SCARICO
                                                          # 014
                                                          MPN: 147631
                                                          GASKET OR SEAL
                                                          from £9.59
                                                          from £9.59
                                                          This part replaces part number 10-20-17
                                                          # 015
                                                          MPN: 20270/B
                                                          FLANGIA TRIANGOLARE SUL COLLETTORE SCARICO
                                                          # 016
                                                          MPN: 20268
                                                          GASKET
                                                          55 mm Hole to Hole
                                                          from £19.17
                                                          from £19.17
                                                          # 016
                                                          MPN: 20268/A
                                                          GASKET
                                                          60mm Hole to Hole
                                                          from £13.60
                                                          from £13.60
                                                          # 017
                                                          MPN: B2
                                                          BOLT
                                                          Supersession
                                                          Supersession
                                                          # 018
                                                          MPN: 8R4
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 019
                                                          MPN: 94803
                                                          NUT
                                                          from £8.34
                                                          from £8.34
                                                          # 020
                                                          -
                                                          FASCETTA PER FISSAGGIO COLLETTORI ALLE PROLUNGHE
                                                          # 021
                                                          -
                                                          BOLT
                                                          # 022
                                                          MPN: 127496
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                          # 023
                                                          -
                                                          WASHER
                                                          # 024
                                                          MPN: 94803
                                                          NUT
                                                          from £8.34
                                                          from £8.34
                                                          # 025
                                                          -
                                                          FASCETTA INTERMEDIA PER PROLUNGHE SCARICO
                                                          # 026
                                                          -
                                                          BOLT
                                                          # 027
                                                          MPN: 101497
                                                          EXHAUST STRAP
                                                          not as spare part - use part number: 101497
                                                          from £6.61
                                                          from £6.61
                                                          This part replaces part number 20180 - and 1 more. Click to view details
                                                          # 028
                                                          MPN: 20181 A-4
                                                          DISTANZIALE PER SUPPORTO MARMITTE
                                                          # 029
                                                          MPN: UNI 183
                                                          BOLT
                                                          # 030
                                                          MPN: 6 R 4
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 031
                                                          MPN: 15896211
                                                          NUT
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 15896210
