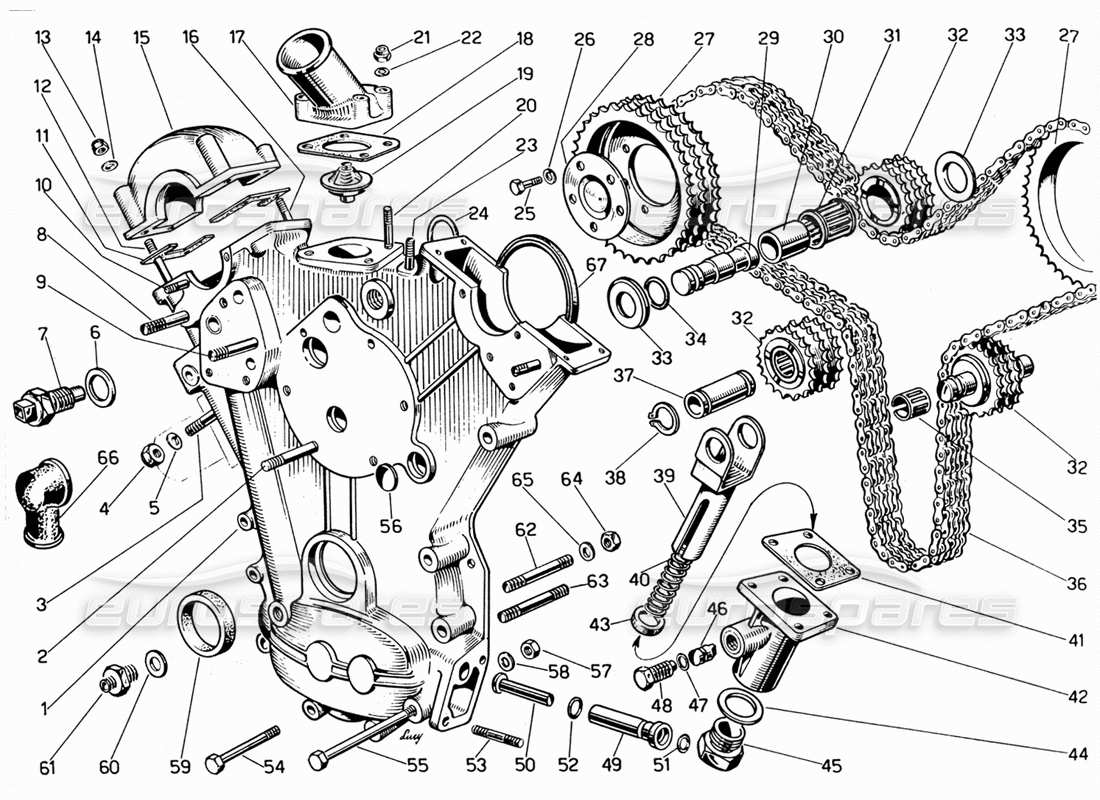

Ferrari 330 GT 2+2 Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Price
                                                                                                                                # 001
                                                                                                                                MPN: 22706
                                                                                                                                SCATOLA DISTRIBUZIONE
                                                                                                                                # 002
                                                                                                                                MPN: P 2
                                                                                                                                STUD
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 005
                                                                                                                                MPN: 12601279
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                                # 006
                                                                                                                                MPN: 10257060
                                                                                                                                GASKET OR SEAL
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                                # 007
                                                                                                                                MPN: 100453
                                                                                                                                OIL THERMISTOR
                                                                                                                                from £13.89
                                                                                                                                from £13.89
                                                                                                                                This part replaces part number 100345 - and 1 more. Click to view details
                                                                                                                                # 008
                                                                                                                                MPN: 94901
                                                                                                                                STUD
                                                                                                                                from £1.24
                                                                                                                                from £1.24
                                                                                                                                # 009
                                                                                                                                MPN: P 2
                                                                                                                                STUD
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 010
                                                                                                                                MPN: 95920109
                                                                                                                                PRIGIONIERI FISSAGGIO SFIATI MOTORE ALLA SCATOLA
                                                                                                                                # 011
                                                                                                                                MPN: 17972
                                                                                                                                GASKET OR SEAL
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 012
                                                                                                                                MPN: 95920109
                                                                                                                                LONG THREADED STUD
                                                                                                                                # 014
                                                                                                                                MPN: 12601279
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                                # 015
                                                                                                                                MPN: 22709
                                                                                                                                BEARING CAP LEFT AND RIGHT
                                                                                                                                # 016
                                                                                                                                MPN: 95920109
                                                                                                                                SHORT THREADED STUD
                                                                                                                                # 017
                                                                                                                                MPN: 22761
                                                                                                                                UNION
                                                                                                                                from £250.18
                                                                                                                                from £250.18

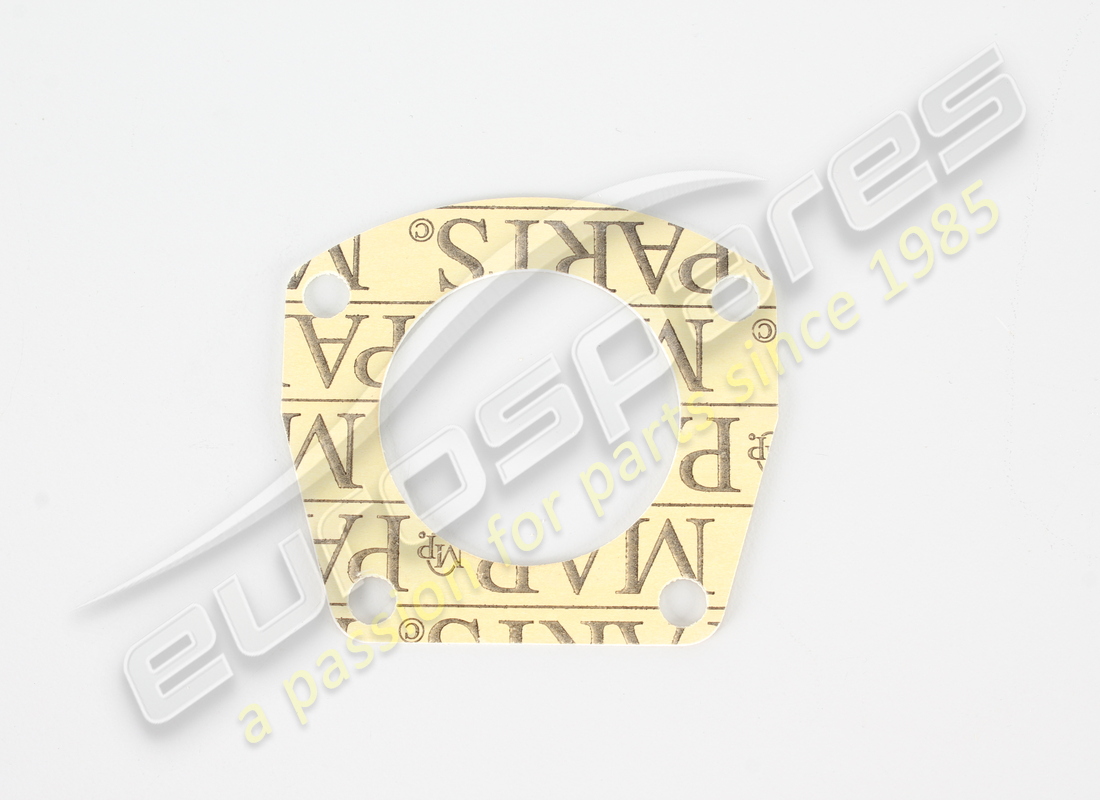

                                                                                                                                # 018
                                                                                                                                MPN: 22765
                                                                                                                                GASKET OR SEAL
                                                                                                                                from £3.58
                                                                                                                                from £3.58
                                                                                                                                # 019
                                                                                                                                MPN: 22777
                                                                                                                                TERMOSTATO MECANOSTAT
                                                                                                                                from £55.01
                                                                                                                                from £55.01
                                                                                                                                # 021
                                                                                                                                MPN: 100044
                                                                                                                                NUT
                                                                                                                                from £0.26
                                                                                                                                from £0.26
                                                                                                                                This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                                                # 022
                                                                                                                                MPN: 12601279
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                                # 024
                                                                                                                                MPN: 105557
                                                                                                                                SEAL
                                                                                                                                from £0.82
                                                                                                                                from £0.82
                                                                                                                                # 025
                                                                                                                                MPN: 92266
                                                                                                                                BOLT
                                                                                                                                from £23.45
                                                                                                                                from £23.45
                                                                                                                                # 026
                                                                                                                                MPN: 127496
                                                                                                                                WASHER
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                # 027
                                                                                                                                MPN: 22505
                                                                                                                                WHEEL ON CAMSHAFT
                                                                                                                                from £402.89
                                                                                                                                from £402.89
                                                                                                                                # 028
                                                                                                                                MPN: 22575
                                                                                                                                WHEEL RETAINING FLANGE ON THE SHAFT
                                                                                                                                from £66.44
                                                                                                                                from £66.44
                                                                                                                                # 029
                                                                                                                                MPN: 22716
                                                                                                                                PIVOT
                                                                                                                                from £40.45
                                                                                                                                from £40.45
                                                                                                                                # 030
                                                                                                                                MPN: 22717
                                                                                                                                BUSSOLA PER INGRANAGGIO GALOPPINO
                                                                                                                                from £96.28
                                                                                                                                from £96.28
                                                                                                                                # 031
                                                                                                                                MPN: 95893001
                                                                                                                                GABBIA A RULLI
                                                                                                                                from £12.99
                                                                                                                                from £12.99
                                                                                                                                # 032
                                                                                                                                MPN: 22710
                                                                                                                                INGRANAGGIO PER GALOPPINO E TENDICATENA
                                                                                                                                from £1,174.09
                                                                                                                                from £1,174.09
                                                                                                                                # 033
                                                                                                                                MPN: 22718
                                                                                                                                DISTANZIALE PER INGRANAGGIO GALOPPINO
                                                                                                                                from £94.89
                                                                                                                                from £94.89

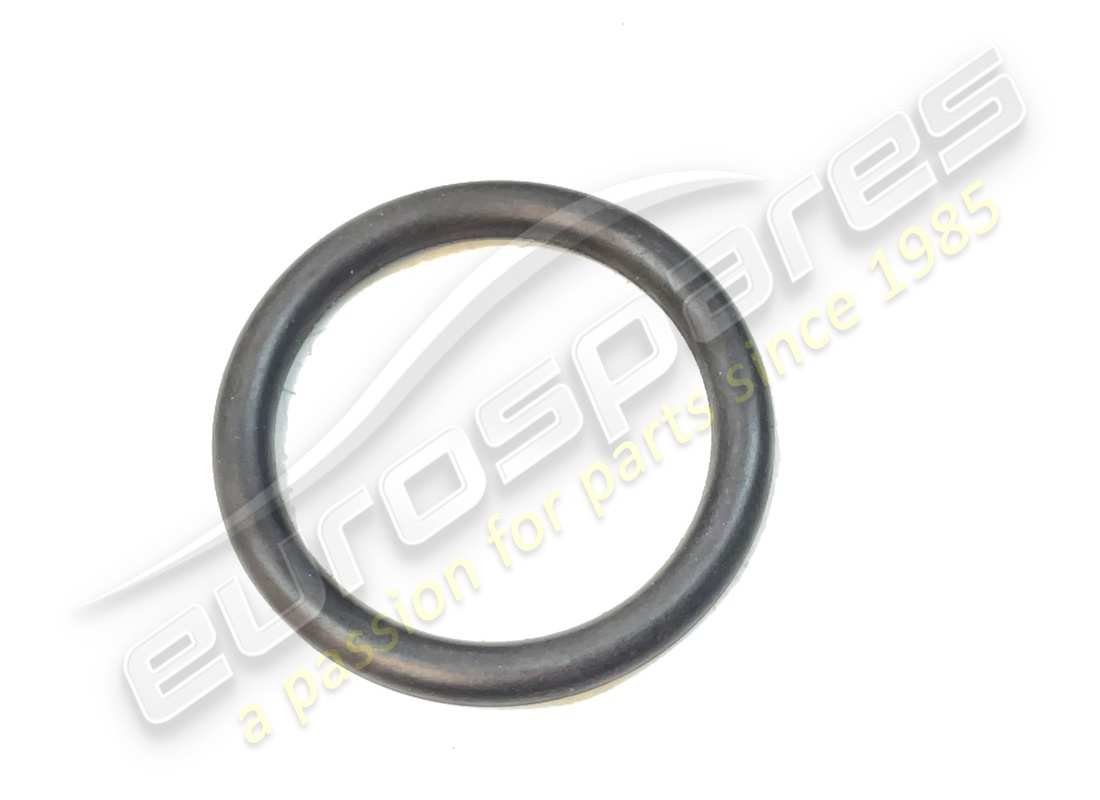

                                                                                                                                # 034
                                                                                                                                MPN: 105329
                                                                                                                                SEALING RING
                                                                                                                                from £1.45
                                                                                                                                from £1.45
                                                                                                                                # 035
                                                                                                                                MPN: 101591
                                                                                                                                RING
                                                                                                                                from £12.69
                                                                                                                                from £12.69

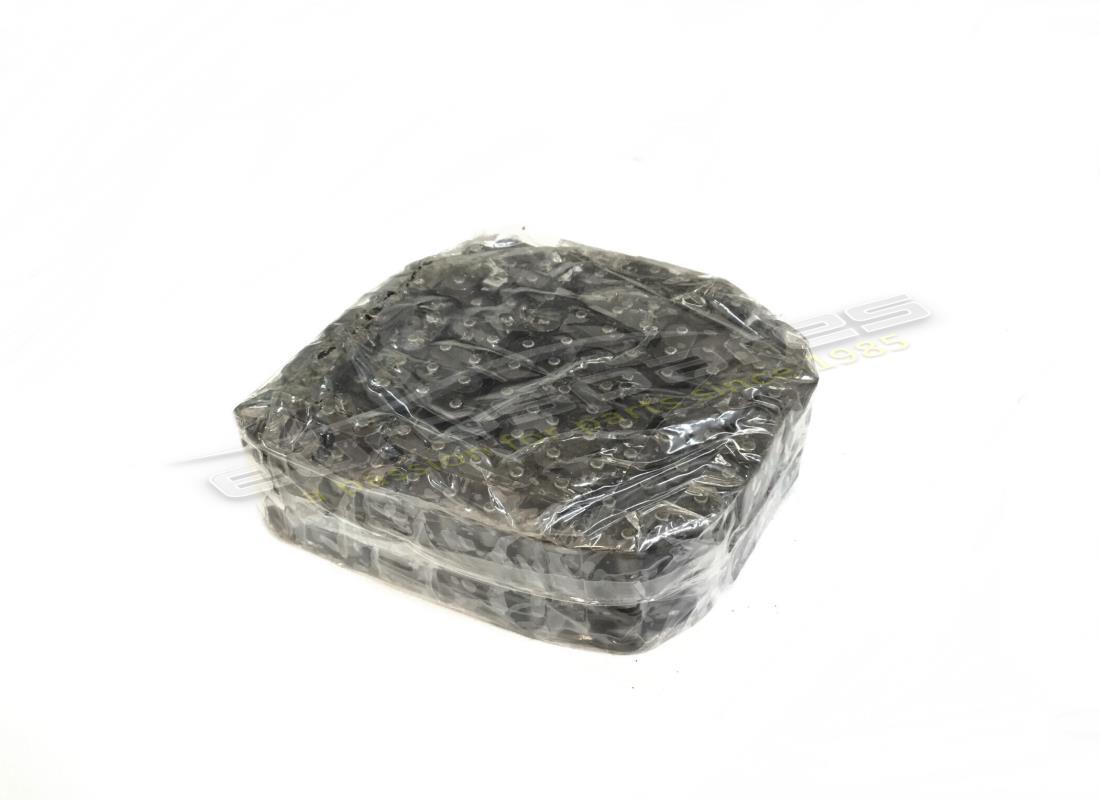

                                                                                                                                # 036
                                                                                                                                MPN: 22507
                                                                                                                                CATENA COMANDO DISTRIBUZIONE
                                                                                                                                (148 links)
                                                                                                                                from £435.66
                                                                                                                                from £435.66
                                                                                                                                # 037
                                                                                                                                MPN: 22712
                                                                                                                                PIVOT
                                                                                                                                from £87.98
                                                                                                                                from £87.98
                                                                                                                                # 039
                                                                                                                                MPN: 22715
                                                                                                                                CORPO TENDITORE
                                                                                                                                # 040
                                                                                                                                MPN: 22725
                                                                                                                                SPRING
                                                                                                                                from £11.42
                                                                                                                                from £11.42
                                                                                                                                # 041
                                                                                                                                MPN: 22713
                                                                                                                                GASKET OR SEAL
                                                                                                                                from £0.60
                                                                                                                                from £0.60
                                                                                                                                # 043
                                                                                                                                MPN: 22794
                                                                                                                                DISTANZIALE PER CORPO TENDITORE
                                                                                                                                from £5.34
                                                                                                                                from £5.34
                                                                                                                                # 044
                                                                                                                                MPN: 22724
                                                                                                                                GASKET OR SEAL
                                                                                                                                from £5.65
                                                                                                                                from £5.65
                                                                                                                                # 045
                                                                                                                                MPN: 22719
                                                                                                                                TAPPO PER TENDITORE
                                                                                                                                from £5.61
                                                                                                                                from £5.61
                                                                                                                                # 046
                                                                                                                                MPN: 22714
                                                                                                                                CUNEO BLOCCAGGIO TENDITORE
                                                                                                                                from £11.04
                                                                                                                                from £11.04
                                                                                                                                # 048
                                                                                                                                MPN: 94838
                                                                                                                                BOLT
                                                                                                                                from £5.55
                                                                                                                                from £5.55
                                                                                                                                # 050
                                                                                                                                MPN: 34380
                                                                                                                                PUNTALINO COMANDO POMPA MECCANICA
                                                                                                                                from £45.26
                                                                                                                                from £45.26
                                                                                                                                # 051
                                                                                                                                MPN: 95860041
                                                                                                                                SEAL
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 053
                                                                                                                                MPN: P 2
                                                                                                                                STUD
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 054
                                                                                                                                MPN: UNI 184
                                                                                                                                BOLT
                                                                                                                                # 055
                                                                                                                                MPN: UNI 184
                                                                                                                                BOLT
                                                                                                                                # 056
                                                                                                                                MPN: 10158700
                                                                                                                                EXPANSION PLUG
                                                                                                                                from £11.85
                                                                                                                                from £11.85
                                                                                                                                # 057
                                                                                                                                MPN: 95900412
                                                                                                                                NUT
                                                                                                                                from £6.36
                                                                                                                                from £6.36
                                                                                                                                This part replaces part number 92401
                                                                                                                                # 058
                                                                                                                                MPN: 8R 5
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 059
                                                                                                                                MPN: 95850302
                                                                                                                                SEALING RING
                                                                                                                                from £25.77
                                                                                                                                from £25.77
                                                                                                                                # 059
                                                                                                                                MPN: MIM 4056
                                                                                                                                SEALING RING
                                                                                                                                not as spare part - use part number: 95850302
                                                                                                                                # 060
                                                                                                                                MPN: 93353
                                                                                                                                GASKET OR SEAL
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 061
                                                                                                                                MPN: 94844
                                                                                                                                UNION
                                                                                                                                from £1.92
                                                                                                                                from £1.92
                                                                                                                                # 062
                                                                                                                                MPN: P 2
                                                                                                                                LONG THREADED STUD
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 063
                                                                                                                                MPN: P 2
                                                                                                                                SHORT THREADED STUD
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 064
                                                                                                                                MPN: 95900412
                                                                                                                                NUT
                                                                                                                                from £6.36
                                                                                                                                from £6.36
                                                                                                                                This part replaces part number 92401
                                                                                                                                # 065
                                                                                                                                MPN: 8R 5
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 066
                                                                                                                                MPN: 10405385
                                                                                                                                COPRIMORSETTO
                                                                                                                                from £2.50
                                                                                                                                from £2.50
                                                                                                                                This part replaces part number 100285 - and 2 more. Click to view details
                                                                                                                                # 067
                                                                                                                                MPN: 22108
                                                                                                                                GASKET OR SEAL
                                                                                                                                from £16.35
                                                                                                                                from £16.35
                                                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
