Ferrari 330 GT 2+2 Water Pump and Fan Parts Diagram

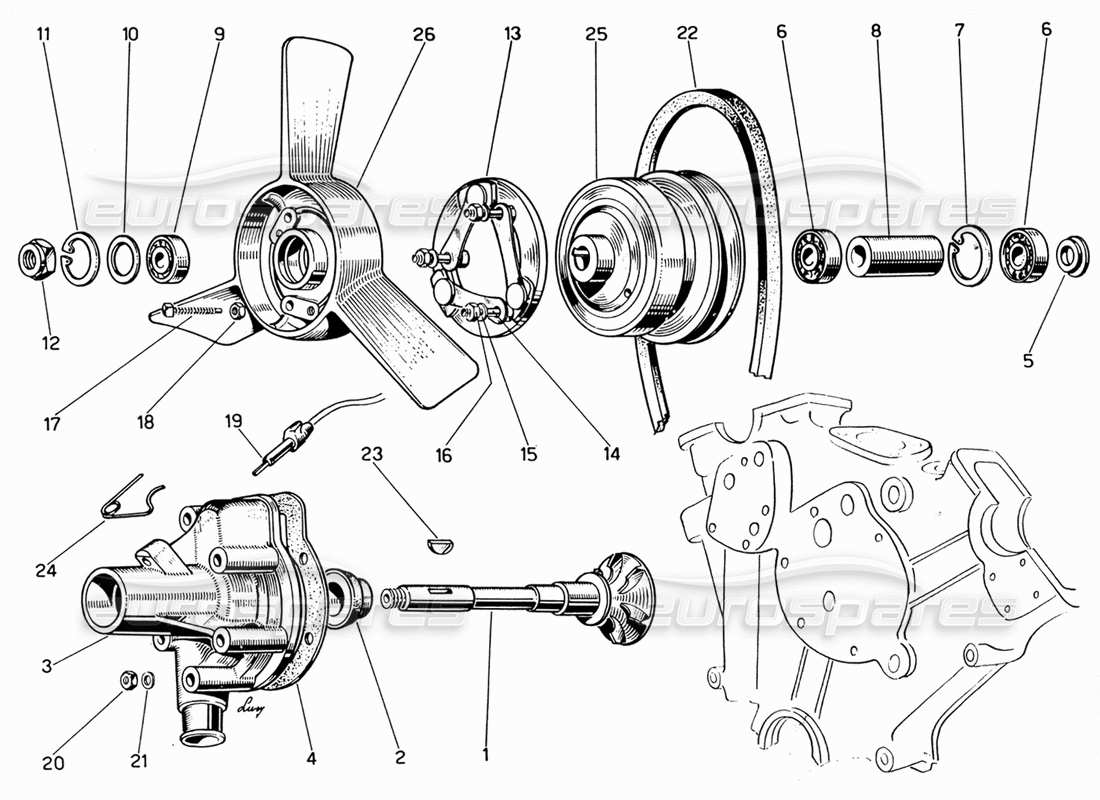

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 26508
                                                    COMPLESSIVO ALBERO-GIRANTE POMPA ACQUA
                                                    from £738.93
                                                    from £738.93
                                                    # 002
                                                    MPN: 95850601
                                                    WATER PUMP SEAL
                                                    from £83.16
                                                    from £83.16
                                                    # 003
                                                    MPN: 26541

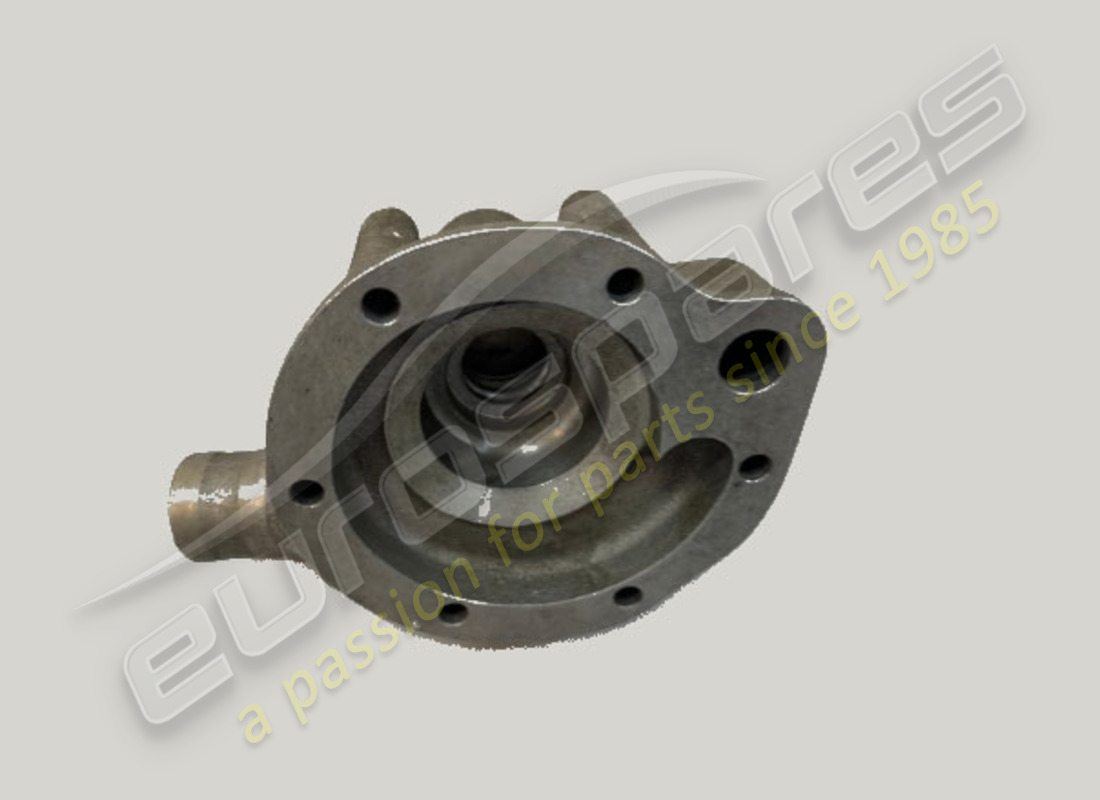

                                                    CORPO POMPA ACQUA
                                                    from £1,702.37
                                                    from £1,702.37
                                                    # 004
                                                    MPN: 26547

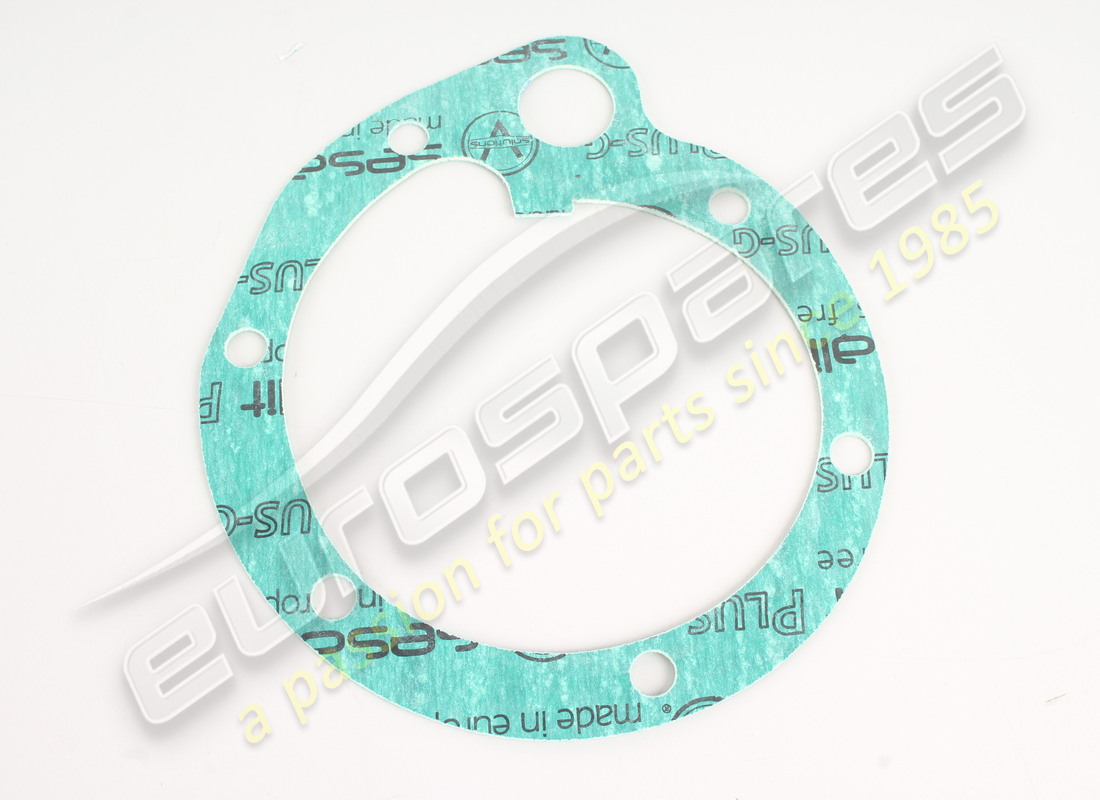

                                                    GASKET OR SEAL
                                                    from £9.10
                                                    from £9.10
                                                    # 005
                                                    MPN: 26544
                                                    WASHER
                                                    from £16.50
                                                    from £16.50
                                                    # 006
                                                    MPN: 95890200
                                                    BEARING
                                                    Supersession
                                                    Supersession
                                                    # 007
                                                    MPN: AA 35 I
                                                    SEEGER RING
                                                    # 008
                                                    MPN: 26545
                                                    DISTANZIALE FRA I CUSCINETTI
                                                    from £12.87
                                                    from £12.87
                                                    # 009
                                                    MPN: 95890200
                                                    BEARING
                                                    Supersession
                                                    Supersession
                                                    # 010
                                                    MPN: 36095
                                                    DISTANZIALE PER CUSCINETTI VENTOLA
                                                    from £1.39
                                                    from £1.39
                                                    # 011
                                                    MPN: AA 35 I
                                                    SEEGER RING
                                                    # 012
                                                    MPN: 94699
                                                    NUT
                                                    from £1.85
                                                    from £1.85
                                                    # 013
                                                    MPN: 901-0
                                                    COMPLESSIVO ARMATURA (BORLETTI)
                                                    # 014
                                                    MPN: UNI 183
                                                    BOLT
                                                    # 015
                                                    MPN: 22708
                                                    NUT
                                                    from £20.23
                                                    from £20.23
                                                    # 016
                                                    MPN: 103044
                                                    WASHER
                                                    from £5.19
                                                    from £5.19
                                                    # 018
                                                    MPN: 22708
                                                    NUT
                                                    from £20.23
                                                    from £20.23
                                                    # 019
                                                    MPN: 4161898
                                                    COMPLESSIVO PORTA CARBONCINO CON CAVO (BORLETTI)
                                                    from £30.14
                                                    from £30.14
                                                    # 020
                                                    MPN: 100044
                                                    NUT
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 151230
                                                    # 021
                                                    MPN: 12601279
                                                    WASHER
                                                    from £0.52
                                                    from £0.52
                                                    This part replaces part number 12601271 - and 2 more. Click to view details
                                                    # 022
                                                    MPN: 22735
                                                    CINGHIA TRAPEZOIDALE (PIRELLI 60292)
                                                    from £22.78
                                                    from £22.78
                                                    # 023
                                                    MPN: L 2
                                                    Linguetta sull'albero
                                                    # 025
                                                    MPN: 800
                                                    PULEGGIA CON ELETTROMAGNETE (BORLETTI)
                                                    from £92.38
                                                    from £92.38
                                                    # 026
                                                    -
                                                    RELAY PER MOTORINO 33232 - 12 V
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 1043
                                                    SISTEMAZIONE MOTORINO
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 123-42
                                                    N. DISEGNO MOTORINO
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36098
                                                    FLANGIA SUL MOTORE ATTACCO PALE
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36099
                                                    CONTROPIASTRA
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36112
                                                    SUPPORT
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36113
                                                    TIE ROD
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36114
                                                    FASCETTA PER TIRANTE SUPPORTO MOTORINO
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36116
                                                    VENTOLA
                                                    Ventilatore supplementare (LUCAS)
                                                    # 026
                                                    MPN: 36211
                                                    VENTOLA A 6 PALE
                                                    from £222.26
                                                    from £222.26
                                                    # 026
                                                    MPN: G C
                                                    Motorino - lucas (n. 2000/1' - 36 Watt)
                                                    Ventilatore supplementare (LUCAS)
