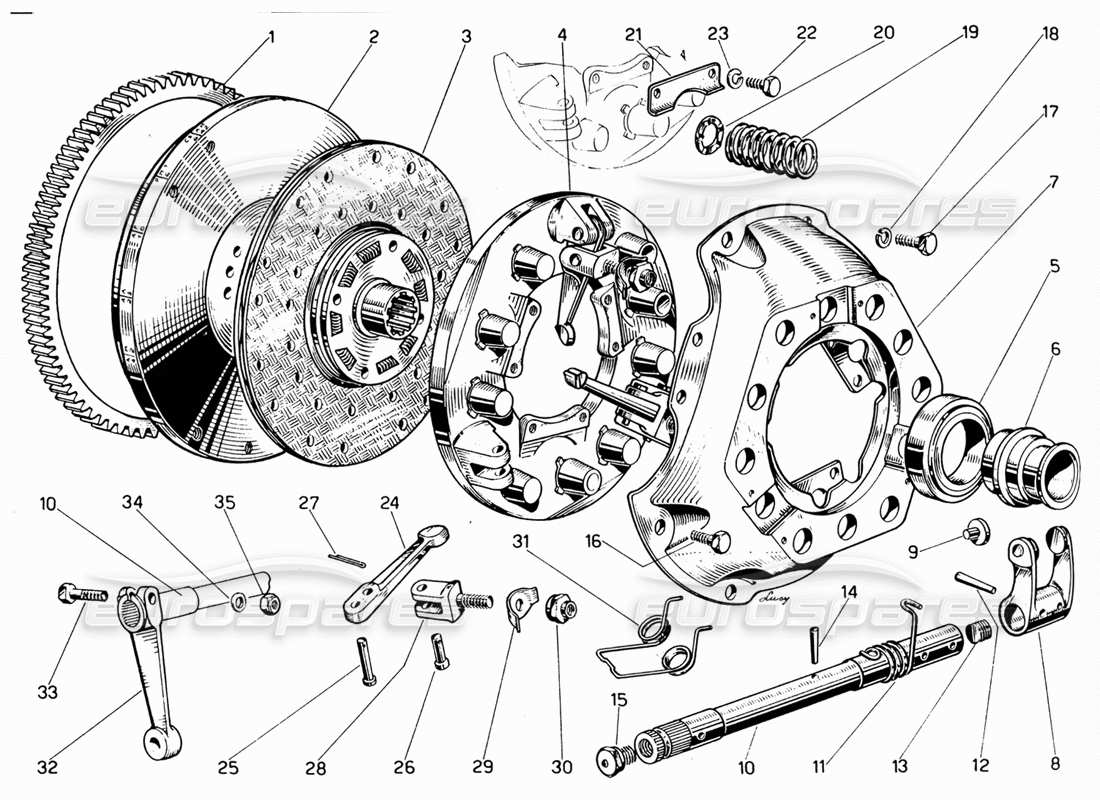

Ferrari 330 GT 2+2 Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 000
                                                                  MPN: 95500003/A

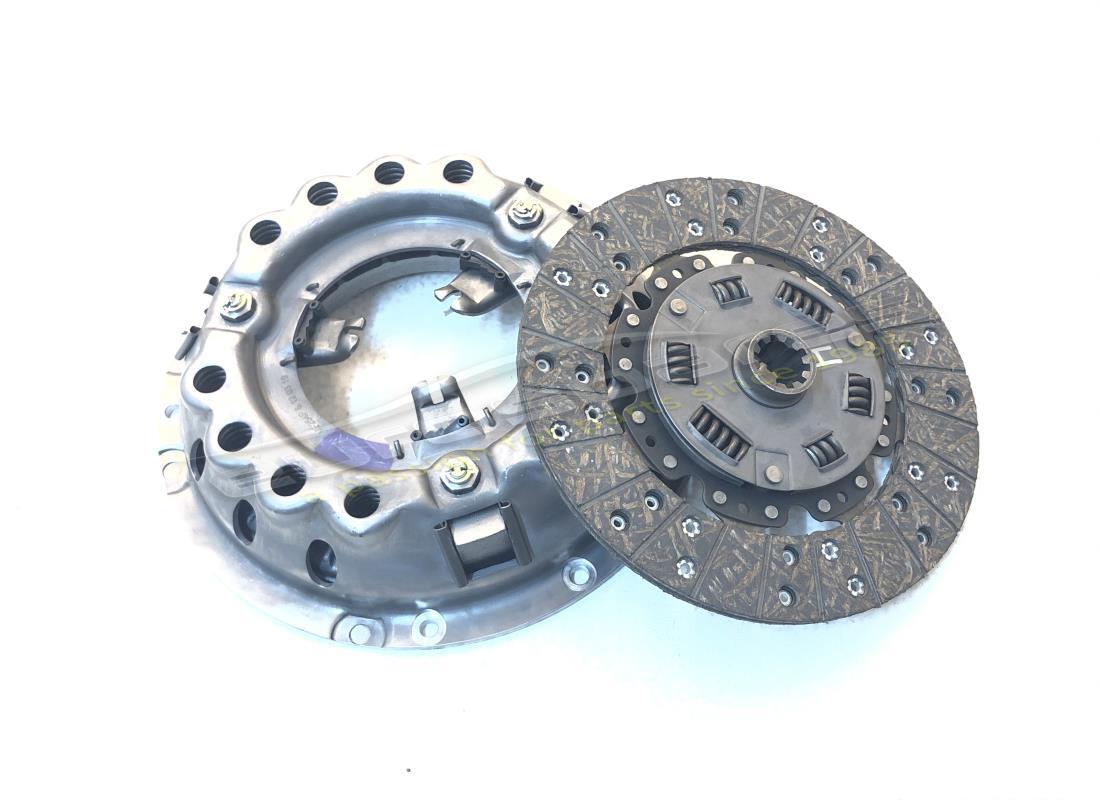

                                                                  CLUTCH KIT
                                                                  from £1,207.50
                                                                  from £1,207.50
                                                                  # 001
                                                                  MPN: 12480
                                                                  CORONA PER VOLANO MOTORE
                                                                  Supersession
                                                                  Supersession
                                                                  # 002
                                                                  MPN: 12478
                                                                  VOLANO MOTORE
                                                                  Supersession
                                                                  Supersession
                                                                  # 003
                                                                  MPN: 95500016

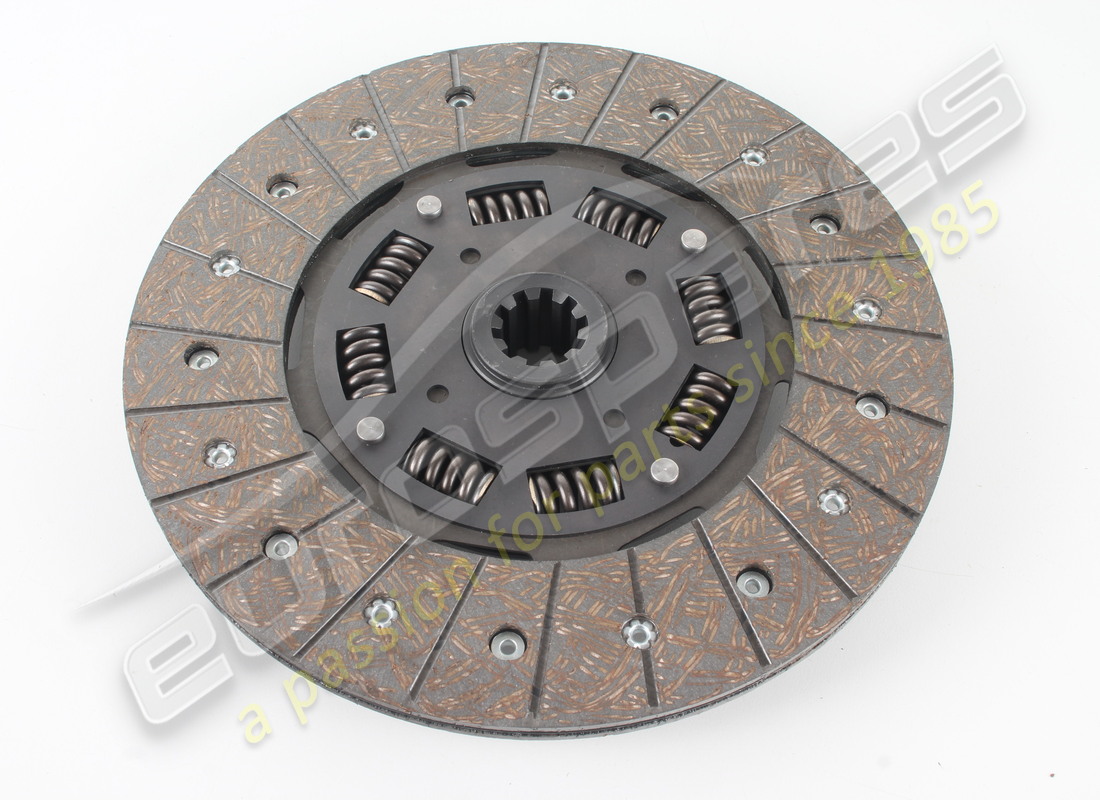

                                                                  CLUTCH DISC
                                                                  use on exhaustion of 201-001
                                                                  from £311.58
                                                                  from £311.58
                                                                  # 003
                                                                  MPN: 95500016
                                                                  DISCO FRIZIONE, MOLLE PARASTRAPPI E MOZZO
                                                                  from £311.58
                                                                  from £311.58
                                                                  # 004
                                                                  MPN: 188-001
                                                                  SPINGIDISCO, COPERCHIO E LEVETTE FRIZIONE
                                                                  USE 95500003
                                                                  # 004
                                                                  MPN: 95500003
                                                                  CLUTCH PRESSURE PLATE
                                                                  use on exhaustion of 188-001
                                                                  # 005
                                                                  MPN: 95892800
                                                                  CLUTCH RELEASE BEARING
                                                                  use on exhaustion of 107-000
                                                                  from £206.00
                                                                  from £206.00
                                                                  # 006
                                                                  MPN: 50817
                                                                  BUSSOLA PORTA CUSCINETTO
                                                                  Supersession
                                                                  Supersession
                                                                  # 007
                                                                  -
                                                                  COVER
                                                                  # 007
                                                                  MPN: 95500003
                                                                  CLUTCH PRESSURE PLATE
                                                                  use on exhaustion of 188-001
                                                                  # 008
                                                                  MPN: 50818
                                                                  LEVER
                                                                  from £1,092.90
                                                                  from £1,092.90
                                                                  # 009
                                                                  MPN: 50366
                                                                  PASTIGLIA PER LEVA INTERNA
                                                                  from £46.22
                                                                  from £46.22
                                                                  # 010
                                                                  MPN: 50548
                                                                  ALBERINO COMANDO FRIZIONE
                                                                  from £501.00
                                                                  from £501.00
                                                                  # 011
                                                                  MPN: 50784
                                                                  SPRING
                                                                  from £44.08
                                                                  from £44.08
                                                                  # 012
                                                                  MPN: UNIM 129
                                                                  PIN
                                                                  # 013
                                                                  MPN: 94832
                                                                  TAPPO CHIUSURA ALBERO COMANDO FRIZIONE
                                                                  # 014
                                                                  MPN: UNIM 129
                                                                  PIN
                                                                  # 015
                                                                  MPN: 92449
                                                                  INGRASSATORE PER ALBERO COMANDO FRIZIONE
                                                                  from £8.85
                                                                  from £8.85
                                                                  # 016
                                                                  MPN: B2
                                                                  BOLT
                                                                  Supersession
                                                                  Supersession
                                                                  # 017
                                                                  MPN: 94859
                                                                  BOLT
                                                                  from £50.65
                                                                  from £50.65
                                                                  This part replaces part number 50801
                                                                  # 018
                                                                  MPN: 8R4
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 019
                                                                  -
                                                                  SPRING
                                                                  # 020
                                                                  -
                                                                  WASHER
                                                                  # 021
                                                                  -
                                                                  SQUADRA PER FISSAGGIO SPINGIDISCO AL COPERCHIO
                                                                  # 022
                                                                  -
                                                                  BOLT
                                                                  # 023
                                                                  -
                                                                  WASHER
                                                                  # 024
                                                                  -
                                                                  LEVER
                                                                  # 025
                                                                  -
                                                                  PIVOT
                                                                  # 026
                                                                  -
                                                                  PIVOT
                                                                  # 027
                                                                  -
                                                                  COPIGLIA PER DETTO
                                                                  # 028
                                                                  -
                                                                  FORK
                                                                  # 029
                                                                  -
                                                                  PLATE
                                                                  # 030
                                                                  -
                                                                  NUT
                                                                  # 031
                                                                  -
                                                                  SPRING
                                                                  # 032
                                                                  MPN: 660113
                                                                  LEVER
                                                                  from £85.16
                                                                  from £85.16
                                                                  # 033
                                                                  MPN: UNI 784
                                                                  BOLT
                                                                  # 034
                                                                  MPN: 8R4
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 035
                                                                  MPN: 95900412
                                                                  NUT
                                                                  from £6.36
                                                                  from £6.36
                                                                  This part replaces part number 92401
