Ferrari 330 GT 2+2 Transmission Shaft Parts Diagram

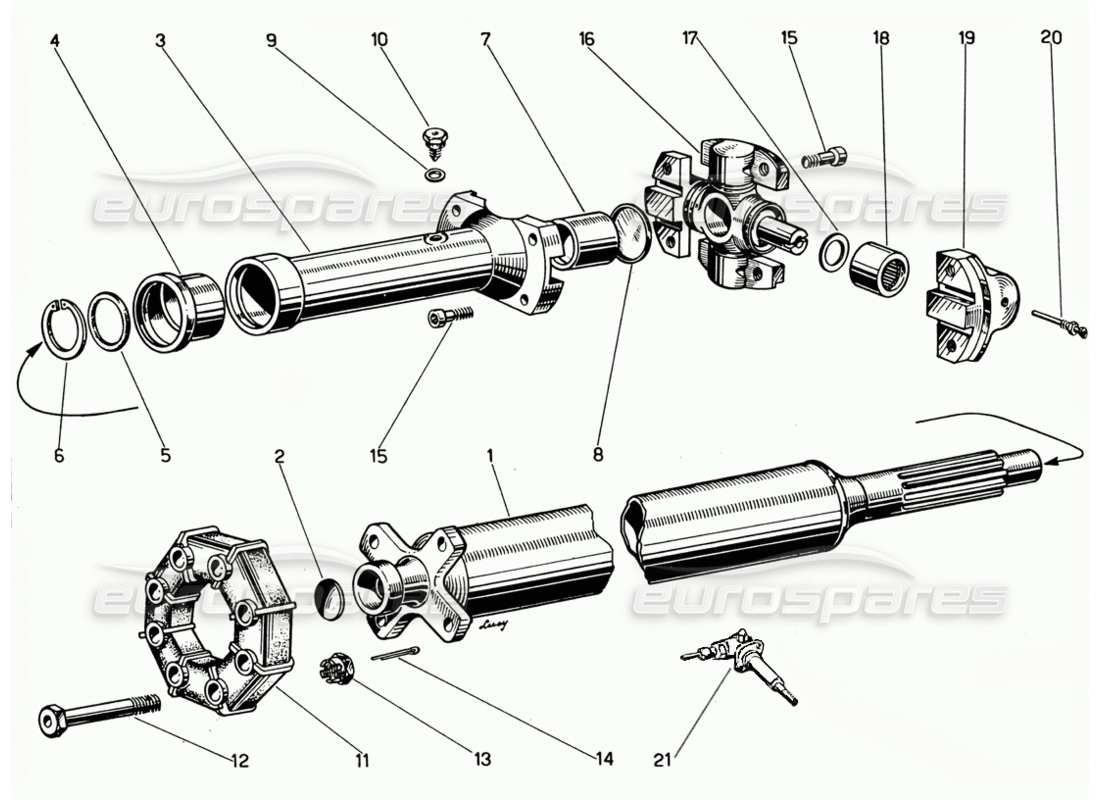

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 972
ALBERO DI TRASMISSIONE (COMPLESSIVO)
# 002
MPN: 10158700
TAPPO ESPANSIONE PER ESTREMITA TUBO
from £11.85
from £11.85
# 003
MPN: 560009
M ANICOTTO PER ALBERO SCORREVOLE
from £658.14
from £658.14
# 004
MPN: 57312
BUSH
# 005
MPN: 104535
SEALING RING
from £0.79
from £0.79
This part replaces part number 4125
# 006
MPN: A A 43 I
SEEGER RING
# 007
MPN: 57313
BUSH
# 008
MPN: Te 35
EXPANSION PLUG
# 009
MPN: 94774
WASHER
# 010
MPN: 92449
INGRASSATORE PER MANICOTTO (8 X 1)
from £8.85
from £8.85
# 011
MPN: 560016

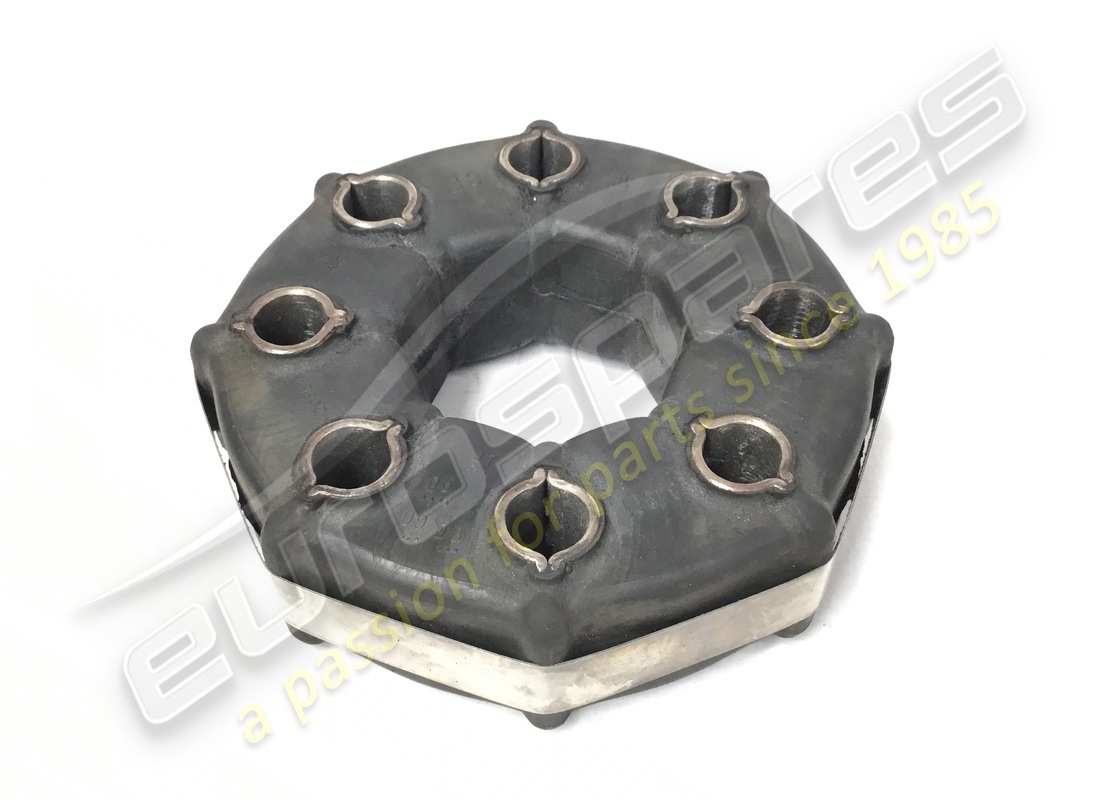

RUBBER MOUNT
(8 holes)
from £524.27
from £524.27
This part replaces part number 101644 - and 1 more. Click to view details
# 012
MPN: 560017
BOLT
from £69.89
from £69.89
# 013
MPN: 16 D 6
NUT
# 014
MPN: C I
COPIGLIA PER DETTO
# 015
MPN: 94823
SCREW
from £21.70
from £21.70
# 016
MPN: 56864
GIUNTO CARDANICO POSTERIORE
(100 mm)
from £600.98
from £600.98
# 017
-
WASHER
# 018
-
BUSH
# 019
-
ELEMENTO PORTA BOCCOLA CON RULLINI
# 020
-
SCREW
# 020
MPN: 573330
Flangia sull'o.v. per giunto SAGA -(Tav. 22 - Fig. 11)
# 021
MPN: 95400400
SPEEDO ANGLE DRIVE
from £1,170.52
from £1,170.52
