ferrari 330 gt 2+2 differential case parts diagram

024 - Differential Case

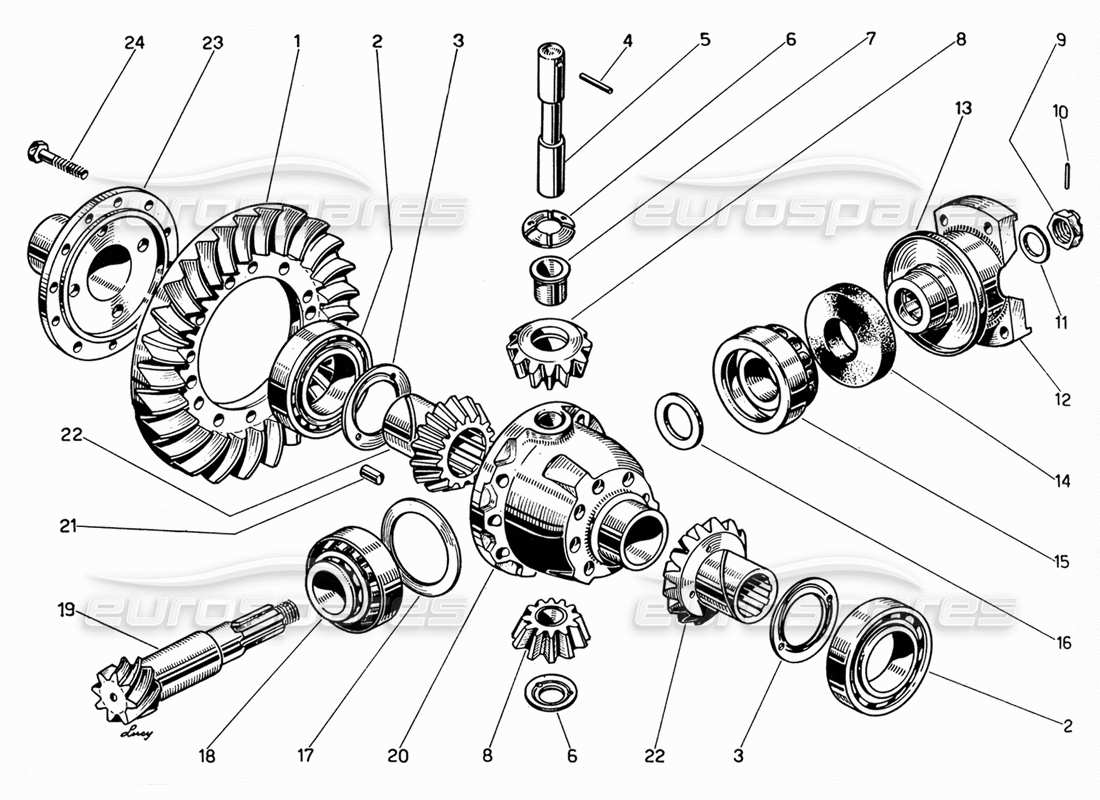

Ferrari 330 GT 2+2 Differential Case Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 59433
                                              CORONA PER COPPIA CONICA R-8 X 34
                                              Supersession
                                              Supersession
                                              # 002
                                              MPN: 368 A - 362 A
                                              CUSCINETTO PER SCATOLA DIFFERENZIALE A RULLI CONICI
                                              # 003
                                              MPN: 59108
                                              WASHER
                                              from £35.62
                                              from £35.62
                                              # 004
                                              MPN: 94625
                                              PIN
                                              from £1.64
                                              from £1.64
                                              # 006
                                              MPN: 59111
                                              SEDE PER SATELLITI
                                              from £15.49
                                              from £15.49
                                              # 007
                                              MPN: 59110
                                              BUSH
                                              from £54.64
                                              from £54.64
                                              # 008
                                              MPN: 59107
                                              SATELLITE PER DIFFERENZIALE R=12/17
                                              Supersession
                                              Supersession
                                              # 010
                                              MPN: C I
                                              COPIGLIA PER DADO FISSAGGIO FLANGIA
                                              # 012
                                              MPN: 580091
                                              FLANGIA PER GIUNTO DI TRASMISSIONE
                                              from £653.54
                                              from £653.54
                                              # 013
                                              MPN: 580086
                                              PROTEZIONE ANTIPOLVERE SCATOLA PONTE
                                              # 014

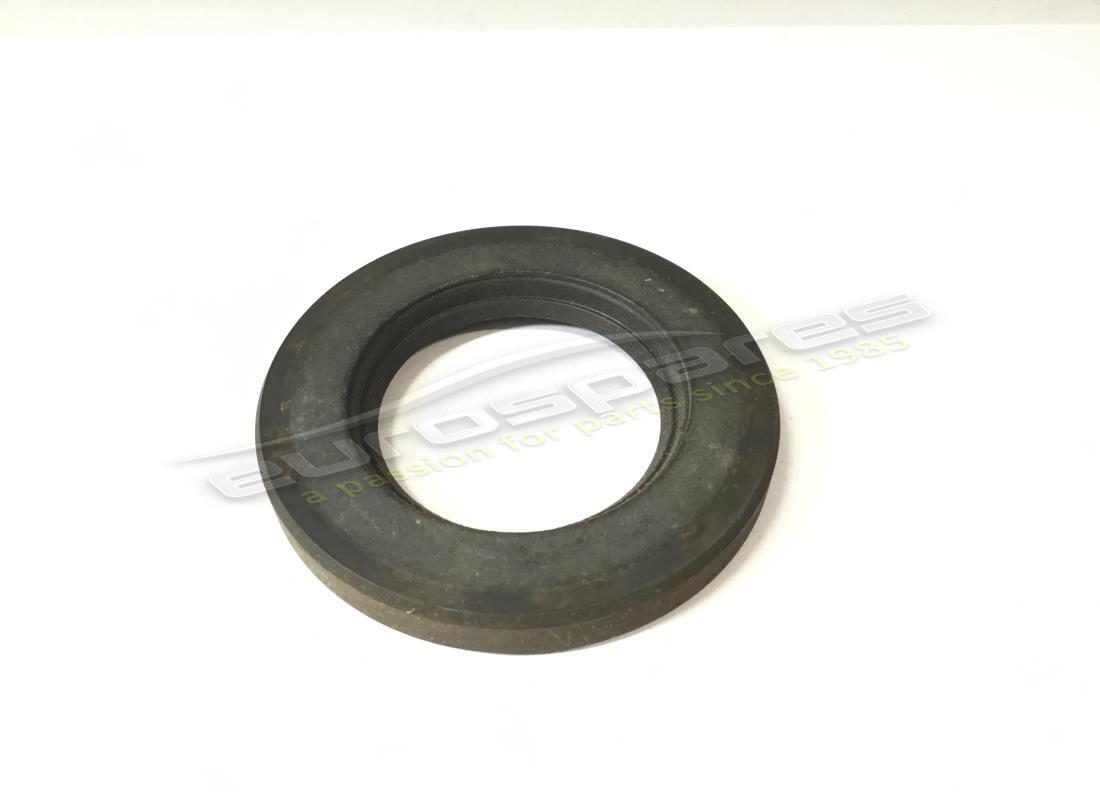

                                              MPN: 95850311
                                              SEALING RING
                                              42-72-10
                                              from £12.45
                                              from £12.45
                                              # 015
                                              MPN: 95890004
                                              CUSCINETTO ANTERIORE PIGNONE A RULLI CONICI
                                              from £24.78
                                              from £24.78
                                              # 016
                                              MPN: 580074
                                              DISTANZIALE FRA CUSCINETTO E PIGNONE
                                              from £4.06
                                              from £4.06
                                              # 017
                                              MPN: 580075
                                              DISTANZIALE FRA CUSCINETTO E SCATOLA PONTE
                                              from £5.72
                                              from £5.72
                                              # 018
                                              MPN: 95890006
                                              CUSCINETTO POSTERIORE PIGNONE A RULLI CONICI
                                              from £53.64
                                              from £53.64
                                              # 019
                                              MPN: 580068
                                              PIGNONE PER COPPIA CONICA R-8 X 34
                                              # 020
                                              MPN: 580082
                                              SCATOLA DIFFERENZIALE
                                              from £395.96
                                              from £395.96
                                              # 021
                                              MPN: 94267
                                              GRANO CENTRAGGLO COPERCHIO ALLA SCATOLA
                                              from £4.46
                                              from £4.46
                                              # 022
                                              MPN: 59463
                                              PLANETARIO DIFFERENZIALE R=12/17
                                              from £68.29
                                              from £68.29
                                              # 023
                                              MPN: 580077
                                              COVER
                                              from £115.42
                                              from £115.42
                                              # 024
                                              MPN: 580079
                                              (A RICHIESTA (DA COSTRUIRE))
                                              Pigone per coppia conica R = 9 x 34
                                              # 024
                                              MPN: 580090
                                              (A RICHIESTA (DA COSTRUIRE))
                                              Pigone per coppia conica R = 8 x 32
                                              # 024
                                              MPN: 59417
                                              (A RICHIESTA (DA COSTRUIRE))
                                              Corona per coppia conica R = 9 x 34
                                              # 024
                                              MPN: 59427
                                              BOLT
                                              from £12.33
                                              from £12.33
                                              # 024
                                              MPN: 59501
                                              (A RICHIESTA (DA COSTRUIRE))
                                              Corona per coppia conica R = 8 x 32
