032 - Double Brake Master Cylinder

Ferrari 330 GT 2+2 Double Brake Master Cylinder Parts Diagram

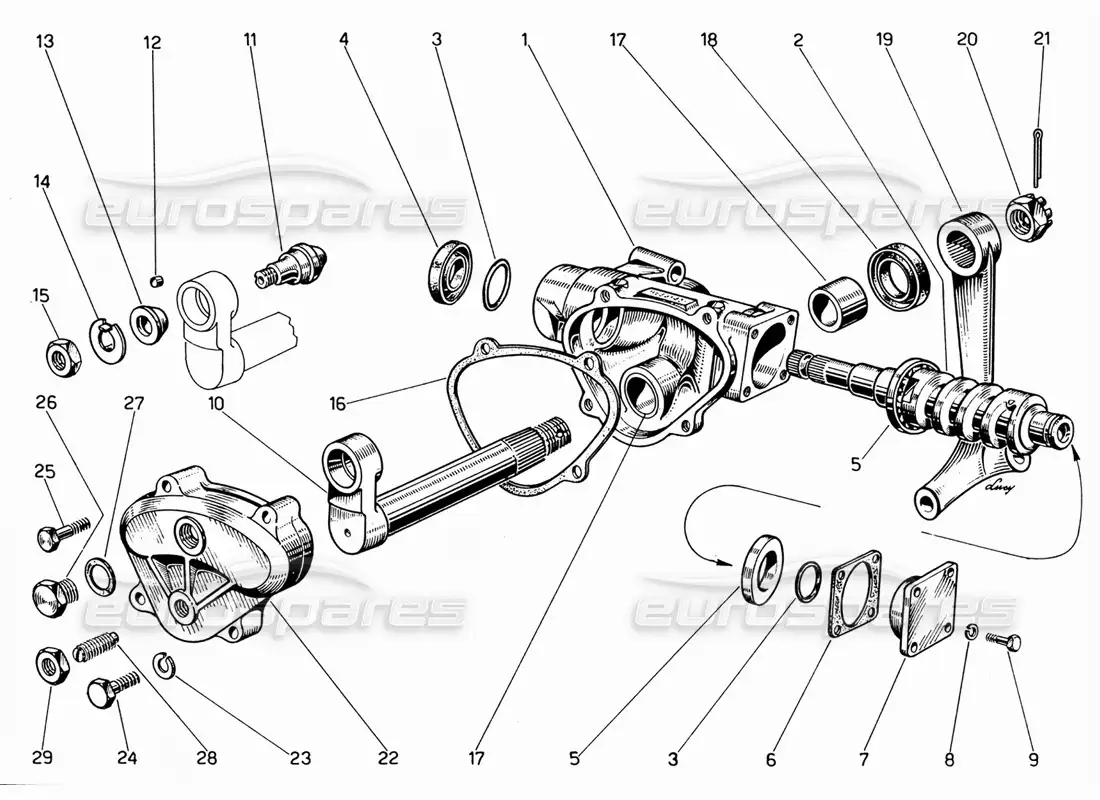

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 000
                                              MPN: 680053
                                              brake master cylinder
                                              Alternative use :004205397
                                              from £294.88
                                              from £294.88
                                              This part replaces part number 680043
                                              # 001
                                              MPN: 680043
                                              CORPO CILINDRO MAESTRO DA 1 DI F
                                              Supersession
                                              Supersession
                                              This part replaces part number 680053
                                              # 002
                                              MPN: 812877
                                              GASKET OR SEAL
                                              # 003
                                              MPN: 680045
                                              TAPPO PER CORPO CILINDRO
                                              from £0.47
                                              from £0.47
                                              # 005
                                              MPN: BE 154
                                              INTERRUTTORE PRESTOP
                                              # 006
                                              MPN: 95860402
                                              CAPPUCCIO PROTEZIONE PRESTOP
                                              # 007
                                              MPN: 4035557
                                              CAPPUCCIO DI PROTEZIONE
                                              # 009
                                              MPN: 858995
                                              G UIDA PER PERNO
                                              # 010
                                              MPN: 4115453
                                              RING
                                              (replaces 4115453)
                                              from £2.89
                                              from £2.89
                                              This part replaces part number 660443/6 - and 1 more. Click to view details
                                              # 010
                                              MPN: 690465
                                              RING
                                              not as spare part - use part number: 4115453
                                              Supersession
                                              Supersession
                                              # 011
                                              MPN: 680049
                                              PORTA ANELLO LATO FLANGIA
                                              # 012
                                              MPN: 680050
                                              DISTANZIALE APPOGGIO ANELLO ELASTICO
                                              # 013
                                              MPN: 680046
                                              SCODELLINO PER MOLLA
                                              from £1.05
                                              from £1.05
                                              # 014
                                              MPN: 680045
                                              SPRING
                                              from £0.47
                                              from £0.47
                                              # 015
                                              MPN: 680051
                                              WASHER
                                              from £3.30
                                              from £3.30
                                              # 016
                                              MPN: 680048
                                              PORTA ANELLO LATO TAPPO
                                              from £4.96
                                              from £4.96
                                              # 017
                                              MPN: 680047
                                              COMPLESSIVO MOLLA-SCODELLINO
                                              # 018
                                              MPN: 680052
                                              SCREW
                                              # 020
                                              MPN: 94385
                                              GASKET OR SEAL
                                              from £1.85
                                              from £1.85
                                              # 021
                                              MPN: 94904
                                              FEM MINA PER RACCORDO USCITA
                                              # 022
                                              MPN: 94756
                                              UNION
                                              Supersession
                                              Supersession
