003 - Front End body Panels (edition 1)

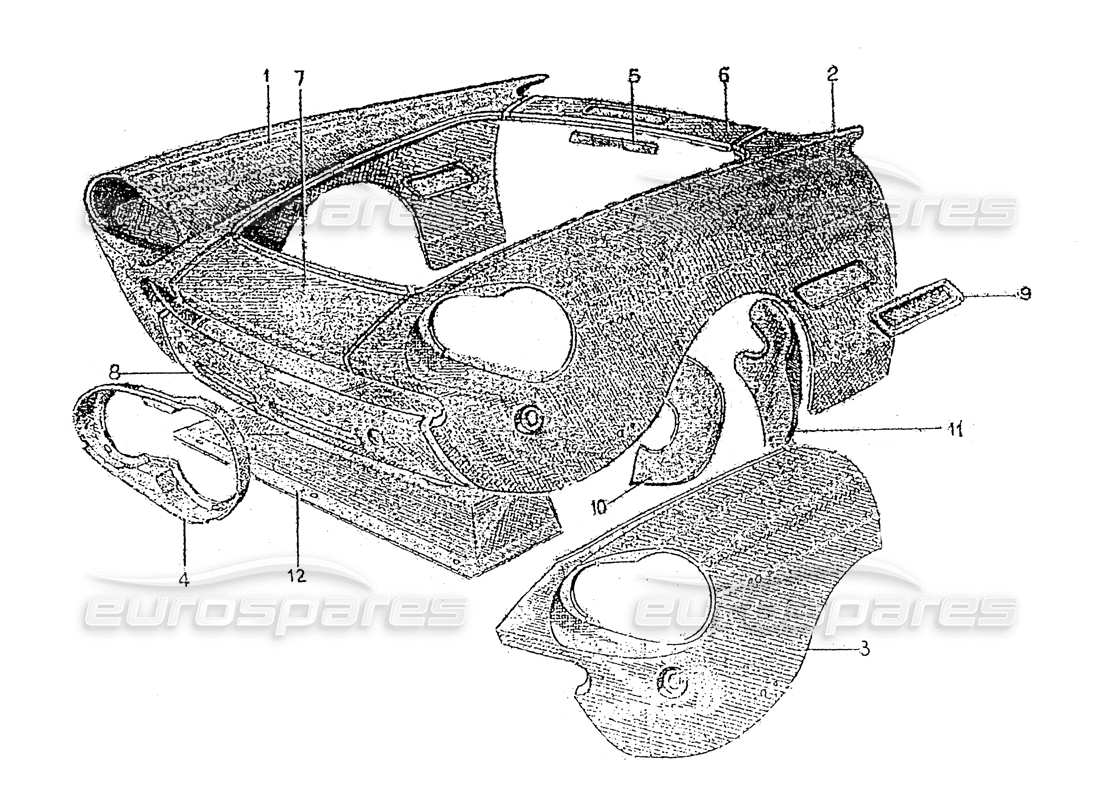

Ferrari 330 GT 2+2 (Coachwork) Front End body Panels (edition 1) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 242-18-000-07
FRONT END COMPLETE LHD
valid for LHD
from £10,395.00
from £10,395.00
# 000
MPN: 244-18-000-07
FRONT END COMPLETE
# 001
MPN: 242-18-040-07
RH FRONT WING
Valid / 330Gtmk1
from £1,649.65
from £1,649.65
# 002
MPN: 242-18-041-07
LH FRONT WING
Valid / 330Gtmk1
from £1,649.65
from £1,649.65
# 003
MPN: 242-18-042-07
RH QTR FRONT WING
from £806.72
from £806.72
# 003
MPN: 242-18-043-07
LH QTR FRONT WING
from £472.50
from £472.50
# 004
MPN: 242-18-060-01
RH HEADLAMP RING
# 004
MPN: 242-18-061-07

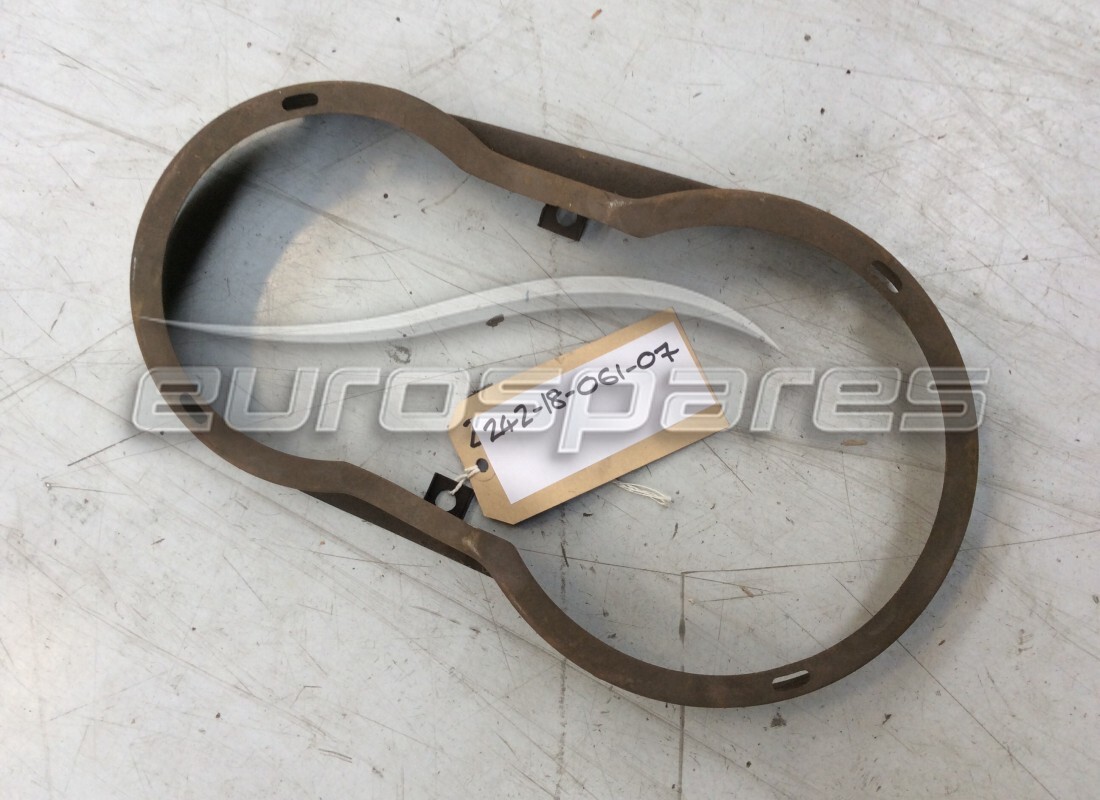

LH HEADLAMP RING
from £131.25
from £131.25
# 005
MPN: 242-18-140-07
RIPARO ACQUA ALLA PRESA ARIA SOTTO PARABREZZA
# 006
MPN: 242-18-150-07
RIVESTIMENTO SUPER.COFANO FISSO - GS
from £63.00
from £63.00
# 006
MPN: 244-18-150-07
RIVESTIMENTO SUP. COFANO FISSO -GD
# 007
MPN: 242-18-220-07
ELEMENTO SUPER. MUSONE ANTERIORE
from £682.50
from £682.50
# 008
MPN: 242-18-240-07

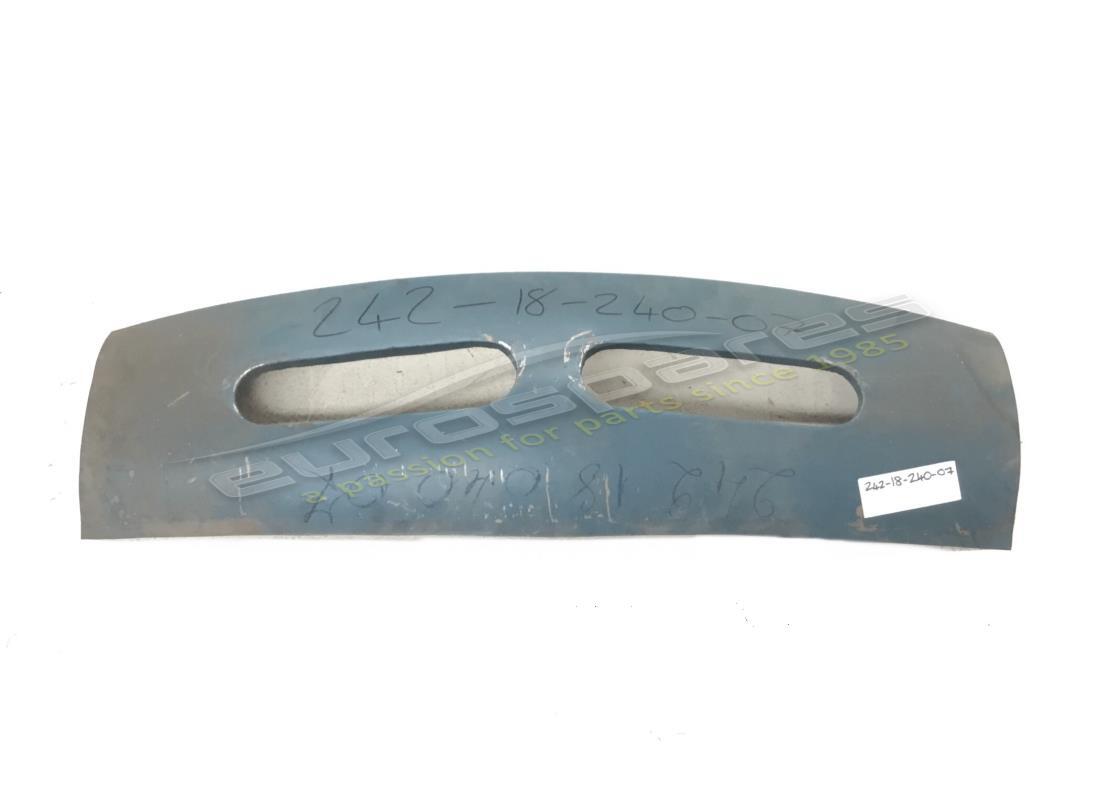

ELEMENTO INFER. MUSONE ANTERIORE
from £367.50
from £367.50
# 009
MPN: 242-18-800-07
PRESA ARIA SMONTABILE LATERALE D.
from £52.82
from £52.82
# 009
MPN: 242-18-801-07
PRESA ARIA SMONTABILE LATERALS S.
from £52.82
from £52.82
# 010
MPN: 242-18-820-07
PARASASSO ANTER. RUOTA ANTERIORE D.
P.V.N. 364
# 010
MPN: 242-18-821-07
PARASASSO ANTERIORE RUOTA ANTER. S.
P.V.N. 364
# 011
MPN: 242-18-852-07
PARASASSO POSTER. RUOTA ANTERIORE D.
# 011
MPN: 242-18-853-07
PARASASSO POSTER. RUOTA ANTERIORE S.
# 012
MPN: 242-18-880-07
BAVETTA SOTTO MUSONE
